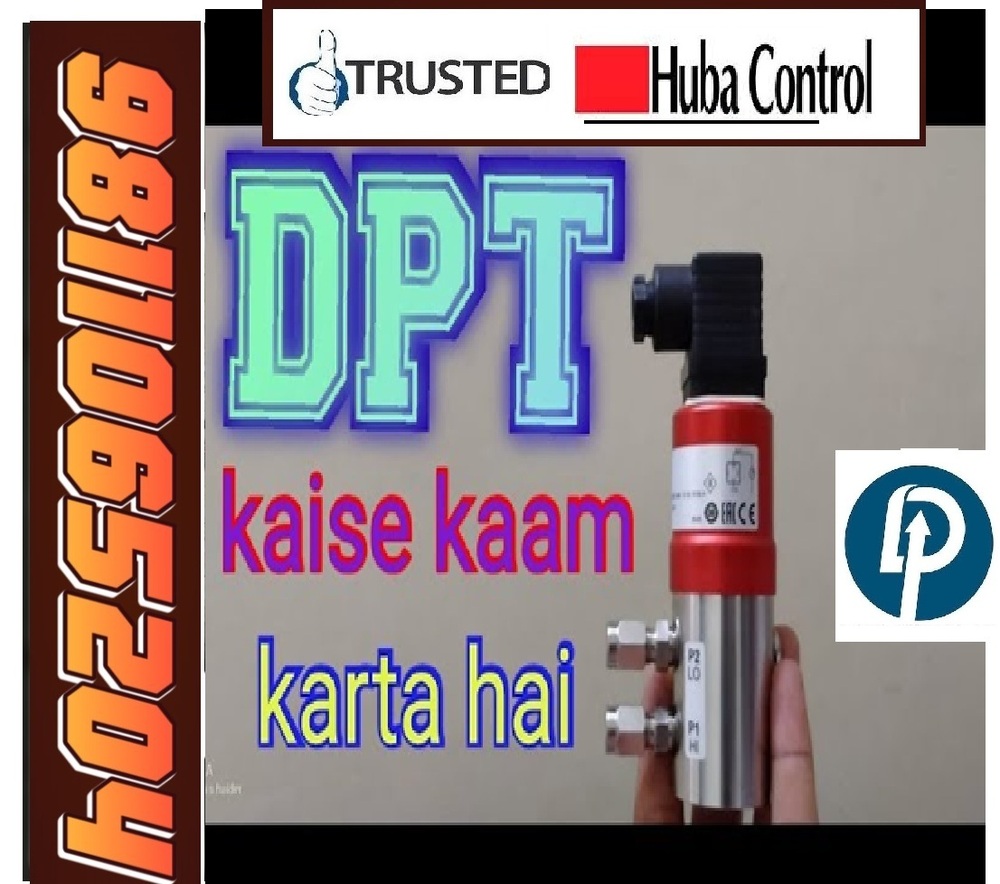

Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore

Name: Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore
Brand: D. P. ENGINEERS
Price: 35800 INR
Availability: InStock

Price 35800 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore Specification

Thread
1/4 inch NPT

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Material
Stainless Steel

Size
0 ... 0.1 - 25 bar

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore

Weight
450 Grams (g)

Mount Type
Panel

Color
Red

Scale Range
0 ... 0.1 - 25 bar

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD), Paypal, Cash on Delivery (COD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore

Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore
Huba Control | Pressure Transmitter / Differential Pressure Transmitter | Dpstar Group

Huba Control | Pressure Transmitter / Differential Pressure Transmitter | Dpstar Group

Brand : Huba Control
Model : 692.919007161
Range : 0...+6 BAR
Type : 692 0...+6 BAR
Current Out : 4-20mA
Voltage : 11-33V DC
MAX : P1-P2 12BAR
MAX : P2-P1 12BAR
Made In Switzerland

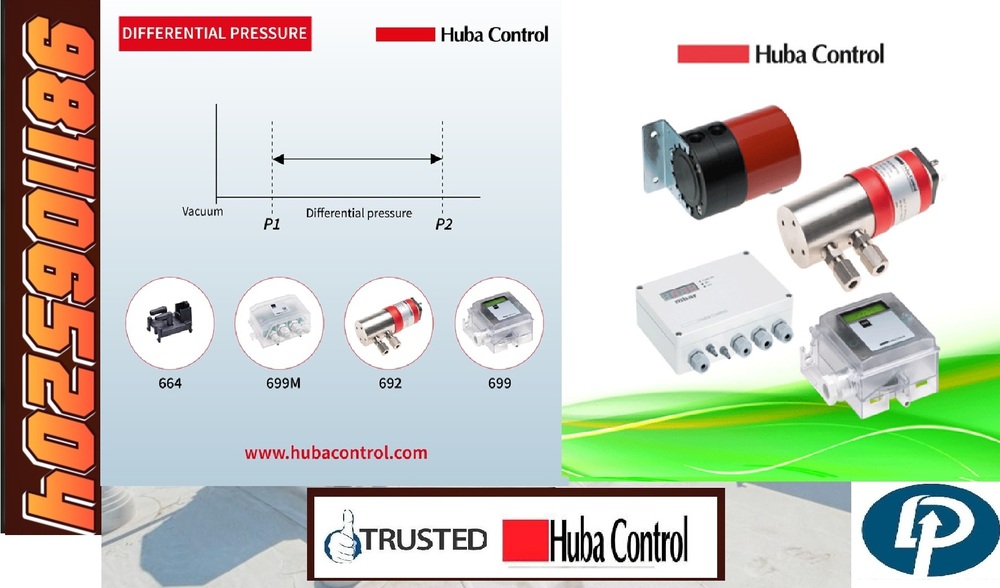

Huba Control Differential Pressure Transmitter Product InformationDifferential Pressure Transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application,Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options,The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Robust Stainless Steel Construction

Crafted from durable stainless steel, the Huba Control Differential Pressure Transmitter ensures longevity even in demanding environments. Its corrosion-resistant body and multiple finishing options like polished, galvanized, and matte enhance functionality and appearance, making it suitable for rigorous industrial use.

Wide Measurement Range and High Accuracy

Operating efficiently within a scale of 0.1 to 25 bar, this transmitter offers reliable differential pressure measurement with a precision of up to 0.5%. It is ideal for critical applications where accuracy is essential, from water pumps to ultrafiltration and refrigeration systems.

Versatile Industrial Applications

This transmitter adapts flexibly to various fields, measuring pressure in steam, oil, gas, and water system environments. Its robust build and accurate results make it an essential monitoring tool for engineers and maintenance teams in a vast array of settings.

FAQ's of Huba Control Differential Pressure Transmitter 692.919007161 By Yeshwanthpur Industrial Area Bangalore:

Q: How is the Huba Control Differential Pressure Transmitter 692.919007161 typically installed?
A: The transmitter is designed for panel mounting, utilizing a 1/4 inch NPT threaded connection for secure and straightforward installation in industrial setups.

Q: What types of media can this pressure transmitter measure?
A: It is engineered to measure the differential pressure of steam, oil, and gas, making it versatile for a variety of industrial fluid applications.

Q: Where can this transmitter be used most effectively?
A: This model is ideally suited for integration in refrigeration systems, CPUs, water pumps, and ultrafiltration systems, ensuring accurate monitoring in both commercial and industrial environments.

Q: What is the measurement range and precision of this device?
A: The device covers a pressure scale from 0.1 to 25 bar and offers a notable accuracy of 0.5%, ensuring dependable and precise readings.

Q: What are the main benefits of using this transmitter in industrial systems?
A: The transmitter provides accurate differential pressure measurement, which helps optimize system performance, enhance safety, and reduce energy wastage in processes such as water purification, cooling, and fluid management.

Q: What is the weight and finishing of the device?
A: The transmitter weighs approximately 450 grams and is available in several durable finishes including antique, polished, galvanized, and matte, catering to different installation requirements and aesthetic preferences.
