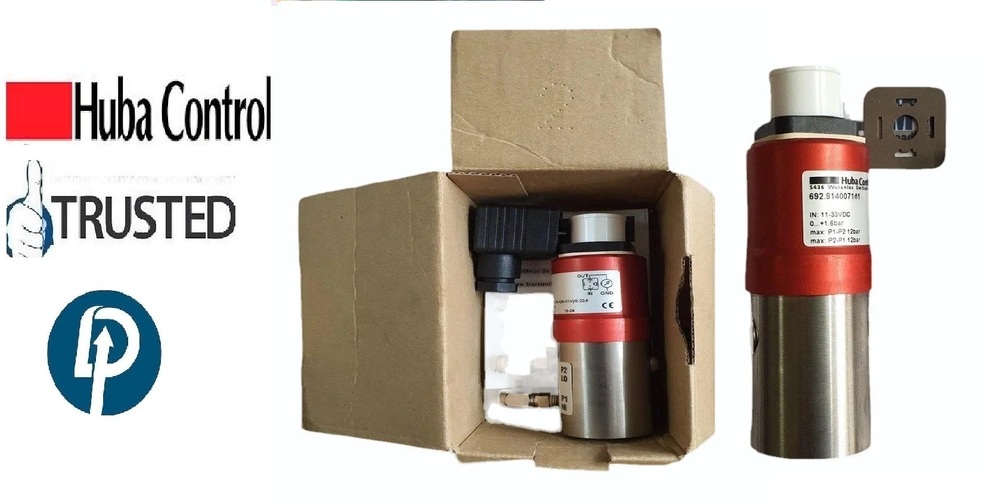

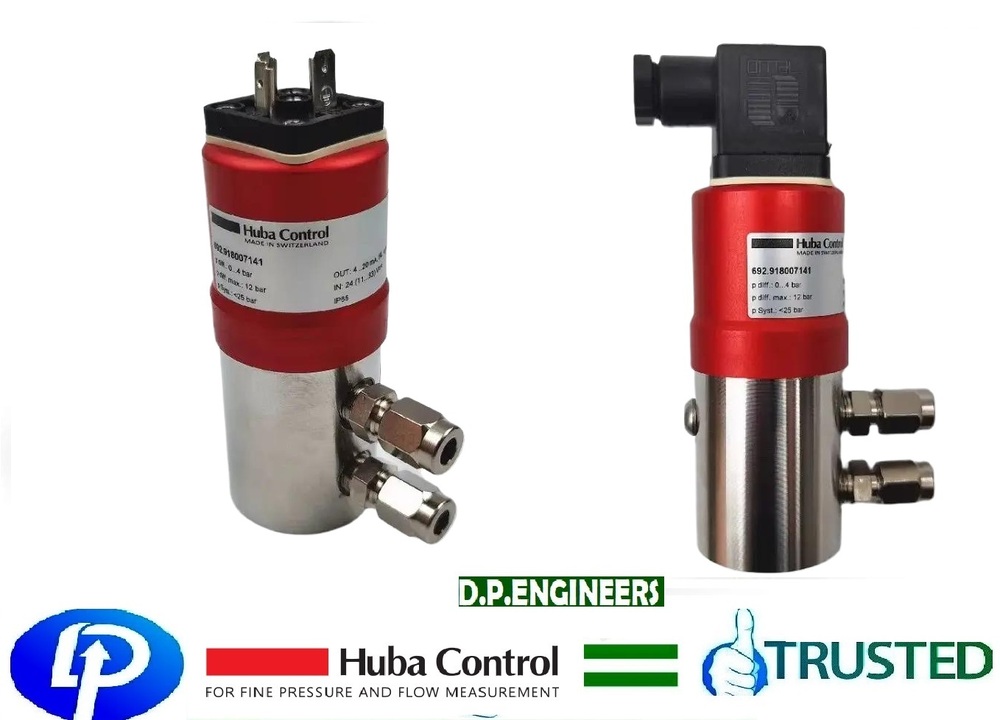

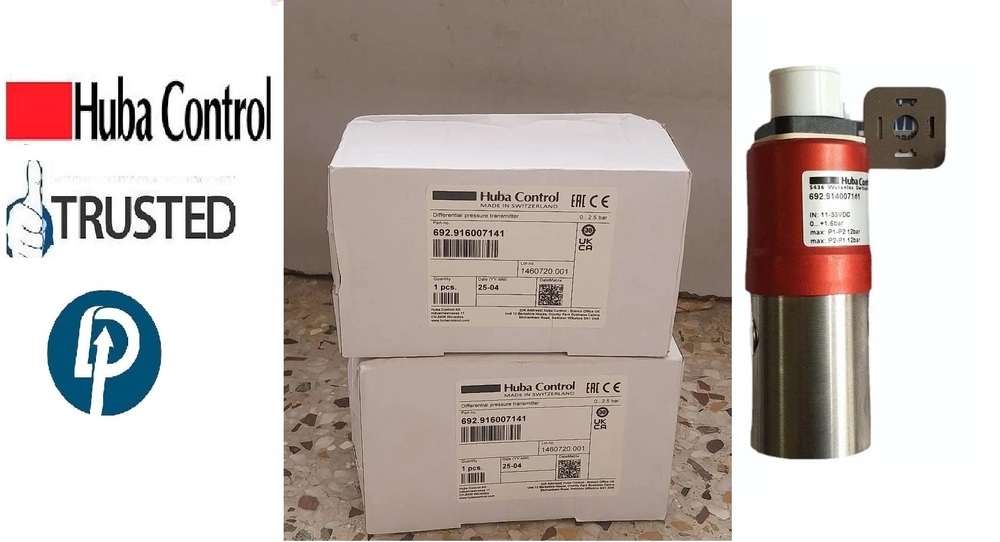

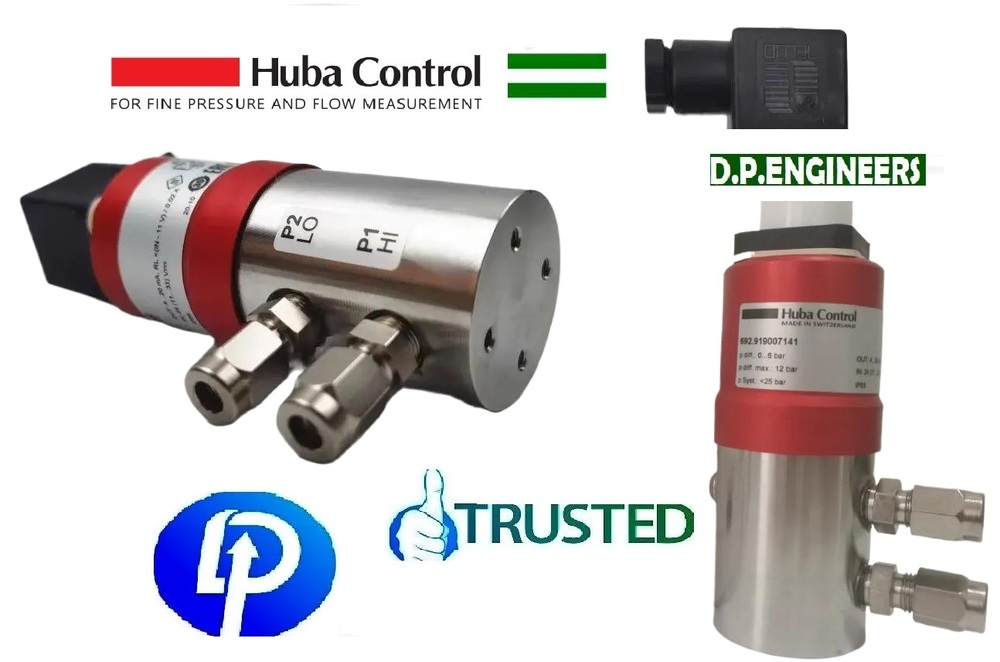

Huba Control Differential Pressure Transmitter: 692.916101141

Name: Huba Control Differential Pressure Transmitter: 692.916101141
Brand: D. P. ENGINEERS
Price: 38000 INR
Availability: InStock

Price 38000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter: 692.916101141 Specification

Thread
1/4 inch NPT

Material
Stainless Steel

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Size
0-2.5 Bar

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter 692.916101141

Weight
450 Grams (g)

Color
Red

Mount Type
Panel

Scale Range
0-2.5 Bar

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter: 692.916101141 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID), Cash Advance (CA), Paypal, Cash Against Delivery (CAD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter: 692.916101141

Huba Control Differential Pressure Transmitter: 692.916101141

Brand : Huba Control

Model : 692.916101141

Range : 0-2.5 Bar

Type : 692 0-2.5 Bar

Current Out : 0-10 VDC / 24 VAC A15 %

IN - 18-33 VDC

Made In Switzerland

Huba Control Differential Pressure Transmitter 692
Product InformationDifferential pressure transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options,The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Precision Measurement for Demanding Applications

Engineered for reliability, the Huba Control Differential Pressure Transmitter 692.916101141 delivers precise readings in a variety of demanding industries. Its 0.5% accuracy ensures minimal errors, making it ideal for monitoring sensitive systems such as refrigeration units, water pumps, and filtration processes.

Robust Stainless Steel Construction

Built with high-quality stainless steel, this transmitter not only resists corrosion but also withstands harsh industrial environments. Its range of finishing choices enhances durability and fits seamlessly into different system designs, ensuring long-lasting performance.

Versatile Integration and Simple Installation

With panel mount capability and a standard 1/4 inch NPT thread, this differential pressure transmitter easily integrates into new or existing systems. Its compact design and moderate weight simplify installation in restricted spaces, maximizing operational flexibility.

FAQ's of Huba Control Differential Pressure Transmitter: 692.916101141:

Q: How is the Huba Control 692.916101141 differential pressure transmitter installed?
A: This transmitter is designed for panel mounting and features a 1/4 inch NPT threaded connection, making installation straightforward in most industrial system panels. Clear instructions are provided, ensuring a secure and reliable fit for both new and retrofit applications.

Q: What types of media can be measured with this differential pressure transmitter?
A: The Huba Control 692.916101141 is suitable for measuring the pressure of steam, oil, and gas-making it highly adaptive for industries such as refrigeration, water treatment, CPU cooling systems, and various fluid handling setups.

Q: When should I use this pressure transmitter in my system?
A: This product is ideal when you require accurate and reliable differential pressure monitoring in systems like refrigeration units, water pumps, ultrafiltration devices, or industrial CPUs. Use it especially when precise control and safety monitoring are critical.

Q: Where is the optimal placement for this transmitter in a system?
A: The best location is a stable, vibration-free panel section close to the points where differential pressure needs to be monitored. Ensure accessibility for maintenance and a proper connection to pressure lines for the most accurate readings.

Q: What are the benefits of using this transmitter in my operations?
A: Using this pressure transmitter improves process safety, efficiency, and reliability. Its high accuracy minimizes the risk of error, helps in optimizing system performance, and supports preventive maintenance through timely alerts on pressure differences.

Q: How does this transmitter handle processing and accuracy?
A: The device operates with a standard processing type and provides accurate measurements within a scale range of 0-2.5 Bar, with an impressive error margin of just 0.5%. This ensures consistent and dependable data for automated system control.
