Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat

Name: Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat
Brand: D. P. ENGINEERS
Price: 35800 INR
Availability: InStock

Price 35800 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat Specification

Thread
1/4 inch NPT

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Material
Stainless Steel

Size
0...+2.5 BAR

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat

Weight
450 Grams (g)

Mount Type
Panel

Color
Red

Scale Range
0...+2.5 BAR

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID), Cash Advance (CA), Paypal, Cash Against Delivery (CAD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat

Huba Control Differential Pressure Transmitter 692.915007141 at a1 35000/piece | Differential Pressure Transmitters in New Delhi | ID: 2857489773112

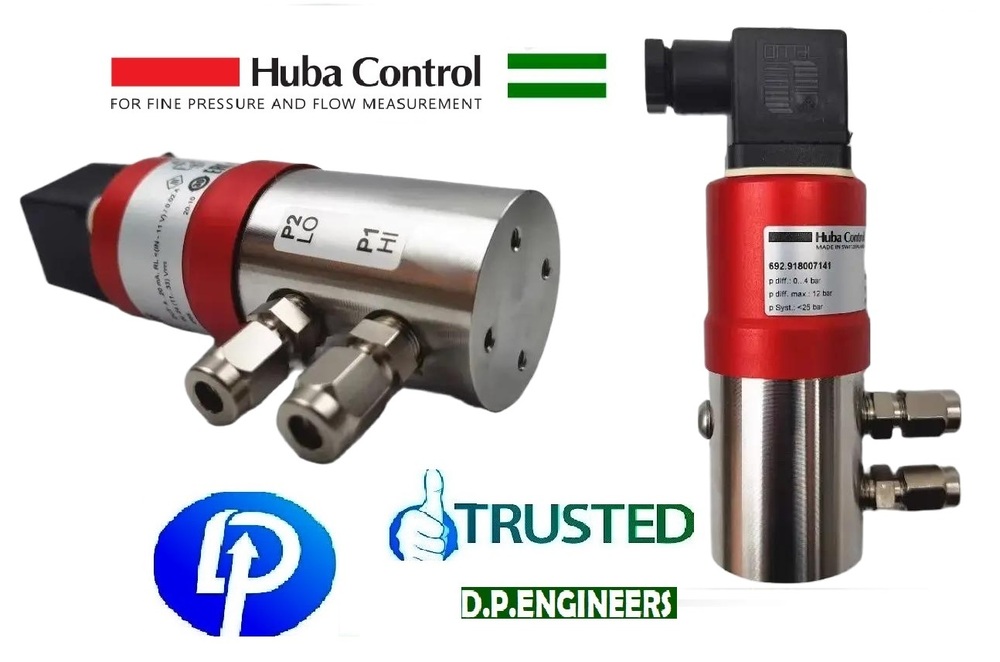

Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat

Brand : Huba Control
Model : 692.915007141
Range : 0...+2.5 BAR
Type : 692 0...+2.5 BAR
Current Out : 4-20mA
Voltage : 11-33V DC
MAX : P1-P2 5BAR
MAX : P2-P1 5BAR
Made In Switzerland

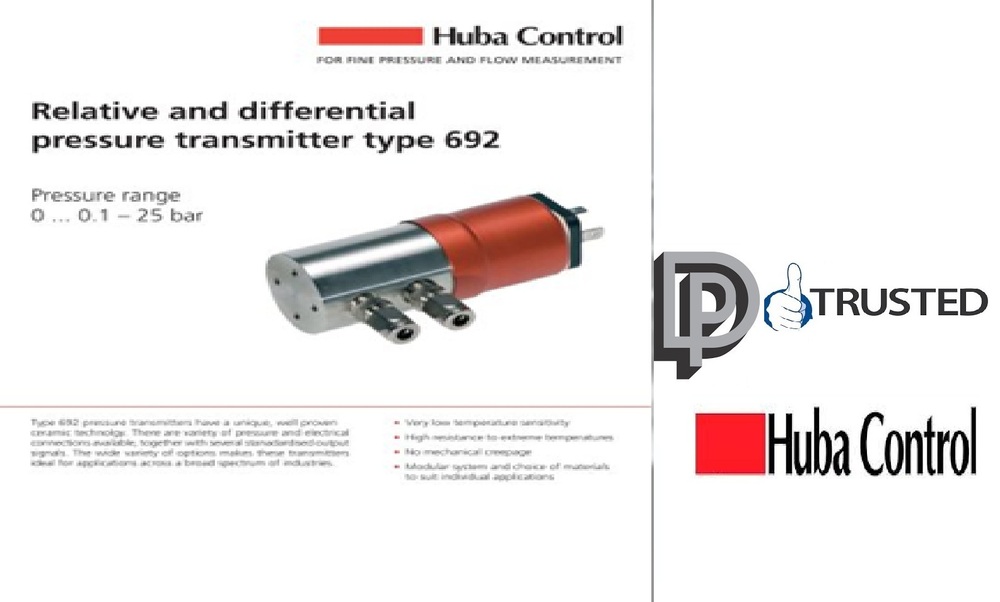

Huba Control Differential Pressure Transmitter Product InformationDifferential Pressure Transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available.Due To The Wide Variety Of Options,The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Versatile Pressure Monitoring

The Huba Control Differential Pressure Transmitter is tailored for efficient monitoring in various settings, including industrial refrigeration systems, water pumps, and ultrafiltration units. Its compatibility with steam, oil, and gas applications makes it a versatile choice for different sectors, ensuring your operations run smoothly and safely.

Robust Construction & Finishes

Manufactured from high-quality stainless steel, this pressure transmitter offers exceptional durability and resistance to demanding environments. You can choose from Antique, Polished, Galvanized, or Matte finishes to match specific installation requirements, allowing for both functional and aesthetic integration into your facility.

FAQ's of Huba Control Differential Pressure Transmitter 692.915007141 Nr. SACHIN Industrial Estate SURAT Gujarat:

Q: How does the Huba Control 692.915007141 Differential Pressure Transmitter operate in industrial systems?
A: The transmitter measures the difference in pressure between two points, providing accurate readings within a 0...+2.5 BAR range. This information is crucial for controlling and optimizing systems such as refrigeration, water pumps, and CPU cooling.

Q: What types of media can this pressure transmitter measure?
A: It is designed to measure the pressure of steam, oil, and gas, making it suitable for a wide array of industrial applications, including filtration, pumping, and process monitoring.

Q: When should the transmitter be used in a system?
A: Integrate the transmitter whenever reliable differential pressure measurement is required for process control, safety monitoring, or efficiency optimization, especially in applications listed like ultrafiltration or fluid transfer systems.

Q: Where is the transmitter typically installed?
A: This model is intended for panel mounting, allowing for secure and visible installation in control panels within industrial plants, machinery rooms, or integrated system enclosures.

Q: What is the process for installing the transmitter?
A: Begin by securely mounting the transmitter to a panel, then connect it via the provided 1/4 inch NPT thread to your system's pressure points. Follow standard wiring and calibration procedures to ensure accuracy and safety.

Q: How does the transmitter benefit system performance?
A: By delivering highly accurate (+-0.5%) and reliable pressure measurements, the transmitter helps operators maintain process stability, reduce downtime, and ensure safety, ultimately enhancing system performance and efficiency.
