Huba Control #Differential Pressure Transmitter 692.911017011

Name: Huba Control #Differential Pressure Transmitter 692.911017011
Brand: D. P. ENGINEERS
Price: 41300 INR
Availability: InStock

Price 41300 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control #Differential Pressure Transmitter 692.911017011 Specification

Thread
1/4 inch NPT

Material
Stainless Steel

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Size
0...+1 BAR

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter 692.911017011

Weight
450 Grams (g)

Color
Red

Mount Type
Panel

Scale Range
0...+1 BAR

Accuracy
+-0.5 %

Huba Control #Differential Pressure Transmitter 692.911017011 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash Against Delivery (CAD), Paypal, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control #Differential Pressure Transmitter 692.911017011

Huba Control #Differential Pressure Transmitter 692.911017011

Brand : Huba Control

Model : 692.911017011

Range : 0...+1 BAR

Type : 692 0...+1 BAR

Current Out : 4-20mA

Voltage : 11-33V DC

MAX : P1-P2 2BAR

MAX : P2-P1 2BAR

Made In Switzerland

Huba Control Differential Pressure Transmitter Product InformationDifferential Pressure Transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application,Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options,The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

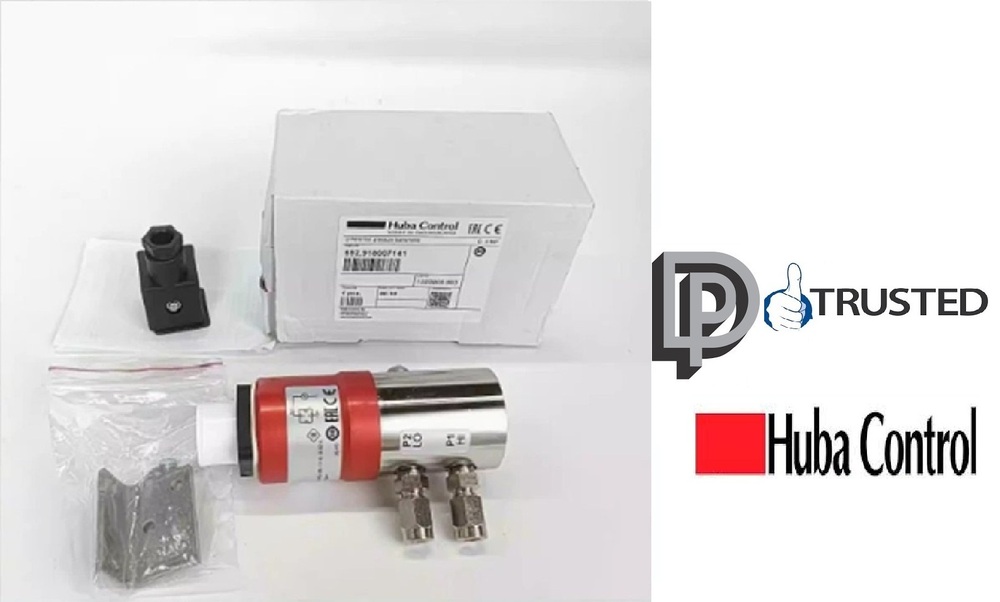

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Engineered for Precision and Longevity

The Huba Control 692.911017011 transmitter combines robust stainless steel construction with a selection of specialty finishes, offering resistance against corrosion and wear. Its advanced sensor technology ensures reliable pressure readings for critical applications where consistency matters most, helping safeguard sensitive equipment and maintain system integrity.

Versatile Applications Across Industries

Capable of measuring steam, oil, and gas, this transmitter is well-suited for integration into a range of systems such as refrigeration, water pumping, CPUs, and ultrafiltration setups. The flexible mounting and threading make it highly adaptable for custom panel installations, optimizing system performance in both commercial and industrial settings.

FAQ's of Huba Control #Differential Pressure Transmitter 692.911017011:

Q: How is the Huba Control 692.911017011 differential pressure transmitter typically installed?
A: This transmitter is designed for panel mounting using a standard 1/4 inch NPT thread, allowing for straightforward integration into various equipment and control panels in industrial settings.

Q: What types of media can the transmitter accurately measure?
A: It is capable of accurately measuring differential pressure in steam, oil, and gas, making it suitable for diverse industrial and mechanical applications.

Q: When should this differential pressure transmitter be used?
A: This model is best used in operations demanding precise monitoring and control-such as refrigeration systems, water pumps, CPUs, and ultrafiltration systems-to ensure optimal system performance and reliability.

Q: Where is the Huba Control 692.911017011 suitable for operation?
A: Thanks to its rugged stainless steel construction and multiple finishing options, it is suitable for a wide variety of environments, from manufacturing plants to laboratories, where reliability and durability are paramount.

Q: What is the operational pressure range and accuracy of this transmitter?
A: The device operates within a 0...+1 BAR pressure range and delivers a high accuracy of 0.5%, ensuring dependable readings for critical monitoring.

Q: How does using this transmitter benefit system performance?
A: Its precise measurement capability enables early detection of pressure deviations, helping to prevent equipment damage, minimize downtime, and improve the overall efficiency of the systems in which it is used.
