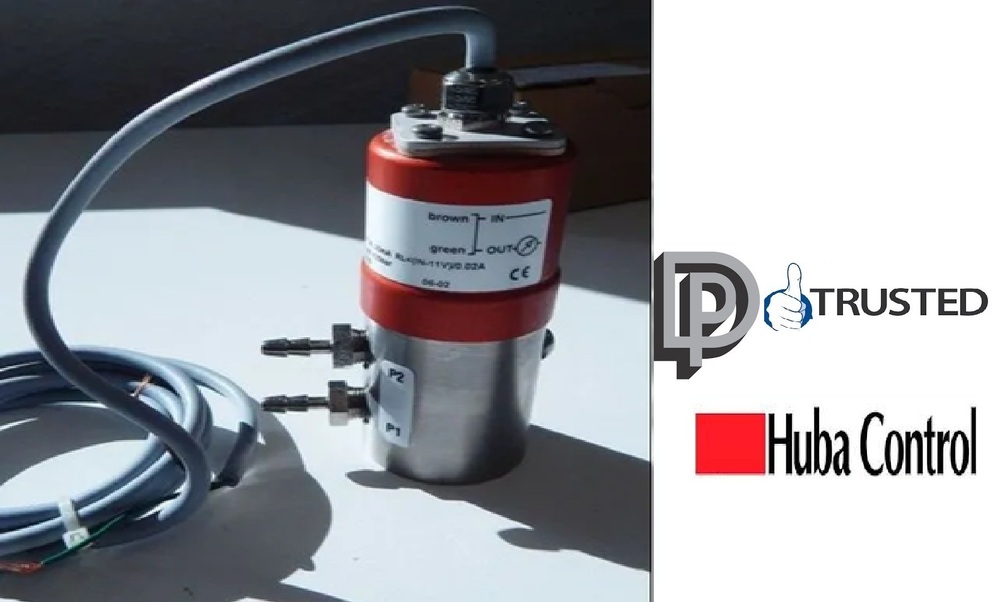

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0-1.6 BAR

Name: Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0-1.6 BAR
Brand: D. P. ENGINEERS
Price: 41300 INR
Availability: InStock

Price 41300 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0-1.6 BAR Specification

Thread
1/4 inch NPT

Usage
Sugar Industries,Steel Industries,Paper Mills,Cement Industries etc.

Material
Stainless Steel

Size
0...+1.6 BAR

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0...+1.6 BAR

Weight
450 Grams (g)

Color
Red

Mount Type
Panel

Scale Range
0...+1.6 BAR

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0-1.6 BAR Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD), Paypal

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0-1.6 BAR

Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0-1.6 BAR

Brand : Huba Control

Model : 692.914007141

Range : 0...+1.6 BAR

Type : 692 0...+1.6 BAR

Current Out : 4-20mA

Voltage : 11-33V DC

MAX : P1-P2 12BAR

MAX : P2-P1 12BAR

Made In Switzerland

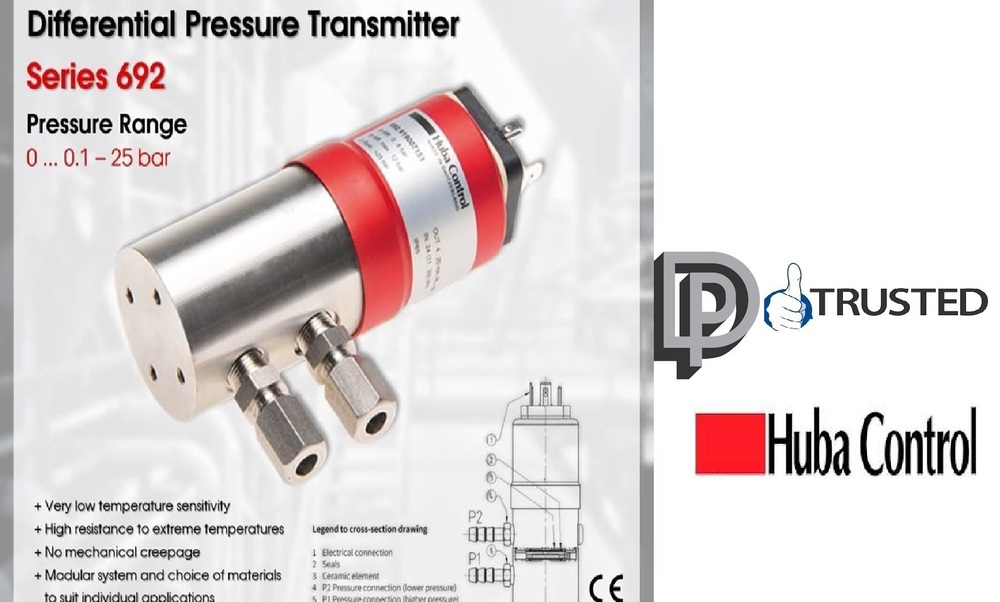

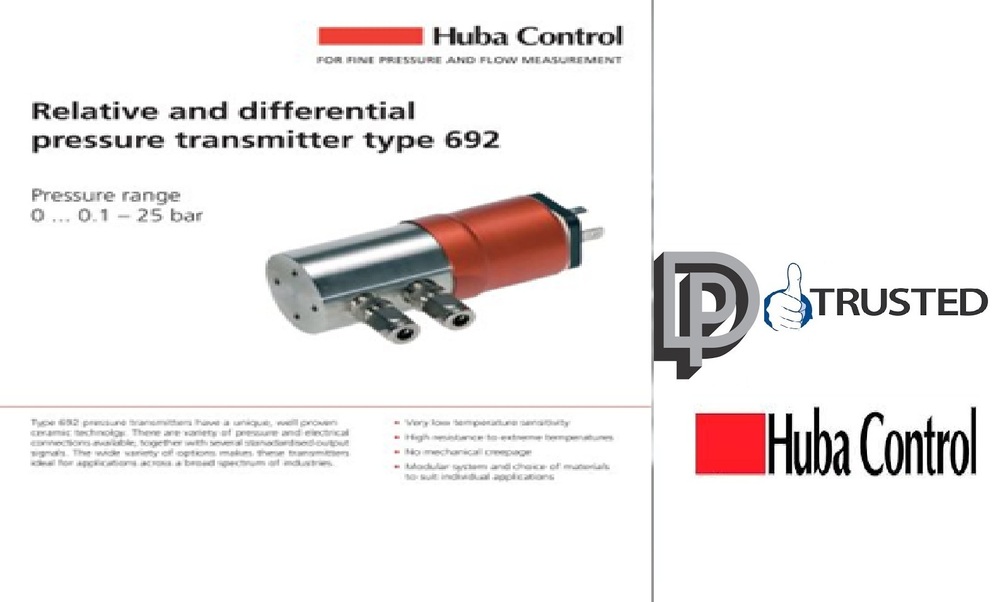

Huba Control Differential Pressure Transmitter Product InformationDifferential Pressure Transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options,The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Versatile and Durable Design

This differential pressure transmitter is built to withstand demanding industrial environments. Its robust stainless steel construction and multiple finishing options ensure longevity and corrosion resistance, making it a reliable choice even in harsh settings. With a compact weight and size, it offers easy installation and versatile mounting capabilities.

Precision for Critical Processes

Featuring a high accuracy of 0.5%, the Model 692.914007141 provides reliable pressure readings essential for quality control in industries like sugar, steel, paper, and cement. Its 0-1.6 BAR scale range allows it to precisely monitor pressure in processes involving steam, oil, or gas, facilitating optimal operational efficiency.

FAQ's of Huba Control Differential Pressure Transmitter Model 692.914007141 Range : 0-1.6 BAR:

Q: How is the Huba Control Model 692.914007141 typically used in industrial applications?

A: This transmitter is commonly used to measure differential pressure in steam, oil, and gas systems within industries such as sugar production, steel manufacturing, paper mills, and cement plants. Its high accuracy and durable build make it a trusted solution for process monitoring and automation.

Q: What installation process should be followed for this differential pressure transmitter?

A: To install, securely mount the unit on a panel using the designated fittings and connect it using the 1/4 inch NPT threads. Ensure proper sealing and orientation as per the manufacturer's guidelines to achieve accurate readings. Professional installation by qualified personnel is recommended.

Q: When should I consider recalibrating this transmitter for continued accuracy?

A: It is advisable to recalibrate the device annually, or more frequently if it is exposed to variable process conditions, harsh chemicals, or if regulatory standards in your industry demand it. Routine calibration helps maintain its accuracy of 0.5%.

Q: Where does this model offer the most benefit in a processing plant?

A: The transmitter is especially beneficial in locations where continuous and reliable monitoring of differential pressure is crucial, such as in filtration systems, flow measurement points, or safety-critical steam and oil pipelines across industries like sugar, steel, paper, and cement.

Q: What are the advantages of the different finishing options available?

A: The antique, polished, galvanized, and matte finishing choices offer varying degrees of resistance to corrosion and wear, allowing you to select the most suitable option based on your facility's environment-enhancing longevity and maintaining the transmitter's performance.

Q: How does this pressure transmitter contribute to process efficiency and safety?

A: By delivering precise differential pressure measurements, the transmitter enables prompt detection of pressure deviations, improving process control and preventing equipment damage or safety incidents, thereby optimizing plant efficiency and safety protocols.
