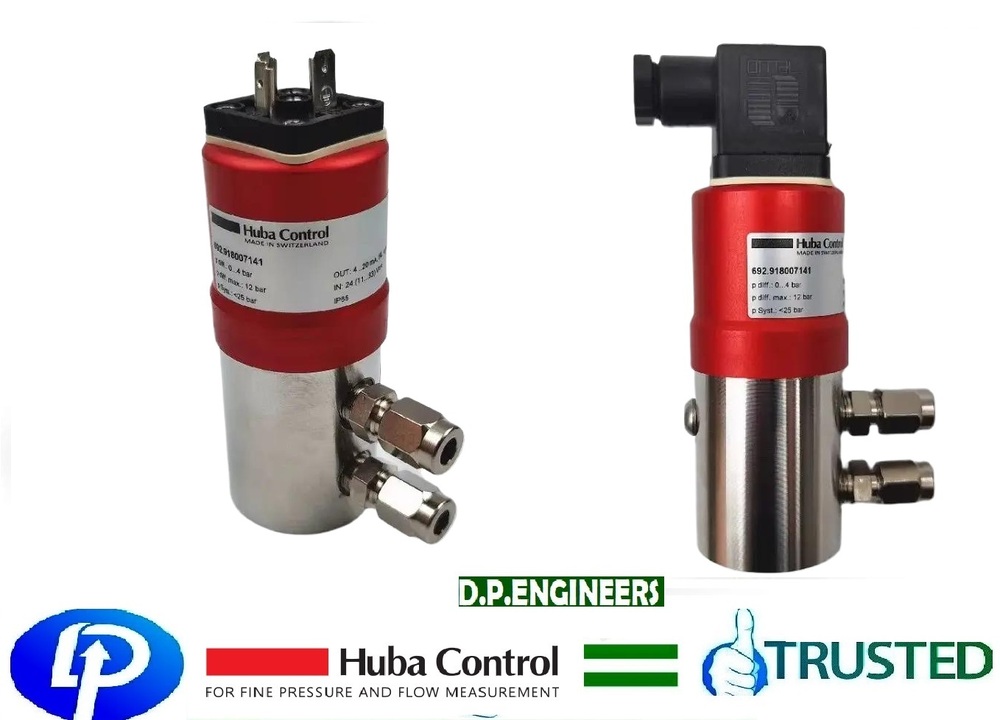

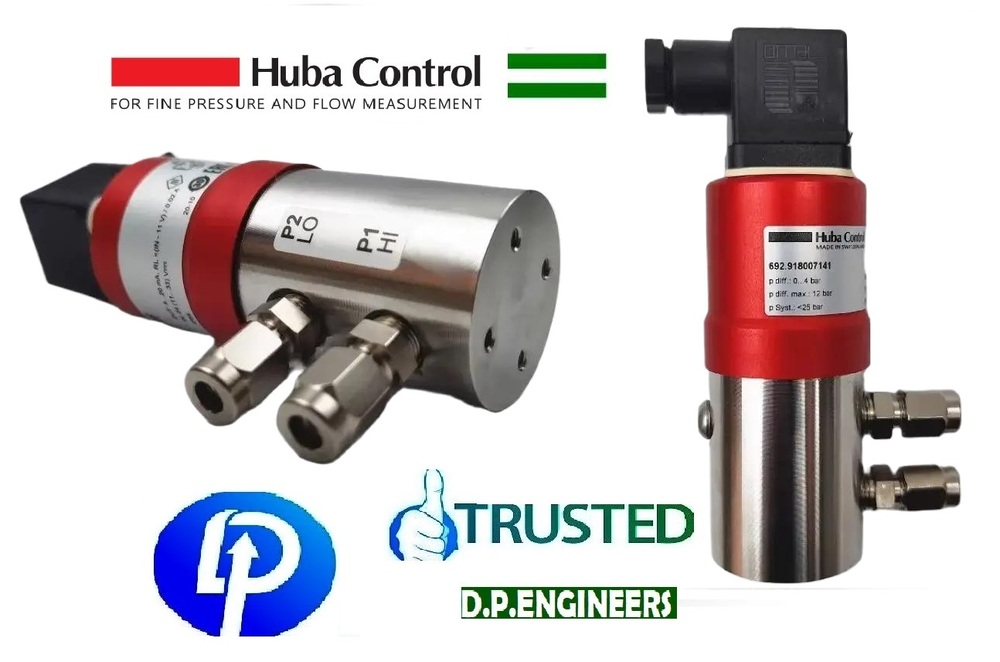

Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058

Name: Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058
Brand: D. P. ENGINEERS
Price: 35800 INR
Availability: InStock

Price 35800 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058 Specification

Thread
1/4 inch NPT

Material
Stainless Steel

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Size
0-4 BAR

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058

Weight
450

Mount Type
Panel

Color
Red

Scale Range
0-4 Bar

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash in Advance (CID), Cash Advance (CA), Paypal, Cash Against Delivery (CAD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058

Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058

Brand : Huba Control
Model : 692.918007141
Range : 0...+ 4 BAR
Type : 692 0...+4 BAR
Current Out : 4-20mA
Voltage : 11-33V DC
MAX : P1-P2 12BAR
MAX : P2-P1 12BAR
Made In Switzerland

Huba Control Differential Pressure Transmitter 692

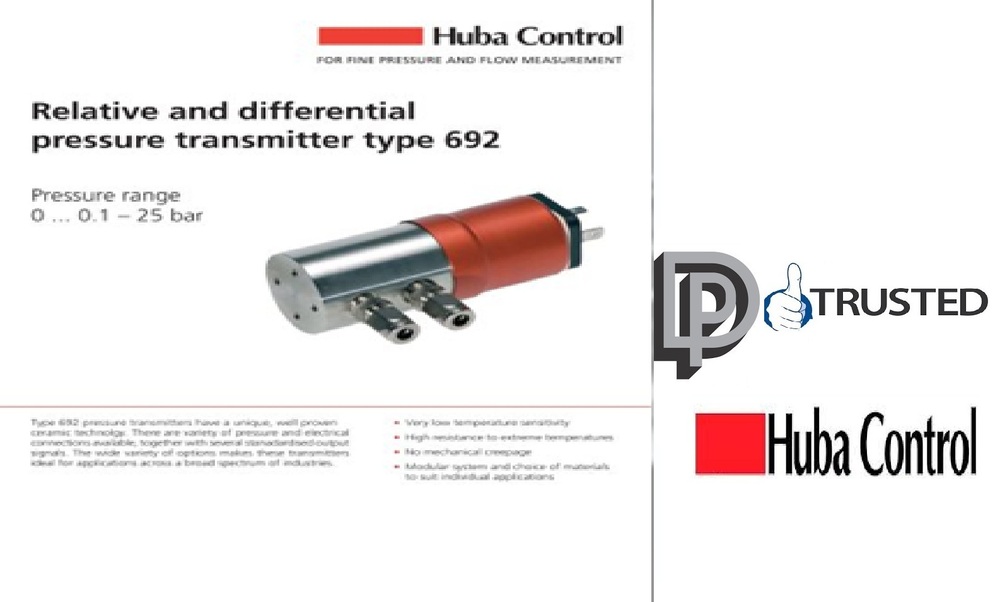

Product InformationDifferential pressure transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options,The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Precision Performance Across Applications

Engineered for reliability, the Huba Control Differential Pressure Transmitter ensures consistent measurement in diverse environments, including refrigeration, water pumps, CPUs, and industrial filtration. Its stainless steel construction and multiple finishing options provide durability and high resistance to corrosion.

Easy Installation and Integration

Thanks to its panel mount design and 1/4 inch NPT threaded connection, this transmitter can be readily integrated into new or existing systems. Its compact size and lightweight build simplify the installation process, making it ideal for various industrial applications.

Exceptional Accuracy and Versatility

With an accuracy of 0.5%, the transmitter delivers precise readings within a 0-4 Bar range. It is compatible with steam, oil, and gas measurements, ensuring reliability in monitoring differential pressures across a range of process conditions.

FAQ's of Huba Control Differential Pressure Transmitter 692.918007141 NR AMBATTUR INDUSTRIAL ESTATE CHENNAI 600058:

Q: How is the Huba Control Differential Pressure Transmitter 692.918007141 typically installed?
A: This transmitter is designed for panel mounting and features a 1/4 inch NPT thread, allowing for straightforward installation into existing control panels or equipment, ideal for rapid deployment in industrial settings.

Q: What types of media can the transmitter measure?
A: It is suitable for measuring the differential pressure of steam, oil, and gas, making it versatile for various process applications including refrigeration systems and water pumps.

Q: When should regular maintenance or inspection be performed?
A: Routine maintenance should be scheduled based on system usage and environmental conditions, typically every 6 to 12 months, to ensure ongoing accuracy and optimal performance.

Q: Where is this differential pressure transmitter manufactured and exported from?
A: The product is manufactured, supplied, and exported from Ambattur Industrial Estate, Chennai 600058, India, serving customers throughout the country and internationally.

Q: What is the benefit of the transmitter's stainless steel construction?
A: Stainless steel ensures high resistance to corrosion and durability, enabling the transmitter to perform reliably even under harsh operating conditions, thus extending its service life.

Q: How accurate is the Huba Control Differential Pressure Transmitter 692.918007141?
A: It provides measurement accuracy of 0.5%, contributing to precise monitoring and control in sensitive industrial processes.

Q: What finishing options are available for this transmitter?
A: The transmitter is available in antique, polished, galvanized, and matte finishes to suit various operational and aesthetic requirements.
