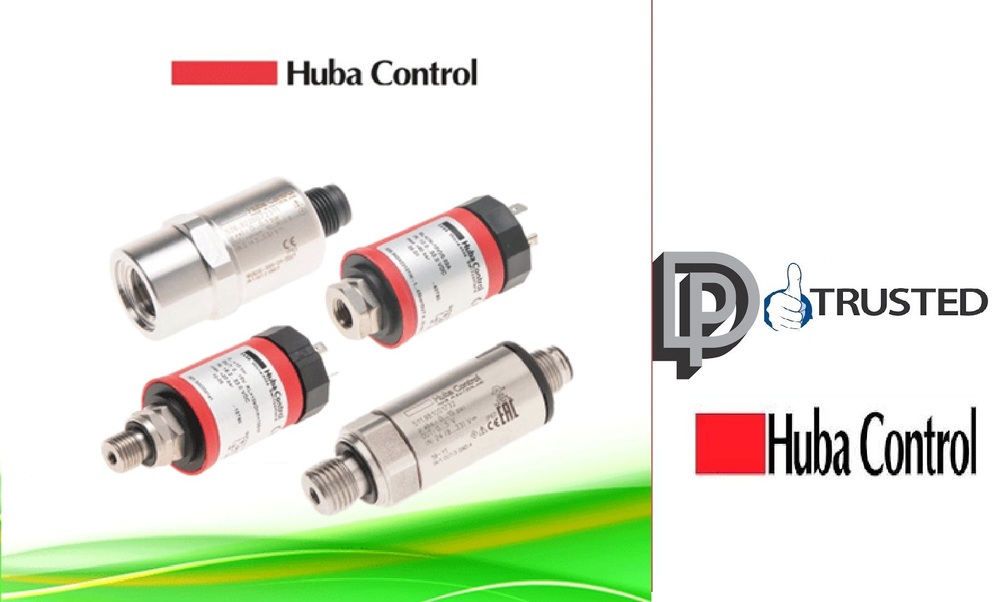

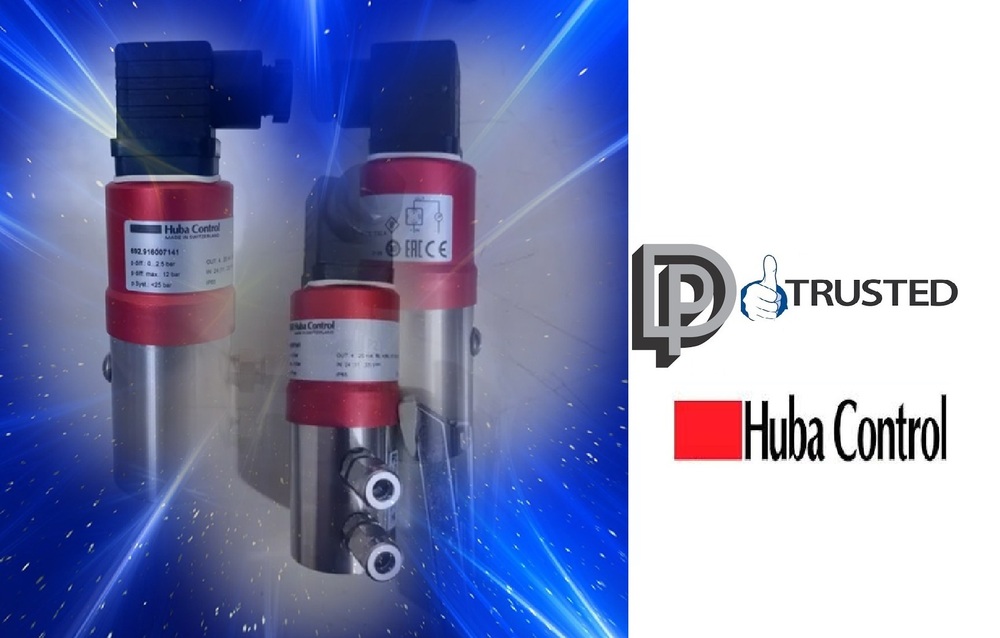

@Huba Control Differential Pressure Transmitter 692.918001161

Name: @Huba Control Differential Pressure Transmitter 692.918001161
Brand: D. P. ENGINEERS
Price: 41300 INR
Availability: InStock

Price 41300 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

@Huba Control Differential Pressure Transmitter 692.918001161 Specification

Thread
1/4 inch NPT

Material
Stainless Steel

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Size
0-4 BAR

Processing Type
Standard

Product Type
@Huba Control Differential Pressure Transmitter 692.918001161

Weight
450 Grams (g)

Mount Type
Panel

Color
Red

Scale Range
0-4 Bar

Accuracy
+-0.5 %

@Huba Control Differential Pressure Transmitter 692.918001161 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About @Huba Control Differential Pressure Transmitter 692.918001161

@Huba Control Differential Pressure Transmitter 692.918001161

Brand : Huba Control

Model : 692.918001161

Range : 0-4 Bar

Type : 692 0-4 Bar

Current Out : 0-10 VDC / 24 VAC A15 %

IN - 18-33 VDC

Made In Switzerland

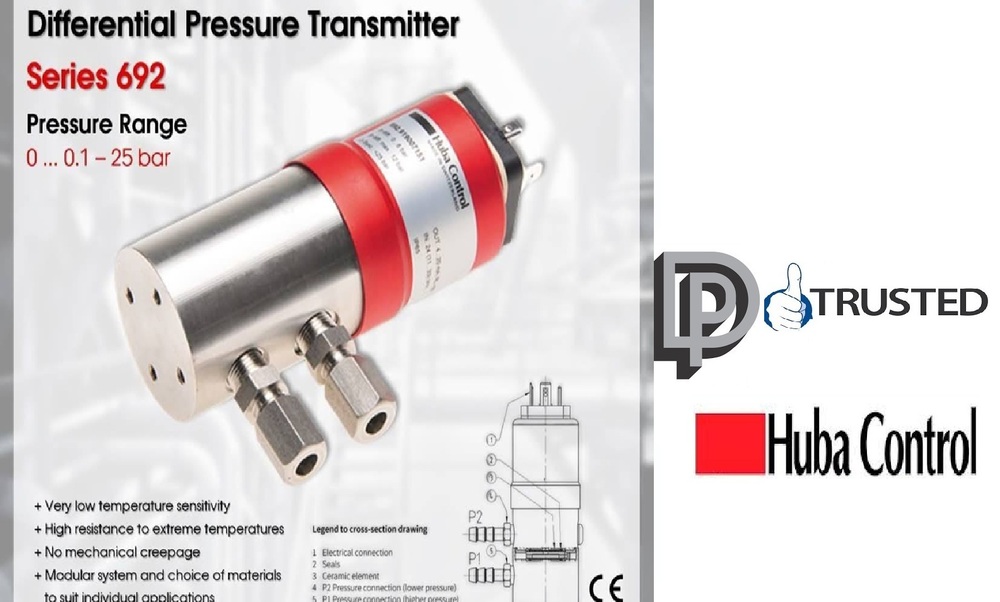

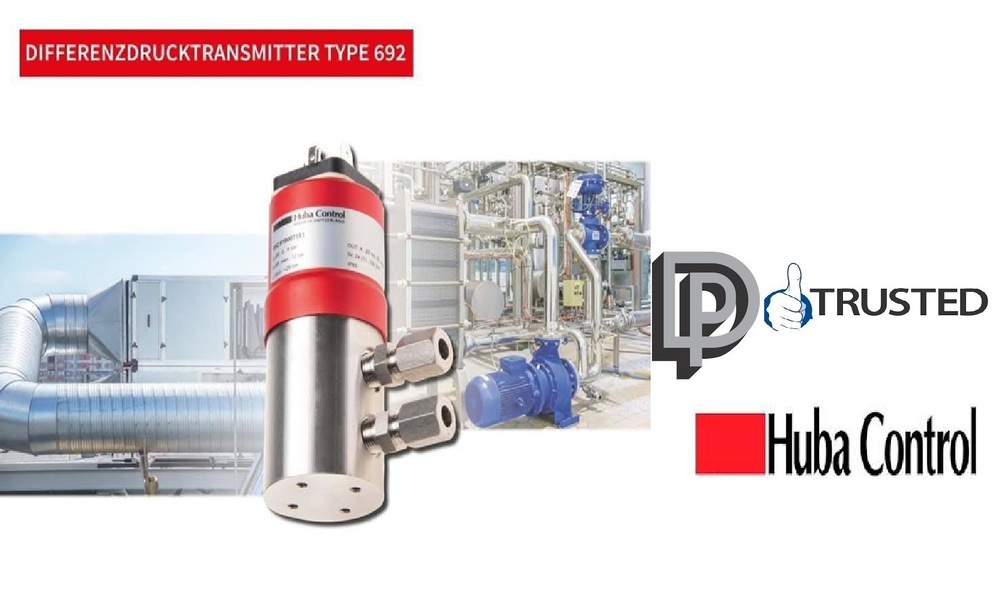

Huba Control Differential Pressure Transmitter 692
Product InformationDifferential pressure transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Precision Monitoring Across Industries

Engineered for versatility, the Differential Pressure Transmitter 692.918001161 by Huba Control delivers accurate monitoring for a diverse range of systems. Its robust stainless steel construction and polished finishes make it ideal for industrial and commercial sectors requiring trustworthy pressure readings. This transmitter is particularly useful for critical processes in refrigeration, water, CPUs, and filtration applications.

Reliable Performance and Easy Integration

With a focus on standard processing and an accuracy of 0.5%, this transmitter ensures that system performance remains optimal. The panel-mount design and threaded 1/4 inch NPT connection facilitate straightforward installation. Its ability to accurately measure pressure in mediums like steam, oil, and gas makes it a dependable addition to professional equipment setups.

FAQ's of @Huba Control Differential Pressure Transmitter 692.918001161:

Q: How is the Huba Control 692.918001161 Pressure Transmitter typically installed?
A: This pressure transmitter is designed for panel mounting and uses a 1/4 inch NPT thread, making it straightforward to integrate into existing control panels across various industrial settings.

Q: What applications can benefit from this differential pressure transmitter?
A: It is suitable for use in refrigeration systems, CPUs, water pumps, and ultrafiltration systems, as well as for measuring pressure in steam, oil, and gas processes, supporting a wide range of industrial needs.

Q: When should this transmitter be chosen over other models?
A: This model should be selected when accuracy (0.5%), a scale range of 0-4 Bar, and compatibility with stainless steel construction are crucial for your environment, especially for monitoring demanding processes.

Q: What benefits does the stainless steel, multi-finish construction provide?
A: The stainless steel housing with antique, polished, galvanized, and matte finishes delivers enhanced durability, corrosion resistance, and a professional appearance, supporting both longevity and functionality in challenging conditions.

Q: How does this transmitter contribute to process optimization?
A: The high accuracy of 0.5% ensures precise monitoring and control, helping optimize the efficiency of industrial processes such as pressure regulation in water, refrigeration, and filtration systems.

Q: What medium types can be measured with this device?
A: It is capable of measuring the differential pressure of steam, oil, and gas, making it a versatile tool for various fluid systems.
