Huba Control Differential Pressure Transmitter; 692.918007101

Name: Huba Control Differential Pressure Transmitter; 692.918007101
Brand: D. P. ENGINEERS
Price: 38000 INR
Availability: InStock

Price 38000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter; 692.918007101 Specification

Thread
1/4 inch NPT

Usage
Sugar Industries,Steel Industries,Paper Mills,Cement Industries etc.

Material
Stainless Steel

Size
0-4 Bar

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter; 692.918007101

Weight
450 Grams (g)

Color
Red

Mount Type
Back

Scale Range
0-4 Bar

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter; 692.918007101 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Paypal, Cash Advance (CA), Cash in Advance (CID)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter; 692.918007101

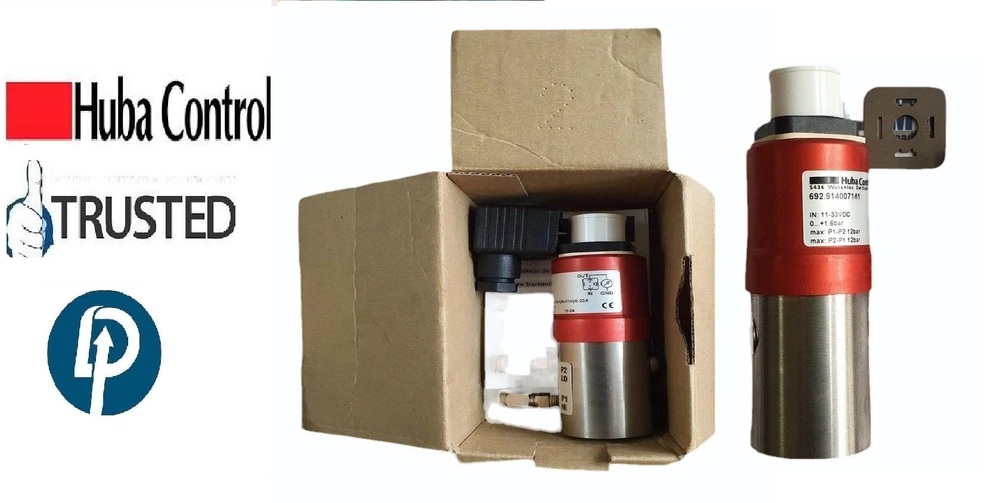

Huba Control Differential Pressure Transmitter 692.914007141 at 42244.00 INR at Best Price in Delhi | D. P. Engineers

Huba Control Differential Pressure Transmitter; 692.918007101

Brand : Huba Control

Model : 692.918007101

Range : 0-4 Bar

Type : 692 0-4 Bar

Current Out : 4-20mA

Voltage : 24 ( 11-33V DC )

MAX : P1-P2 12BAR

MAX : P2-P1 12BAR

Made In Switzerland

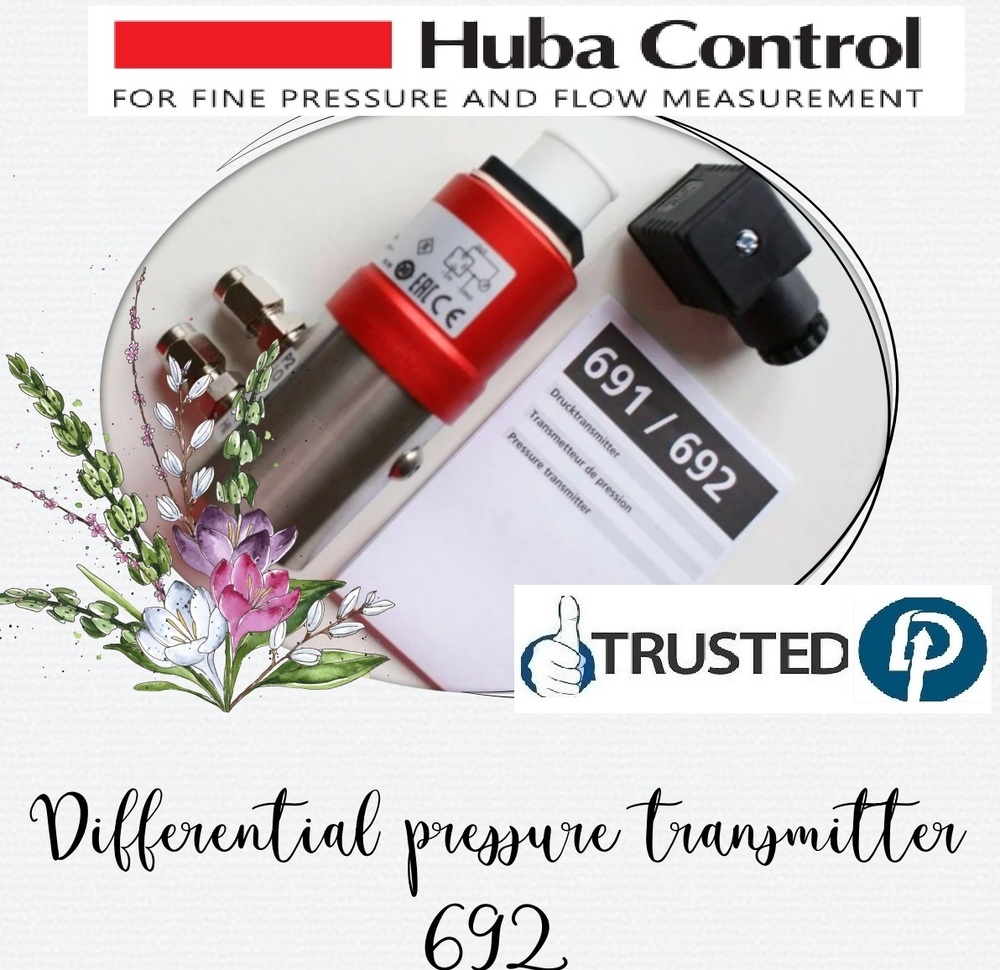

Huba Control Differential Pressure Transmitter
Product InformationDifferential Pressure Transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Versatile Industrial Applications

This differential pressure transmitter is engineered for use across a wide range of industries. Its compatibility with steam, oil, and gas, along with its 0-4 bar scale range, makes it valuable for process monitoring and control within sugar mills, steel plants, paper factories, and cement production sites. Its rugged stainless steel construction ensures dependable performance in harsh environments.

Precision and Reliability

The transmitter boasts an impressive accuracy of 0.5%, ensuring reliable readings for critical process control. The stainless steel material, combined with finishes like galvanized, antique, or matte, provide durability against corrosive media and challenging operating conditions, reducing maintenance requirements and enhancing service life.

Easy Installation and Maintenance

Featuring a back mount and standard 1/4 inch NPT threads, installation is straightforward in both new and existing setups. Its compact size and weight facilitate easy handling, while the robust construction ensures longevity, even under continuous operation. The transmitter's design streamlines both installation and periodic maintenance.

FAQ's of Huba Control Differential Pressure Transmitter; 692.918007101:

Q: How does the Huba Control Differential Pressure Transmitter 692.918007101 enhance efficiency in industrial processes?
A: By providing precise differential pressure measurements with an accuracy of 0.5%, it enables tighter control of process variables. This level of accuracy and reliability helps optimize system efficiency, reduce energy usage, and improve product quality across industries such as sugar, steel, paper, and cement.

Q: What materials and finishes are used in the construction of this transmitter?
A: The transmitter is constructed from stainless steel, offering excellent resistance to corrosion and wear. It is available in multiple finishes including antique, polished, galvanized, and matte, allowing it to withstand various industrial environments and increasing its durability.

Q: When should I use this differential pressure transmitter instead of a standard pressure gauge?
A: This transmitter is ideal when monitoring differential pressure is critical, such as in filtration systems, flow monitoring, or pressure drop measurements across equipment. It is particularly useful for steam, oil, and gas applications where accurate differential readings are essential for process control.

Q: Where is the Huba Control 692.918007101 typically installed?
A: Thanks to its versatile back mount and 1/4 inch NPT threading, the transmitter is commonly installed on pipelines, tanks, and process vessels across industrial plants. Its compact size and mounting options allow integration into both new and retrofit systems in sugar, steel, paper, and cement industries.

Q: What is the process for installing and maintaining the 692.918007101 transmitter?
A: Installation involves securing the back mount using the standard 1/4 inch NPT threaded connection. Routine maintenance typically includes inspecting the mounting integrity and cleaning the transmitter surfaces. Its robust construction and finishes reduce the frequency and complexity of maintenance tasks.

Q: What are the key benefits of using this transmitter in my facility?
A: Key benefits include high measurement accuracy, compatibility with a range of process media (steam, oil, gas), and resistance to harsh industrial conditions. These advantages result in improved process reliability, reduced downtime, and extended service life, making it a cost-effective investment for industrial applications.
