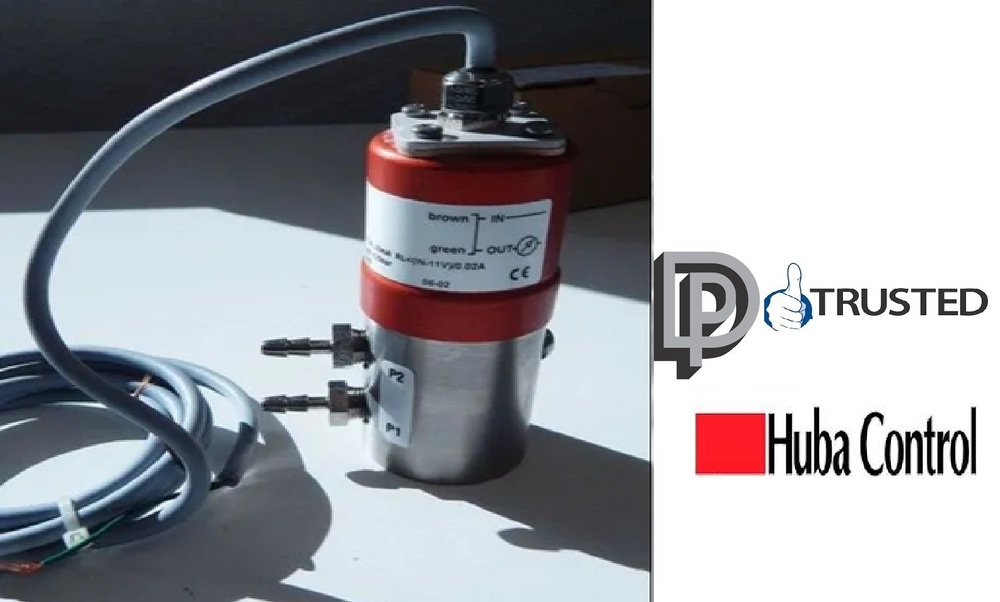

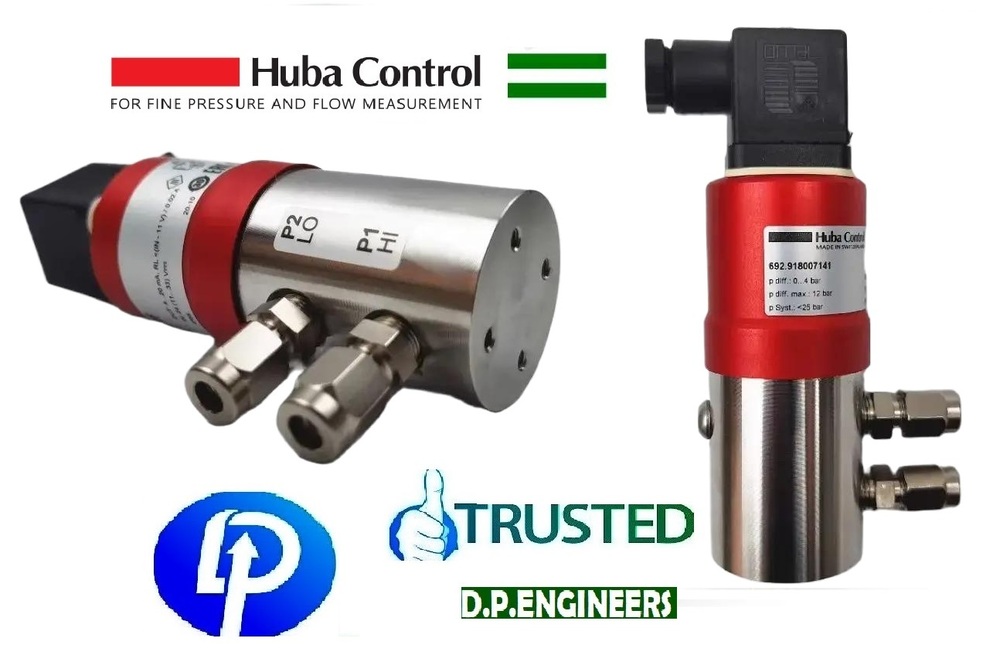

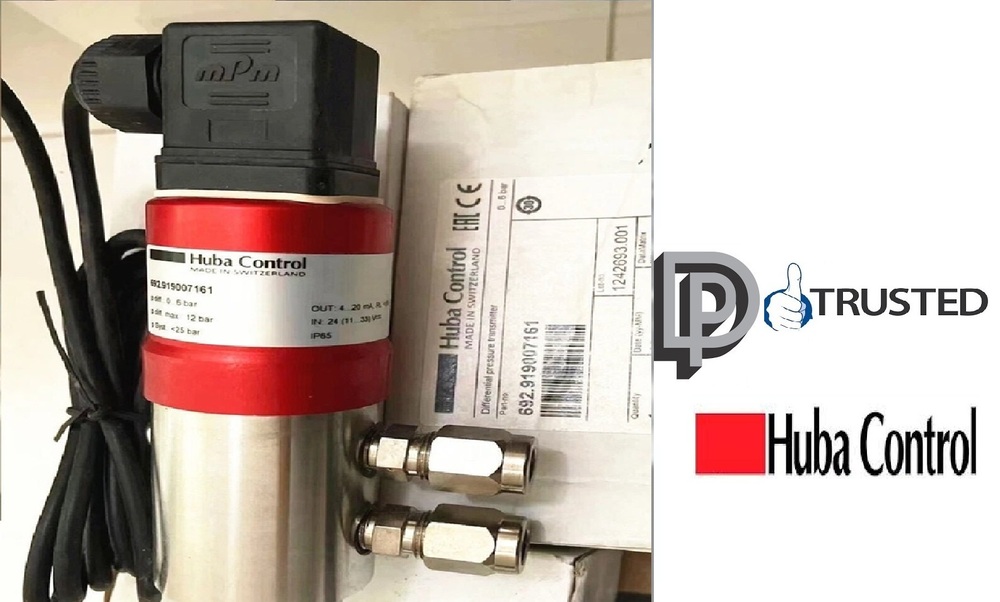

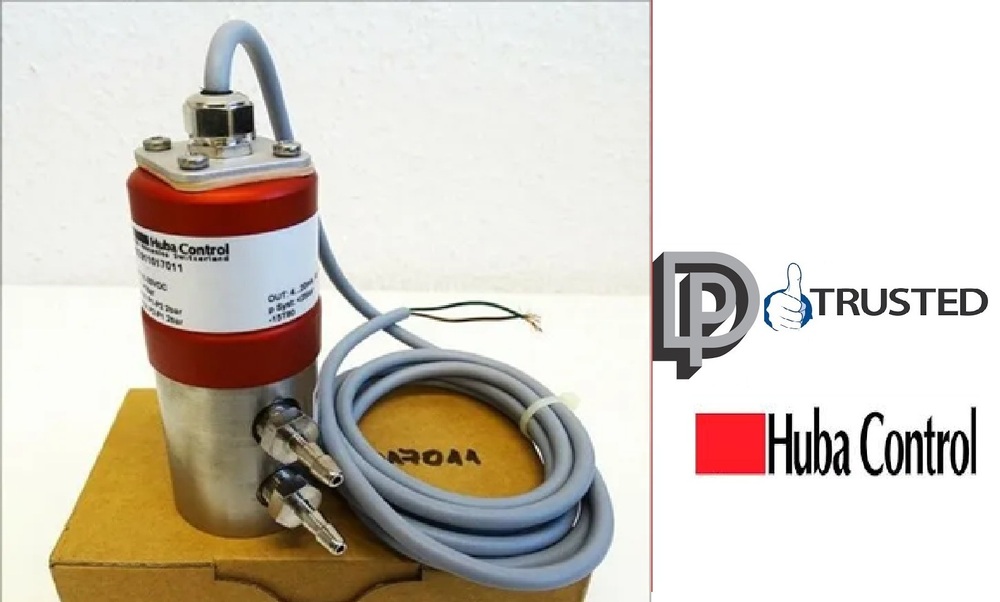

Huba Control Differential Pressure Transmitter; 692.914007141

Name: Huba Control Differential Pressure Transmitter; 692.914007141
Brand: D. P. ENGINEERS
Price: 35800 INR
Availability: InStock

Price 35800 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter; 692.914007141 Specification

Thread
1/4 inch NPT

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Material
Stainless Steel

Size
0...+1.6 BAR

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter; 692.914007141

Weight
450 Grams (g)

Mount Type
Panel

Color
Red

Scale Range
0...+1.6 BAR

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter; 692.914007141 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Paypal, Cash Against Delivery (CAD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter; 692.914007141

Huba Control Differential Pressure Transmitter; 692.914007141

Brand : Huba Control
Model : 692.914007141
Range : 0...+1.6 BAR
Type : 692 0...+1.6 BAR
Current Out : 4-20mA
Voltage : 11-33V DC
MAX : P1-P2 12BAR
MAX : P2-P1 12BAR
Made In Switzerland

Huba Control Differential Pressure Transmitter 692
Product InformationDifferential pressure transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, he Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Robust Material and Versatile Finishes

Crafted from durable stainless steel, this transmitter offers multiple finishes including Antique, Polished, Galvanized, and Matte. These finishing options not only enhance aesthetic appeal but provide superior resistance to corrosion and harsh environments, making the device suitable for intensive industrial usage.

Precise Measurement for Critical Applications

With its 0.5% accuracy and a pressure scale range of 0...+1.6 BAR, the transmitter ensures compliance with stringent system demands. Suitable for steam, oil, or gas, it facilitates dependable monitoring in applications such as refrigeration, water pumps, CPUs, and ultrafiltration systems.

Efficient Installation and Broad Compatibility

Weighing just 450 grams and equipped with a 1/4 inch NPT thread, the transmitter allows for convenient panel mounting. Its standard processing design ensures smooth integration with varied system architectures, making it a practical choice for manufacturers, exporters, and system integrators.

FAQ's of Huba Control Differential Pressure Transmitter; 692.914007141:

Q: How do I install the Huba Control Differential Pressure Transmitter 692.914007141?
A: This transmitter features a panel mount design with a 1/4 inch NPT thread, allowing straightforward installation onto compatible panels or system enclosures. Ensure all connections are secure to maintain accurate measurement and system integrity.

Q: What types of media can this pressure transmitter measure?
A: The device is designed to measure differential pressure in steam, oil, and gas, making it suitable for a variety of industrial and commercial applications such as refrigeration systems and ultrafiltration setups.

Q: When should I use this pressure transmitter in my system?
A: Use this transmitter when precise differential pressure measurement is needed within the range of 0...+1.6 BAR, especially in critical applications like CPUs, water pumps, and advanced filtration systems that require reliable monitoring.

Q: Where can this transmitter be applied effectively?
A: It is suitable for installation in environments like industrial refrigeration units, water purification plants, ultrafiltration systems, and mechanical panels in both commercial and industrial facilities.

Q: What processes benefit from using this transmitter?
A: Processes that require stable and accurate pressure readings, such as controlling pump efficiency, monitoring filtration system performance, and protecting sensitive electronic cooling units, will benefit from this transmitter's reliability and precision.

Q: What are the advantages of the various finish options?
A: The choice among Antique, Polished, Galvanized, and Matte finishes allows users to select according to their specific operational and aesthetic needs, each offering enhanced resistance to environmental factors and wear.
