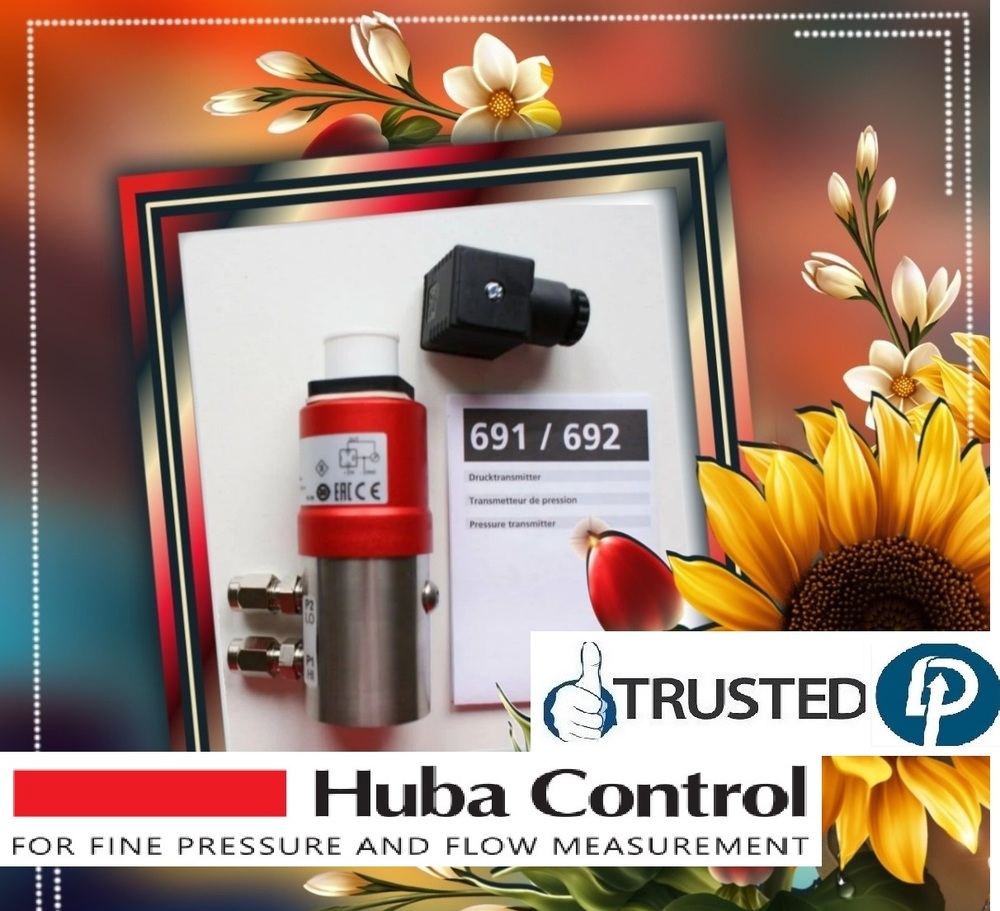

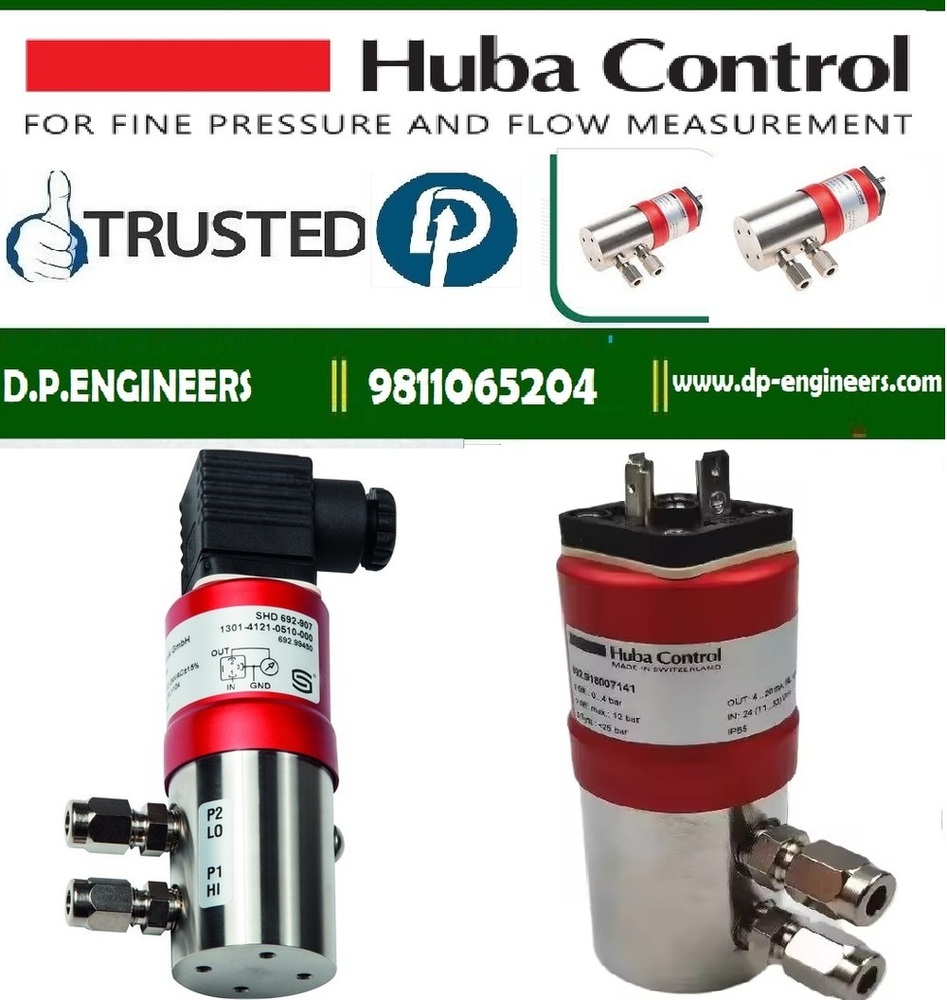

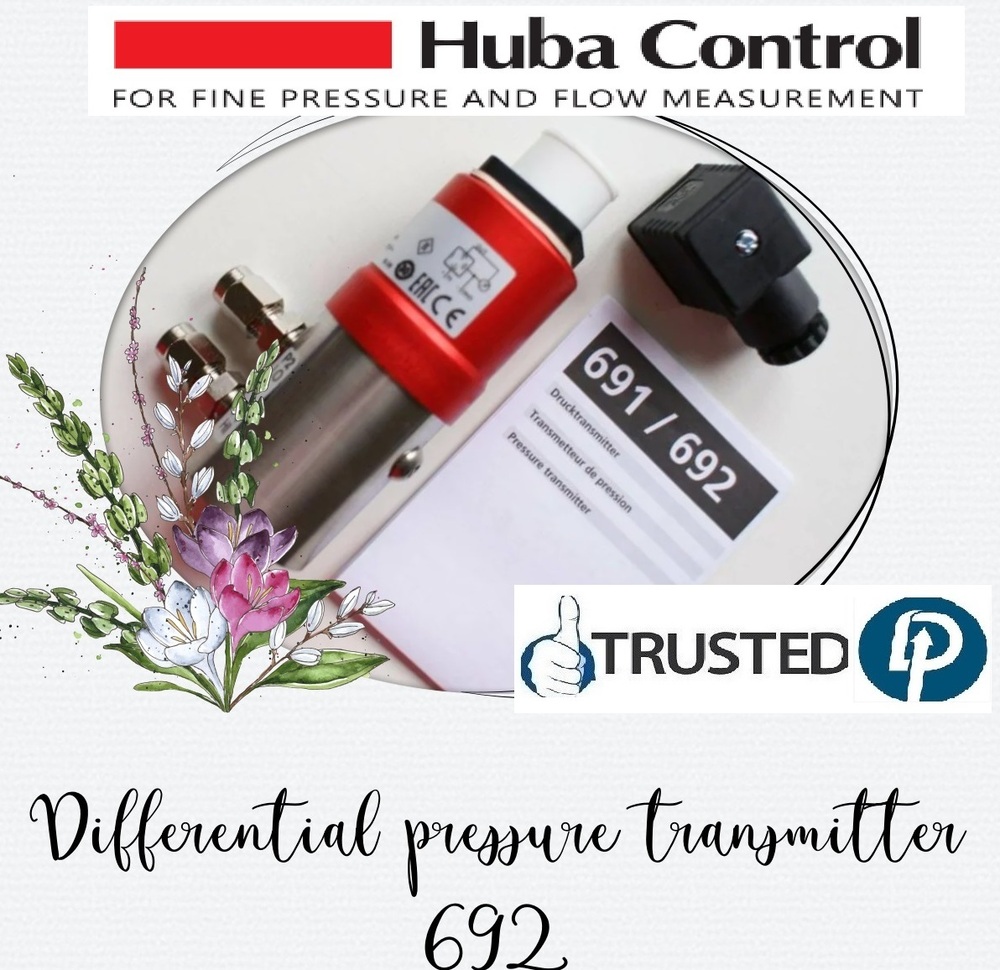

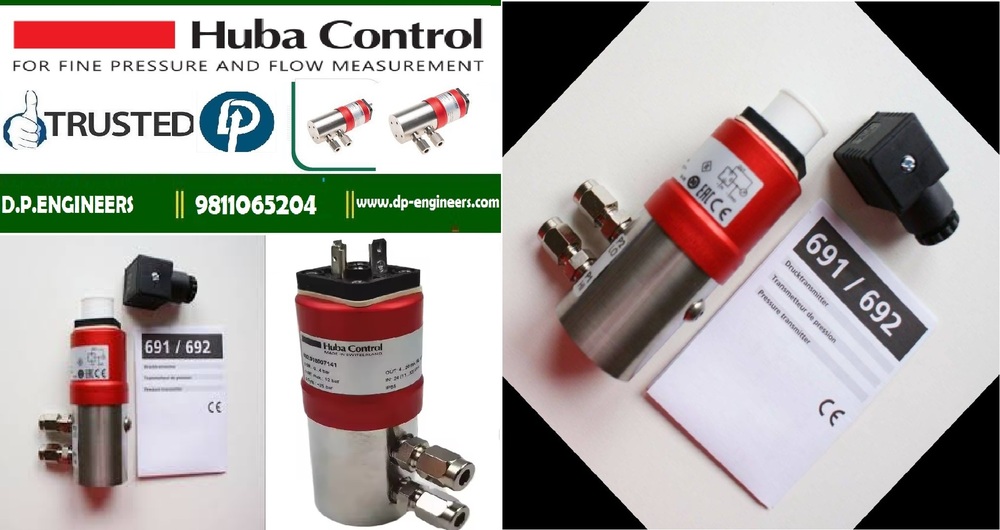

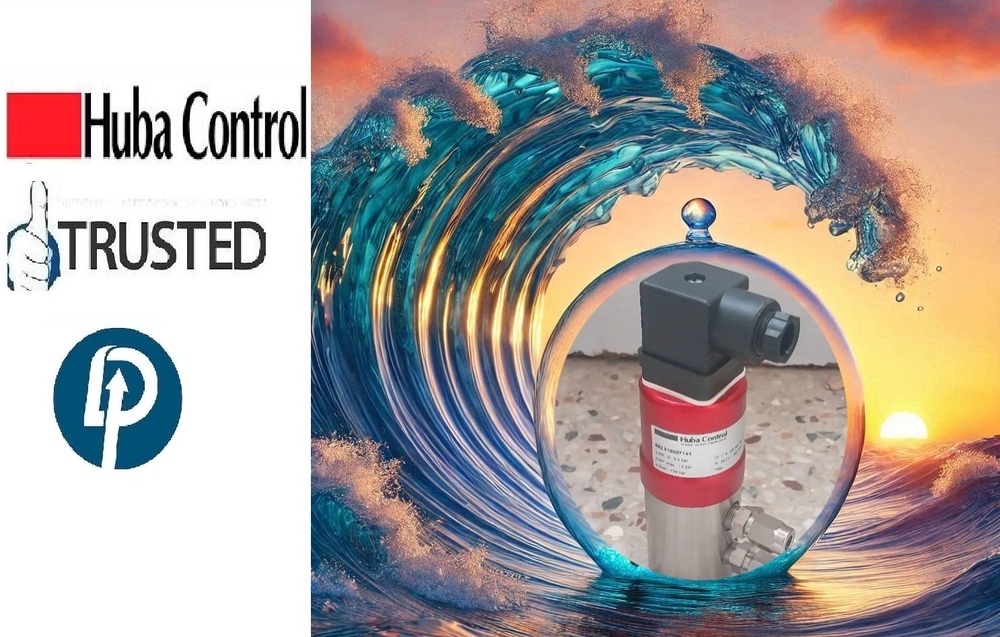

Huba | Control Differential Pressure Transmitter 692.919007161

Price 38000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba | Control Differential Pressure Transmitter 692.919007161 Specification

Thread
1/4 inch NPT

Usage
Sugar Industries,Steel Industries,Paper Mills,Cement Industries etc.

Material
Stainless Steel

Processing Type
Standard

Product Type
Huba | Control Differential Pressure Transmitter 692.919007161

Weight
450 Grams (g)

Color
Red

Mount Type
Back

Scale Range
0...+6 BAR

Accuracy
+-0.5 %

Huba | Control Differential Pressure Transmitter 692.919007161 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash Against Delivery (CAD), Paypal, Cash Advance (CA), Cash in Advance (CID), Cash on Delivery (COD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba | Control Differential Pressure Transmitter 692.919007161

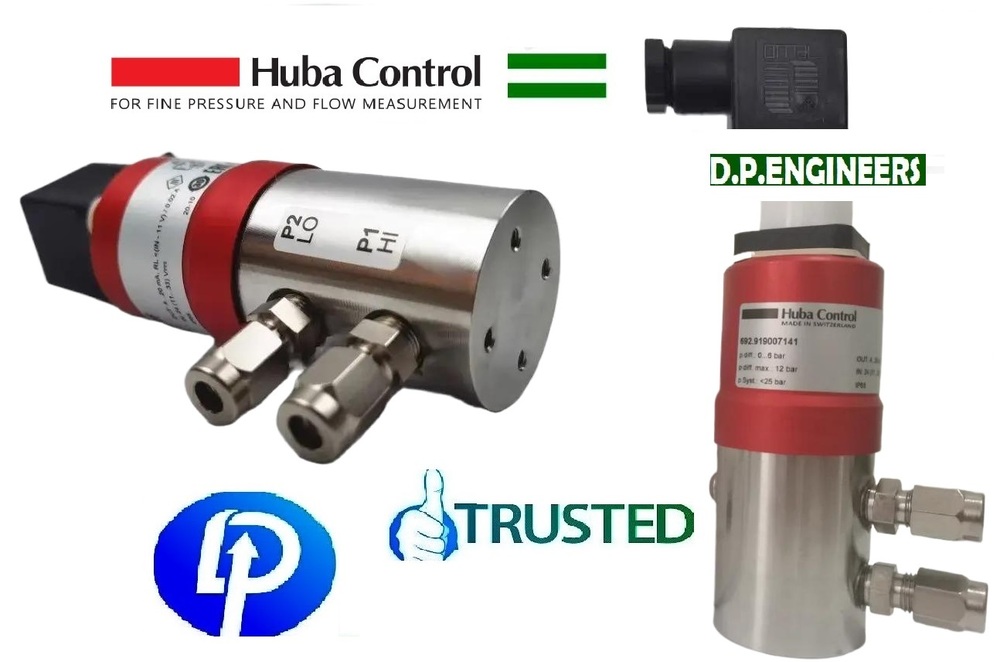

Huba Control | Differential Pressure Transmitter 692 at 42480.00 INR at Best Price in Delhi | D. P. Engineers

Huba | Control Differential Pressure Transmitter 692.919007161

Brand : Huba Control

Model : 692.919007161

Range : 0...+6 BAR

Type : 692 0...+6 BAR

Current Out : 4-20mA

Voltage : 11-33V DC

MAX : P1-P2 12BAR

MAX : P2-P1 12BAR

Made In Switzerland

Huba Control Differential Pressure Transmitter Product InformationDifferential Pressure Transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Engineered for Industrial Precision

The Huba 692.919007161 transmitter is specifically designed to provide stable and accurate differential pressure measurement in industrial processes. Its high-precision construction ensures consistent results, even in challenging conditions encountered in steel, sugar, cement, and paper industries. The robust stainless steel body and wide range of finishing options make it both durable and adaptable to various applications.

Versatile Application Across Industries

With compatibility for steam, oil, and gas, this pressure transmitter is suitable for a spectrum of industrial environments. Its adaptable design allows for reliable integration into existing systems using a 1/4 inch NPT thread and a convenient back mounting. Whether optimizing energy consumption or ensuring process safety, this device delivers dependable monitoring performance.

FAQ's of Huba | Control Differential Pressure Transmitter 692.919007161:

Q: How does the Huba Control Differential Pressure Transmitter 692.919007161 operate in industrial settings?
A: This transmitter measures the difference in pressure between two points within a system, which is essential for monitoring and controlling processes in industrial plants. Its high accuracy and robust materials make it ideal for environments with steam, oil, or gas.

Q: What materials and finishes are available with this pressure transmitter?
A: The device is constructed from stainless steel and is available in various finishes such as antique, polished, galvanized, and matte, providing both durability and aesthetic versatility for different installation requirements.

Q: When is it beneficial to use this transmitter in a manufacturing process?
A: It is especially useful when precise pressure monitoring is critical to process stability and efficiency, such as during filtration, flow regulation, or safety monitoring in sugar, steel, cement, or paper industries.

Q: Where can the Huba 692.919007161 be installed within an industrial facility?
A: It features a compact design with a back-mount and 1/4 inch NPT thread, enabling easy installation on pipes, tanks, or machinery where differential pressure must be measured and monitored.

Q: What is the process for installing and calibrating the transmitter?
A: Installation involves mounting the unit using its back-mount configuration and connecting it to the process ports via the 1/4 inch NPT threads. Calibration should be performed according to manufacturer guidelines to ensure the 0.5% accuracy is maintained.

Q: How is this pressure transmitter utilized in various industries?
A: Industries use it for monitoring and controlling the pressure of process media such as steam, oil, or gas, to ensure safe and efficient operations of critical systems and equipment.

Q: What are the main benefits of choosing this transmitter for industrial applications?
A: Key advantages include high accuracy, rugged stainless steel construction, versatile mounting and finishing options, and reliable performance across a range of media and industries, making it a valuable component for process control.
