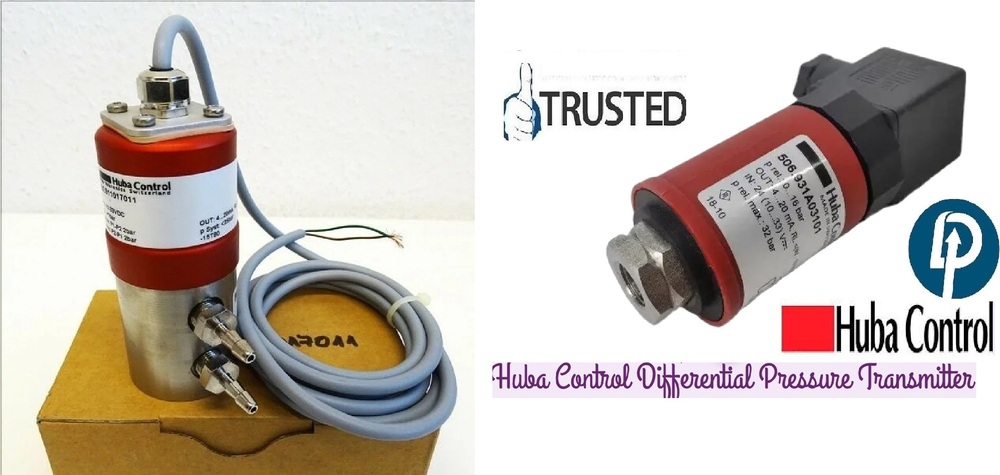

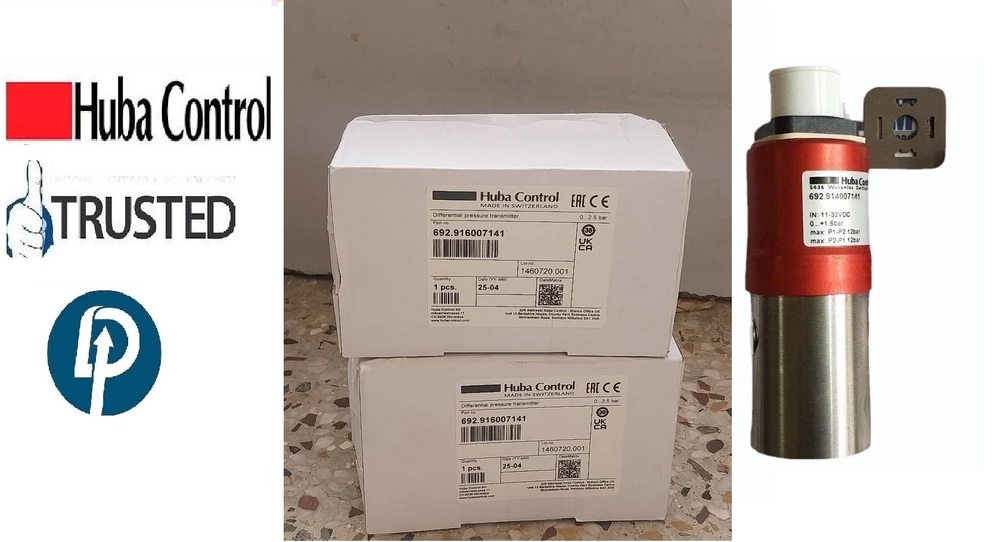

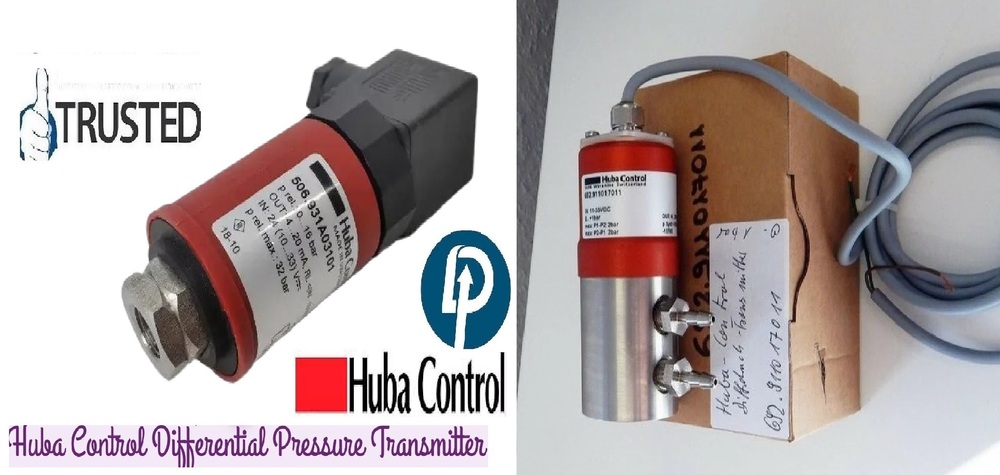

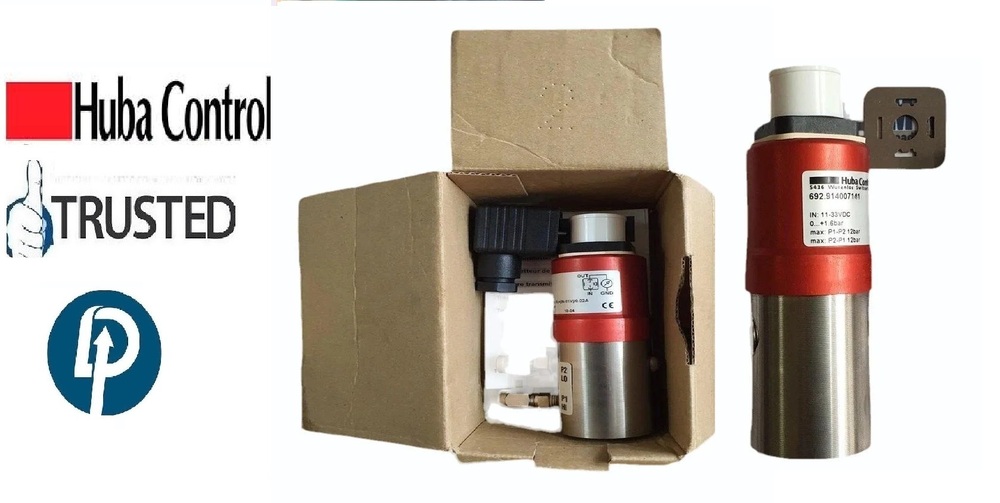

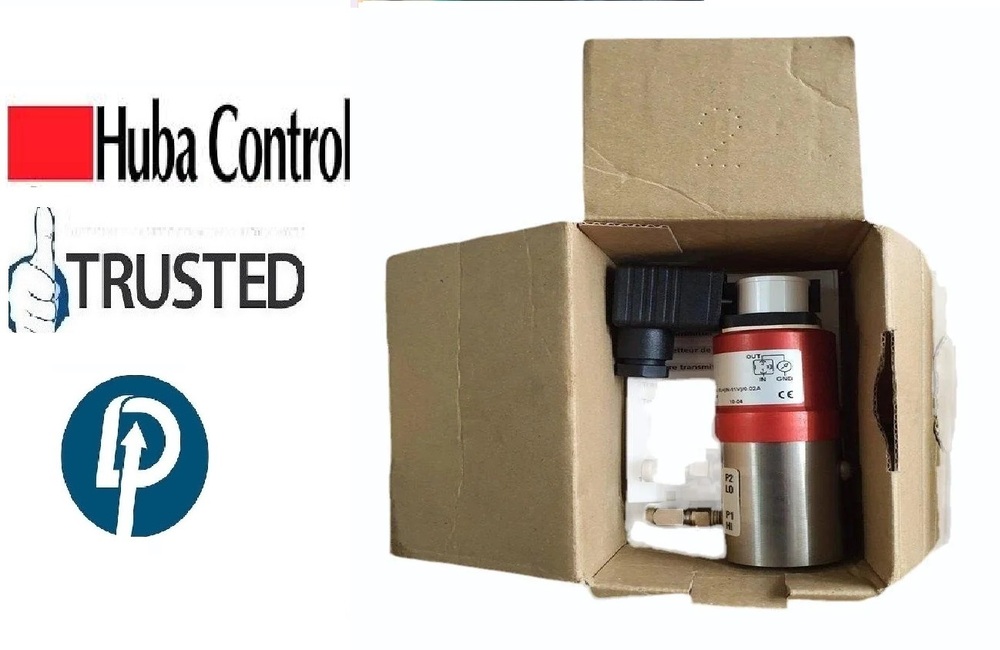

Huba Control Differential Pressure Transmitter 692.914007141

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter 692.914007141 Specification

Thread
1/4

Material
Stainless Steel

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Size
0...+1.6 BAR

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter 692.914007141

Weight
143 Grams (g)

Mount Type
Back

Color
red

Scale Range
0...+1.6 BAR

Accuracy
< 0.5% %

Huba Control Differential Pressure Transmitter 692.914007141 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Paypal, Cash in Advance (CID), Cash Advance (CA)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter 692.914007141

Huba Control Differential Pressure Transmitter 692.914007141

Brand : Huba Control
Model : 692.914007141
Range : 0...+1.6 BAR
Type : 692 0...+1.6 BAR
Current Out : 4-20mA
Voltage : 11-33V DC
MAX : P1-P2 12BAR
MAX : P2-P1 12BAR
Made In Switzerland

Huba Control Differential Pressure Transmitter 692
Product InformationDifferential pressure transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

Versatile Applications Across Multiple Industries

The Huba Control 692.914007141 Differential Pressure Transmitter is designed for broad usage in pharmaceutical manufacture, hotels, malls, hospitals, operating theatres, as well as key industrial sectors like power plants, cement, steel, fertilizer, textile, food and beverages, and pulp and paper industries. Its adaptability resonates with facilities requiring precise and dependable pressure monitoring.

Engineered for Precision and Reliability

With its stainless steel construction, advanced sensing technology, and high-accuracy rate of less than 0.5%, this transmitter offers durable performance in challenging settings. The back mount configuration and a pressure scale of 0...+1.6 BAR make it user-friendly for integration and maintenance, supporting both operational efficiency and regulatory compliance.

FAQ's of Huba Control Differential Pressure Transmitter 692.914007141:

Q: How does the Huba Control Differential Pressure Transmitter 692.914007141 ensure accurate measurements?
A: This transmitter integrates high-precision sensing technology and is calibrated for an accuracy better than 0.5%, delivering reliable pressure readings for steam, oil, or gas across a range of 0...+1.6 BAR, essential for critical process environments.

Q: What processes can this transmitter be used for in various industries?
A: The transmitter is designed for monitoring and controlling differential pressure in processes involving steam, oil, and gas. It is commonly used for HVAC, filtration systems, process automation, and safety applications in sectors ranging from pharmaceuticals and food manufacturing to power and steel plants.

Q: When is the ideal time to install this differential pressure transmitter?
A: Installation is ideally conducted during equipment commissioning, system upgrades, or when replacing outdated sensors to enhance control and efficiency in the process environment. Proper installation ensures continuous and accurate monitoring from the outset.

Q: Where should the transmitter be mounted for optimal performance?
A: The transmitter features a back mount design, allowing it to be securely installed onto designated panels or instrument boards in measuring lines. Positioning it close to the pressure source ensures minimal lag and maximized accuracy.

Q: What is the benefit of stainless steel construction and multiple finish options?
A: Stainless steel provides corrosion resistance and robustness, ensuring longevity even in harsh environments. The option of antique, polished, galvanized, or matte finishes allows for customized installation suited to both functional requirements and aesthetic considerations.

Q: How can users ensure the transmitter delivers consistent readings over time?
A: Regular calibration checks and maintenance, as advised in the product manual, will help maintain the instrument's accuracy and reliability. Ensuring a clean environment and secure connections further supports long-term performance.

Q: What advantages does this model offer to exporters, manufacturers, and suppliers in India?
A: By providing advanced measurement capability, high durability, and compatibility with a wide range of industrial setups, this model supports reliable product quality, regulatory compliance, and streamlined operations-enhancing value for exporters, manufacturers, suppliers, and traders alike.
