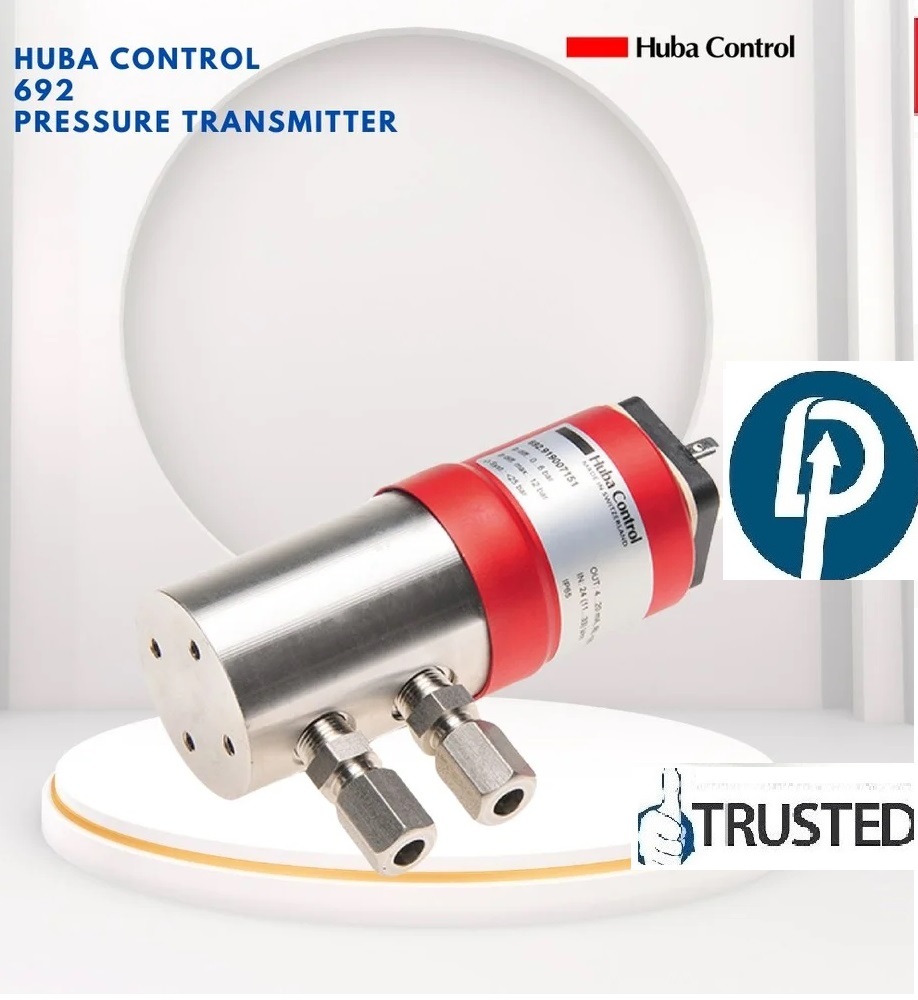

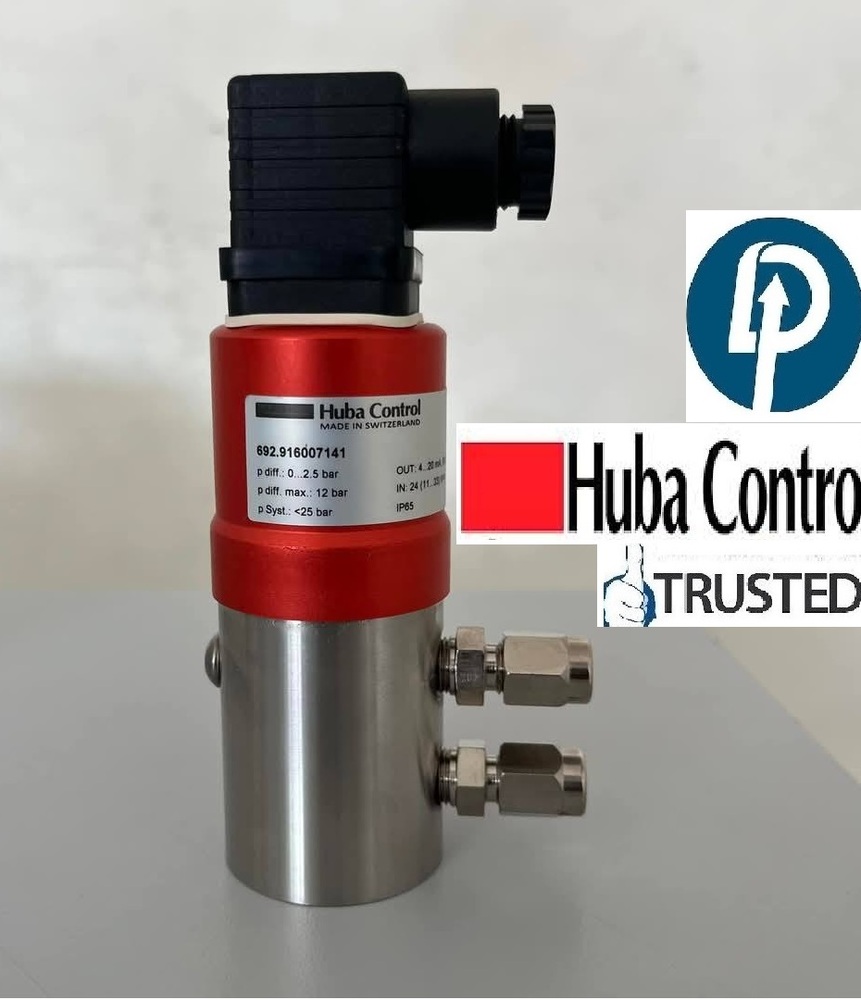

Huba Control Differential Pressure Transmitter 692.915007141
aaaaaaaBrand : Huba Control

• Model : 692.915007141
• Range :  0...+2.5 BAR
• Type : 692 0...+2.5 BAR
• Current Out : 4-20mA
• Voltage : 11-33V DC
• MAX : P1-P2 5BAR
• MAX : P2-P1 5BAR
• Made In Switzerland

Huba Control Differential Pressure Transmitter
Product Information
Differential Pressure Transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, Various Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, The Transmitters 692 Are Suitable For All Types Of Industrial Applications.

• Very Low Temperature Sensitivity
• High Temperature Resistance
• No Mechanical Creep
• Individual Applications Through Modular System And Different Material Choices

Technical Data
Product Feature
Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

• Response Time : <5 ms
• Load Change : <50 Hz
• Sensor Weight : 430 g

Field Of Application
Media : Process Medium; Gas

• Medium Temperature : -15 ... 85 AC
• Permissible Overload On One Side : See Variant Plan
• System Pressure : 12; 25; 50 Bar
• Bursting Pressure : 1.5 x System Pressure

Ambient Condition
Ambient Temperature : -15 ... 85 AC

• Storage Temperature : -40 ... 85 AC

Material

• Housing : Stainless Steel 1.4305 (AISI 303); PVDF
• Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni
• Measuring Element With Media Contact : Ceramic Al2O3 (96 %)
• Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data
Current Consumption : <20 mA

• Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide
Installation Orientation : any

• Assembly : Mounting Bracket

• Approval

EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3

Applications

• REFRIGERATION SYSTEMS
• CPU
• WATER PUMPS
• ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

• Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.
• Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.
• Calibration Certificate


• WhatsApp No.9871014210,

• WhatsApp No.9811065204,

• WhatsApp No.8376899729,

• WhatsApp No.8368888047,

• WhatsApp No.9268631221,

•

Precision Measurement for Industrial Applications

Huba Control Differential Pressure Transmitter 692.915007141 offers precise differential pressure measurement with an accuracy of 0.5%. Its versatile range (0-2.5 bar) and durable stainless steel construction make it ideal for critical monitoring tasks in sugar, steel, paper, and cement industries. Rely on exact readings for process optimization and safety assurance.


Robust Build and Flexible Installation

This differential pressure transmitter features a panel mount design and is made from stainless steel, providing longevity and resistance to harsh conditions. Multiple finish options-antique, polished, galvanized, and matte-allow adaptability to various operating environments. The 1/4 inch NPT thread supports standard connections for hassle-free installation.


Versatile Usage Across Multiple Industries

Whether measuring steam, oil, or gas, the 692.915007141 transmitter accommodates diverse industrial demands. Its broad applicability ensures seamless integration into existing processes in industries ranging from sugar and steel to paper mills and cement plants, offering exceptional value and operational reliability.
