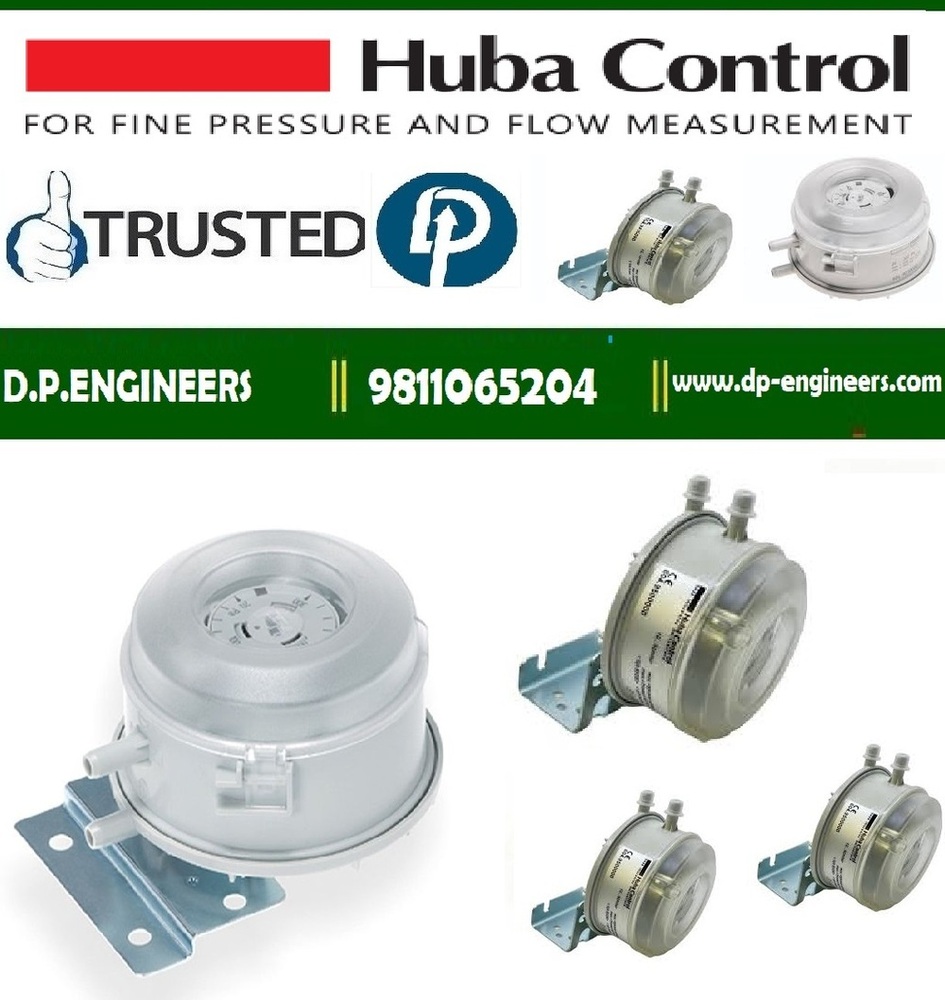

HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pascal

Send Inquiry

Request To Call Back

HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pascal

Get a Price/Quote

MOQ : 15 Pieces

HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pascal Specification

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Material
Other

Processing Type
Standard

Product Type
HUBA CONTROL: 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pa Model : 604.9210000

Weight
143 Grams (g)

Color
whilter

Mount Type
Back

Scale Range
HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pa

HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pascal Trade Information

Minimum Order Quantity
15 Pieces

FOB Port
Delhi

Payment Terms
Paypal, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pascal

HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 PascalModel : 604.9210000

Range : 100....1000 PAC
Max : 5000 PA ( -30T85 )
Max : 7500 PA ( -30T75 )
Made In Switzerland

Product information

The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

Easy To Install
User-Friendly Snap Closure For The Cover
Cable Entry Aid
Cable Strain Relief Integrated Into PG11
Combination Bracket For Vertical Or Horizontal Mounting
High Adjustment Accuracy Through Individual Scale Engraving Per Switch
Long-Term Stable Switching Points Through Trapezoidal Bead Membrane
Multilayer Contact With Gold Plating

Product Feature

Technical Data

Pressure Measuring Range:0...50 Mbar Relative & Difference
Sensor Weight:143g With Type C combination bracket

Field Of Application

Media:Air Neutral Gas
Medium Temperature:-30...85AC
Permissible Overload On One Side:75 Mbar-30...75AoC 50 Mbar-30...85AoC

Ambient Condition

Ambient Temperature:-30... 85AC
Storage Temperature:-40...85AC

Material

Housing With Media Contact:PC 10% GF
Measuring Element With Media Contact:Silicone LSR Tempered At 200AC,Outgassing-Free
Cover With Media Contact:PC

Electrical Data

Switching Load:5 A at 250 VAC

Resistive Switching Load:4 A at 30 VDC

Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC

Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC

Contact System:Changeover Switch

Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide:

Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval:

UL:MFHX2/8 Or XAAK2/8

DVGW:According to DIN EN 1854

Low Voltage Directive:2014/35/EU

Gas Appliances Directive:2016/426/EU

Applications:
AHU

CRAC

MOBILE HYDRAULIC

Accessories:

Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic

Angle Type B

Combination Bracket Type C

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM

Angle Type A

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Connection Set 90A Angled:For Ventilation Duct Including 2 M Hose Metal

Calibration Certificate

Mounting Ring

Closed Fastening Ring

Versatile Differential Pressure Measurement

The HUBA CONTROL 604.9210000 is crafted for precision and versatility across diverse sectors such as pharmaceuticals, hotels, hospitals, power plants, and industrial manufacturing. With a scale range of 100-1000 Pa, it seamlessly adapts to monitor pressure in steam, oil, or gas systems, supporting efficient process control and safety in critical environments.

Rugged Design and Multiple Finishing Options

Constructed with durability in mind, this pressure switch is available in finishing options like antique, polished, galvanized, or matte to suit different installation requirements. Its robust design and light weight ensure straightforward back mounting, rendering it ideal for both new setups and system retrofits in high-demand industries.

FAQ's of HUBA CONTROL 604.9210000 DIFFERENTIAL PRESSURE SWITCH 100-1000 Pascal:

Q: How does the HUBA CONTROL 604.9210000 Differential Pressure Switch function in industrial applications?
A: This differential pressure switch senses the pressure difference between two points within a system and activates an electrical contact once a preset range (100-1000 Pa) is reached, helping to regulate or protect processes involving steam, oil, or gas.

Q: What are the suitable environments for using this pressure switch?
A: It is designed for a broad range of sectors, including pharmaceuticals, hotels, hospitals, malls, power and cement plants, steel industries, fertilizer manufacturing, food and beverages, pulp and paper mills, and textile industries.

Q: When should this pressure switch be chosen over other models?
A: Select this switch when you require precise differential pressure monitoring between 100 and 1000 Pa, particularly in systems where process efficiency and safety are critical and a compact, versatile device is needed.

Q: Where can the HUBA CONTROL 604.9210000 be installed for optimal performance?
A: It is suitable for installation in control panels, HVAC systems, process pipelines, and equipment in environments listed above, thanks to its back mount design which simplifies integration and access.

Q: What is the process for installing the HUBA CONTROL 604.9210000 Differential Pressure Switch?
A: Installation involves mounting the device via its back plate, connecting it to the pressure source, and wiring it into the control circuit following standard procedures. Ensure the chosen finish-antique, polished, galvanized, or matte-matches your operating environment for maximum durability.

Q: How does using this differential pressure switch benefit operational efficiency?
A: By providing accurate, real-time pressure differential monitoring, it minimizes downtime, prevents system failures, and enhances safety, which leads to more stable operations and potential cost savings in maintenance and energy use.

Q: What media can this pressure switch measure pressure differences in?
A: The HUBA CONTROL 604.9210000 can reliably measure pressure differences in a variety of media, including steam, oil, and gas, making it highly adaptable for numerous processing and manufacturing applications.
