"Huba Differential Pressure Switch" Model 604.9000020

Get a Price/Quote

MOQ : 15 Pieces

"Huba Differential Pressure Switch" Model 604.9000020 Specification

Material
Other

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Dial Material
Plastic

Processing Type
Standard

Product Type
"Huba Differential Pressure Switch" Model 604.9000020

Weight
143 Grams (g)

Mount Type
Back

Color
white

Scale Range
0.2....3 Mbar

"Huba Differential Pressure Switch" Model 604.9000020 Trade Information

Minimum Order Quantity
15 Pieces

FOB Port
Delhi

Payment Terms
Paypal, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About "Huba Differential Pressure Switch" Model 604.9000020

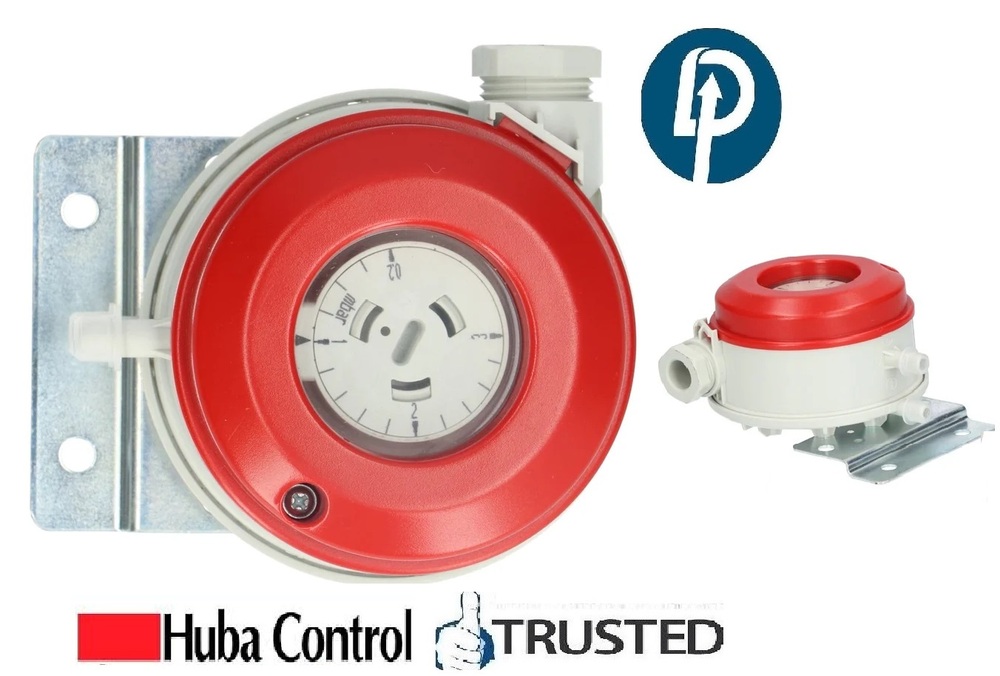

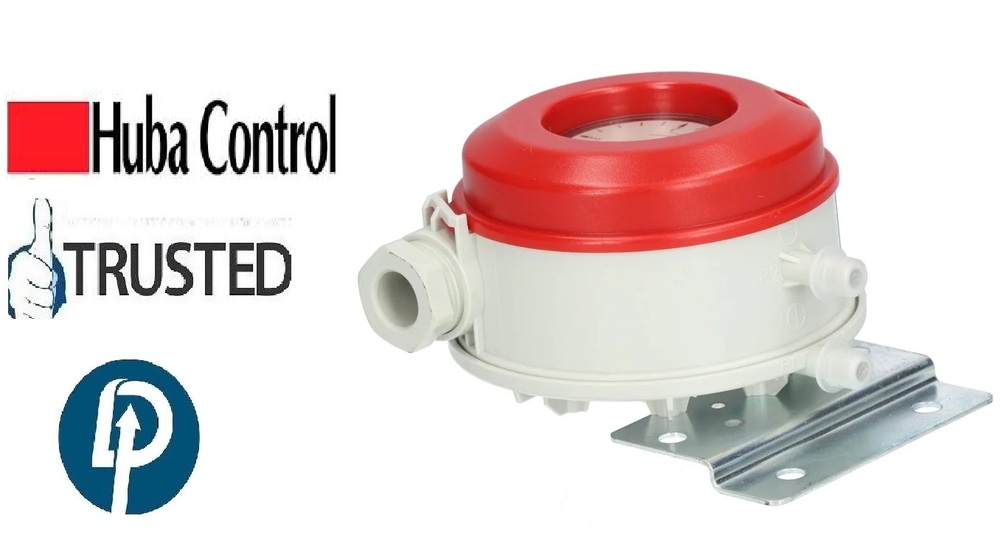

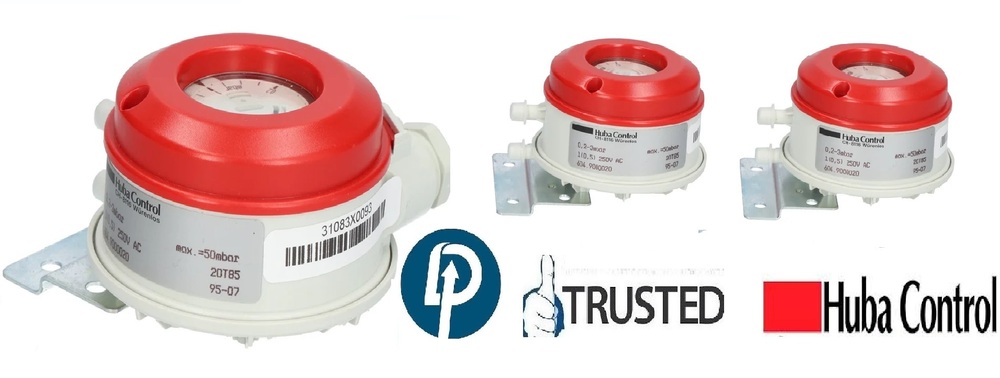

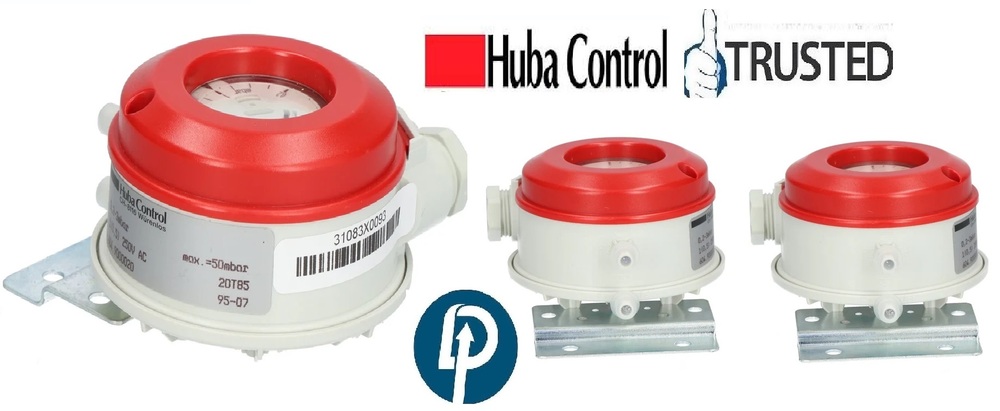

"Huba Differential Pressure Switch" Model 604.9000020

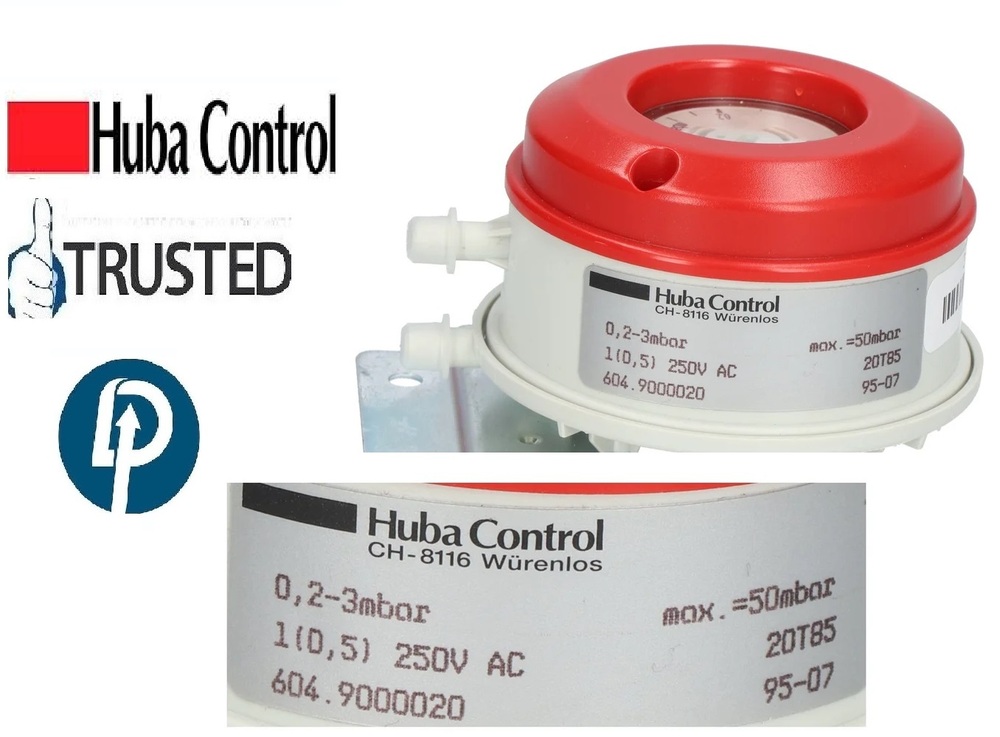

Model : 604.9000020

Range : 0.2....3 Mbar

Max : 50 Mbar ( -30T85 )

Max : 75 Mbar ( -30T75 )

Made In Switzerland

Product information
The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

Easy To Install

User-Friendly Snap Closure For The Cover

Cable Entry Aid

Cable Strain Relief Integrated Into PG11

Combination Bracket For Vertical Or Horizontal Mounting

High Adjustment Accuracy Through Individual Scale Engraving Per Switch

Long-Term Stable Switching Points Through Trapezoidal Bead Membrane

Multilayer Contact With Gold Plating

Product Feature

Technical Data:Pressure Measuring Range:0...50 Mbar Relative & Difference

Sensor Weight:143g With Type C combination bracket

Field Of Application:

Media:Air Neutral Gas

Medium Temperature:-30...85AC

Permissible Overload On One Side:75 Mbar-30...75AoC 50 Mbar-30...85AoC

Ambient Condition:

Ambient Temperature:-30... 85AC

Storage Temperature:-40...85AC

Material:

Housing With Media Contact:PC 10% GF

Measuring Element With Media Contact:Silicone LSR Tempered At 200AC,Outgassing-Free

Cover With Media Contact:PC

Electrical Data:

Switching Load:5 A at 250 VAC

Resistive Switching Load:4 A at 30 VDC

Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC

Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC

Contact System:Changeover Switch

Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide:

Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval:

UL:MFHX2/8 Or XAAK2/8

DVGW:According to DIN EN 1854

Low Voltage Directive:2014/35/EU

Gas Appliances Directive:2016/426/EU

Applications:
AHU

CRAC

MOBILE HYDRAULIC

Accessories:

Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic

Angle Type B

Combination Bracket Type C

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM

Angle Type A

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Connection Set 90A Angled:For Ventilation Duct Including 2 M Hose Metal

Calibration Certificate

Mounting Ring

Closed Fastening Ring

Versatile Industrial Applications

The Huba Model 604.9000020 Differential Pressure Switch seamlessly integrates into essential systems across pharmaceuticals, hotels, malls, hospitals, power plants, and various manufacturing sectors. Its compatibility with steam, oil, and gas makes it a reliable choice for pressure monitoring wherever precise differentiation is needed.

Robust Design for Demanding Environments

Engineered with a durable plastic dial, multiple refined finishes, and a compact weight of just 143 grams, this switch excels even in challenging industrial environments. Its back mount design ensures easy installation and maintenance, supporting operational efficiency in busy or space-constrained settings.

FAQ's of "Huba Differential Pressure Switch" Model 604.9000020:

Q: How does the Huba Differential Pressure Switch Model 604.9000020 function in industrial environments?
A: The 604.9000020 model reliably detects differential pressure changes between two points in steam, oil, or gas systems. When a set threshold within the 0.2 to 3 mbar range is reached, the switch triggers an electrical contact, enabling control or alarm actions crucial for process automation and safety.

Q: What industries and applications can benefit most from this pressure switch?
A: Industries such as pharmaceuticals, food and beverages, pulp and paper, power plants, cement, textiles, hotels, hospitals, and steel and fertilizer plants can all benefit from its accuracy. It is ideal for monitoring filter blockages, ensuring clean room conditions, and protecting sensitive equipment.

Q: When should this pressure switch be installed in a process system?
A: Install the switch during system setup or scheduled maintenance, especially when you need real-time detection of low-pressure differentials to safeguard equipment, maintain operational standards, or comply with safety regulations.

Q: Where is the optimal mounting location for this model?
A: The back mount design allows for installation directly onto control panels, walls, or ducts where differential pressure must be closely monitored. Select a location that provides easy access for setup, testing, and regular checks.

Q: What is the typical setup process for the Huba Model 604.9000020?
A: Begin by securely mounting the switch using the back mount configuration. Connect the pressure ports to the relevant system lines. Adjust the setpoint within the 0.2 to 3 mbar range according to your process requirements, and verify correct electrical connections for automation responses.

Q: How does the switch's finishing and construction benefit high-traffic or sensitive areas?
A: The model's antique, polished, galvanized, and matte finishes not only enhance durability against wear but also provide an attractive appearance suitable for visible installation in hotels, malls, and hospitals. The lightweight, plastic construction ensures ease of handling during maintenance.
