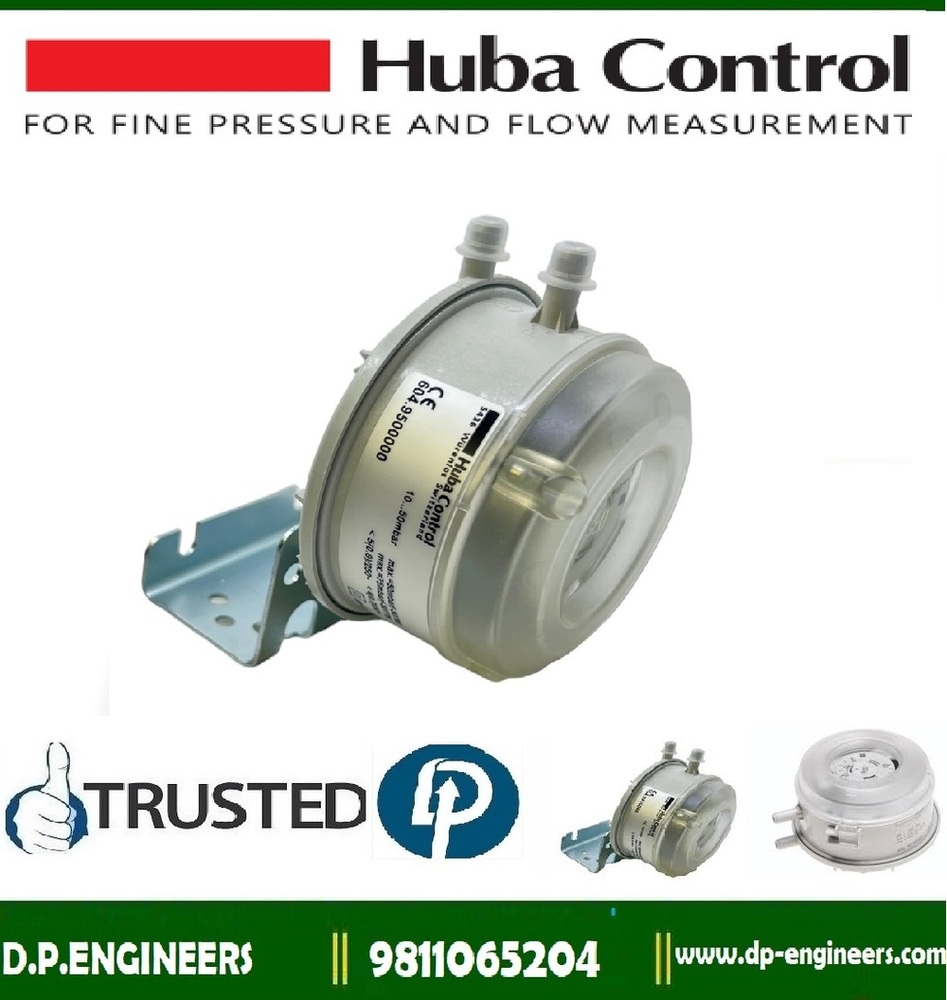

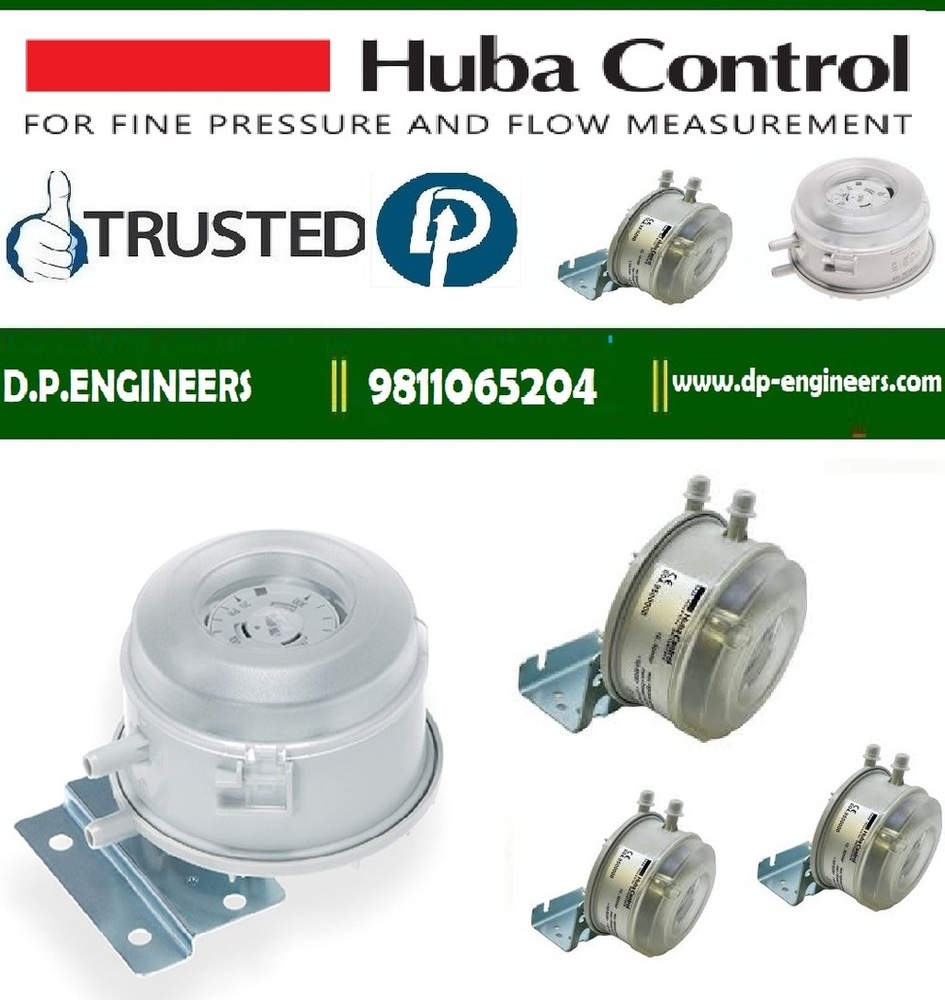

Huba 604.9210030 Differential Pressure Controller 100-1000pa

About Huba 604.9210030 Differential Pressure Controller 100-1000pa

Huba 604.9210030 Differential Pressure Controller 100-1000pa

• MODEL : 604.9210030
• RANGE : 100a1000 Pa
• Max.=5000 Pa (-30T85
• Max.=7500 Pa (-30T75
• 5 (0.8)/250~
• 4 (0.7)/30---
• Made In Switzerland
• Weight:40 GM

Product information

The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

• Easy To Install
• User-Friendly Snap Closure For The Cover
• Cable Entry Aid
• Cable Strain Relief Integrated Into PG11
• Combination Bracket For Vertical Or Horizontal Mounting
• High Adjustment Accuracy Through Individual Scale Engraving Per Switch
• Long-Term Stable Switching Points Through Trapezoidal Bead Membrane
• Multilayer Contact With Gold Plating

Product Feature

Technical Data

• Pressure Measuring Range:0...50 Mbar Relative & Difference
• Sensor Weight:143g With Type C combination bracket

Field Of Application:

• Media:Air Neutral Gas
• Medium Temperature:-30...85AC
• Permissible Overload On One Side:75 Mbar-30...75AoC 50 Mbar-30...85AoC

Ambient Condition:

• Ambient Temperature:-30... 85AC
• Storage Temperature:-40...85AC

Material:

• Housing With Media Contact:PC 10% GF
• Measuring Element With Media Contact:Silicone LSR Tempered At 200AC,Outgassing-Free
• Cover With Media Contact:PC

Electrical Data:

• Switching Load:5 A at 250 VAC
• Resistive Switching Load:4 A at 30 VDC
• Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC
• Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC
• Contact System:Changeover Switch
• Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide:

• Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval:

• UL:MFHX2/8 Or XAAK2/8
• DVGW:According to DIN EN 1854
• Low Voltage Directive:2014/35/EU
• Gas Appliances Directive:2016/426/EU

Applications:
• AHU
• CRAC
• MOBILE HYDRAULIC

Accessories:

• Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic
• Angle Type B
• Combination Bracket Type C
• Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM
• Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM
• Angle Type A
• Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required
• Connection Set 90A Angled:For Ventilation Duct Including 2 M Hose Metal
• Calibration Certificate
• Mounting Ring
• Closed Fastening Ring
•

Precision Pressure Control Across Industries

The Huba 604.9210030 Differential Pressure Controller delivers accuracy and stability for environments requiring careful pressure management, such as hospitals, OT rooms, power plants, and food processing facilities. Its 100-1000 Pa scale range suits low to moderate differential pressures, making it a reliable choice for both critical and routine applications. The standard processing type and varied industrial finishes ensure optimal integration into diverse operational setups.


User-Friendly Installation and Versatile Mounting

Designed for back mounting, the Huba 604.9210030 is compact, weighing only 143 grams, which simplifies installation even in space-constrained systems. Its robust construction and array of finishing styles offer durability and compatibility with standard mounting configurations. The controller is suitable for both new implementations and retrofitting in existing pipelines and pressure management systems, making it a versatile solution across industries.
