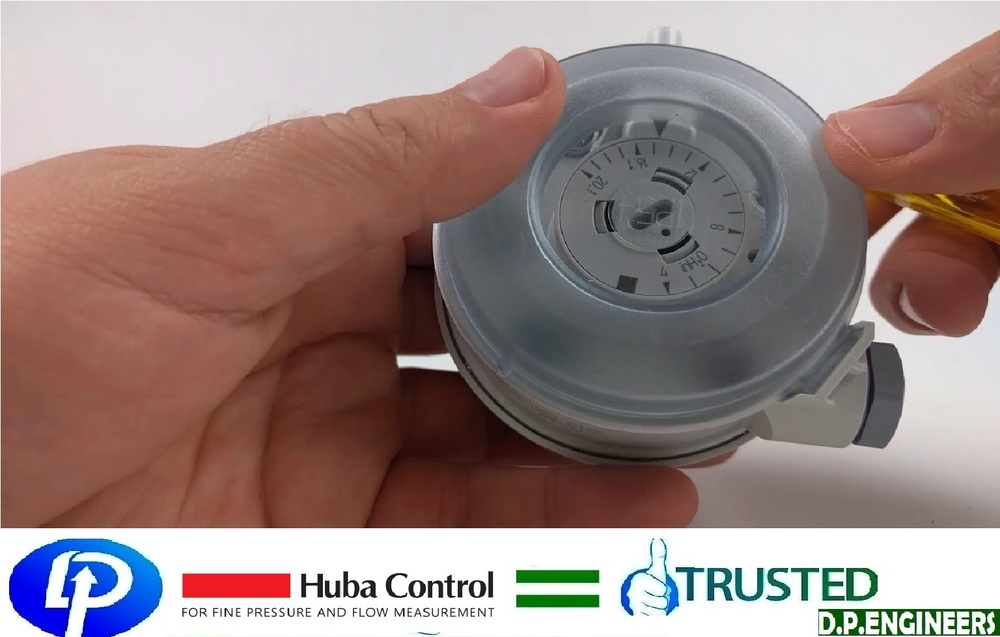

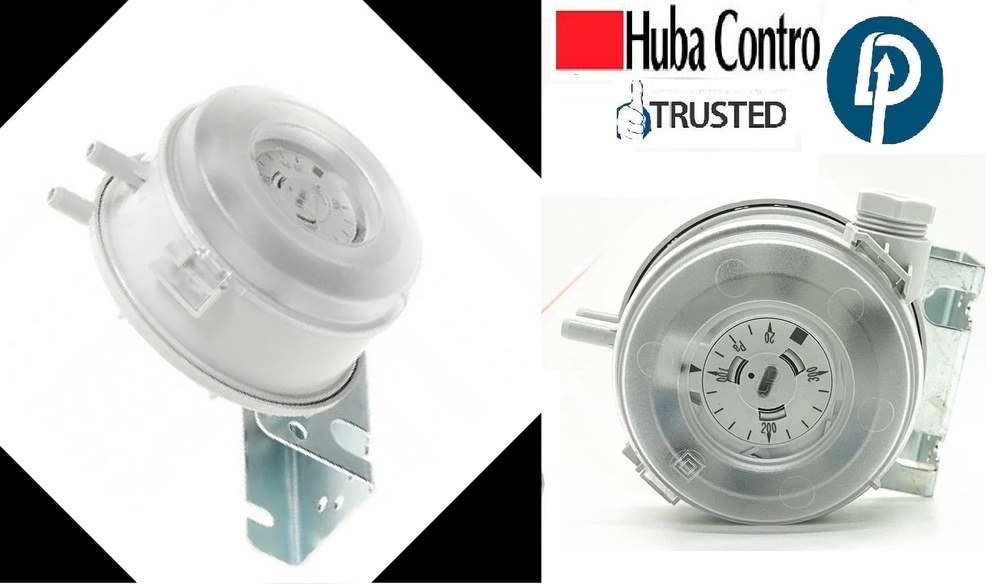

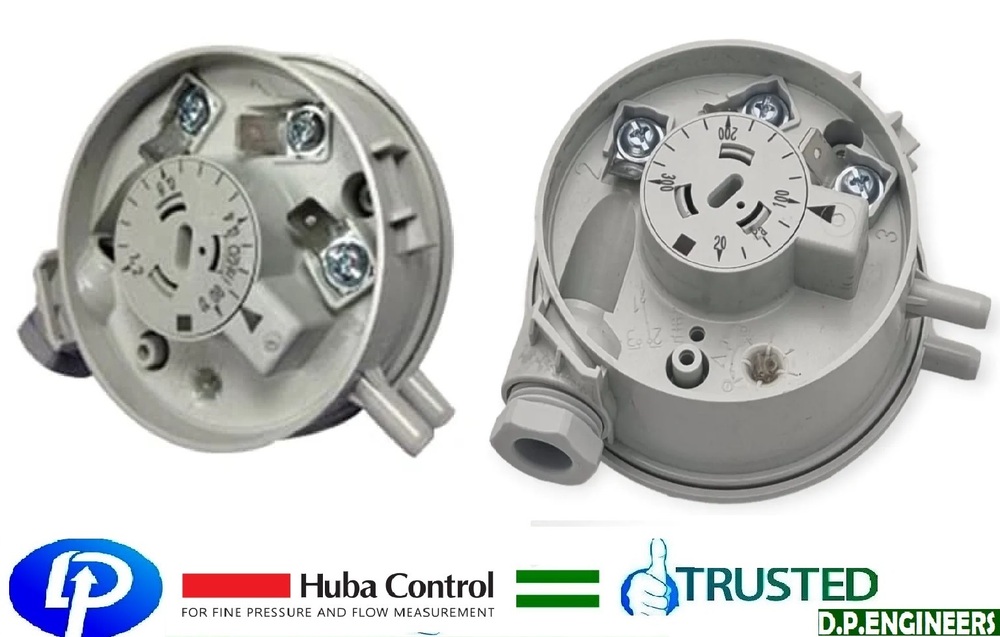

'HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 Pascal'

Price 6500 INR/ Piece

Get a Price/Quote

MOQ : 15 Pieces

'HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 Pascal' Specification

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Material
Other

Processing Type
Standard

Product Type
HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 Pascal

Weight
250 Grams (g)

Color
white

Mount Type
Back

Scale Range
HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa

'HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 Pascal' Trade Information

Minimum Order Quantity
15 Pieces

FOB Port
Delhi

Payment Terms
Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD), Paypal, Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About 'HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 Pascal'

Gas Huba Differential Pressure Switch Range 20 To 300 Pac at a1 4800/piece in New Delhi

HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 PascalModel : 604.9010030

Range : 20....300 PAC
Max : 5000 PA ( -30T85 )
Max : 7500 PA ( -30T75 )
Made In Switzerland

Product information
The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

Easy To Install
User-Friendly Snap Closure For The Cover
Cable Entry Aid
Cable Strain Relief Integrated Into PG11
Combination Bracket For Vertical Or Horizontal Mounting
High Adjustment Accuracy Through Individual Scale Engraving Per Switch
Long-Term Stable Switching Points Through Trapezoidal Bead Membrane
Multilayer Contact With Gold Plating

Product Feature
Technical Data
Pressure Measuring Range:0...50 Mbar Relative & Difference

Sensor Weight:143g With Type C combination bracket

Field Of Application

Media:Air Neutral Gas

Medium Temperature:-30...85AC

Permissible Overload On One Side:75 Mbar-30...75AoC 50 Mbar-30...85AoC

Ambient Condition

Ambient Temperature:-30... 85AC

Storage Temperature:-40...85AC

Material

Housing With Media Contact:PC 10% GF

Measuring Element With Media Contact:Silicone LSR Tempered At 200AC,Outgassing-Free

Cover With Media Contact:PC

Electrical Data

Switching Load:5 A at 250 VAC

Resistive Switching Load:4 A at 30 VDC

Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC

Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC

Contact System:Changeover Switch

Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide

Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval

UL:MFHX2/8 Or XAAK2/8

DVGW:According to DIN EN 1854

Low Voltage Directive:2014/35/EU

Gas Appliances Directive:2016/426/EU

Applications
AHU

CRAC

MOBILE HYDRAULIC

Accessories

Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic

Angle Type B

Combination Bracket Type C

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM

Angle Type A

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Connection Set 90A Angled:For Ventilation Duct Including 2 M Hose Metal

Calibration Certificate

Mounting Ring

Closed Fastening Ring

Precise Pressure Monitoring for Industrial Needs

The HUBA CONTROL 604.9010030 Differential Pressure Switch offers targeted pressure control across numerous industries, such as hospitals, plants, and hotels. Its compact design enables flexible mounting and consistent performance, ensuring safety and efficiency where accurate pressure regulation is required.

Versatile Applications in Demanding Environments

Engineered to handle steam, oil, and gas, this switch supports critical processes in the pharmaceutical, textile, power, and chemical industries. Its adaptability makes it indispensable for process efficiency, equipment protection, and workplace safety.

Durable Construction and Easy Integration

With finishing options like antique, polished, galvanized, or matte, the HUBA CONTROL switch suits diverse operational aesthetics and durability requirements. Its standard processing and back-mount configuration allow seamless installation for manufacturers, exporters, and suppliers alike.

FAQ's of 'HUBA CONTROL 604.9010030 DIFFERENTIAL PRESSURE SWITCH 200-300 Pascal':

Q: How does the HUBA CONTROL 604.9010030 Differential Pressure Switch function in industrial setups?
A: The differential pressure switch detects variations between two pressure points within steam, oil, or gas systems. Upon reaching the set threshold (200-300 Pa), it activates or deactivates connected equipment, helping regulate and protect the process.

Q: What are the common usage scenarios for this differential pressure switch?
A: It is widely used in pharmaceutical manufacturing, hospitals, hotels, power and cement plants, as well as the food and beverage, pulp and paper, and textile industries, aiding in precise pressure management and safety control.

Q: When should I consider installing a differential pressure switch like this one?
A: Install this pressure switch when you require high-precision pressure monitoring, especially in environments where pressure changes can impact safety, equipment performance, or product quality.

Q: Where should the HUBA CONTROL switch be mounted for optimal performance?
A: The switch is designed for back mounting, allowing easy integration into panels or machine assemblies, ensuring accessibility and optimal measurement accuracy.

Q: What benefits does it offer over standard pressure switches?
A: Its precise scale range (200-300 Pa), compatibility with multiple media types, industry-grade build, and flexible installation options provide enhanced reliability, process control, and suitability for demanding environments.

Q: How is the switch processed and finished for durability?
A: Manufactured using standard processing techniques, it is available in several finishes-antique, polished, galvanized, or matte-to accommodate aesthetic and operational needs while offering robust protection.
