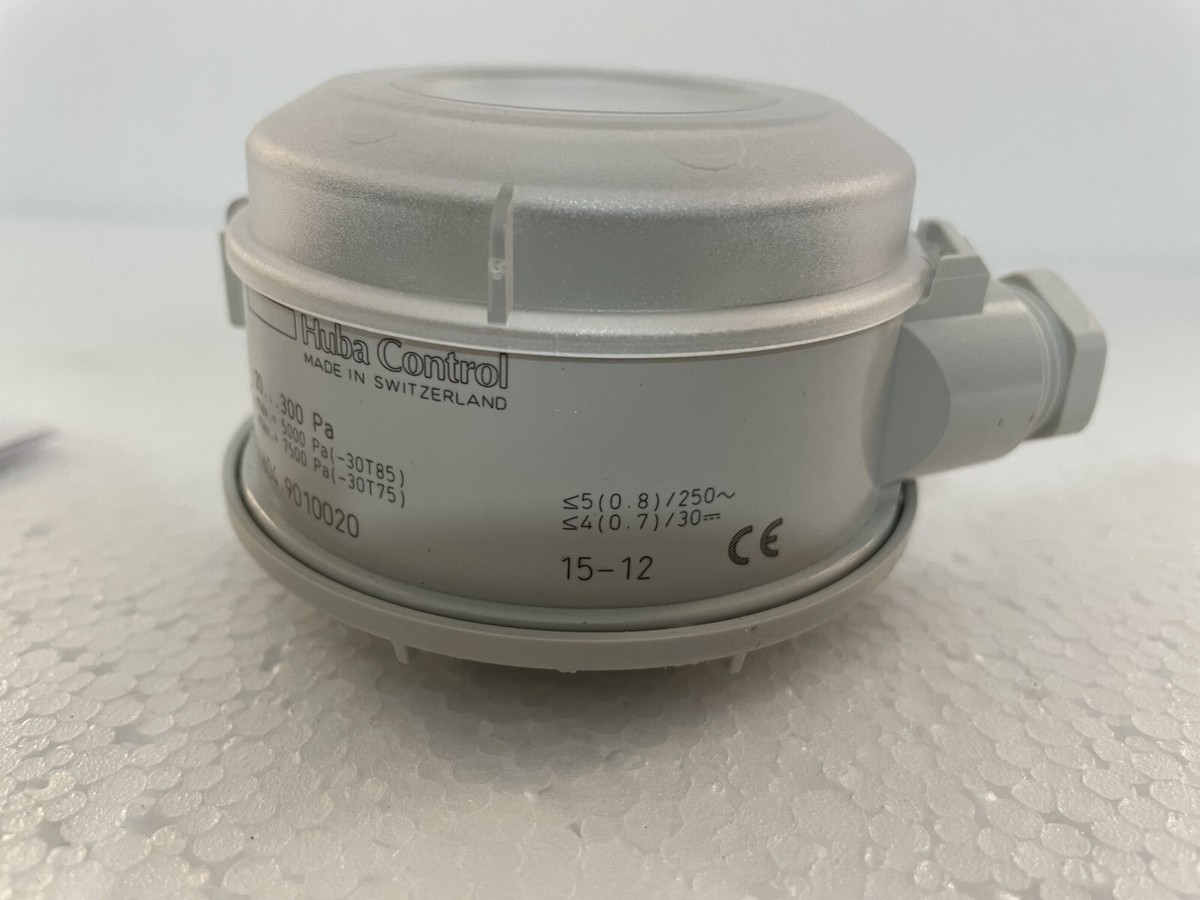

"HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa"

Get a Price/Quote

MOQ : 15 Pieces

"HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa" Specification

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Material
Other

Processing Type
Standard

Product Type
"HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa"

Weight
150 Grams (g)

Mount Type
Back

Color
white

Scale Range
HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa

"HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa" Trade Information

Minimum Order Quantity
15 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Paypal

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

"HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa" About

"HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa"Model : 604.9010020

Range : 20....300 PAC
Max : 5000 PA ( -30T85 )
Max : 7500 PA ( -30T75 )
Made In Switzerland

Product information
The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

Easy To Install
User-Friendly Snap Closure For The Cover
Cable Entry Aid
Cable Strain Relief Integrated Into PG11
Combination Bracket For Vertical Or Horizontal Mounting
High Adjustment Accuracy Through Individual Scale Engraving Per Switch
Long-Term Stable Switching Points Through Trapezoidal Bead Membrane
Multilayer Contact With Gold Plating

Product Feature
Technical Data
Pressure Measuring Range:0...50 Mbar Relative & Difference

Sensor Weight:143g With Type C combination bracket

Field Of Application

Media:Air Neutral Gas

Medium Temperature:-30...85AC

Permissible Overload On One Side:75 Mbar-30...75AoC 50 Mbar-30...85AoC

Ambient Condition

Ambient Temperature:-30... 85AC

Storage Temperature:-40...85AC

Material

Housing With Media Contact:PC 10% GF

Measuring Element With Media Contact:Silicone LSR Tempered At 200AC,Outgassing-Free

Cover With Media Contact:PC

Electrical Data

Switching Load:5 A at 250 VAC

Resistive Switching Load:4 A at 30 VDC

Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC

Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC

Contact System:Changeover Switch

Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide

Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval

UL:MFHX2/8 Or XAAK2/8

DVGW:According to DIN EN 1854

Low Voltage Directive:2014/35/EU

Gas Appliances Directive:2016/426/EU

Applications
AHU

CRAC

MOBILE HYDRAULIC

Accessories

Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic

Angle Type B

Combination Bracket Type C

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM

Angle Type A

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Connection Set 90A Angled:For Ventilation Duct Including 2 M Hose Metal

Calibration Certificate

Mounting Ring

Closed Fastening Ring

Versatile Application Across Industries

The HUBA CONTROL 604.9010020 Differential Pressure Switch is built for use in diverse environments, including pharmaceutical manufacturing, hotels, hospitals, industrial power plants, and more. Its robust construction and range of finish options ensure reliable service, whether it's monitoring cleanroom conditions in a pharmaceutical plant or controlling air pressure in large-scale manufacturing facilities.

Designed for Accurate Monitoring

With a precision scale range of 200-300 Pa, this pressure switch excels in applications requiring fine pressure differentiation. It is ideal for managing air flows in HVAC systems, ensuring process stability in manufacturing environments, and maintaining safety in critical applications such as OT rooms and power plants.

FAQ's of "HUBA CONTROL 604.9010020 DIFFERENTIAL PRESSURE SWITCH 200-300 Pa":

Q: How does the HUBA CONTROL 604.9010020 Differential Pressure Switch operate?
A: This switch detects pressure differences between two points, triggering an electrical response when the measured difference falls within the 200-300 Pa range. It ensures real-time monitoring of steam or gas in controlled environments.

Q: What are the most common applications for this pressure switch?
A: The device is widely used in pharmaceutical manufacturing, hospitals, hotels, malls, power and cement plants, steel and fertilizer industries, the textile sector, food processing, and pulp and paper mills, making it ideal for both industrial and commercial settings.

Q: When should you use a differential pressure switch in your processes?
A: A differential pressure switch is necessary when you need to monitor and control pressure variations for safety, system efficiency, and regulatory compliance-particularly in environments where precise air or gas flow management is critical.

Q: Where is this switch typically installed?
A: The HUBA CONTROL 604.9010020 features a back mount, making it easy to integrate into control panels and equipment housings found in various industrial and commercial installations across India.

Q: What benefits does this pressure switch provide to users?
A: Users benefit from its lightweight design, quick response, broad industry compatibility, and choice of finish. Its reliability ensures safety, enhances operational performance, and minimizes downtime in sensitive applications.

Q: How can the finishing options impact the device's usage?
A: With choices like antique, polished, galvanized, and matte finishes, the switch can be tailored for specific environmental conditions, enhancing durability against corrosion or aligning aesthetically with existing equipment.

Q: What is the process for sourcing this pressure switch in India?
A: You can procure the HUBA CONTROL 604.9010020 as an exporter, manufacturer, supplier, or trader. Most reputable industrial automation and instrumentation suppliers across India offer this model for various sector needs.
