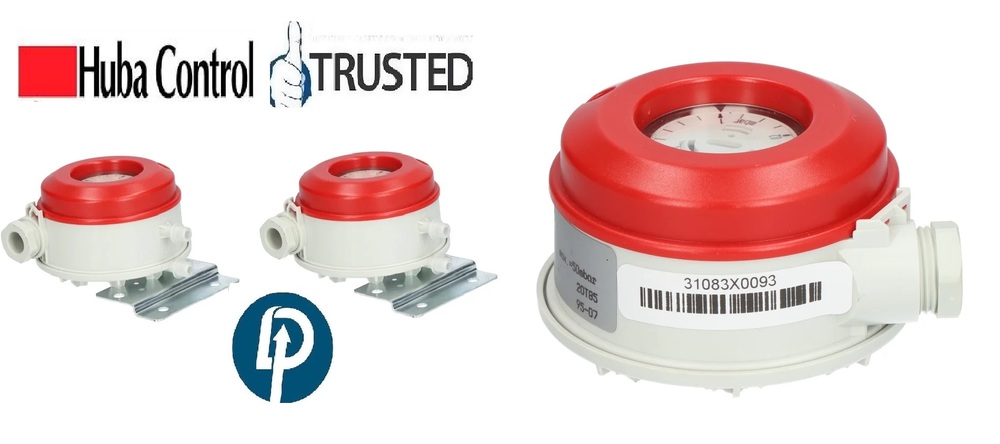

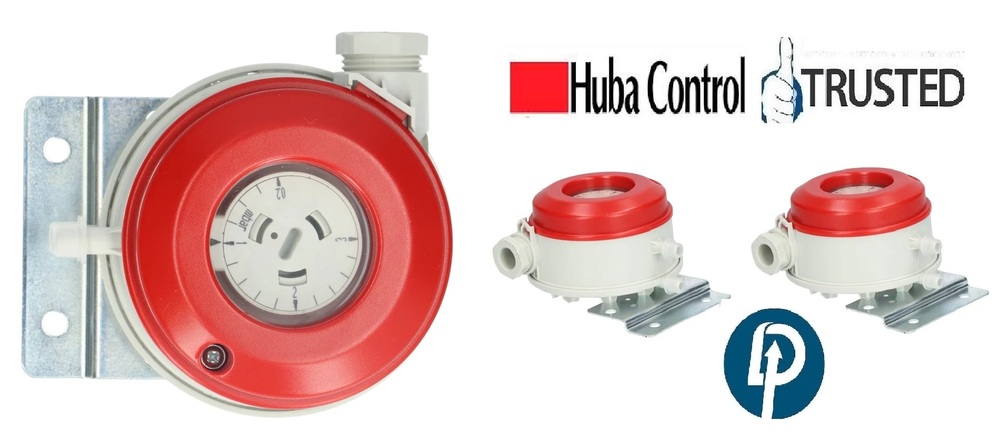

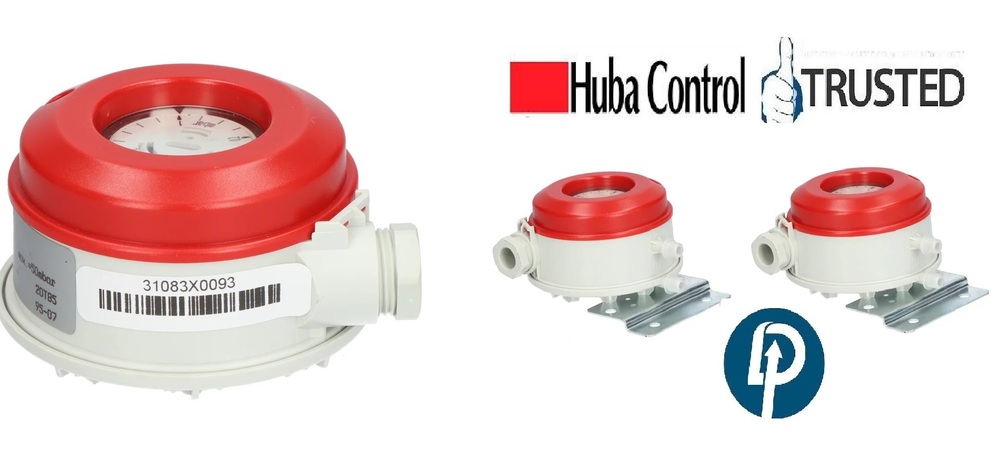

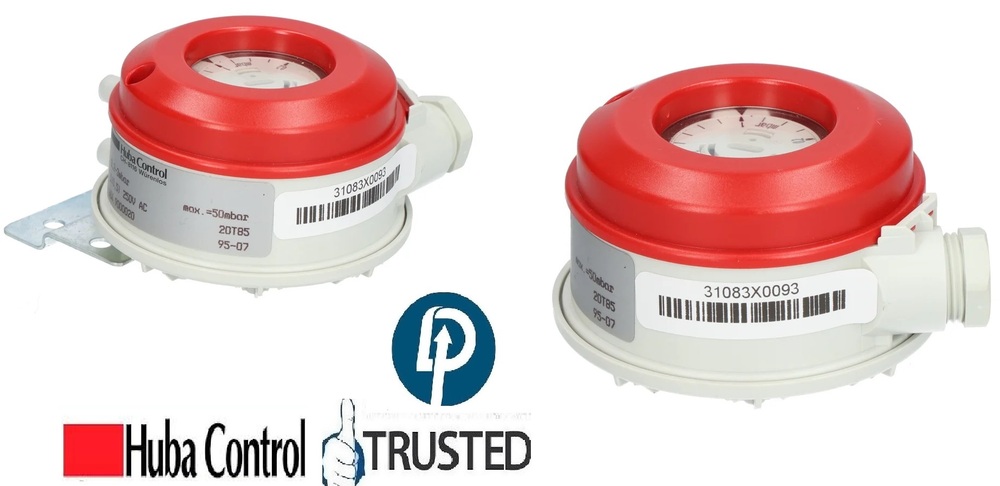

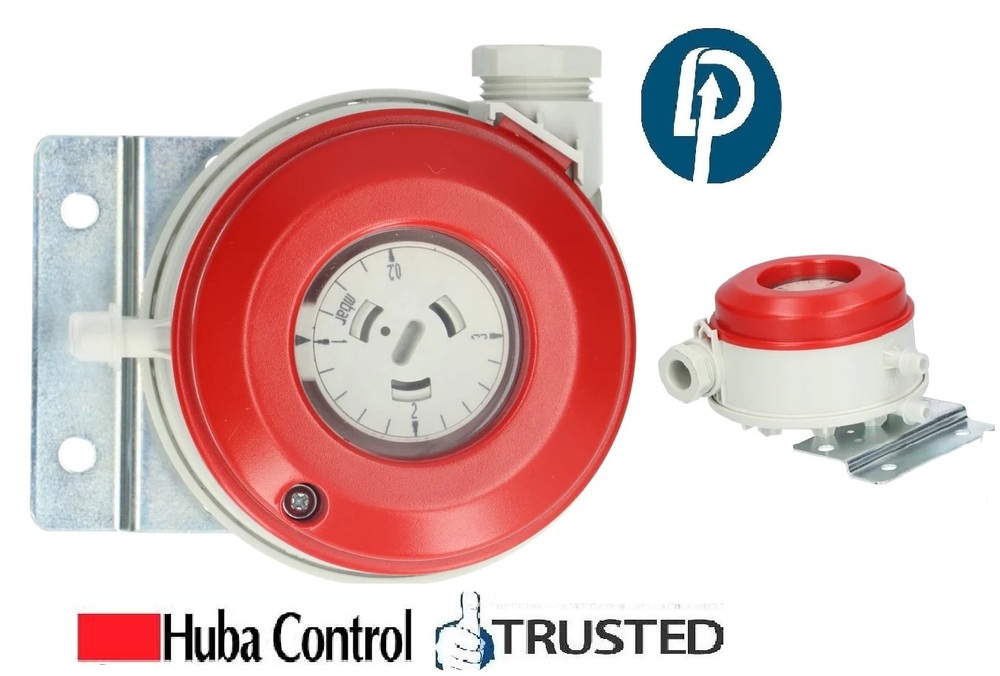

Huba Control Differential Pressure Switch Model 604.99957 Range: 0.2....3 Mbar

Get a Price/Quote

MOQ : 15 Pieces

Huba Control Differential Pressure Switch Model 604.99957 Range: 0.2....3 Mbar Specification

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Material
Other

Processing Type
Standard

Product Type
Huba Control Differential Pressure Switch Model 604.99957 Range: 0.2....3 Mbar

Weight
250 Grams (g)

Mount Type
Panel

Color
white

Scale Range
Huba Control Differential Pressure Switch Model 604.99957 Range 0.2....3 Mbar

Huba Control Differential Pressure Switch Model 604.99957 Range: 0.2....3 Mbar Trade Information

Minimum Order Quantity
15 Pieces

FOB Port
Delhi

Payment Terms
Paypal, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD), Cash on Delivery (COD)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About Huba Control Differential Pressure Switch Model 604.99957 Range: 0.2....3 Mbar

604 Differential Pressure Switch a Envirotech Industrial Products

Huba Control Differential Pressure Switch Model 604.99957 Range: 0.2....3 Mbar

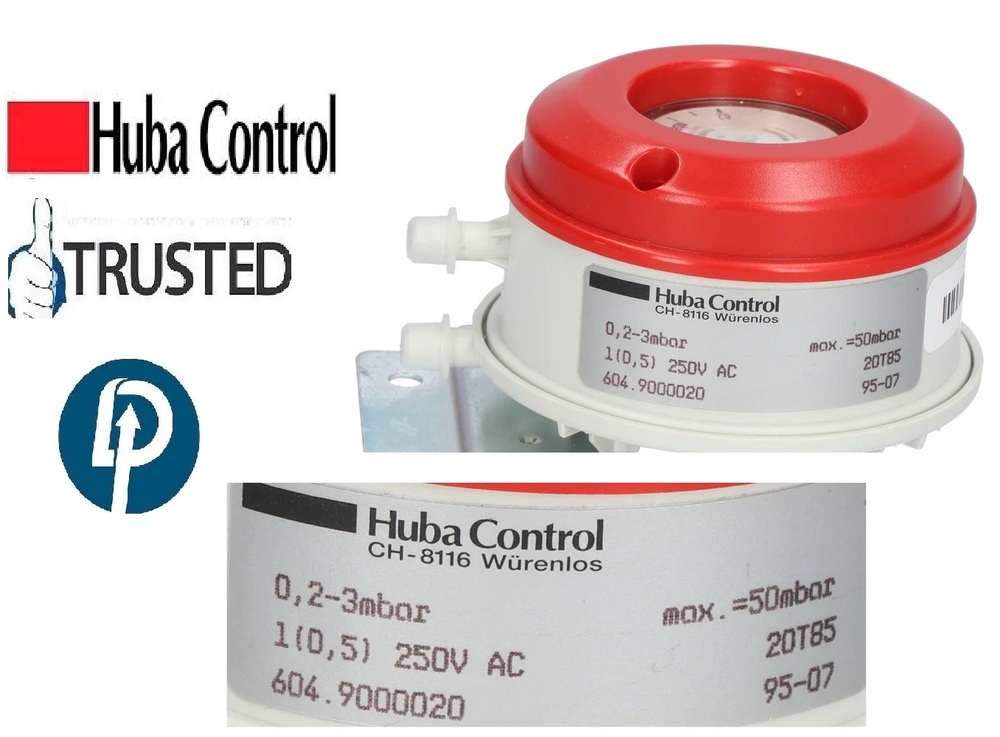

Model : 604.99957

Range : 0.2....3 Mbar

Max : 50 Mbar ( -30T85 )

Max : 50 Mbar ( -30T75 )

Made In Switzerland

Product information
The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

Easy To Install

User-Friendly Snap Closure For The Cover

Cable Entry Aid

Cable Strain Relief Integrated Into PG11

Combination Bracket For Vertical Or Horizontal Mounting

High Adjustment Accuracy Through Individual Scale Engraving Per Switch

Long-Term Stable Switching Points Through Trapezoidal Bead Membrane

Multilayer Contact With Gold Plating

Product Feature

Technical Data

Pressure Measuring Range:0...50 Mbar Relative & Difference

Sensor Weight:143g With Type C combination bracket

Field Of Application

Media:Air Neutral Gas

Medium Temperature:-30...85AC

Permissible Overload On One Side:75 Mbar-30...75AoC 50 Mbar-30...85AoC

Ambient Condition

Ambient Temperature:-30... 85AC

Storage Temperature:-40...85AC

Material

Housing With Media Contact:PC 10% GF

Measuring Element With Media Contact:Silicone LSR Tempered At 200AC,Outgassing-Free

Cover With Media Contact:PC

Electrical Data

Switching Load:5 A at 250 VAC

Resistive Switching Load:4 A at 30 VDC

Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC

Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC

Contact System:Changeover Switch

Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide

Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval

UL:MFHX2/8 Or XAAK2/8

DVGW:According to DIN EN 1854

Low Voltage Directive:2014/35/EU

Gas Appliances Directive:2016/426/EU

Applications
AHU

CRAC

MOBILE HYDRAULIC

Accessories

Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic

Angle Type B

Combination Bracket Type C

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM

Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM

Angle Type A

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Connection Set 90A Angled:For Ventilation Duct Including 2 M Hose Metal

Calibration Certificate

Mounting Ring

Closed Fastening Ring

Versatile Performance Across Industries

This differential pressure switch is engineered to function seamlessly in various sectors such as pharmaceuticals, hospitality, manufacturing, and power generation. Its ability to measure low-pressure differentials for steam, oil, and gas makes it essential for safety and control processes in critical environments.

Robust Construction and Flexible Finishes

Offered in antique, polished, galvanized, and matte finishes, the Model 604.99957 adapts to different installation aesthetics and requirements. Its panel mount design and white color ensure easy integration into control systems while maintaining both durability and style.

FAQ's of Huba Control Differential Pressure Switch Model 604.99957 Range: 0.2....3 Mbar:

Q: How is the Huba Control Differential Pressure Switch Model 604.99957 typically installed?
A: This pressure switch is designed for convenient panel mounting, allowing straightforward integration into existing control panels across plant or industrial environments.

Q: What types of media can the Model 604.99957 measure pressure in?
A: It is suitable for monitoring the differential pressure of steam, oil, and gas, making it ideal for a broad spectrum of industrial process applications.

Q: When should businesses consider using this differential pressure switch?
A: Facilities in pharmaceutical manufacture, hospitals, hotels, power plants, and similar industries should use this switch whenever precise low-pressure monitoring is required for safety, control, or process optimization.

Q: Where can this pressure switch be applied within a facility?
A: It can be installed in control rooms, process monitoring stations, or any panel setups requiring reliable differential pressure detection in environments like textiles, food processing, or steel plants.

Q: What is the process for maintaining the Model 604.99957?
A: Maintenance generally involves periodic inspection and calibration to sustain accuracy and performance, especially in environments with frequent media changes or fluctuating process pressures.

Q: How does using the Huba Control Model 604.99957 benefit operations?
A: By providing stable and consistent pressure monitoring, this device helps prevent equipment failures, enhances operational safety, and ensures optimal performance across various manufacturing and utility applications.

Q: What are the available surface finishes for the Model 604.99957, and why might they matter?
A: The pressure switch comes in antique, polished, galvanized, and matte finishes, allowing users to select the most appropriate option for durability, aesthetics, or environmental compatibility in their facilities.
