Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net

Send Inquiry

Request To Call Back

Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net

Price 10800 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net Specification

Thread
G 1/4

Usage
Liquids,Fluids Or Gases

Material
Stainless Steel

Size
0-350 BAR

Processing Type
Standard

Product Type
Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net

Weight
150 Grams (g)

Mount Type
Panel

Color
Siliver

Scale Range
0-350 BAR

Accuracy
0.3 %

Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
New Delhi

Payment Terms
Cash Against Delivery (CAD), Cash in Advance (CID), Paypal, Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net

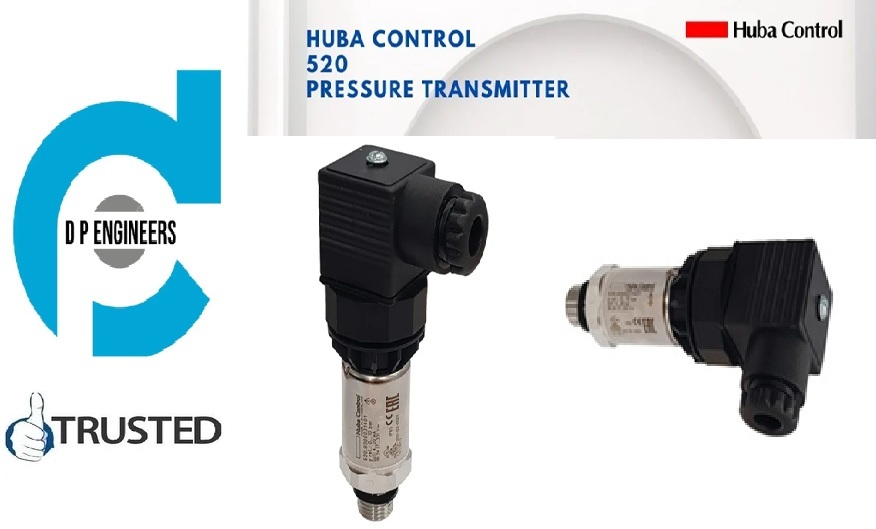

Huba Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA

Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net

Relative Pressure Transmitter
Type a 520
Manufacturer a HUBA CONTROL
Model a 520.954S032401W
RANGE a 0-350 BAR

The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.

This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.

Pressure Range

-1 a 9 bar / 0 a 2.5 a 1000 bar
Compact,Rugged Construction
Welded Without Sealing parts,No Elastomer Seals
Large Selection Of Connections Available.
Saving Time By Quick Cable Mounting By The Customer With Swift Connector

General Features:

Compact, Rugged Construction
Large Selection Of Connections Available
Welded Without Sealing Parts, No Elastomer Seals
Medium: Liquids, Gases And Refrigerants (Including Ammonia)
Saving Time By Quick Cable Mounting By The Customer With Swift Connector

SERIES	Type 520
PRESSURE RANGE	0 a 350 BAR
POWER SUPPLY	7 a 33 VDC
OUTPUT DC	4 a 20 mA
ELECTRICAL CONNECTION	M12x1
DESCRIPTION	Pressure Transmitter
PRESSURE CONNECTION	G 1/4
INDEX PROTECTION IP	IP67
ACCURACY	A 0.3 % fs
MEDIUM TEMPERATURE RANGE	-15 a +125 AC
RESPONSE TIME	< 2 ms, (1 ms typical)
MATERIAL	Connection Stainless Steel 1.4404 / AISI 316L
DIMENSIONS (MM)	24 x 46.7 MM
CONFORMITY	EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Versatile Pressure Measurement

Engineered for a broad range of applications, the Huba I Pressure Transmitter Model 520.954S032401W excels in environments where steam, oil, gas, and various liquids or fluids demand precise monitoring. Its wide scale range and industry-standard output ensure compatibility with diverse system requirements.

Robust Stainless Steel Build

Constructed from high-grade stainless steel and offered in finishes such as polished, antique, galvanized, or matte, this transmitter is built for long-lasting performance. The corrosion-resistant design ensures reliability even in harsh industrial conditions.

Easy Installation and Operation

Featuring a compact form (weighing only 150 grams) and a G 1/4 thread, this pressure transmitter is simple to install on panels or systems. The standard processing type and clear output make integration seamless for new and existing setups.

FAQ's of Huba I Pressure Transmitter Model 520.954S032401W RANGE 0-350 BAR OUTPUT 4-20mA -www.dpengineersdelhi.net:

Q: How is the Huba I Pressure Transmitter Model 520.954S032401W installed?

A: This transmitter features a G 1/4 threaded connection, making it straightforward to install on panels in various industrial systems. Its compact size and lightweight profile ensure easy handling and quick setup.

Q: What is the main benefit of using this pressure transmitter for measuring steam, oil, or gas?

A: The primary advantage lies in its high accuracy (0.3%), robust stainless steel construction, and compatibility with a wide range of media, including steam, oil, gas, and other fluids, ensuring reliable and precise measurements.

Q: When should I use the Model 520.954S032401W pressure transmitter?

A: This model is ideal when you require accurate, continuous monitoring of pressure in pipelines, tanks, or process systems operating within a 0-350 BAR range, especially in demanding industrial environments.

Q: Where can the transmitter be effectively utilized?

A: The transmitter is suitable for use in multiple settings, including chemical plants, oil refineries, gas processing units, steam distribution systems, and other industrial or commercial facilities handling liquids or gases.

Q: What process does the transmitter use to output pressure measurements?

A: The device utilizes a 4-20mA analog output, offering a standardized electrical signal for integration with control and monitoring systems, supporting real-time data analysis and automation.

Q: How does the material and finish enhance the product's functionality?

A: The stainless steel body and available finishes (antique, polished, galvanized, matte) provide durability, corrosion resistance, and suitability for various environmental conditions, thereby extending the product's lifecycle.
