Huba Control Pressure Transmitter Model: 402.9510021

Name: Huba Control Pressure Transmitter Model: 402.9510021
Brand: D. P. ENGINEERS
Price: 16800 INR
Availability: InStock

Price 16800 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Huba Control Pressure Transmitter Model: 402.9510021 Specification

Usage
VAB SYSTEMS,ERV,MOBILE HYDRAULIC,INDUSTRIAL AUTOMATION

Material
Other

Size
0-50 MBAR

Processing Type
Standard

Product Type
Huba Control Pressure Transmitter Model: 402.9510021

Weight
28 Grams (g)

Color
Black & white

Mount Type
Back

Scale Range
0-50 MBAR

Huba Control Pressure Transmitter Model: 402.9510021 Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
Delhi

Payment Terms
Paypal, Cash on Delivery (COD), Cash Advance (CA), Cash Against Delivery (CAD), Cash in Advance (CID)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control Pressure Transmitter Model: 402.9510021

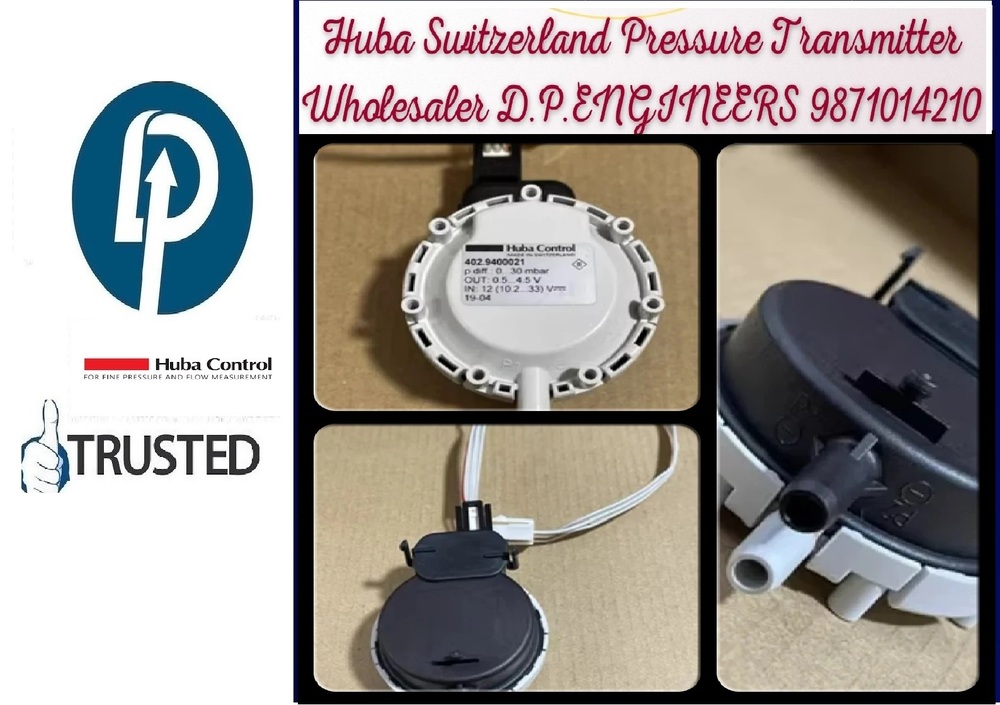

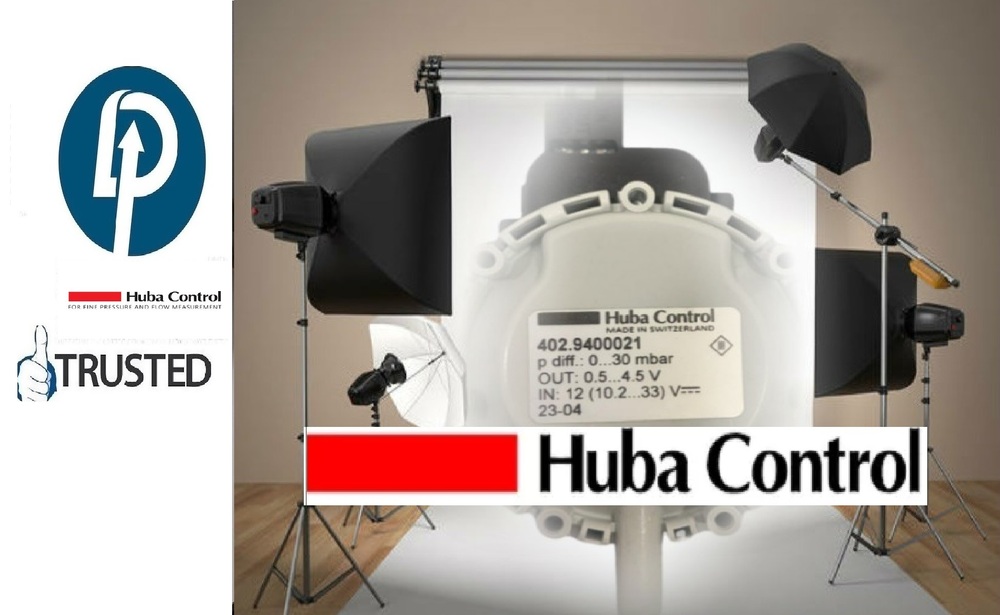

Huba Control Transmitter Model 402.9510021

Huba Control Pressure Transmitter Model: 402.9510021

Differential Pressure Transmitter
Type - 402
Manufacturer - HUBA CONTROL
Model - 402.9510021
RANGE - 0-50 MBAR
OUT - 0.5....4.5 V
IN - 12 ( 10.2.... 33 ) V

Product information
The Differential Pressure Transmitters of Type 402 Are Ideal For Detecting Small Air Flows in HVAC Systems And For Measuring Low Pressures In The Environmental And Medical Sectors. Sensors Specifically Developed For Each Pressure Range Enable Physically Accurate And Long-Term Stable Measurements. They Allow For Simple And Quick Installation, Either Directly Onto a Mounting Plate Or Onto a PCB

Attractive Price-Performance Ratio
Excellent Synergy Of Membrane Technology And Ceramic Elements
Special Adapter For DIN Rail Mounting
Direct PCB Mounting With Simple Snap System

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 50 mbar (Relative and Difference)

Response Time : <10 ms

Load Change : <10 Hz

Sensor Weight : 28 g

Field Of Application

Media: Air Neutral Gases

Medium Temperature: 0 ...70 AC Non-Freezing Media

Permissible Overload On One Side: 100 Mbar

Bursting Pressure At Room Temperature: 200 Mbar

Bursting Pressure at 70AC: 150 Mbar

Ambient Condition

Ambient Temperature: 0 ...70 AC

Storage Temperature: -30 ...70 AC

Material

Housing With Media Contact: Polycarbonate PC; Polyamide PA

Membrane With Media Contact: Silicone

Measuring Element With Media Contact: Ceramic Al2O3 (96 %)

Electrical Data

Output Pressure: 0,5 ...4,5 V

Supply Voltage: 10,2 ...33 VDC

Permissible Load: >15 kOhm (Against GND)

Current Consumption: <8 mA

Inverse-Polarity Protection: Mechanically Guaranteed

IP Protection Class: IP 00

Electrical Connection : Printed Circuit Board Assembly Solderable Pins On The Print Side Printed circuit board assembly Mounted And Soldered On Adapter RAST 2.5 Connector

Approval

EMC Compatibility:The Product Is Intended Exclusively For Installation In Appliances That Fulfil The Requirements Of The EC Directives. CE Certification Is The Responsibility Of The Customer

Installation Guide

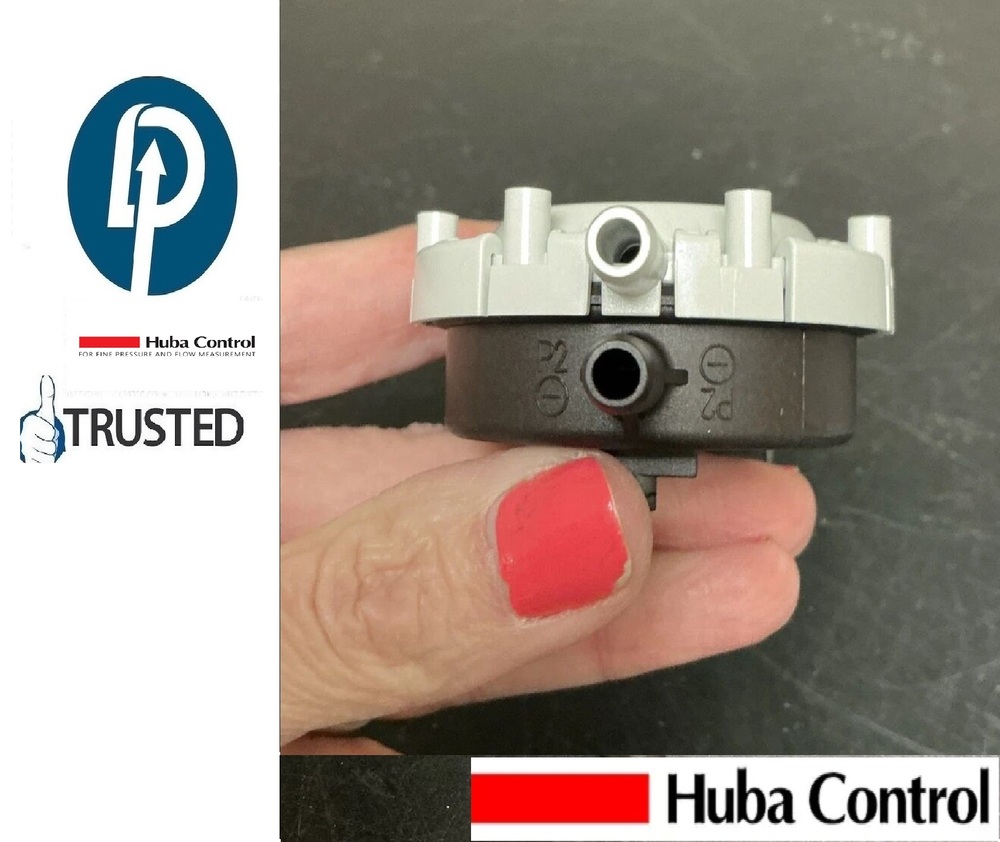

Installation Orientation: Pressure Connections Downwards Pressure Connection P1 Top

Assembly:Snap-On Mounting On Printed Circuit Board Max 1.6 MM Thickness Adapter Screw Mounting With Bracket

Applications

VAB SYSTEMS

ERV

MOBILE HYDRAULIC

INDUSTRIAL AUTOMATION

Accessories

RAST 2.5 Connector:With Cable 110 CM 3-Pole

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Calibration Certificate

Mounting Bracket

Mounting Plate Complete For Mounting Rail TS 35

Fastening Screw : For Wall Thickness 4.1-6 MM; Screw Length 10 MM Min. 2 Screws Required

Versatile Industrial Application

Engineered with flexibility in mind, the Huba Control Pressure Transmitter is suitable for environments ranging from industrial automation to mobile hydraulics. Its reliable performance extends across various mediums, including steam, oil, and gas, making it a valuable asset for diverse systems such as VAB and ERV.

Advanced Design and Construction

With choices of antique, polished, or matte finishes, this transmitter merges aesthetics with robust construction. Its compact size and feather-light weight of 28 grams ensure easy installation and compatibility with multiple mounting types, particularly the practical back mount.

FAQ's of Huba Control Pressure Transmitter Model: 402.9510021:

Q: How is the Huba Control Pressure Transmitter Model 402.9510021 installed?
A: This model is designed for back mounting, allowing for secure and straightforward installation in a wide range of industrial and automation environments.

Q: What types of media can the transmitter accurately measure?
A: The transmitter is calibrated to measure pressure in steam, oil, and gas, making it suitable for varied applications across different industries.

Q: When should this pressure transmitter be used in a system?
A: It is ideal for use where precise low-pressure measurements (0-50 MBAR) are needed, particularly in VAB systems, ERV, mobile hydraulics, and general industrial automation processes.

Q: Where can the Huba Control Pressure Transmitter be applied?
A: This transmitter is suitable for use in industrial plants, automated manufacturing lines, mobile hydraulic systems, and energy recovery ventilation (ERV) units.

Q: What is the benefit of using this specific model for pressure measurement?
A: Its precision, lightweight design, versatile mounting, and robust construction ensure reliability and ease of integration into both compact and complex systems.

Q: How does the surface finish contribute to its function?
A: Available in antique, polished, and matte finishes, the transmitter not only fits various aesthetic requirements but also offers corrosion resistance, enhancing durability in demanding environments.

Q: What processing standards does this transmitter follow?
A: Manufactured using standard processing methods, the transmitter guarantees consistent quality and reliable operation, supporting exporters, manufacturers, and suppliers throughout India.
