402.9300021 Differential Pressure Transmitter by Huba Control

Get a Price/Quote

MOQ : 5 Pieces

402.9300021 Differential Pressure Transmitter by Huba Control Specification

Material
Other

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Processing Type
Standard

Product Type
402.9300021 Differential Pressure Transmitter by Huba Control

Weight
28 Grams (g)

Color
White

Mount Type
Back

Scale Range
0-10 MBAR

402.9300021 Differential Pressure Transmitter by Huba Control Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
Delhi

Payment Terms
Cash on Delivery (COD), Paypal, Cash Against Delivery (CAD), Cash in Advance (CID), Cash Advance (CA)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About 402.9300021 Differential Pressure Transmitter by Huba Control

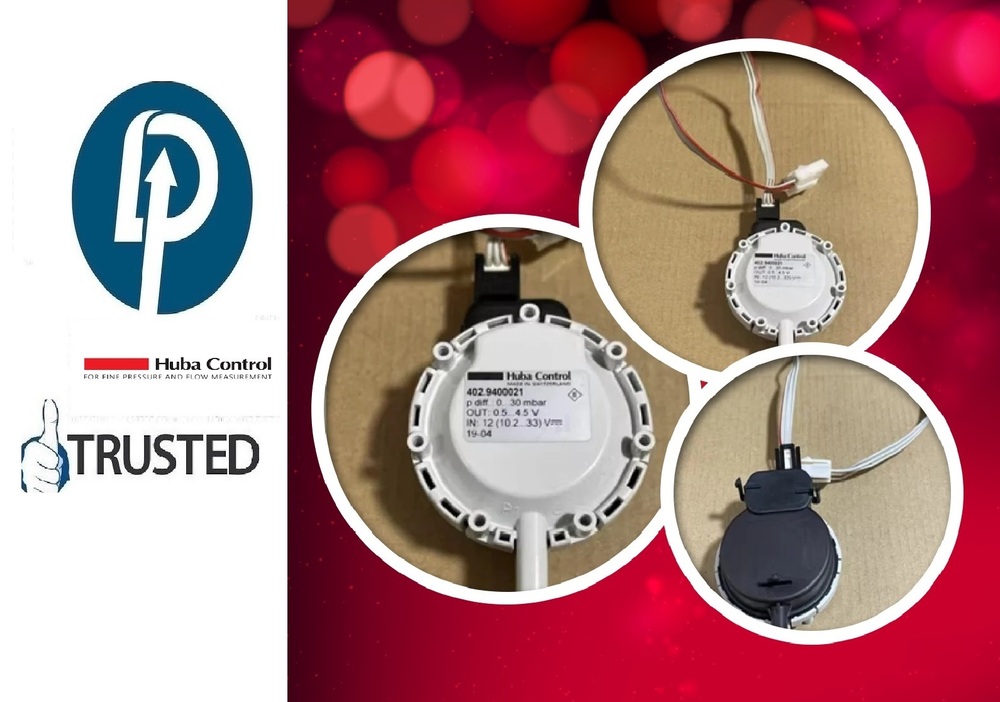

Huba Control 402.9300021 Differential Pressure Transmitter

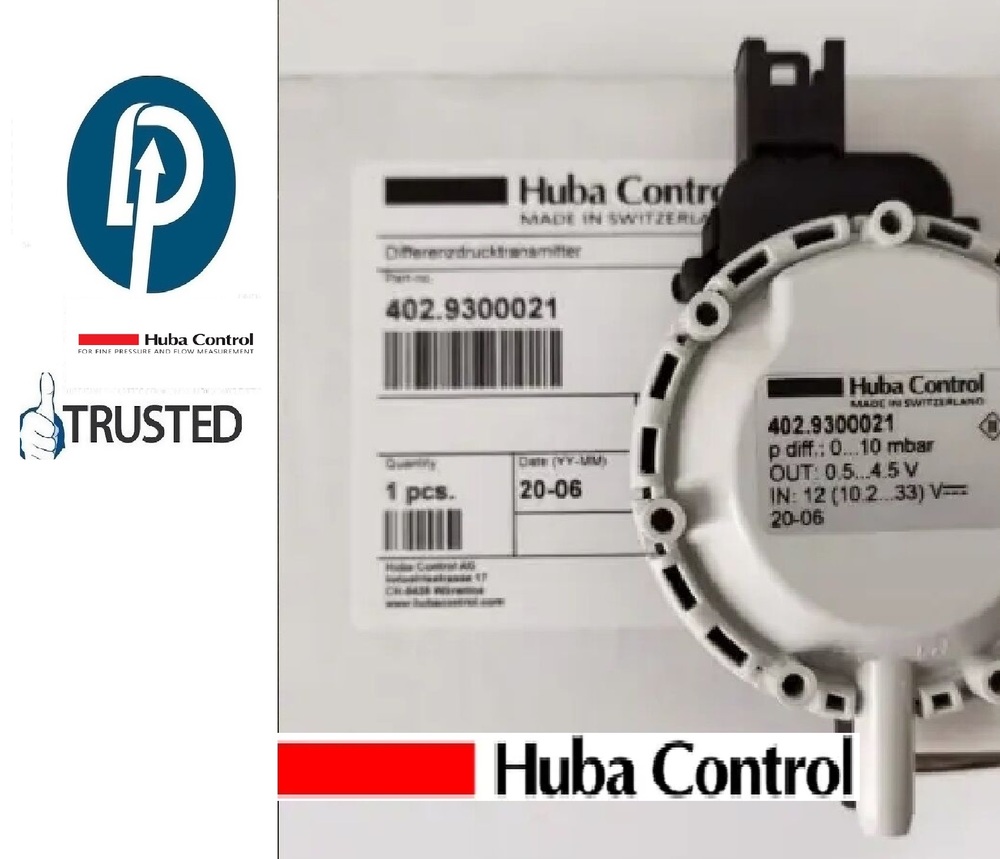

402.9300021 Differential Pressure Transmitter by Huba Control

Differential Pressure Transmitter
Type - 402
Manufacturer - HUBA CONTROL
Model - 402.9300021
RANGE - 0-10 MBAR
OUT - 0.5....4.5 V
IN - 12 ( 10.2.... 33 ) V

Product information
The Differential Pressure Transmitters of Type 402 Are Ideal For Detecting Small Air Flows in HVAC Systems And For Measuring Low Pressures In The Environmental And Medical Sectors. Sensors Specifically Developed For Each Pressure Range Enable Physically Accurate And Long-Term Stable Measurements. They Allow For Simple And Quick Installation, Either Directly Onto a Mounting Plate Or Onto a PCB

Attractive Price-Performance Ratio

Excellent Synergy Of Membrane Technology And Ceramic Elements

Special Adapter For DIN Rail Mounting

Direct PCB Mounting With Simple Snap System

Technical Data
Product Feature

Pressure Measuring Range : 0 ... 50 mbar (Relative and Difference)

Response Time : <10 ms

Load Change : <10 Hz

Sensor Weight : 28 g

Field Of Application

Media : Air; Neutral Gases

Medium Temperature : 0 ... 70 AC (Non-Freezing Media)

Permissible Overload On One Side : 100 Mbar

Bursting Pressure At Room Temperature : 200 Mbar

Bursting pressure at 70AC : 150 Mbar

Ambient Condition

Ambient Temperature : 0 ... 70 AC

Storage Temperature : -30 ... 70 AC

Material

Housing With Media Contact : Polycarbonate (PC); Polyamide (PA)

Membrane With Media Contact : Silicone

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Electrical Data

Output Pressure : 0,5 ... 4,5 V

Supply Voltage : 10,2 ... 33 VDC

Permissible Load : >15 kOhm (Against GND)

Current Consumption : <8 mA

Inverse-Polarity Protection : Mechanically guaranteed

IP Protection Class : IP 00

Electrical Connection : Printed Circuit Board Assembly (Solderable Pins On The Print Side); Printed circuit board assembly (Mounted And Soldered On Adapter); RAST 2.5 Connector

Approval

EMC Compatibility : The Product Is Intended Exclusively For Installation In Appliances That Fulfil The Requirements Of The EC Directives. CE Certification Is The Responsibility Of The Customer.

Installation guide

Installation Orientation : Pressure Connections Downwards; Pressure Connection P1 Top

Assembly : Snap-On Mounting On Printed Circuit Board (Max. 1.6 MM Thickness); Adapter; Screw Mounting With Bracket.

Applications

VAB SYSTEMS

ERV

MOBILE HYDRAULIC

INDUSTRIAL AUTOMATION

Accessories

RAST 2.5 Connector : With Cable; 110 CM; 3-Pole

Fastening Screw : For Wall Thickness 1 - 2 MM; Screw Length 6 MM (Min. 2 Screws Required)

Calibration Certificate

Mounting Bracket

Mounting Plate Complete For Mounting Rail TS 35

Fastening Screw : For Wall Thickness 4.1 - 6 MM; Screw Length 10 MM (Min. 2 Screws Required)

Precision Measurement for Multiple Industries

The 402.9300021 Differential Pressure Transmitter is engineered for unrivaled accuracy in measuring pressure differences in a range of fluids including steam, oil, and gas. Its robust build and adaptable design allow it to seamlessly fit various operational settings, from pharmaceutical manufacturing to large-scale power plants, ensuring precise monitoring and control in demanding environments.

Optimized Design and Easy Installation

With a lightweight, 28-gram construction and a back mount design, this transmitter streamlines the installation process in confined or challenging locations. Available in antique, polished, or matte finishes, it integrates effectively with different panel or pipeline aesthetics, enhancing both functionality and facility appearance.

FAQ's of 402.9300021 Differential Pressure Transmitter by Huba Control:

Q: How does the Huba Control 402.9300021 Differential Pressure Transmitter operate?
A: The transmitter measures the differential pressure between two points and converts the pressure difference into a readable electronic signal. It is designed to handle low-pressure ranges (0-10 mbar) for precise monitoring in various applications such as steam, oil, or gas systems.

Q: What are the main benefits of using this differential pressure transmitter in industrial facilities?
A: This transmitter improves process control and safety by providing accurate pressure measurements, allowing timely maintenance and preventing potential equipment failure. Its versatility enables its use in multiple industries like pharmaceuticals, textiles, food and beverages, and heavy manufacturing.

Q: When should I consider installing the 402.9300021 model in my facility?
A: Install this transmitter when precise monitoring of differential pressure is crucial for system efficiency and safety. It is ideal during system upgrades, new facility construction, or when enhancing the reliability of existing pressure monitoring setups.

Q: Where can the 402.9300021 Differential Pressure Transmitter be installed?
A: Thanks to its standard processing design and back mount option, this transmitter can be installed in control panels, pipelines, HVAC systems, and process loops in locations such as hospitals, hotels, malls, power plants, cement factories, and more.

Q: What is the process for connecting and setting up the transmitter?
A: Begin by securing the back mount to the chosen surface, ensuring correct orientation. Connect the input ports to the pressure source and link the electronic output to your monitoring or control system. Calibration may be required to suit specific operational demands.

Q: In which industries is this transmitter most commonly used?
A: It is commonly applied in pharmaceutical manufacturing, hospitals, hotels, malls, textile and fertilizer plants, cement and steel industries, and in the pulp and paper as well as food and beverage sectors for monitoring and controlling process pressures.
