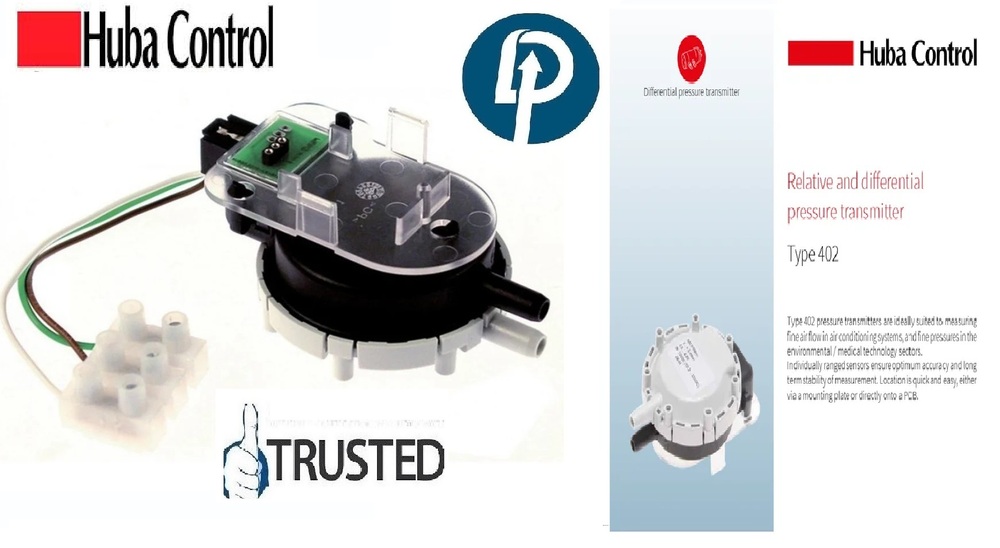

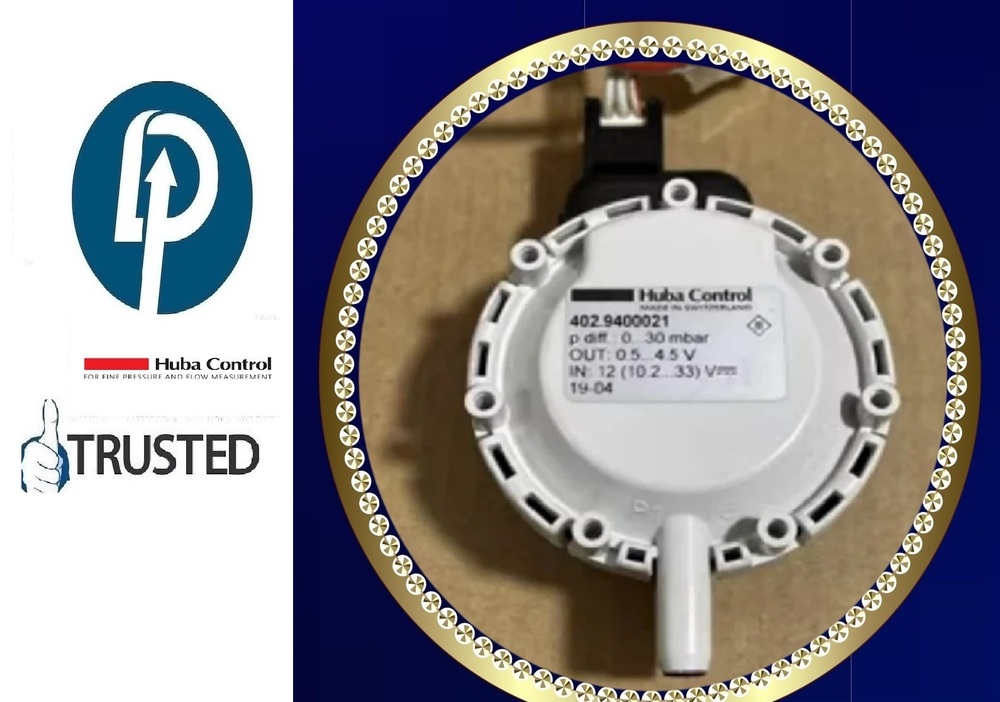

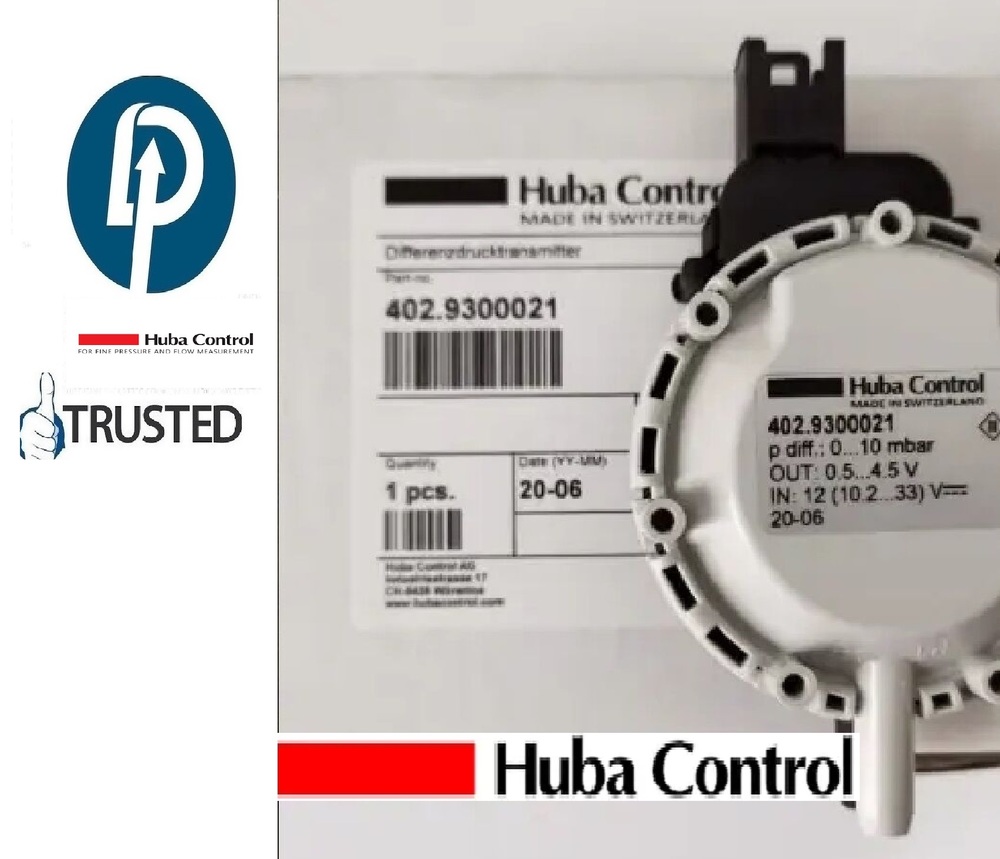

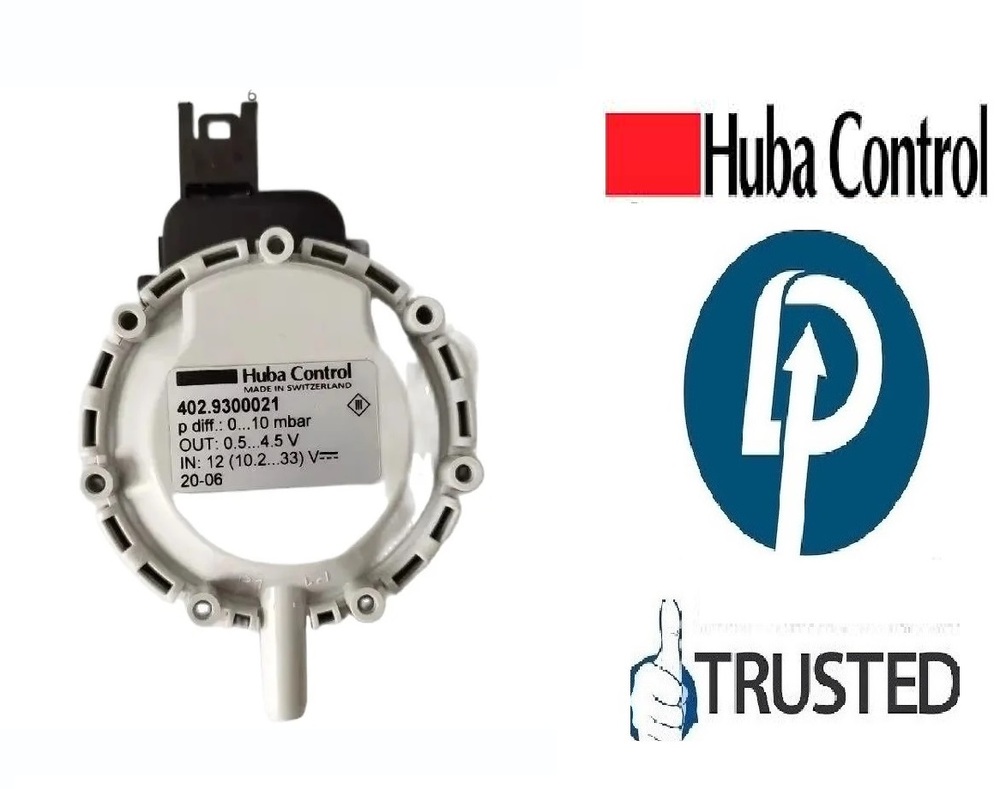

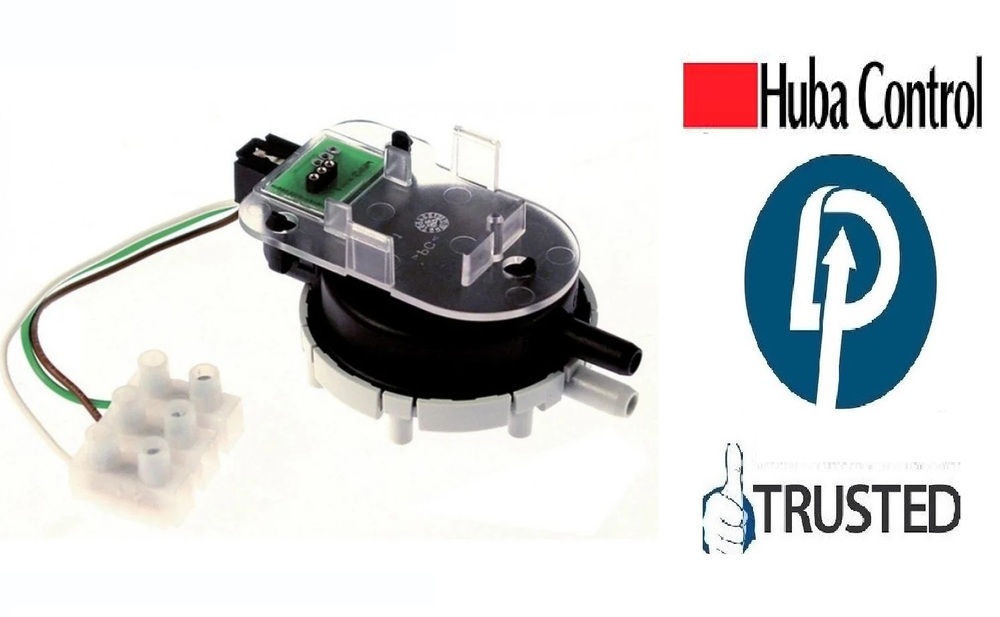

Huba Control 402.9300021 Differential Pressure Transmitter

Send Inquiry

Request To Call Back

Huba Control 402.9300021 Differential Pressure Transmitter

Get a Price/Quote

MOQ : 5 Pieces

Huba Control 402.9300021 Differential Pressure Transmitter Specification

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Material
Other

Processing Type
Standard

Product Type
Huba Control 402.9300021 Differential Pressure Transmitter

Weight
28 Grams (g)

Mount Type
Back

Color
Black & White

Scale Range
0-10 MBAR

Huba Control 402.9300021 Differential Pressure Transmitter Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
Delhi

Payment Terms
Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD), Cash on Delivery (COD), Paypal

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control 402.9300021 Differential Pressure Transmitter

402.9300021 Differential Pressure Transmitter From Huba Control

Huba Control 402.9300021 Differential Pressure Transmitter

Differential Pressure Transmitter
Type - 402
Manufacturer - HUBA CONTROL
Model - 402.9300021
RANGE - 0-10 MBAR
OUT - 0.5....4.5 V
IN - 12 ( 10.2.... 33 ) V

Product informationThe Differential Pressure Transmitters of Type 402 Are Ideal For Detecting Small Air Flows in HVAC Systems And For Measuring Low Pressures In The Environmental And Medical Sectors. Sensors Specifically Developed For Each Pressure Range Enable Physically Accurate And Long-Term Stable Measurements. They Allow For Simple And Quick Installation, Either Directly Onto a Mounting Plate Or Onto a PCB

Attractive Price-Performance Ratio

Excellent Synergy Of Membrane Technology And Ceramic Elements

Special Adapter For DIN Rail Mounting

Direct PCB Mounting With Simple Snap System

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 50 mbar (Relative and Difference)

Response Time : <10 ms

Load Change : <10 Hz

Sensor Weight : 28 g

Field Of Application

Media: Air Neutral Gases

Medium Temperature: 0 ...70 AC Non-Freezing Media

Permissible Overload On One Side: 100 Mbar

Bursting Pressure At Room Temperature: 200 Mbar

Bursting Pressure at 70AC: 150 Mbar

Ambient Condition

Ambient Temperature: 0 ...70 AC

Storage Temperature: -30 ...70 AC

Material

Housing With Media Contact: Polycarbonate PC; Polyamide PA

Membrane With Media Contact: Silicone

Measuring Element With Media Contact: Ceramic Al2O3 (96 %)

Electrical Data

Output Pressure: 0,5 ...4,5 V

Supply Voltage: 10,2 ...33 VDC

Permissible Load: >15 kOhm (Against GND)

Current Consumption: <8 mA

Inverse-Polarity Protection: Mechanically Guaranteed

IP Protection Class: IP 00

Electrical Connection : Printed Circuit Board Assembly Solderable Pins On The Print Side Printed circuit board assembly Mounted And Soldered On Adapter RAST 2.5 Connector

Approval

EMC Compatibility:The Product Is Intended Exclusively For Installation In Appliances That Fulfil The Requirements Of The EC Directives. CE Certification Is The Responsibility Of The Customer

Installation Guide

Installation Orientation: Pressure Connections Downwards Pressure Connection P1 Top

Assembly:Snap-On Mounting On Printed Circuit Board Max 1.6 MM Thickness Adapter Screw Mounting With Bracket

Applications

VAB SYSTEMS

ERV

MOBILE HYDRAULIC

INDUSTRIAL AUTOMATION

Accessories

RAST 2.5 Connector:With Cable 110 CM 3-Pole

Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required

Calibration Certificate

Mounting Bracket

Mounting Plate Complete For Mounting Rail TS 35

Fastening Screw : For Wall Thickness 4.1-6 MM; Screw Length 10 MM Min. 2 Screws Required

Precision and Versatility for Industrial Needs

Designed for multi-industry applications, the Huba Control 402.9300021 Differential Pressure Transmitter ensures precise readings of low-pressure ranges. Whether used in pharmaceutical manufacturing, hospitals, or heavy-duty plants, its robust build and versatility make it a preferred choice for ensuring safety and operational efficiency.

Adaptable Finishes and Easy Installation

This pressure transmitter comes in antique, polished, and matte finishes, allowing seamless integration into existing setups. Its back mount configuration simplifies installation, making it suitable for new, retrofit, or replacement projects. The compact size and lightweight design further facilitate effortless handling.

FAQ's of Huba Control 402.9300021 Differential Pressure Transmitter:

Q: How does the Huba Control 402.9300021 Differential Pressure Transmitter operate?
A: The transmitter works by detecting the difference in pressure between two points and converting this value into a standardized electrical signal. This enables continuous and accurate monitoring of steam, oil, or gas within industrial pipelines or systems.

Q: What are the main applications for this pressure transmitter?
A: It is commonly used in settings like pharmaceutical manufacturing, hospitals, power plants, steel mills, cement and fertilizer production, textile industries, and food & beverage processing. It is also suitable for hotels, malls, and other commercial establishments requiring precise pressure monitoring.

Q: When should I consider using a differential pressure transmitter in my facility?
A: If your operations require constant, reliable monitoring of pressure differences-for safety, process optimization, or compliance-you should employ a differential pressure transmitter. Early adoption ensures prompt identification and correction of irregularities.

Q: Where can the Huba Control transmitter be mounted?
A: This model is designed for back mounting, allowing it to fit snugly onto panels, equipment housings, or dedicated instrumentation enclosures within your facility.

Q: What materials or media is the Huba Control 402.9300021 suitable for measuring?
A: It is specifically engineered to measure the pressure of steam, oil, and gas, making it versatile for various industrial processes involving these media.

Q: How does this transmitter benefit industrial operations?
A: By providing accurate and rapid pressure measurements, it helps maintain process efficiency, ensures safety standards, and minimizes downtime caused by pressure fluctuations or system failures.

Q: Is the Huba Control transmitter available for export and supply in India?
A: Yes, it is offered by exporters, manufacturers, suppliers, and traders across India, ensuring easy access and support for domestic and international clients.
