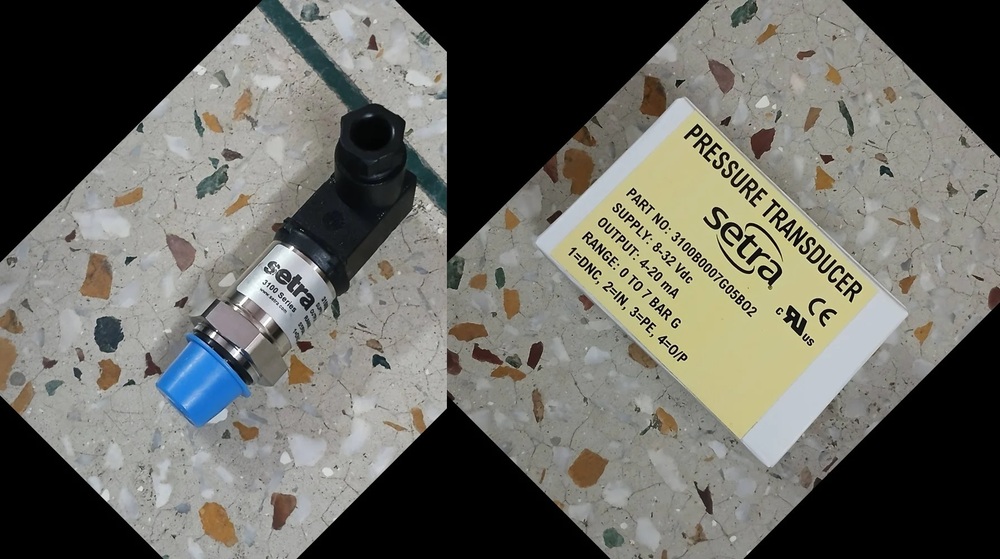

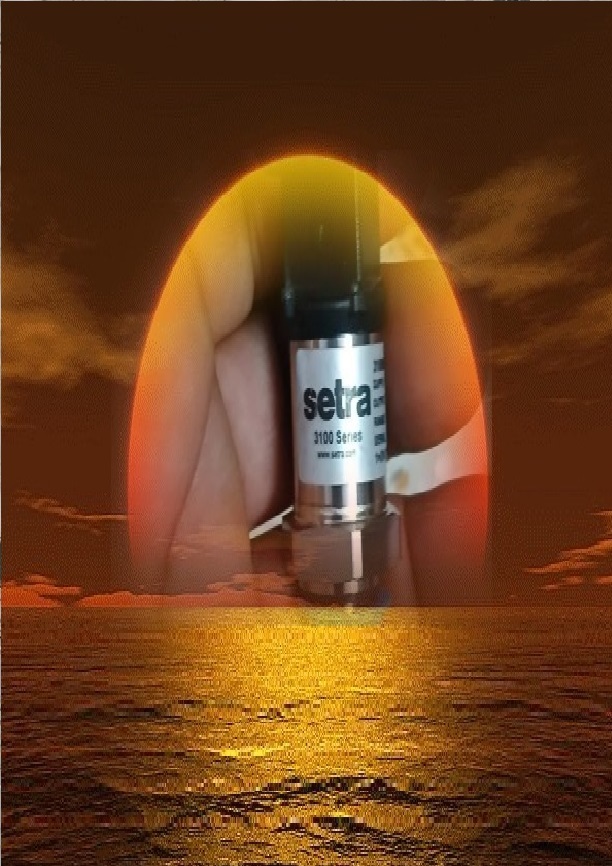

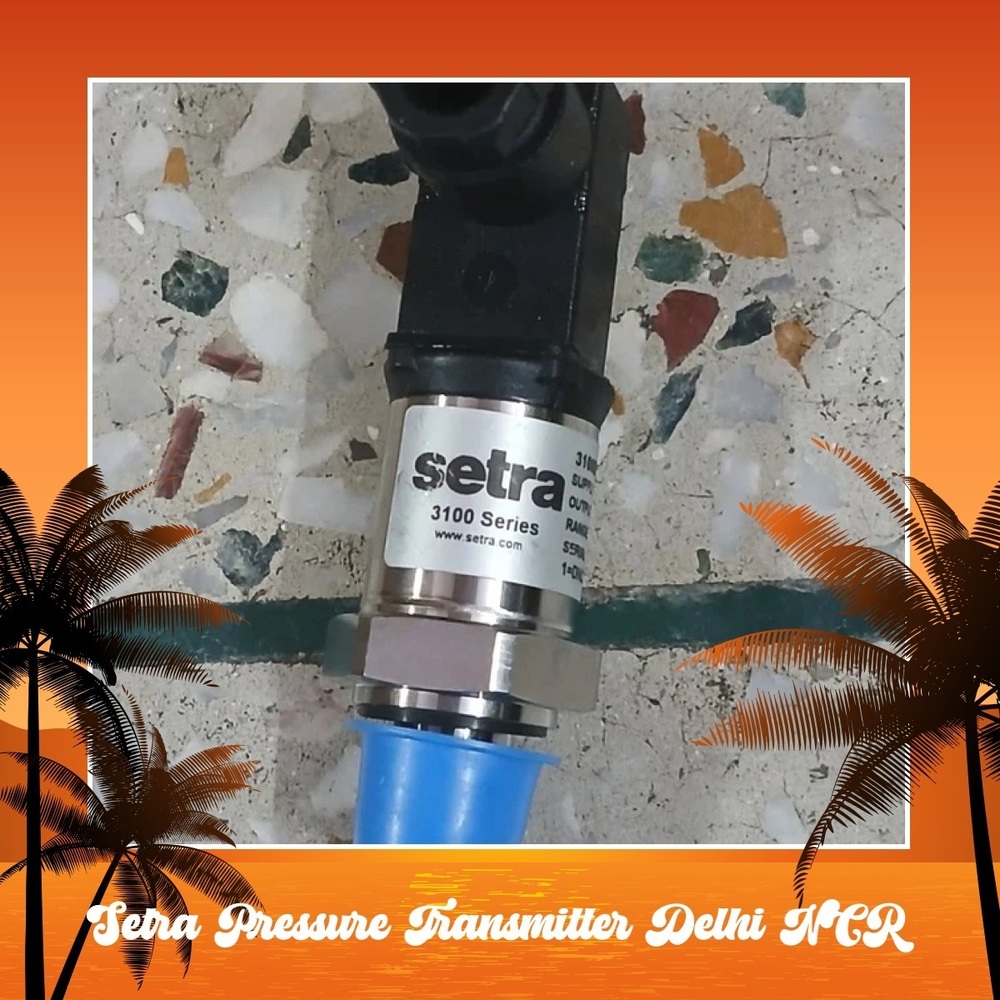

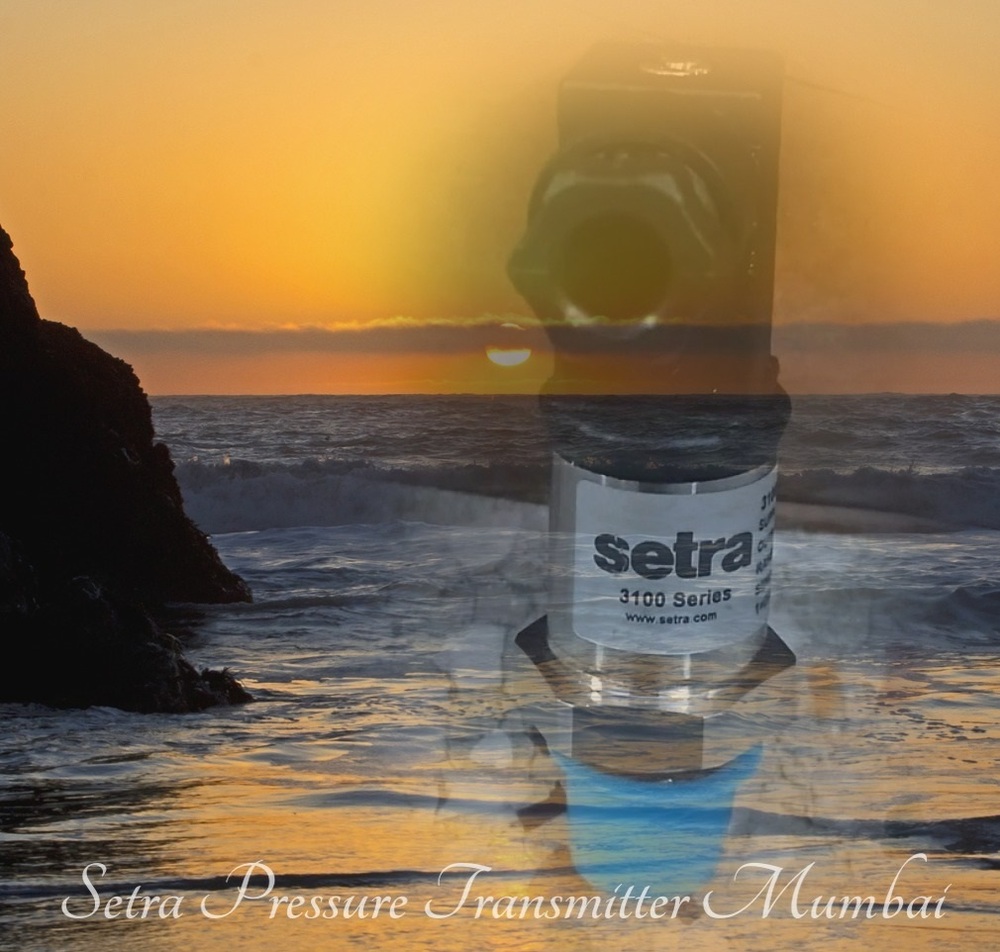

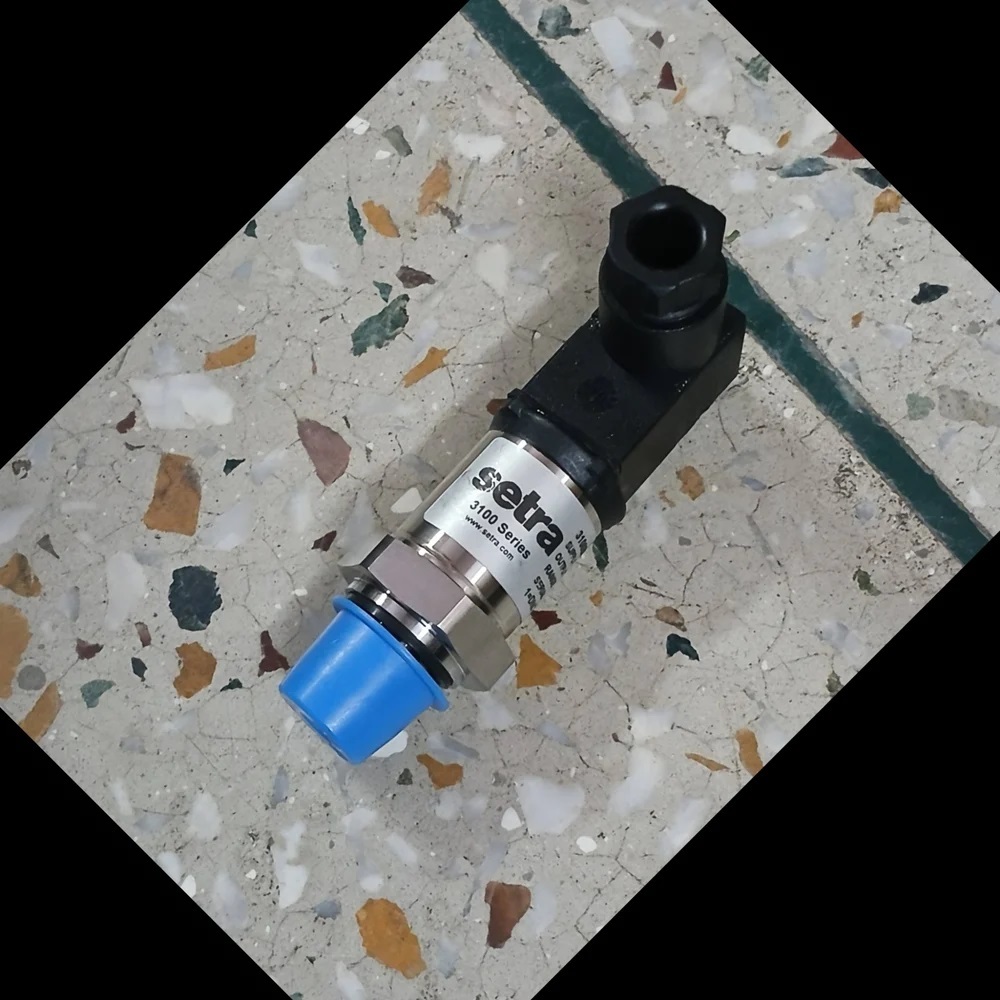

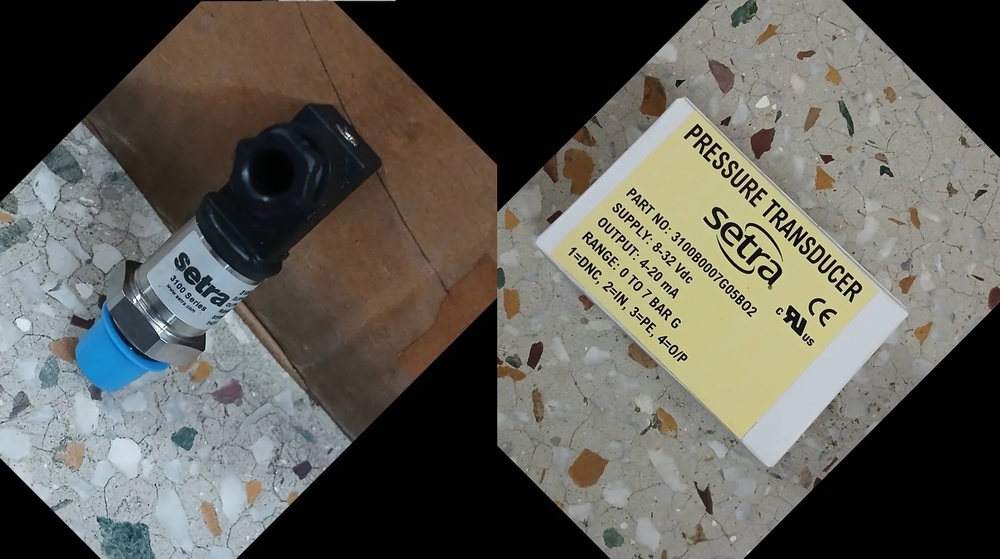

3100S0007G02B Setra Pressure Transmitter 0-7 Bar

About 3100S0007G02B Setra Pressure Transmitter 0-7 Bar

3100S0007G02B Setra Pressure Transmitter 0-7 Bar | Setra Pressure Transmitter Wholesale Distributor

Product Information
SETRA Model 3100 Is a Compact OEM Industrial Pressure Transmitter Designed For Accurate And Reliable Measurement of Gauge Pressure.Part No.3100S0007G02B is Specified For a 0 to 7 Bar Pressure Range.The Model 3100 Uses Sputtered Thin-Film Sensing Technology And Rugged Welded Stainless-Steel Construction For Demanding Industrial Applications.
Technical Data:

• Model:SETRA 3100
• Part No:3100S0007G02B
• Pressure Range:0 to 7 Bar
• Supply:8-32 VDC
• OUTPUT:4...20 MA
• CONNECTION:1/4" NPT 304 SS
• Pressure Type:Gauge
• Accuracy:0.25% FS
• Response Time:1 ms
• Enclosure Protection:IP67
• Wetted Parts:17-4PH SS Diaphragm,304 SS Fittings
• Operating/Storage Temperature:-40C to +125C
• Compensated Temperature Range:-40C to +125C
• Long-Term Stability:0.2% FS For Ranges Below 60 Bar
• Construction:All-Welded SS
• Weight:Approximately 35 g

Product Features:

• High Accuracy And Repeatability
• Sputtered Thin-Film Sensing Technology
• Compact Design,Less Than 1 Inch Diameter
• Rugged SS Construction
• IP67 Environmental Protection
• Excellent Vibration And Shock Resistance
• Reverse Wiring Protection
• Fast 1 ms Response Time
• Suitable for OEM And Industrial Equipment

Field of Application:

• Hydraulic Systems
• Industrial Machinery
• Booster Pump Systems
• Water And Irrigation Systems
• Process Equipment
• Compressors
• HVAC And Industrial Automation
• Power Generation Equipment
• Mobile And Off-Highway Machinery
• Pressure Monitoring And Control Systems

Ambient Condition:

The Transmitter is Designed For Operation And Storage From-40C to +125C.Its IP67 Enclosure Provides Protection Against Dust And Temporary Water Exposure When Correctly Installed
Material:

The Pressure Sensing Diaphragm is 17-4PH SS,With 304 SS Fittings.The All-Welded SS Construction Provides Durability For Industrial Environments
Electrical Data:

The Model 3100 Family is Available With Multiple Electrical Output Configurations,Including 420 mA,16 VDC,15 VDC,0.54.5 VDC,05 VDC and 010 VDC,Depending On The Configured Part Number.The Exact Electrical Output And Connection Should Be Verified Against The Complete Ordering Code Before Installation.For 07 Bar versions,Setra Specifies That 010 V Output is Not Available Below 7 Bar
Installation Guide:

1. Verify The Pressure Range,Output And Pressure Connection Before Installation
2. Install The Transmitter Using The Correct Compatible Pressure Fitting
3. Do Not Exceed The Rated Pressure Range
4. Connect The Electrical Wiring According To The Applicable Setra Wiring Diagram
5. Protect The Cable/Connector From Excessive Moisture,Mechanical Damage And Contamination
6. Check For Leakage And Verify The Output Signal After Installation

Approval:

Model 3100 is CE And UL Approved and RoHS Compliant,With IP67 protection

Accessories:

Compatible Pressure Fittings

• Electrical Connectors
• Mating Cable/Connector Assemblies
• Signal/Readout Equipment
• Pressure Calibration Equipment
• Mounting And Installation Accessories
