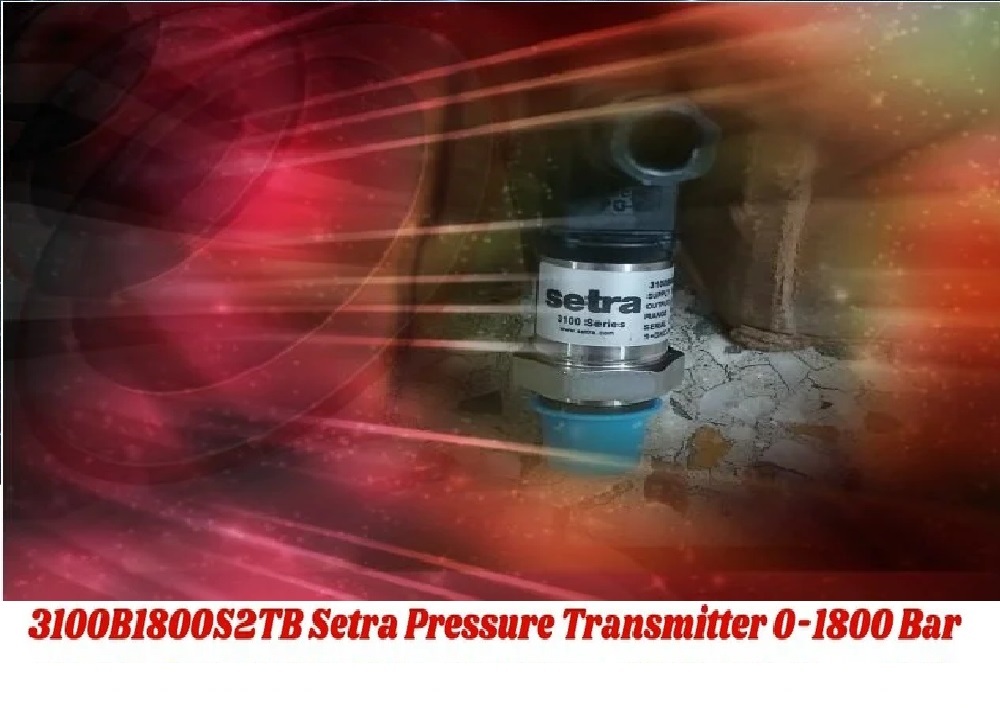

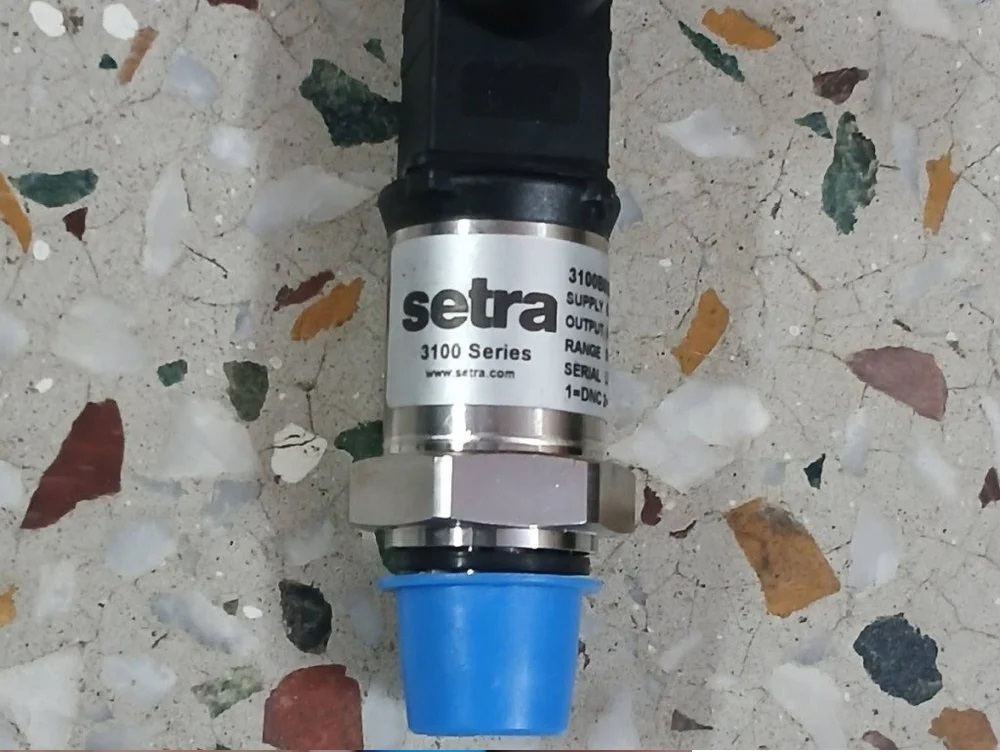

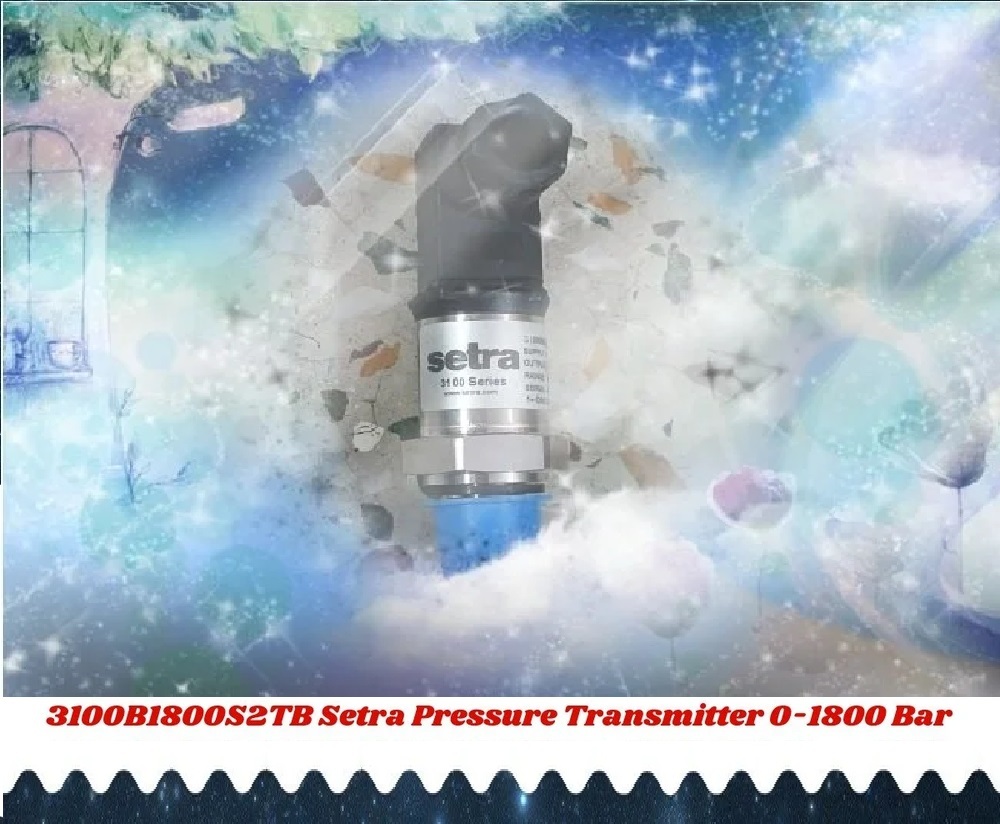

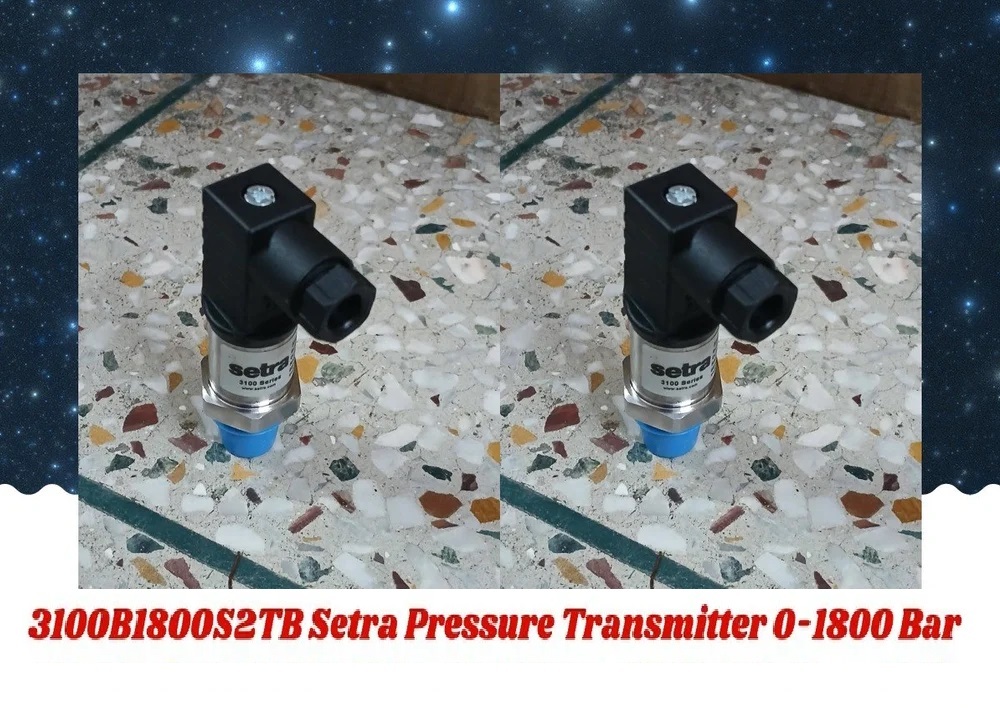

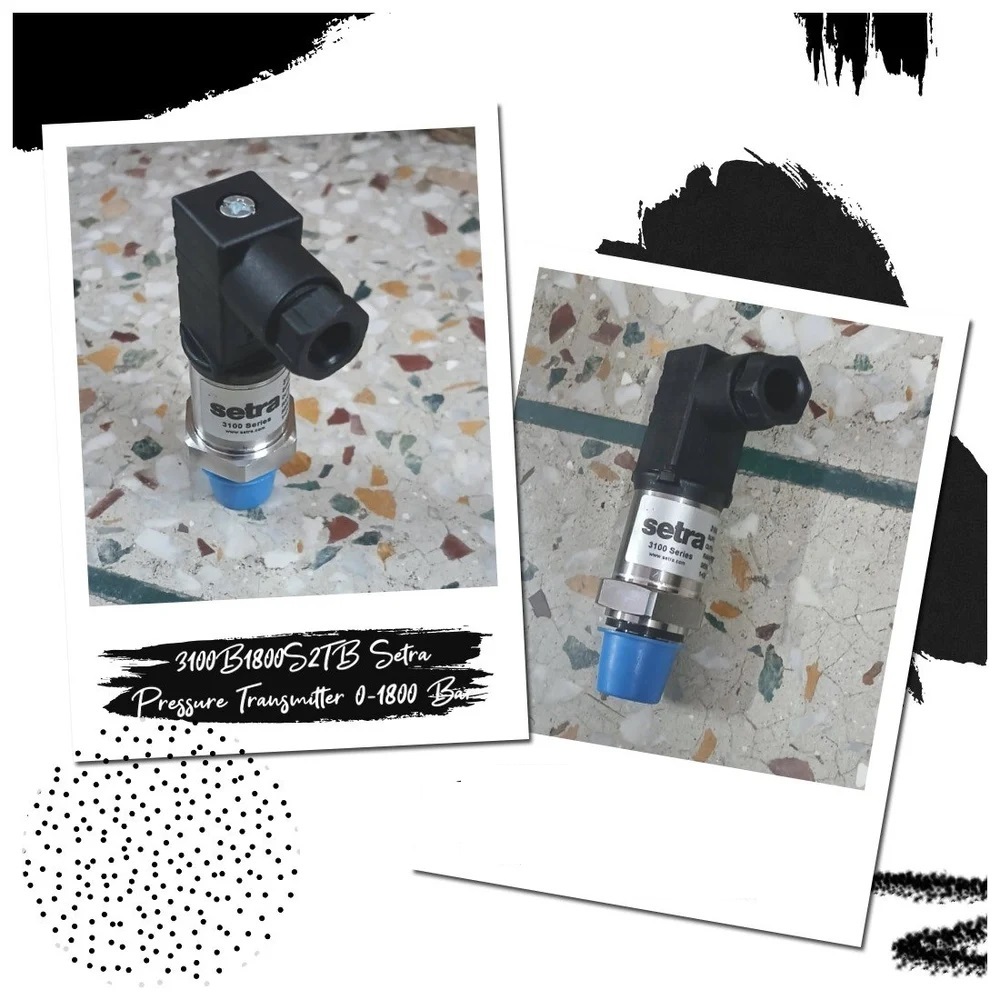

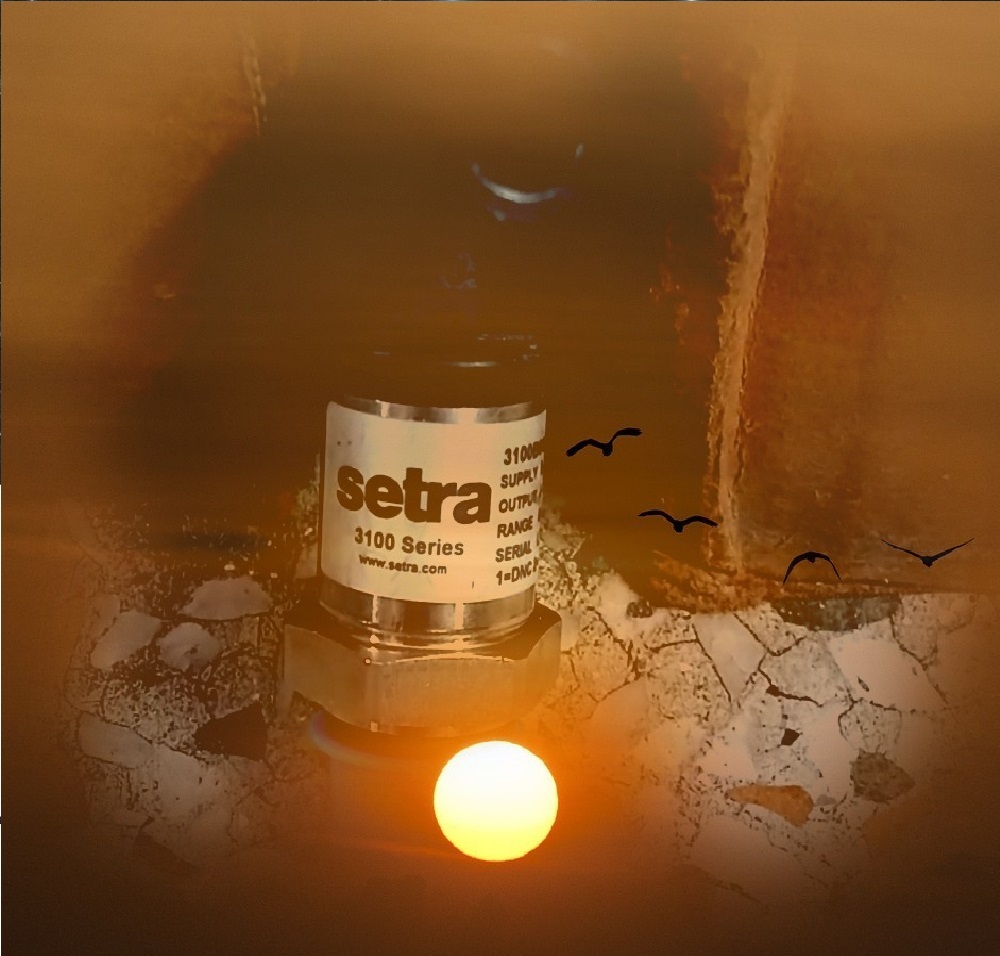

SETRA 3100B1800S2TB Pressure Transmitter 0–1800 Bar Supplier India
Product Information:
Setra Model 3100B1800S2TB is a High-Pressure OEM Industrial Pressure Transmitter Designed For Accurate And Reliable Pressure Measurement In Hydraulic,Industrial And Process Applications.It Uses Sputtered Thin-Film Sensing Technology With Rugged Stainless-Steel Construction.The Specified Model Provides a 0–1800 Bar Pressure Range With 4–20 mA Analogue Output
Technical Data:

• Model: 3100B1800S2TB
• Pressure Range: 0–1800 Bar
• Accuracy: ±0.25% Full Scale
• Output: 4–20 mA
• Supply Voltage: 8–30 VDC
• Pressure Connection: G 1/4-18 NPT Male
• Electrical Connection: DIN 43650 Form C
• Enclosure: IP67
• Response Time: Approximately 1 ms
• Operating/Compensated Temperature: -40°C to +125°C

Product Features:

• High-Pressure Measurement Up To 1800 Bar
• ±0.25% FS Accuracy
• Sputtered Thin-Film Sensing Element
• 4–20 mA Industrial Output
• 2-Wire Configuration
• All-Welded Stainless-Steel Construction
• IP67 Environmental Protection
• Reverse-Wiring Protection
• High Vibration Resistance
• Compact OEM Design
• RoHS Compliant

Field Of Application:
Hydraulic Systems,Hydraulic Power Units,High-Pressure Pumps, Compressors,Industrial Machinery,Pressure Testing Equipment,Process Monitoring,Power Generation Equipment,Irrigation Systems,OEM Machinery,Industrial Automation And High-Pressure Process Applications.
Ambient Condition:
Operating And Storage Temperature: Approximately -40°C to +125°C.The IP67 Enclosure Provides Protection Against Dust And Water Ingress When Properly Installed.

Material:
Wetted Components Include 17-4PH Stainless-Steel Diaphragm And 304 Stainless-Steel Fittings.The Transmitter Features Rugged All-Welded Stainless-Steel Construction.
Electrical Data:

Output: 4–20 mA;

• Supply: 8–30 VDC;
• Circuit: 2-Wire. Maximum Loop Resistance Is Dependent On Supply Voltage. Reverse-Wiring Protection Is Provided.

Installation Guide:
Verify The Pressure Range, Pressure Port And Electrical Configuration Before Installation.Mount The Transmitter Securely And Avoid Excessive Mechanical Force.Connect The 4–20 mA Loop Using a Suitable 8–30 VDC Supply.Check All Connections For Leakage And Verify The Output Signal Before Commissioning. Follow The Applicable Setra Installation Instructions.
Approval:
The Model 3100 Series is Available With CE/UL Approvals And RoHS Compliance Depending On The Exact Configuration. Confirm The Approval Marking For The Supplied Part Number Before Installation.
Accessories:
Suitable Accessories May Include Mating Electrical Connectors,Pressure Adapters,Seals,Cables,Mounting Hardware And Process-Connection Accessories.Accessories Should Be Selected According To The Exact Transmitter Configuration.
