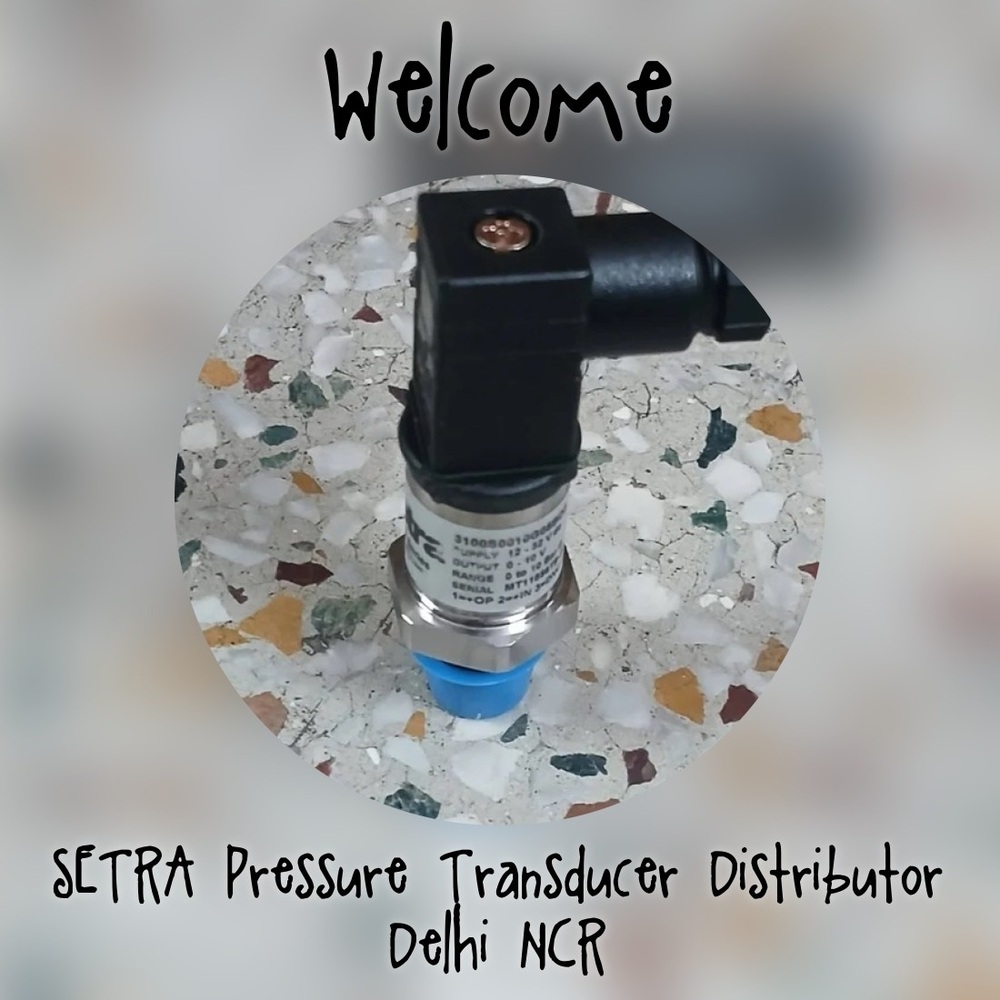

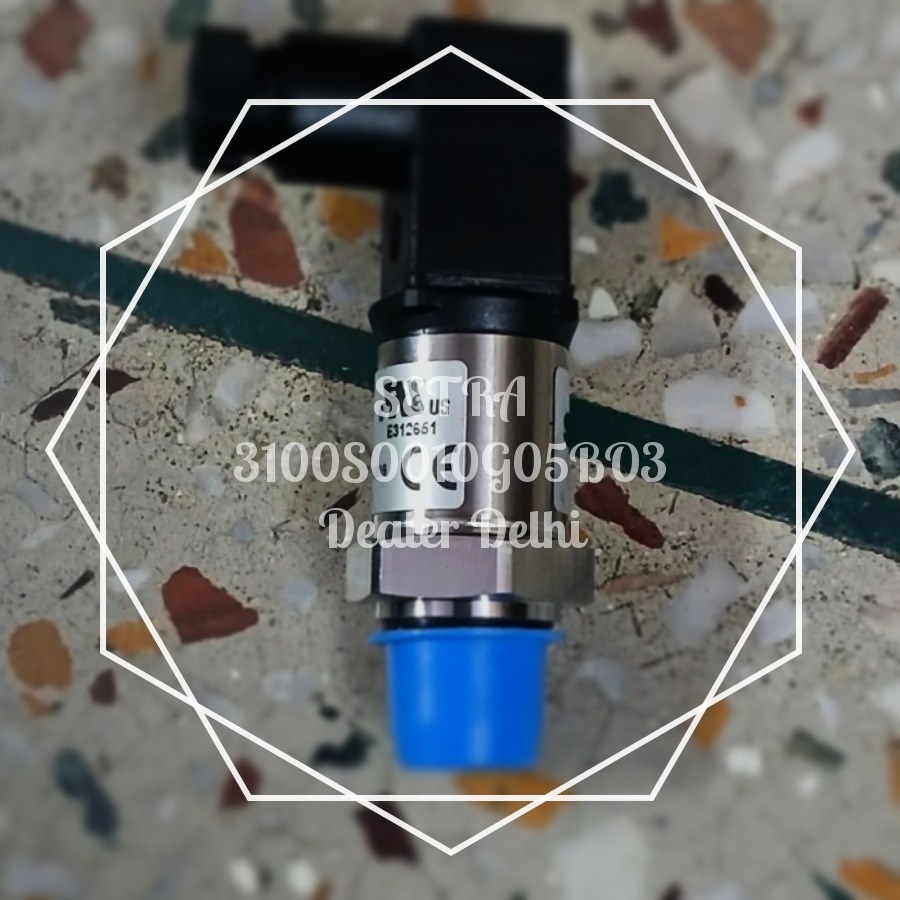

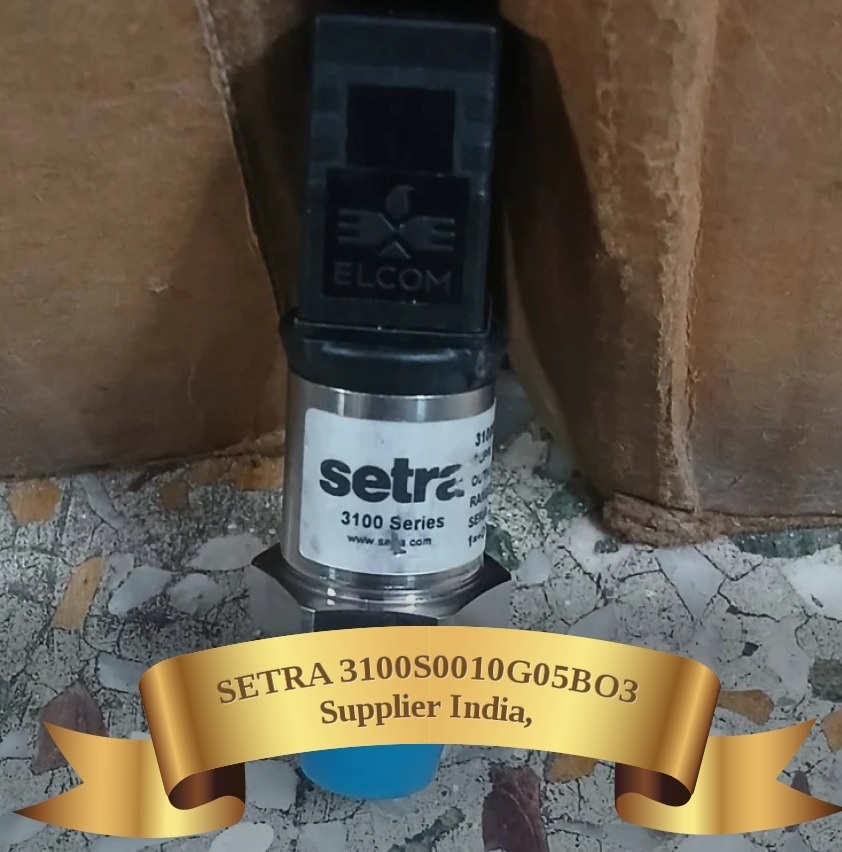

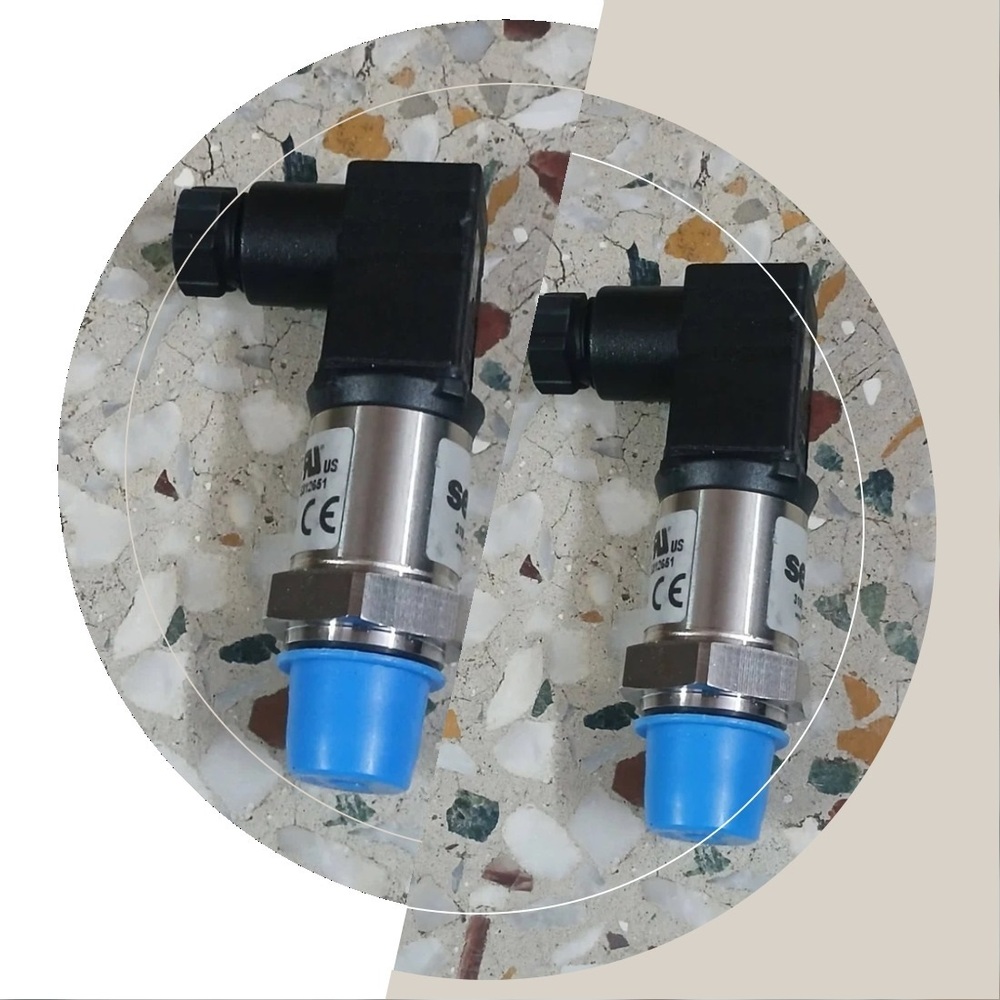

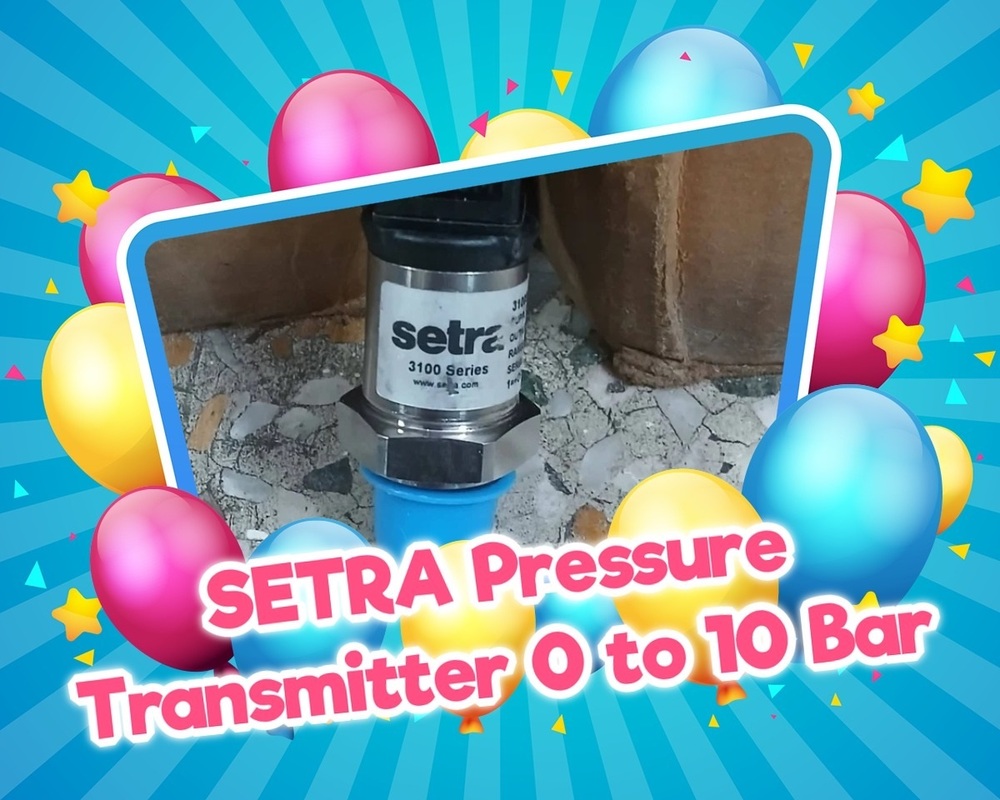

SETRA Pressure Transmitter Part No. 3100S0010G05BO3 Range 0 to 10 Bar

About SETRA Pressure Transmitter Part No. 3100S0010G05BO3 Range 0 to 10 Bar

SETRA Pressure Transmitter Part No. 3100S0010G05BO3 – Range 0 to 10 Bar

Product Information:
SETRA Model 3100S0010G05BO3 is a compact industrial OEM Pressure Transmitter for reliable 0–10 Bar gauge pressure measurement.It uses sputtered thin-film sensing technology and rugged welded stainless-steel construction for demanding applications

Technical Data:

• Brand: SETRA
• Part No:3100S0010G05BO3
• Pressure Range:0 TO 10 Bar
• OUTPUT:0...10 V
• Supply:12-32 VDC
• CONNECTION:1/4" NPT 304 SS
• Pressure Type: Gauge
• Accuracy:±0.25% FS
• Diaphragm:17-4 PH Stainless Steel
• Fittings:304 Stainless Steel
• Operating/Storage Temperature: -40°C to +125°C
• Response Time: Approx. 1 ms
• Long-Term Stability: ±0.2% FS for ranges below 60 Bar

Product Features:

• High accuracy and repeatability
• Rugged stainless-steel construction
• Excellent long-term stability
• No oil-filled sensor design
• Reverse wiring protection
• High vibration resistance
• IP67 environmental protection
• Compact OEM design
• Suitable for space-limited installations

Field Of Application:

• Hydraulic & Pneumatic Systems
• HVAC & Refrigeration
• Compressors & Pumps
• Industrial Machinery
• Process Equipment
• Booster Pump Systems
• Irrigation Systems
• Power Generation
• OEM Machinery
• Pressure Monitoring & Control

Ambient Condition:
Operating and storage temperature is -40°C to +125°C. The transmitter is designed for industrial environments involving vibration and moisture exposure.Application pressure must remain within the rated range.

Material:Sensor Diaphragm:17-4 PH Stainless Steel

• Fittings:304 Stainless Steel
• Construction:Welded Stainless Steel
• Enclosure:IP67-rated design

Electrical Data:
The SETRA 3100 family is available with different electrical configurations, including voltage Current and ratiometric outputs.Supply voltage,Output signal and connector configuration depend on the specific ordering code. Verify the exact electrical configuration of Part No 3100S0010G05BO3 with the applicable manufacturer documentation before installation.

Installation Guide:

1. Confirm the pressure range is suitable
2. Install using the correct pressure connection
3. Tighten fittings without excessive force
4. Connect wiring according to the applicable diagram
5. Protect electrical connections from moisture
6. Apply power after completing pressure and electrical connections.
7. Check for leakage and verify the output signal

Approval:
Model 3100 documentation indicates RoHS compliance and IP67 protection Applicable approvals may vary by configuration verify the exact approval for Part No 3100S0010G05BO3 before purchase or installation

Accessories:

• Mating Electrical Connector
• Sealing Washer
• Pressure Fittings
• Mounting Hardware
• Pressure Tubing/Fittings
• Shielded Electrical Cable
• Signal/Power Wiring Accessories

Summary:SETRA 3100S0010G05BO3 0 TO 10 Bar Pressure Transmitter is suitable for industrial OEM pressure measurement,Hydraulic,Pneumatic,HVAC, compressor,Pump and process-control applications
