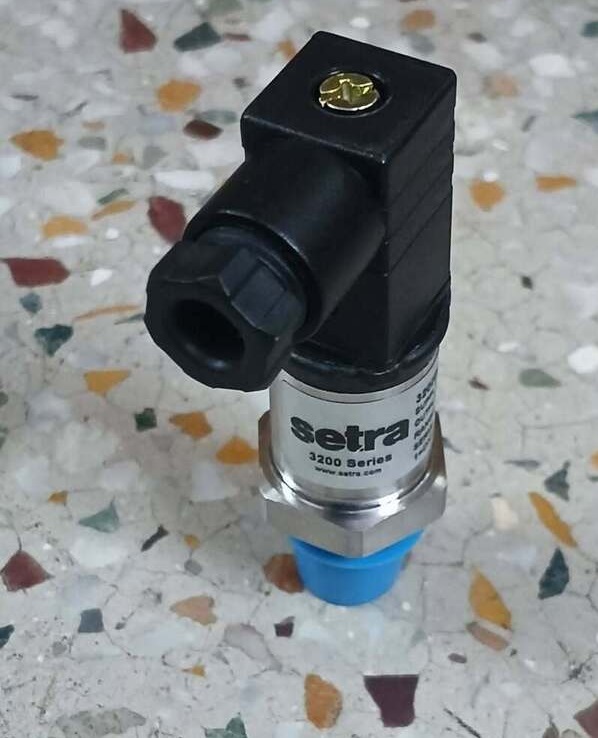

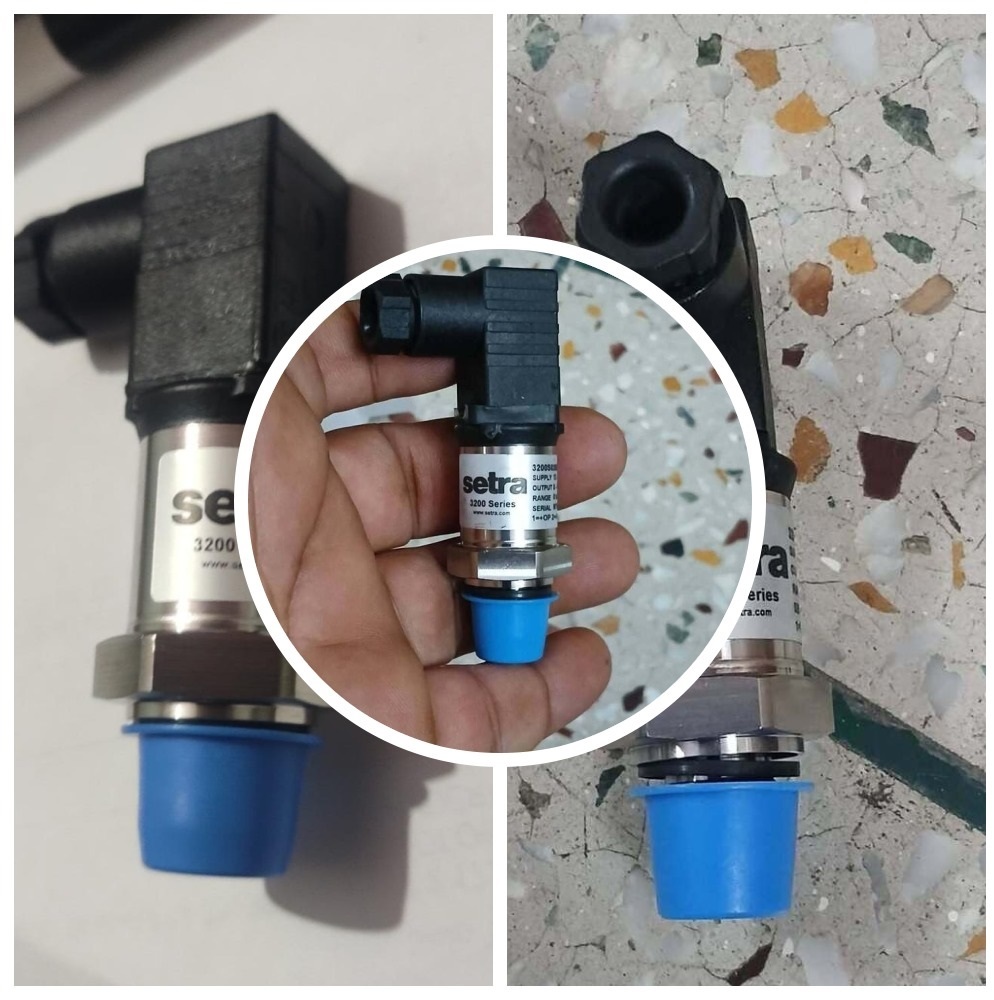

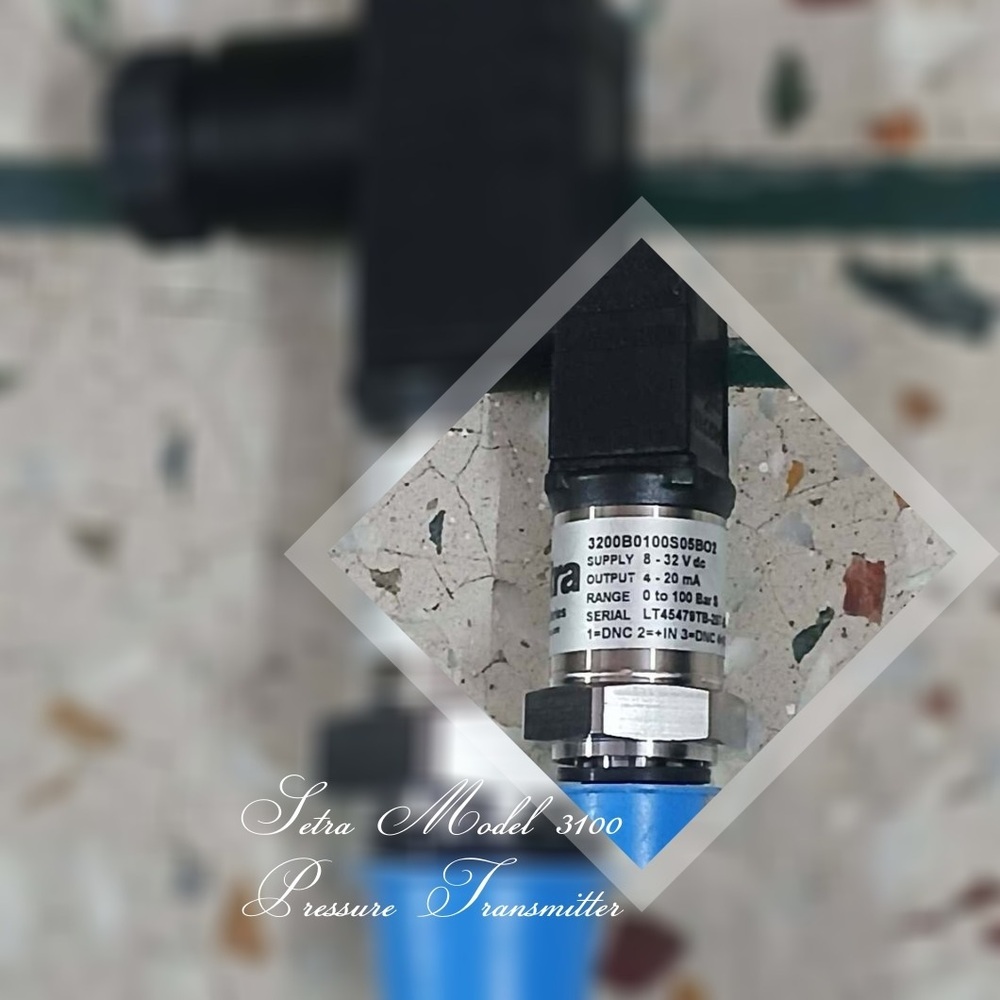

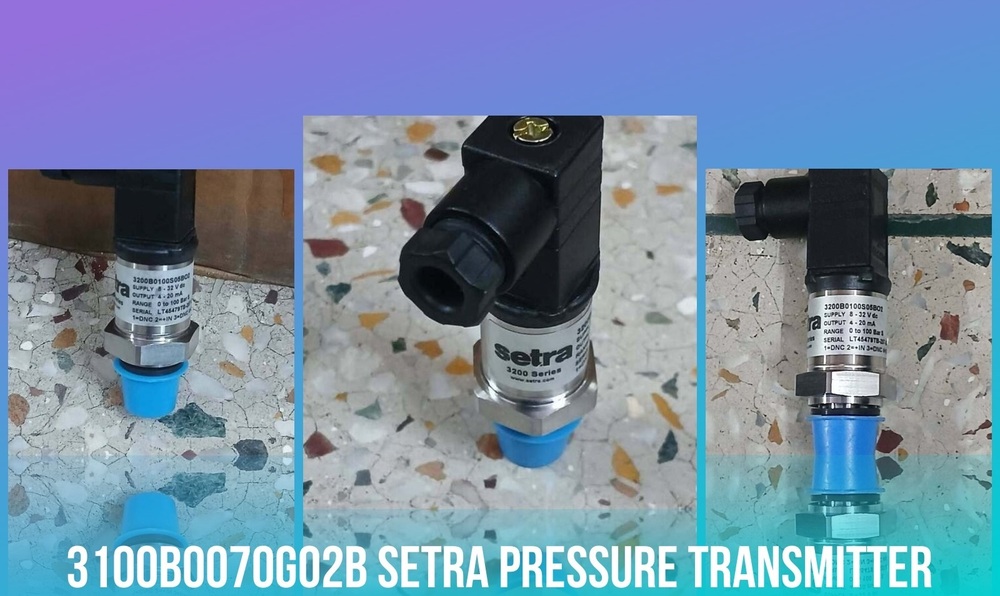

Setra Pressure Transmitter 0–70 Bar | 3100B0070G02B

Product Information:
The Setra 3100B0070G02B Pressure Transmitter is Designed For Industrial Pressure Measurement And Monitoring Applications.It Converts Applied Pressure Into An Electrical Signal For Use In Automation,Process Control And Monitoring Systems.Its Compact Design Makes It Suitable For Installation In Industrial Equipment And Machinery
Technical Data:

• Brand: Setra Systems
• Model: 3100B0070G02B
• Product Type: Pressure Transmitter
• Pressure Range: 0–70 Bar
• Supply Voltage: 8–30 VDC
• Pressure Connection: 1/4"-18 NPT Male
• Electrical Connection: DIN 43650 Form C
• Enclosure Protection: IP67
• Operating Temperature: −40°C to +125°C
• Wetted Material: Stainless Steel
• Weight: Approximately 35 g
• Output Signal: 4–20 mA
• Accuracy: ±0.25% FS

Product Features:

• Reliable Industrial Pressure Monitoring
• Compact And Durable Construction
• Designed For Continuous Pressure Measurement
• Suitable For Industrial Automation Systems
• Easy Integration With Compatible Control Equipment
• Suitable For Machinery And Process Monitoring
• 0–70 Bar Pressure Measurement Range

Field of Application:

• Industrial Process Control
• Hydraulic Systems
• Pneumatic Equipment
• Industrial Compressors
• Pump And Motor Systems
• Water Treatment Plants
• HVAC Systems
• Manufacturing Machinery
• Pressure Monitoring Systems
• Industrial Automation

Ambient Conditions:

• Operating Temperature: Refer To The Exact Model Datasheet
• Storage Temperature: Refer To The Manufacturer Specifications
• Environmental Conditions: Suitable For Installation Within The Specified Operating Limits
• Installation Location:Industrial Environments,Subject To Model Specifications

Material:

• Housing: 304 Stainless Steel
• Wetted Parts: Stainless Steel
• Sensing Element: Sputtered Thin Film
• Robust Industrial Construction.

Electrical Data:

• Electrical Output: 4–20 mA
• Supply Voltage: 8–30 VDC
• Electrical Connection: G1/4,as Listed For This Model
• Signal Compatibility: Compatible With The Corresponding Industrial Control System When Correctly Specified

Installation Guide:

1. Verify That The Operating Pressure Does Not Exceed The Transmitter Specified Range
2. Ensure That The Process Connection Matches The Installation Port
3. Install The Transmitter Securely Using The Specified Fitting
4. Connect The Electrical Wiring According To The Manufacturer Wiring Diagram
5. Check The Power Supply And Output Compatibility
6. Inspect The Installation For Pressure Leaks
7. Verify The Output Signal Before Commissioning

Approval:

Manufacturer Certifications,Electrical Approvals And Compliance Details Should Be Verified Against The Official Datasheet For Model 3100B0070G02B
Accessories:

• Compatible Electrical Connectors
• Pressure Connection Fittings
• Mounting Accessories
• Compatible Signal Cables
• Suitable Pressure Isolation Accessories,Where Required
