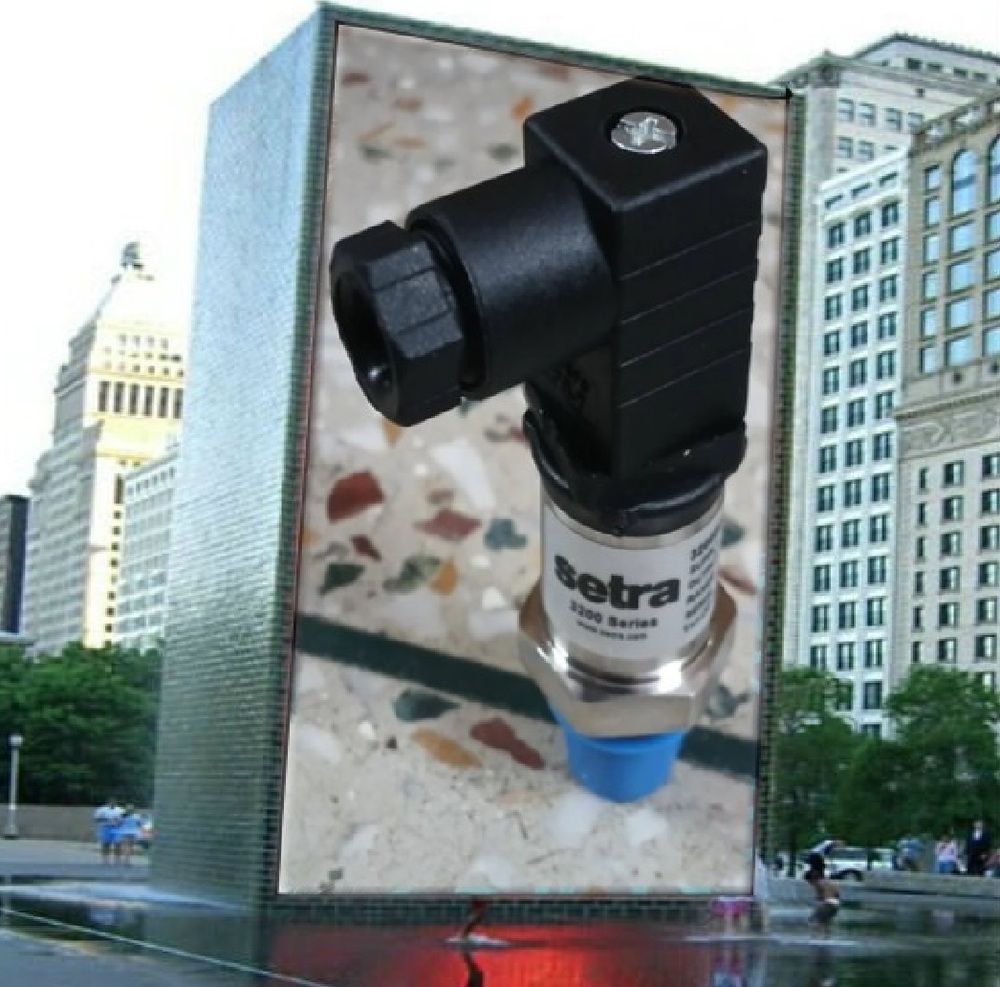

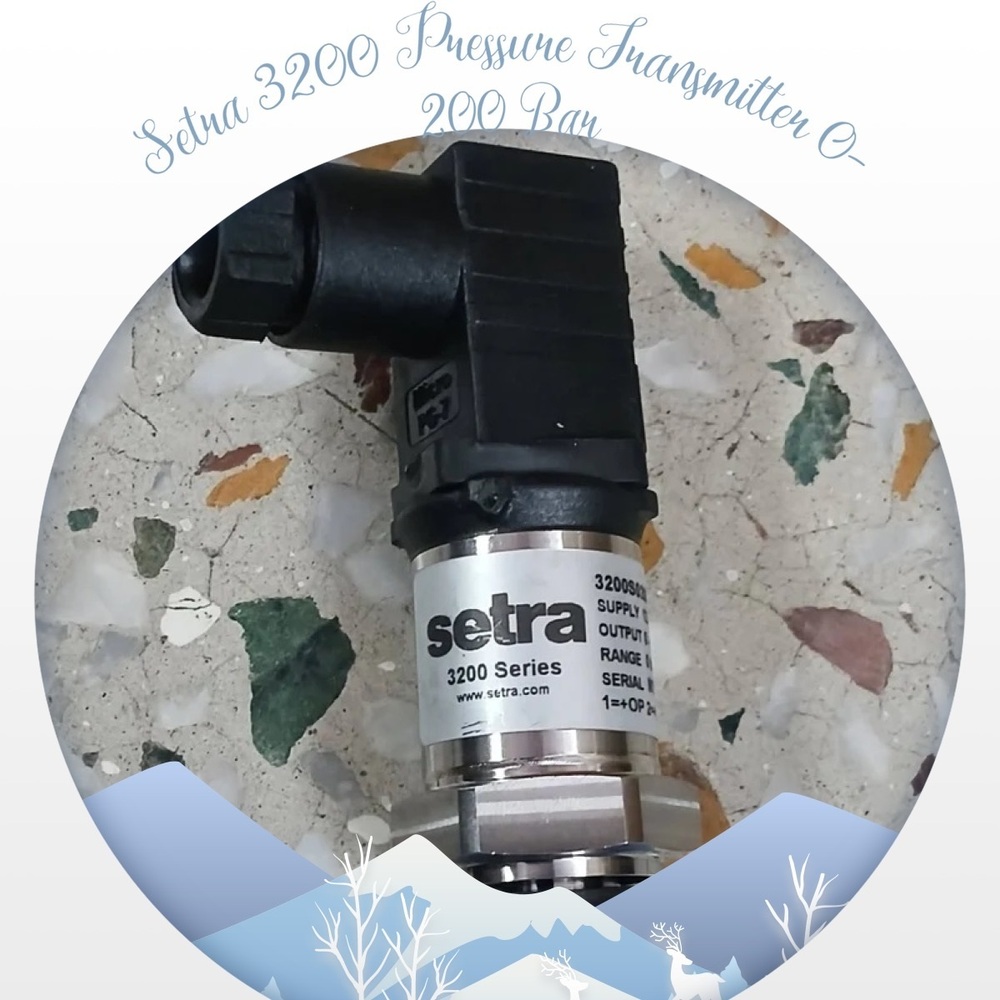

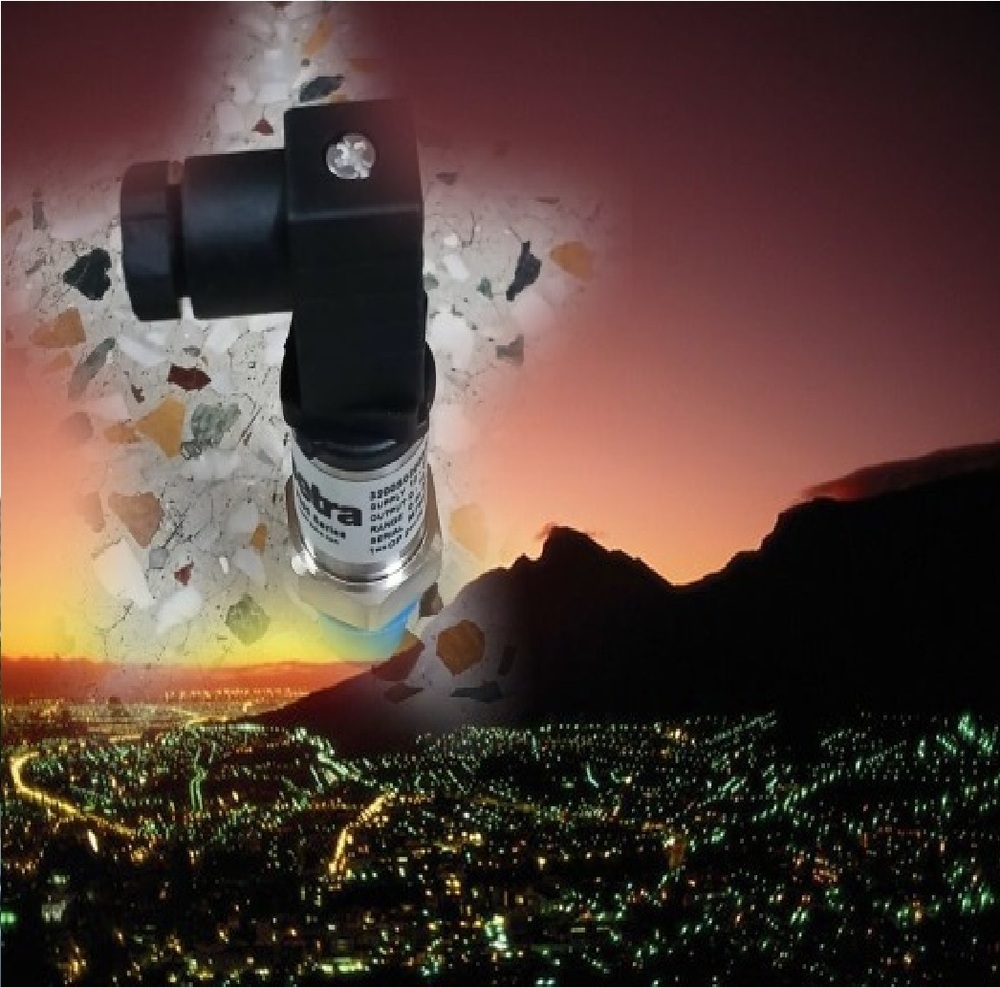

SETRA Pressure Transmitter 0200 Bar

About SETRA Pressure Transmitter 0200 Bar

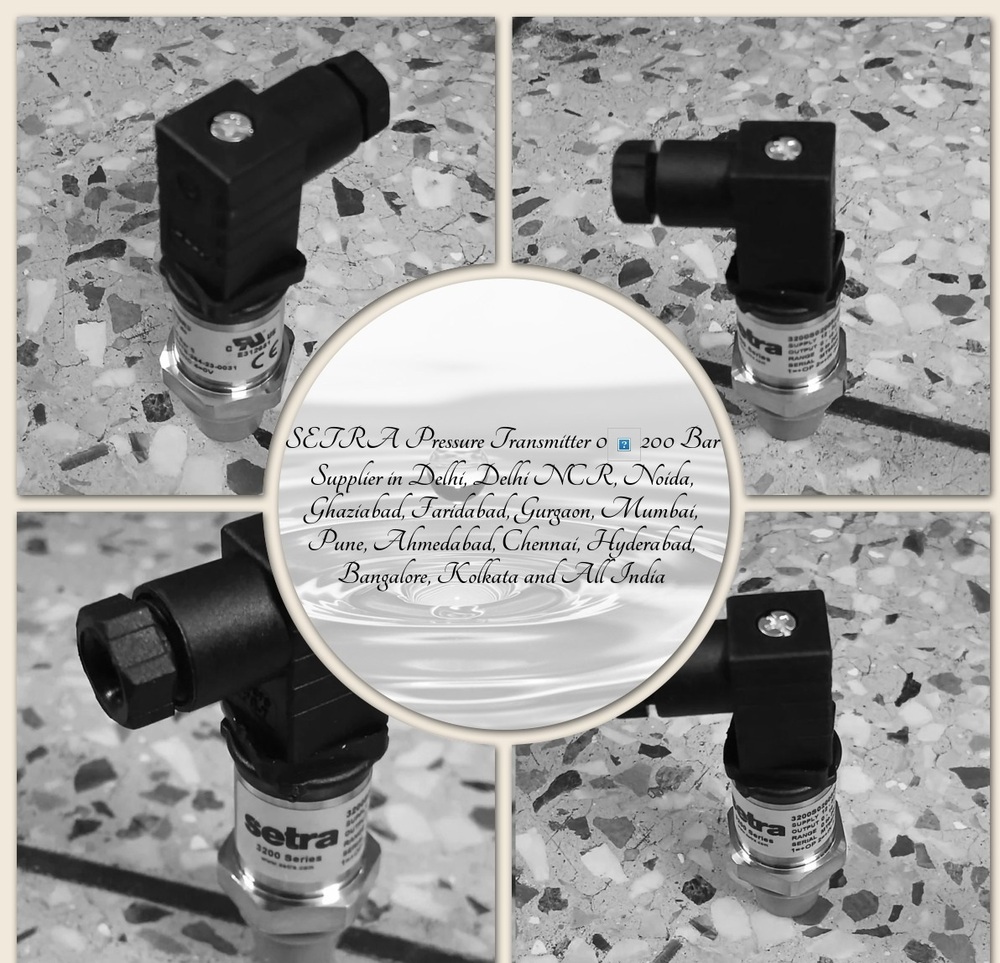

SETRA Pressure Transmitter 0200 Bar Supplier in Delhi,Delhi NCR
Product Information

SETRA Model 3200S0200S05BR3 is a Heavy-Duty Industrial Pressure transmitter Designed For Reliable Measurement of Pressure in Demanding OEM and industrial applications.The Model 3200 uses sputtered Thin-film sensing technology,An all-welded stainless-steel construction and a compact design for long-term stability and durability.The specified pressure range is 0 to 200 Bar.Setra Model 3200 is available with different electrical outputs, pressure connections and electrical connections depending on the selected configuration
Technical Data
Brand:SETRA

• Model:3200

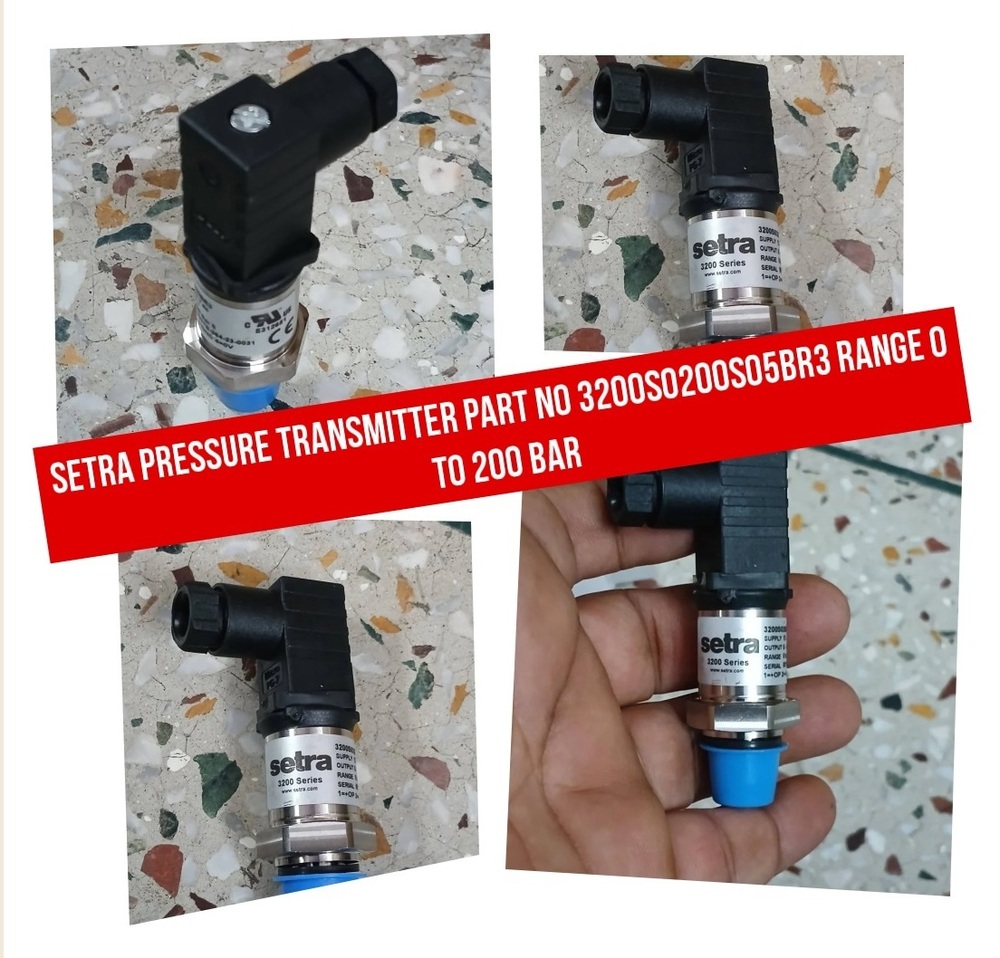

• Part No:3200S0200S05BR3
• Pressure Range:0 to 200 Bar
• Supply:12-32 VDC
• OUTPUT: 0...10 V
• CONNECTION:1/4" NPT 304 SS
• Accuracy:Up to 0.25% FS
• Construction:All-Welded SS
• Ingress Protection:IP67
• Design:Heavy-Duty Industrial

Product Features

• High Reliability And Long-Term Stability
• Compact Heavy-Duty Construction
• Sputtered thin-film sensing element
• All-welded Stainless-Steel Construction
• Excellent resistance to demanding industrial environments
• Reverse wiring protection
• Multiple output and connection options
• IP67 environmental protection
• RoHS compliant
• Designed for high-pressure industrial applications

Field Of Application

• Hydraulic systems
• Power generation equipment
• Booster pump systems
• Irrigation systems
• Industrial machinery
• OEM Equipment
• High-pressure process systems
• Heavy-duty industrial equipment
• Off-highway vehicles
• Water and Fluid Handling Systems

Ambient Condition

The Model 3100/3200 Operating and Compensated Temperature Range is approximately-40C to+125C.The Transmitter should be installed within the specified environmental and pressure limits for the selected configuration

Material

• Stainless-steel welded construction
• Stainless-steel pressure/wetted components according to configuration
• Robust housing suitable for industrial environments

Electrical Data

The Model 3200 Family Supports Different Electrical Configurations,Including current,Voltage and ratiometric outputs.Excitation and connector details depend on the complete part-number configuration.Verify the exact 3200S0200S05BR3 Configuration Before Electrical installation

Installation Guide

1. Confirm The Pressure Range and process connection before installation
2. Install the Transmitter securely using the correct pressure fitting
3. Do not exceed the rated pressure range
4. Connect the electrical wiring according to the approved Setra wiring diagram
5. Use suitable cable shielding and grounding where required
6. Protect the transmitter from excessive vibration,Mechanical Impact and unsuitable media
7. Check for leakage and verify the pressure reading after installation

Approval

The Model 3200 Product Family is specified with CE and UL approvals and RoHS compliance,With IP67-rated protection.Exact approvals can vary by configuration and should be confirmed for the specific part number

Accessories

Mating Electrical Connectors

• Process Connection Adapters
• Compatible Cables
• Restricting Orifice/Restriction Accessories where Applicable
• Mounting accessories
• Pressure Connection Fittings
