3100B0035C02B Setra Pressure Transmitter 035 Bar Delhi India

About 3100B0035C02B Setra Pressure Transmitter 035 Bar Delhi India

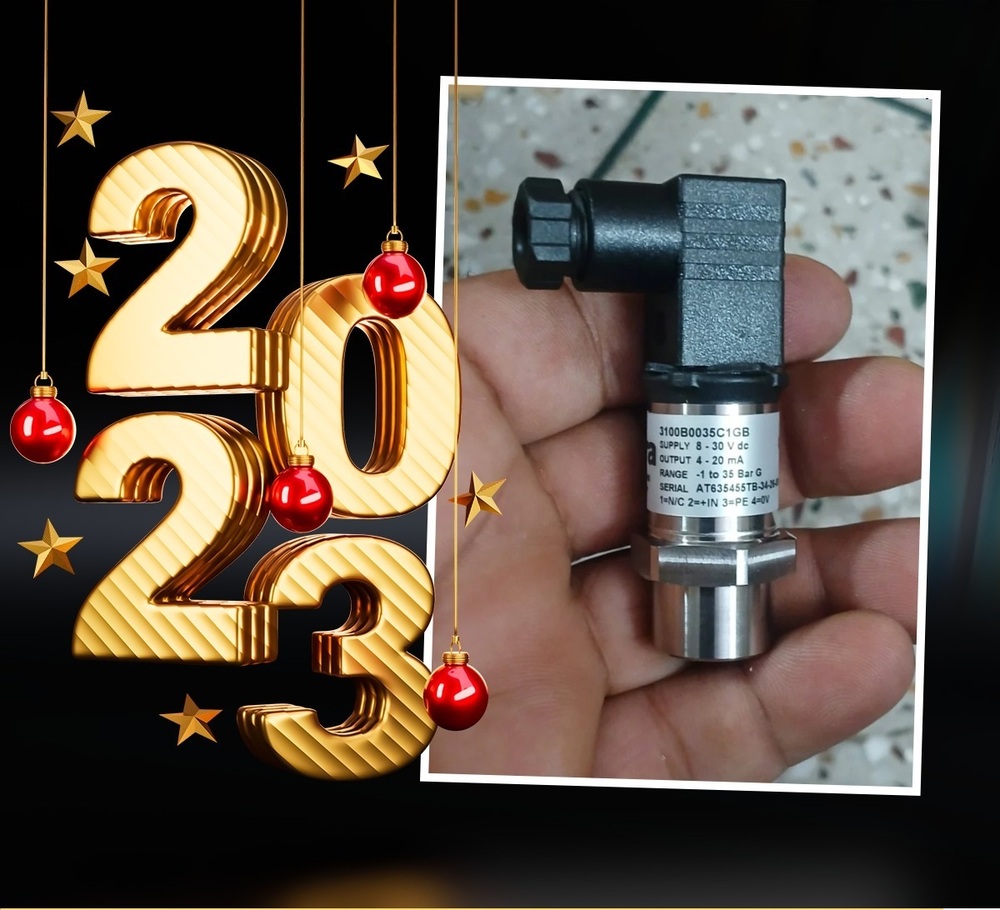

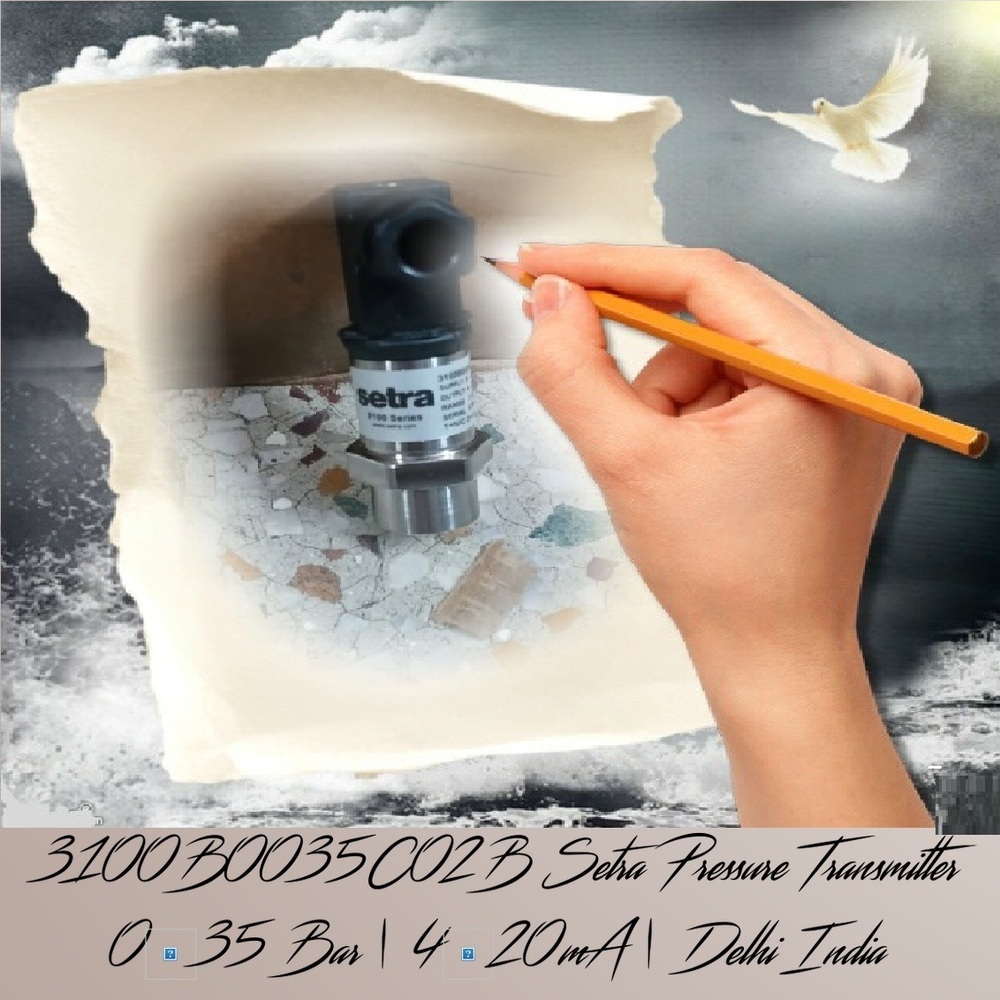

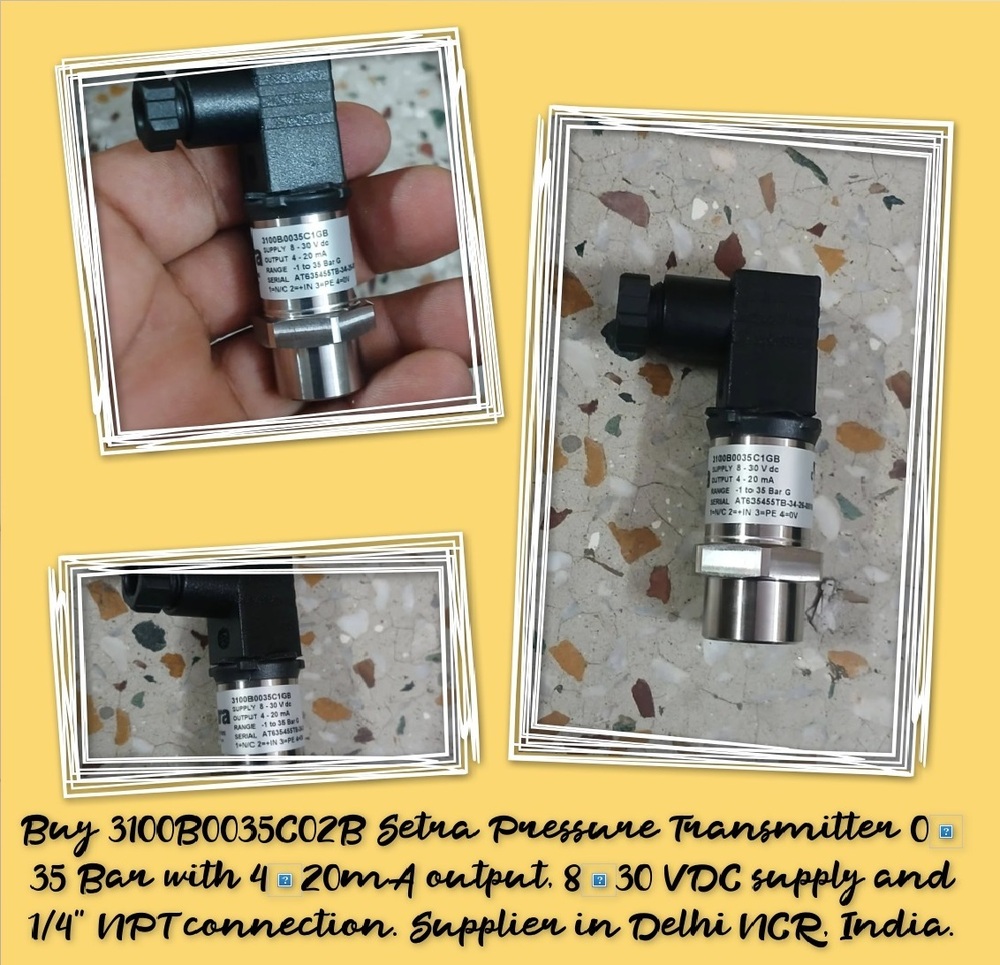

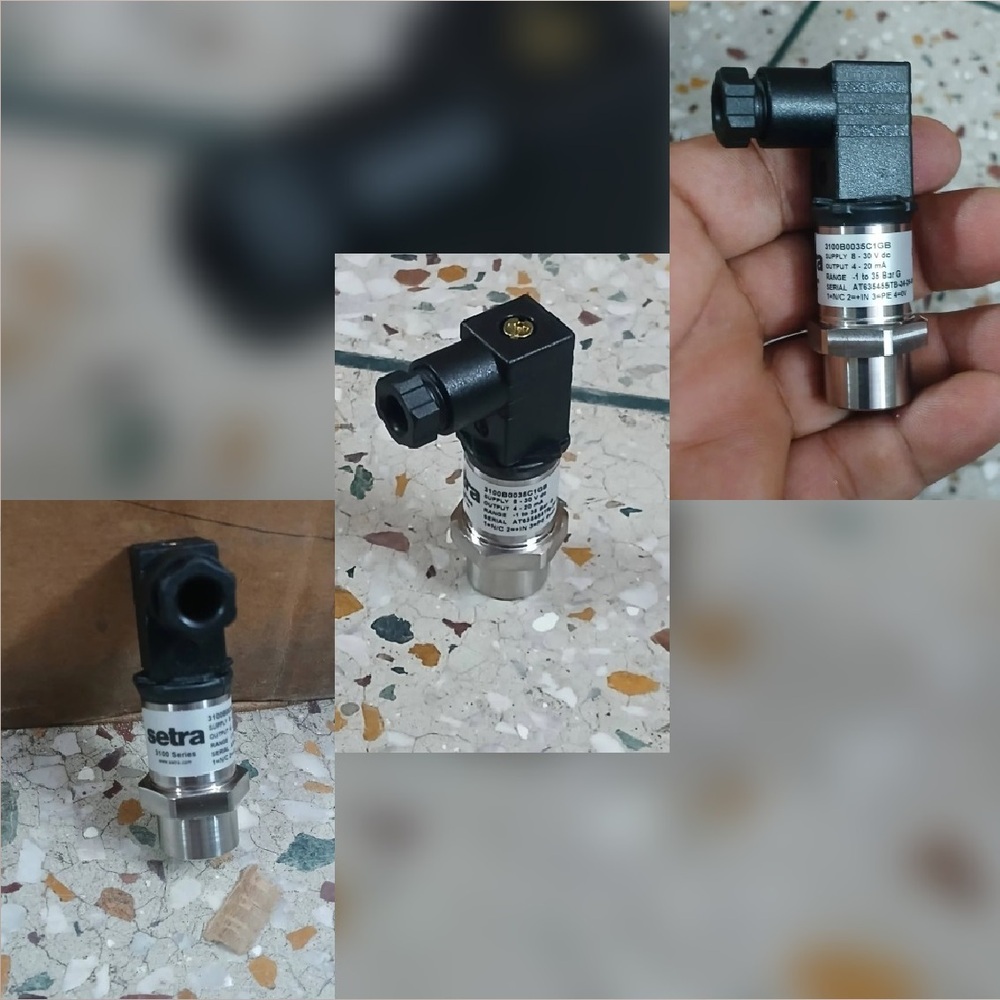

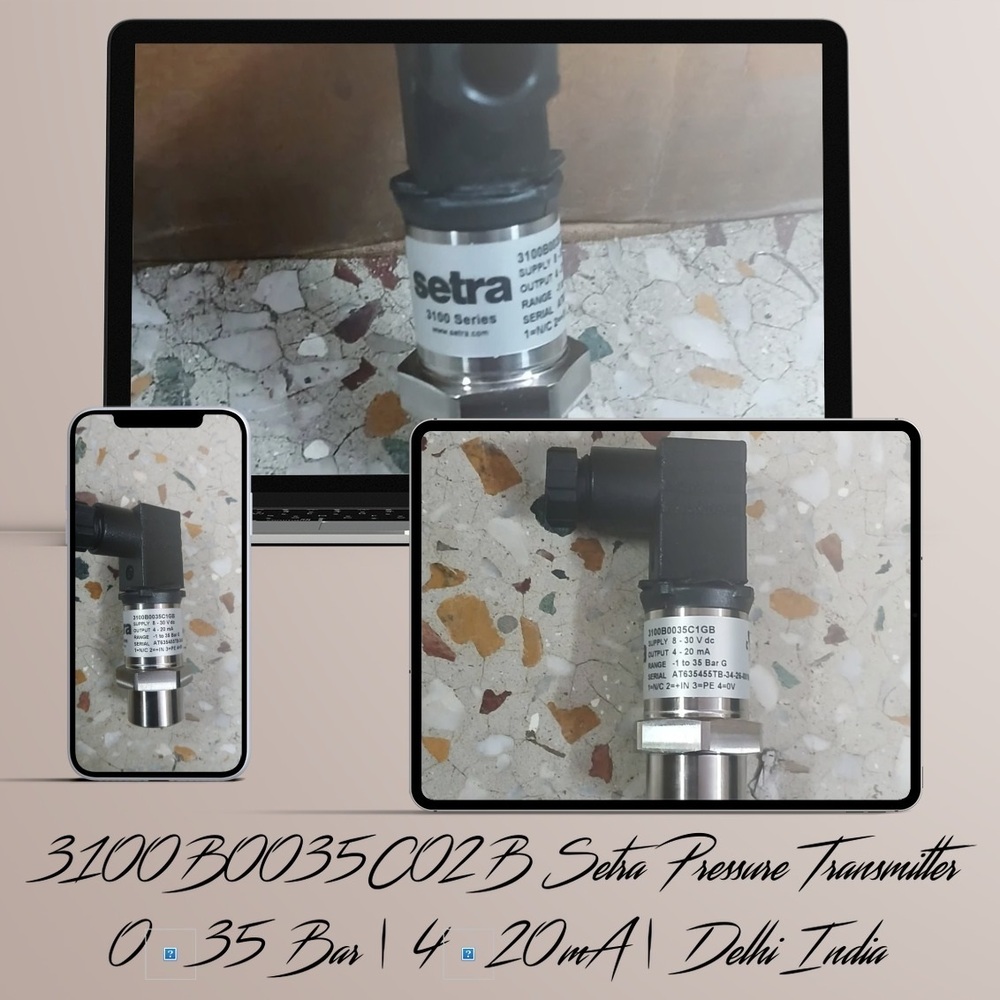

3100B0035C02B Setra Pressure Transmitter 035 Bar | 420 mA | Delhi India


Product Information

• Brand: Setra
• Model: 3100B0035C02B
• Product Type: Pressure Transmitter / Pressure Transducer
• Pressure Range: 035 Bar
• Pressure Type: Gauge
• Output: 420 mA
• Supply Voltage: 830 VDC
• Pressure Connection: 1/4" NPT Male
• Electrical Connection: DIN 43650 Form C
• Enclosure: IP67
• Accuracy: 0.25% FS
• Weight: Approx. 35 g

Technical Data

• Measuring Range: 035 Bar
• Accuracy: 0.25% Full Scale
• Response Time: Approximately 1 ms
• Long-Term Stability: 0.2% FS for ranges below 60 Bar
• Wetted Parts: 17-4PH stainless-steel diaphragm and 304 stainless-steel fittings
• Operating/Storage Temperature: -40C to +125C
• Protection Rating: IP67

Product Features

• Compact OEM Design
• Sputtered thin-film sensing technology
• Stainless-steel construction
• High reliability and stability
• 420 mA current output
• Reverse-wiring protection
• IP67 environmental protection
• Suitable for demanding industrial environments

Field Of Application

• Hydraulic systems
• Industrial process monitoring
• HVAC and compressors
• Refrigeration systems
• Pumps and booster pump systems
• Industrial machinery
• OEM equipment
• Irrigation systems

Ambient Condition

• Operating Temperature: -40C to +125C
• Storage Temperature: -40C to +125C
• Compensated Temperature Range: -40C to +125C
• Enclosure Protection: IP67
• Vibration Resistance: Designed for demanding industrial applications

Material

• Housing/Construction: Stainless steel
• Diaphragm: 17-4PH stainless steel
• Fittings: 304 stainless steel
• Wetted Parts: Stainless steel

Electrical Data

• Output: 420 mA
• Supply/Excitation: 830 VDC
• Circuit: 2-wire
• Electrical Connection: DIN 43650 Form C
• Maximum Loop Resistance: (Supply Voltage 8) 50
• Reverse Wiring Protection: Yes

Installation Guide

1. Install the transmitter on a compatible 1/4" NPT male process connection.
2. Ensure the pressure connection is clean and properly sealed.
3. Connect the 2-wire 420 mA circuit according to the wiring diagram.
4. Use an appropriate DC power supply within the specified 830 VDC range.
5. Avoid excessive mechanical force on the pressure port.
6. Check for leakage after installation.
7. Do not exceed the rated pressure range during normal operation.

Approval

• cURus
• RoHS Compliant
• CE/EMC compliance is specified for the Model 3100 family.

Accessories

• DIN 43650 Form C mating connector
• Suitable 1/4" NPT sealing accessories
• Pressure connection fittings
• Electrical cable/connector accessories
• Mounting and sealing accessories
• WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,
• E-mail :
• dpsharma74@yahoo.co.in,
• dpsharma1974@gmail.com,
• dpsharma949@gmail.com
• Mr D.P.SHARMA 9871014210
• WhatsApp number :9871014210,9268631221
• Websites :
• www.dpengineers.in,
• www.dpengineer.in,
• www.dpengineer.co.in,
• www.dpengineerindia.com,
• www.dpengineersindia.in,
• www.dpengineers.info,
• www.dpengineer.info,
• www.dp-engineers.com,
• www.dpengineerindia.in,
• www.dpengineersindia.net,
• www.dpengineersdelhi.co.in,
• www.dpengineersdelhi.com,
• www.dp-engineers.co.in,
• www.dpengineersdelhi.net,
• www.dpengineer.co.in
•

Versatile Pressure Measurement

The Setra 3100B0035C02B pressure transmitter offers reliable measurement for a variety of industrial applications, including furnaces, boilers, compressors, and hydraulic systems. Its extensive scale range from -1 to 35 Bar ensures suitability for processes requiring both vacuum and positive pressure monitoring, making it indispensable for process control and system optimization.


Robust Stainless Steel Construction

Engineered from high-grade stainless steel, this transmitter is built to withstand harsh industrial environments. Its sturdy design provides superior resistance to corrosion and mechanical stress, ensuring accurate readings and extended product life. The 1/4 inch NPT threading and back-mount configuration facilitate straightforward installation across various setups.


Unmatched Accuracy and Quality

Delivering an impressive accuracy of 0.25%, the Setra pressure transmitter is well-suited for applications where precision is critical. Designed to comply with standard processing requirements, it is trusted by Indian dealers, fabricators, and exporters who demand consistent and reliable equipment. Its blind design eliminates display errors and is ideal for remote monitoring systems.
