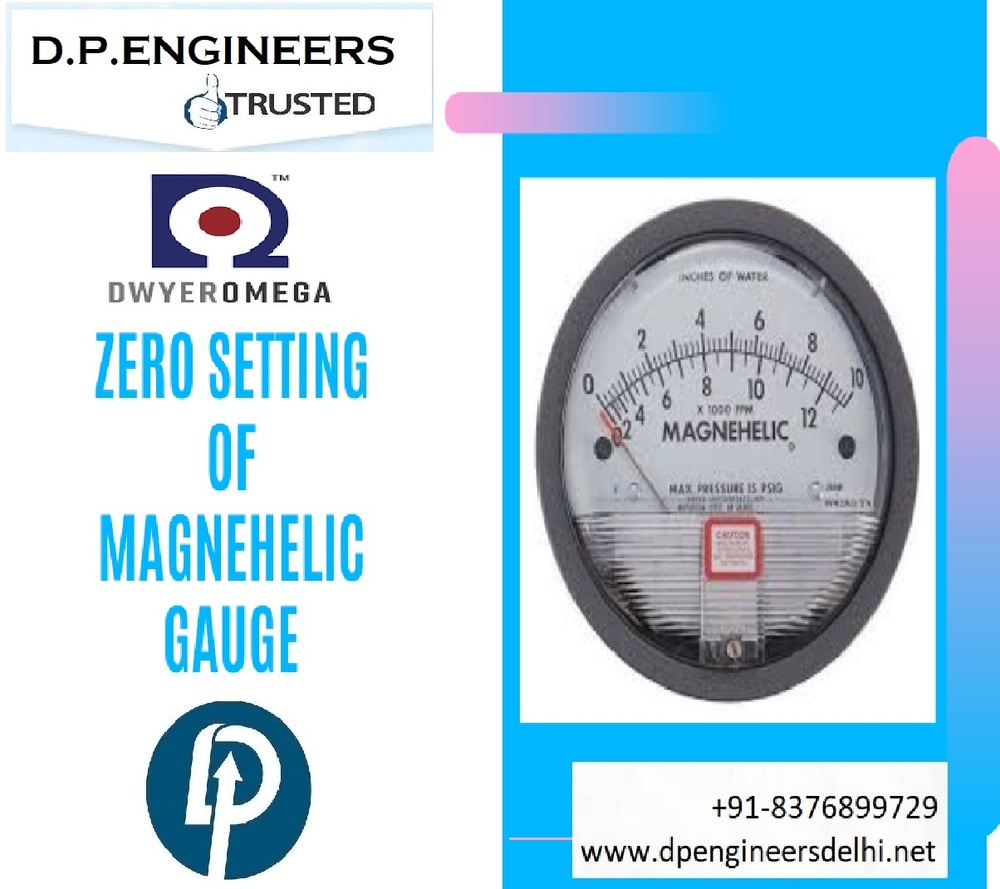

Series 2000 DWYER Magnehelic Differential Pressure Gauges FROM Olpad Industrial Estate Surat Gujarat

Send Inquiry

Request To Call Back

Series 2000 DWYER Magnehelic Differential Pressure Gauges FROM Olpad Industrial Estate Surat Gujarat

Price 8500 INR/ Piece

Get a Price/Quote

MOQ : 25 Pieces

Series 2000 DWYER Magnehelic Differential Pressure Gauges FROM Olpad Industrial Estate Surat Gujarat Specification

Display
Analog

Thread
1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

Outer Size
4 inch / 100 mm

Material
Stainless Steel

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Dial Material
Plastic

Size
4 inch / 100 mm

Pointer Material
Aluminum

Processing Type
Standard

Product Type
Series 2000 DWYER Magnehelic Differential Pressure Gauges FROM Olpad Industrial Estate Surat Gujarat

Diameter
4 inch / 100 Millimeter (mm)

Weight
550 Grams (g)

Color
Black

Mount Type
Back

Scale Range
MM WC/ CM / PAC / KPA / INCH / PSI / MBAR

Accuracy
2% of full span at 70 (21 (3% on -0, and 4% on -00) %

Series 2000 DWYER Magnehelic Differential Pressure Gauges FROM Olpad Industrial Estate Surat Gujarat Trade Information

Minimum Order Quantity
25 Pieces

FOB Port
Delhi

Payment Terms
Paypal, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About Series 2000 DWYER Magnehelic Differential Pressure Gauges FROM Olpad Industrial Estate Surat Gujarat

Series 2000 DWYER Magnehelic Differential Pressure Gauges FROM Olpad Industrial Estate Surat Gujarat

Series 2000 DWYER Magnehelic Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine,Resistance of Filter,Wind Speed, Furnace Pressure,Differential Pressure Of Pore Plate,The Pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System.Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment.There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materi

SPECIFICATION

Ambient Temperature “ -21 140 -6 60

Rated Pressure -20 inHg30 inHg (-68103KPa)

Overpressure “ Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

Process Connections “ 1/8³ Female NPT Duplicate High And Low Pressure Taps “ One Pair Side And One Pair Back

Housing “ Die cast aluminum case and bezel, with acrylic cover,Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

Accuracy “ ±2% of full span at 70 (21 (±3% on -0, and ±4% on -00)

Range -20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered.

FEATURES

OEM/ODM
There Is No Need To Fill Liquid To Gauge.
The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
Exact And Stable Fixed Position Of Needle.
The Gauge Has Great Antiknock Characteristics.
There Are 81 Types Of Ranges.
Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

Filter Monitoring
Air Velocity With Pitot Tube
Blower Vacuum Monitoring
Fan Pressure Indication
Duct,Room or Building Pressures
Clean Room Positive Pressure Indication
MODELS & ORDERING

DWYER By Model Number Popularity

FILTER BY
Range “ Inches of Water

Model	Description
2000-0	Magnehelic Differential Pressure Gauge,Range 0-0.50³ w.c., minor divisions .01, calibrated for vertical scale position.
2000-00	Magnehelic Differential Pressure Gauge,Range 0-0.25³ w.c.,minor divisions .005, calibrated for vertical scale position.
2001	Magnehelic Differential Pressure Gauge,Range 0-1.0³ w.c.,minor divisions .02.
2002	Magnehelic Differential Pressure Gauge,Range 0-2.0³ w.c.,minor divisions .05.
2003	Magnehelic Differential Pressure Gauge,Range 0-3.0³ w.c.,minor divisions .10.
2004	Magnehelic Differential Pressure Gauge,Range 0-4.0³ w.c.,minor divisions .10.
2005	Magnehelic Differential Pressure Gauge,Range 0-5.0³ w.c.,minor divisions .10.
2006	Magnehelic Differential Pressure Gauge,Range 0-6.0³ w.c., minor divisions .20.
