Popular Cities GEMTECH Differential Pressure Gauge Wholesalers for Guwahati

About Popular Cities GEMTECH Differential Pressure Gauge Wholesalers for Guwahati

Popular Cities GEMTECH Differential Pressure Gauge Wholesalers for Guwahati

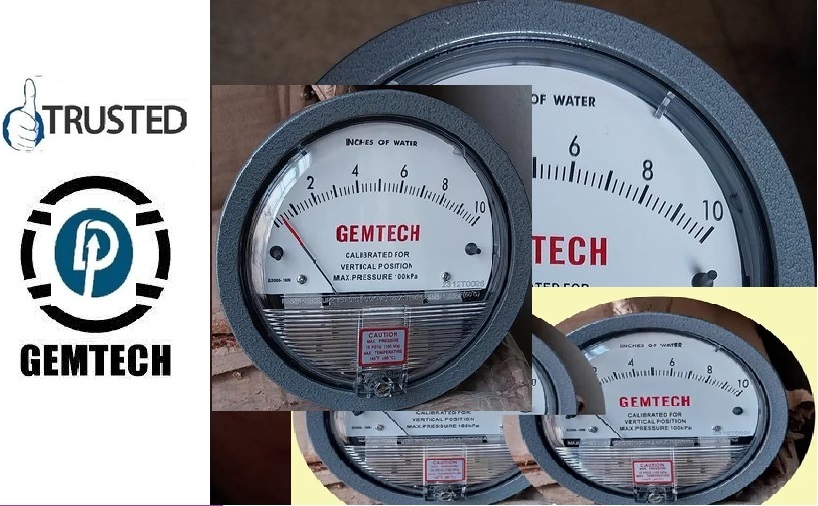

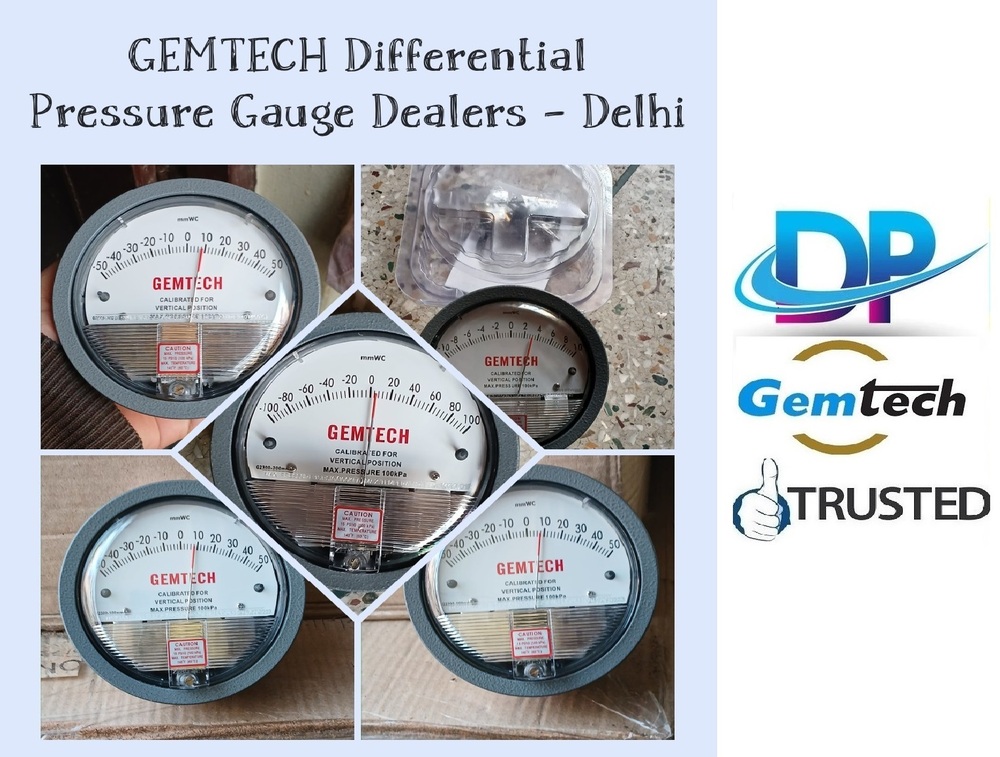

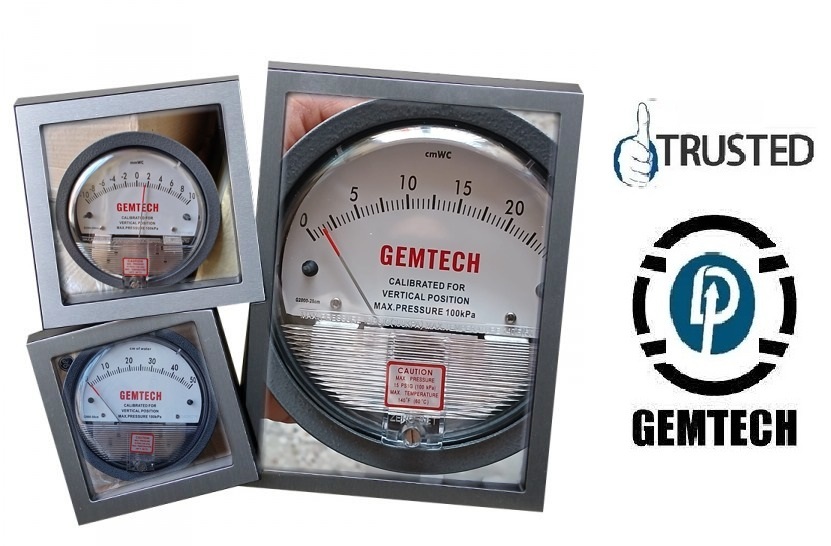

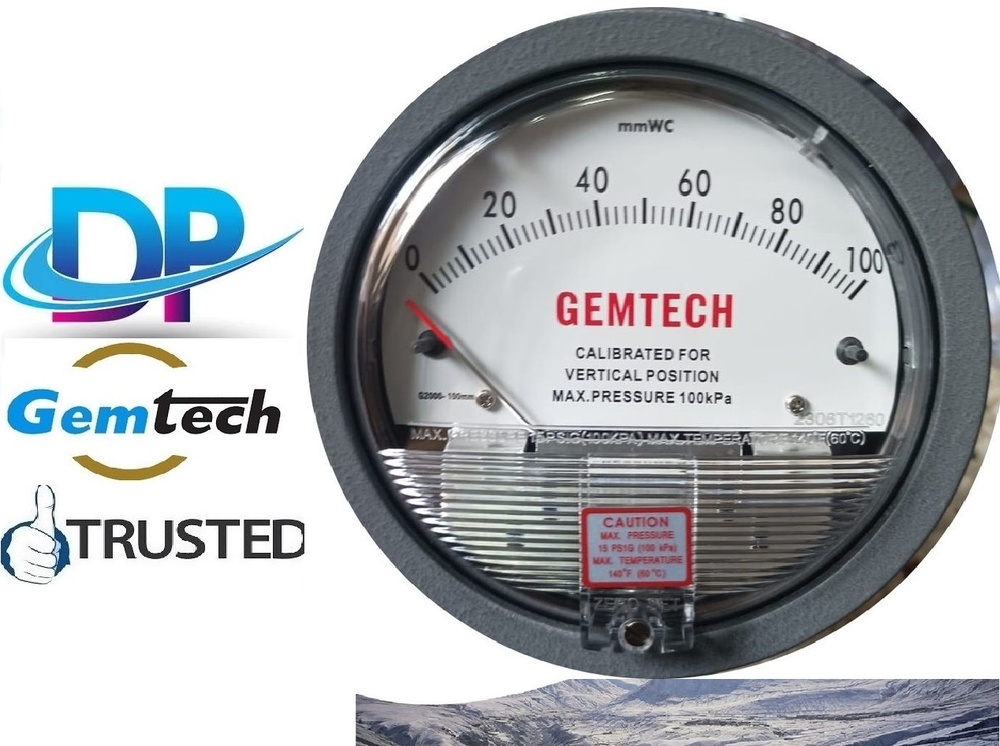

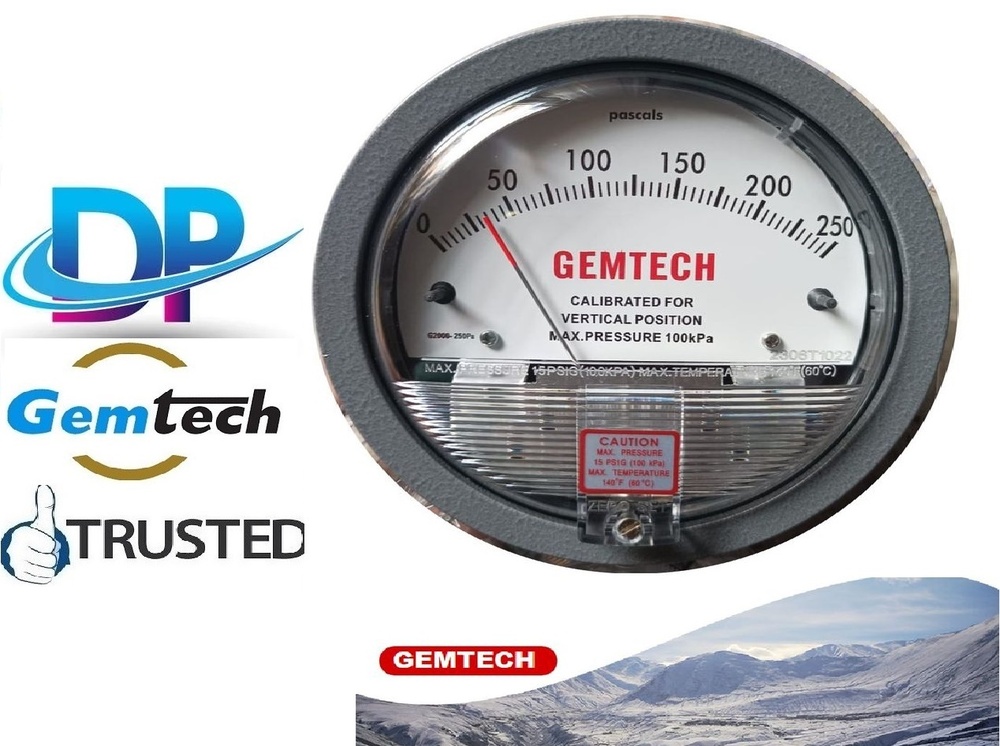

Series G2000A GEMTECHA Differential Pressure GaugesA are Widely Utilized For Measuring Pressure of Fan And Blowing Machine,resistance of Filter,Wind Speed,Furnace Pressure,Differential Pressure Of Pore Plate,The Pressure of drum water level,Liquid Amplifier And Hydraulic Pressure System.Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materials.SPECIFICATION

• Ambient TemperatureA - -21~140-6~60

• Rated PressureA -20 inHg~30 inHg (-68~103KPa)

• Overpressure -A Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

• Process Connections -A 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• HousingA - Die cast aluminum case and bezel,with acrylic cover, Exterior finish is coated gray to withstandA 168 Hour Salt Spray Corrosion Test

• AccuracyA - A2% of full span at 70 (21 (A3% on-0,and A4% on -00)

• RangeA -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge.
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive AndA Negative Pressure.
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics.
• There Are 81 Types Of Ranges.Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERINGGEMTECH ByA A Model NumberA PopularityA

FILTER BY

• Range -A MM Of Water

Model	Description
G2000-100MM	DPG,Range 0-100 MM W.C., Minor Divisions 2.0.
G2000-10MM	DPG,RangeA 0-10 MM W.C.,Minor DivisionsA .20,Calibrated For Vertical Scale Position.
G2000-150MM	DPG,RangeA 0-150 MM W.C.
G2000-15MM	DPG,Range 0-15 MM W.C.
G2000-200MM	DPG,Range 0-200 MM W.C.
G2000-250MM	DPG,Range 0-250 MM W.C.
G2000-25MM	DPG,RangeA 0-25 MM W.C. Minor Divisions .50.
G2000-300MM	DPG,RangeA 0-300 MM W.C.
G2000-50MM	DPG,RangeA 0-50 MM W.C.,Minor Divisions 1.0.
G2000-6MM	DPG,RangeA 0-6 MM W.C.,Minor Divisions .20, Calibrated For Vertical Scale Position.
G2000-80MM	DPG,RangeA 0-80 MM W.C.,Minor Divisions 2.0.

Precision Engineered for Industrial Excellence

The GEMTECH Differential Pressure Gauge is designed to meet the stringent requirements of modern industries like pharmaceuticals, food processing, and power generation in Guwahati and beyond. Its stainless steel construction, coupled with diverse finishing options, ensures durability and resistance against harsh operational conditions. Its analog display delivers accurate readings over a broad range of measurement units, making it the destination gauge for professionals.


Versatile Mounting and Connection Options

Install with confidence using the 4-inch back mount and twin pairs of 1/8" female NPT pressure taps, present on both sides and back. This flexibility simplifies integration in complex piping systems, streamlining maintenance and inspection routines across pharmaceuticals plants, hotels, malls, and heavy industry settings.
