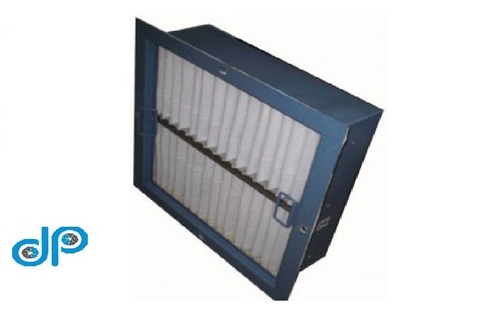

Microwave V Filter

Get a Price/Quote

Microwave V Filter Specification

Connecting Type
Flanged/Panel Mountable

Capacity
Customizable for different system loads

Cleaning Method
Dry wipe or air blow (non-liquid cleaning)

Flow Rate
Not applicable (Electromagnetic filtering)

Filtration Grade
Microwave Level

Filter Type
Microwave V Filter

Media Type
EMI/RFI Attenuation

Temperature Range
-20C to +80C

Efficiency (%)
>95% (EMI attenuation)

Condition
New

Material
Aluminum Alloy / Stainless Steel

Mesh
Fine mesh for electromagnetic interference filtration

Diameter
Customizable as per requirement

Construction
Rugged welded fabrication, Slotted V-type structure

Medium Filter
Microwave/RF Waves

Weight
Approx. 1.5-4 kg (varies by diameter/size)

Shape
V-shaped filter assembly

Feature
Superior microwave frequency filtration, Low insertion loss, High attenuation, Precision-engineered slots

Compliance
Meets MIL-STD-285

Slot Pitch
Precision-milled as per EMI spec

Mounting Method
Panel mounting or chassis integration

Finish
Anti-corrosive, powder coated or brushed

Insertion Loss
1 dB

Operating Environment
Indoor and semi-outdoor

Application
Microwave enclosures, Communication shelters, Research labs

Attenuation
Up to 60 dB

Operating Frequency
0.8 GHz - 18 GHz

Microwave V Filter Trade Information

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash Against Delivery (CAD), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
Chandigarh, Himachal Pradesh, Andaman and Nicobar Islands, Pondicherry, Nagaland, South India, East India, Andhra Pradesh, Assam, Arunachal Pradesh, Bihar, Goa, Jammu and Kashmir, Jharkhand, Karnataka, Mizoram, Meghalaya, Manipur, Punjab, Rajasthan, Sikkim, Tamil Nadu, Tripura, West Bengal, Uttarakhand, Daman and Diu, Dadra and Nagar Haveli, Lakshadweep, Uttar Pradesh, Maharashtra, Haryana, Delhi, Gujarat, Madhya Pradesh, North India, Telangana, Kerala, Central India, Odisha, West India, Chhattisgarh, All India

About Microwave V Filter

Microwave V Filter

to keep the client satisfied, we manufacture, trade, export and supply high quality Microwave V Filter. the offered filters are designed to arrest finer particles up to 5 microns. it is normally used as a secondary filter after pre filters to have prolonged service life. this range is used in any air handling application. being a quality-oriented organization, we assure our clients that these products are the best in quality. our skilled professionals only utilize fine quality raw material, while manufacturing the entire range.

features:

easy to clean
easy installation
precisely design

Precision Engineered for Microwave Filtration

Crafted with meticulous attention to detail, the Microwave V Filter incorporates precision-milled slots and a robust slotted V-type structure. Built from quality aluminum alloy or stainless steel, its rugged welded fabrication ensures reliable EMI filtration performance and longevity, even in demanding research or communication settings.

Optimized for Versatile Applications

Designed to meet the stringent requirements of microwave enclosures, research labs, and communication shelters, this filter excels across varied environments. The panel mounting or chassis integration options and customizable sizes make it suitable for both new installations and retrofits.

Superior EMI/RFI Attenuation and Durability

Engineered for >95% EMI attenuation and insertion loss as low as 1 dB, this filter guarantees robust protection against electromagnetic interference. Its anti-corrosive, powder-coated or brushed finishes and a working temperature range from -20C to +80C ensure performance is maintained in semi-outdoor and indoor environments alike.

FAQs of Microwave V Filter:

Q: How is the Microwave V Filter installed in different systems?

A: The filter can be mounted using either flanged or panel mounting methods, allowing for seamless integration into enclosures, chassis, or existing equipment. Installation is straightforward, and the rugged design supports both new and retrofit applications.

Q: What are the primary benefits of using this Microwave V Filter?

A: This filter offers superior EMI/RFI attenuation (>95%), minimal insertion loss ( 1 dB), and robust attenuation (up to 60 dB). It provides reliable EMI protection for sensitive electronics, ensuring compliance with MIL-STD-285 standards in microwave and communication applications.

Q: When should I consider using a Microwave V Filter?

A: You should use this filter whenever precise EMI/RFI mitigation is required in environments such as microwave enclosures, research laboratories, or communication shelters, especially when the operating frequencies range from 0.8 GHz to 18 GHz.

Q: Where is the Microwave V Filter most effectively applied?

A: It performs best in indoor or semi-outdoor environments where electromagnetic interference must be substantially suppressedtypical locations include research facilities, telecommunications shelters, and specialized microwave enclosures.

Q: What is the recommended process for cleaning and maintaining the filter?

A: For maintenance, simply use a dry wipe or an air blow to remove dust and debris. Avoid using liquid cleaners, as the filter is specifically designed for non-liquid cleaning to preserve its fine mesh and anti-corrosive finish.

Q: How does the customizable design of the filter enhance its versatility?

A: The filters diameter and capacity can be tailored to fit specific system requirements, ensuring compatibility with a wide range of enclosures and allowing it to accommodate various load conditions without compromising filtration efficiency.

Q: What makes the construction of the Microwave V Filter particularly durable?

A: Its rugged welded fabrication, anti-corrosive finish, and use of robust materials like aluminum alloy or stainless steel provide durability and a long service life, even under varying temperature and environmental conditions.
