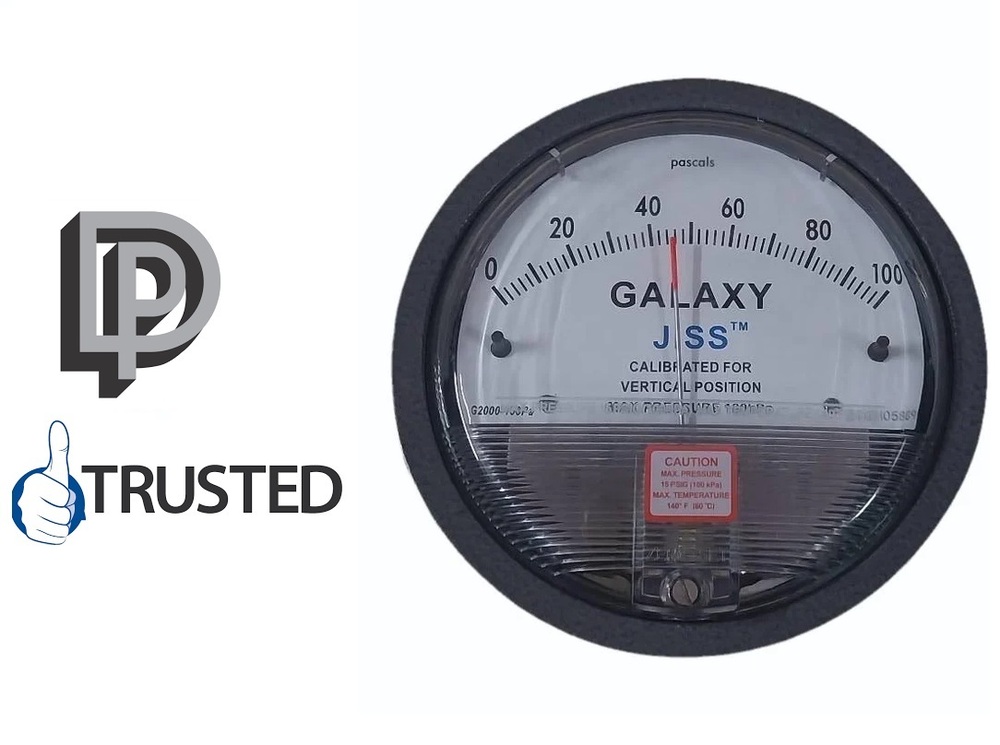

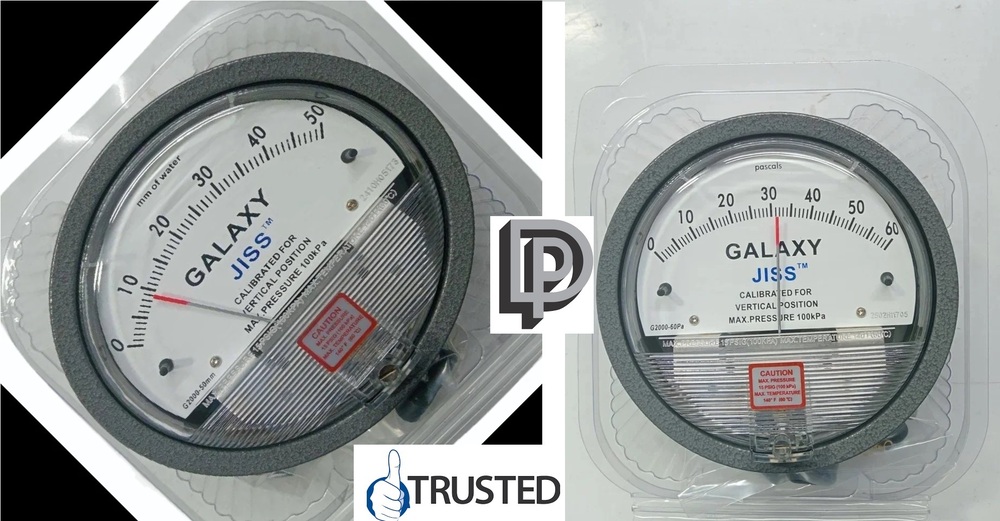

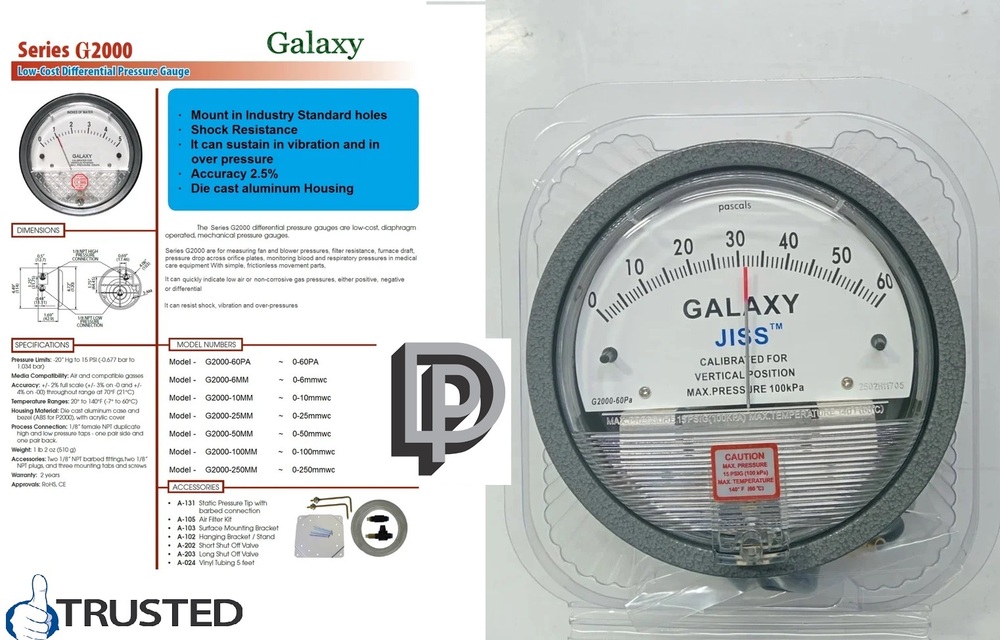

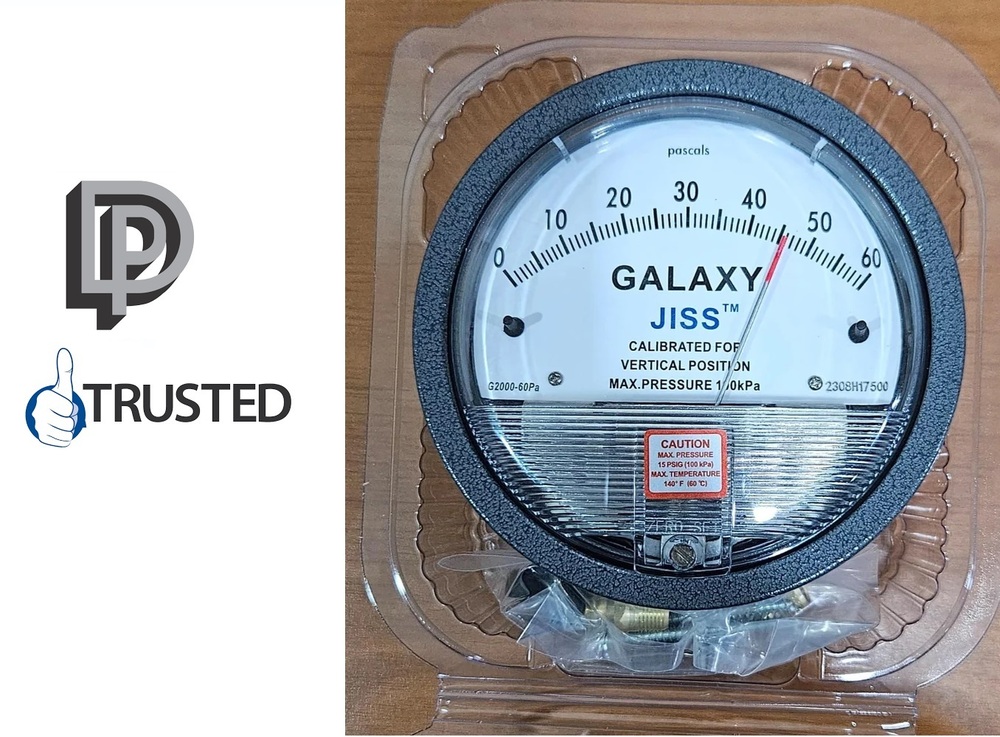

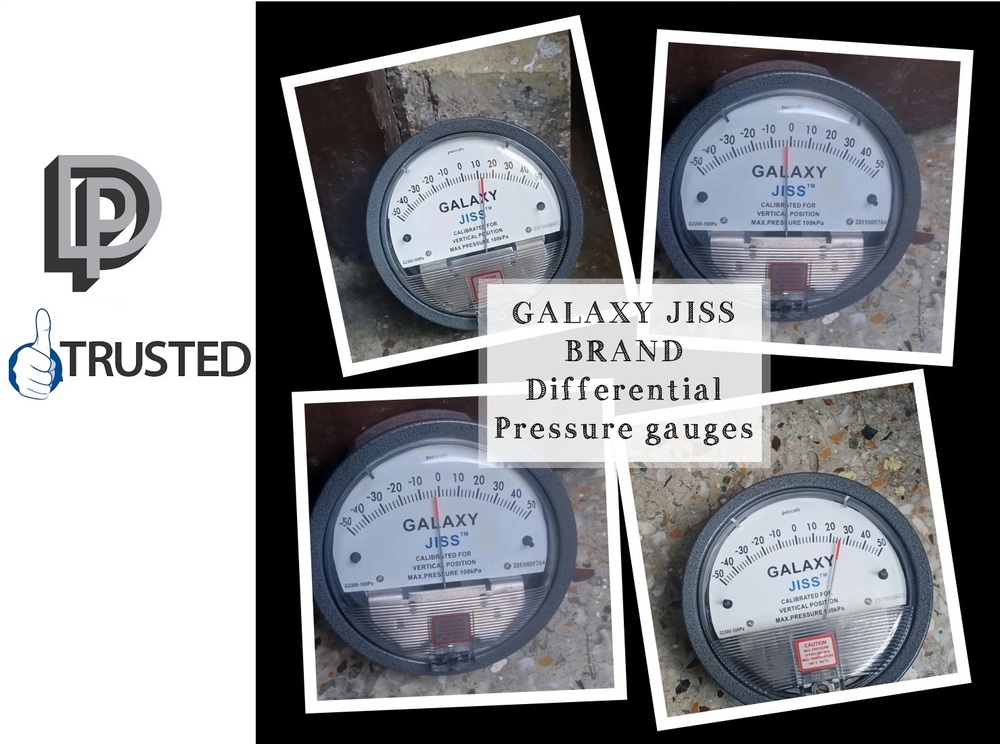

JISS GALAXY DIFFERENTIAL PRESSURE GAUGE at 4500 by Mumbai

About JISS GALAXY DIFFERENTIAL PRESSURE GAUGE at 4500 by Mumbai

• Ambient Temperature - -21~140-6~60

• Rated Pressure -20 inHg~30 inHg (-68~103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

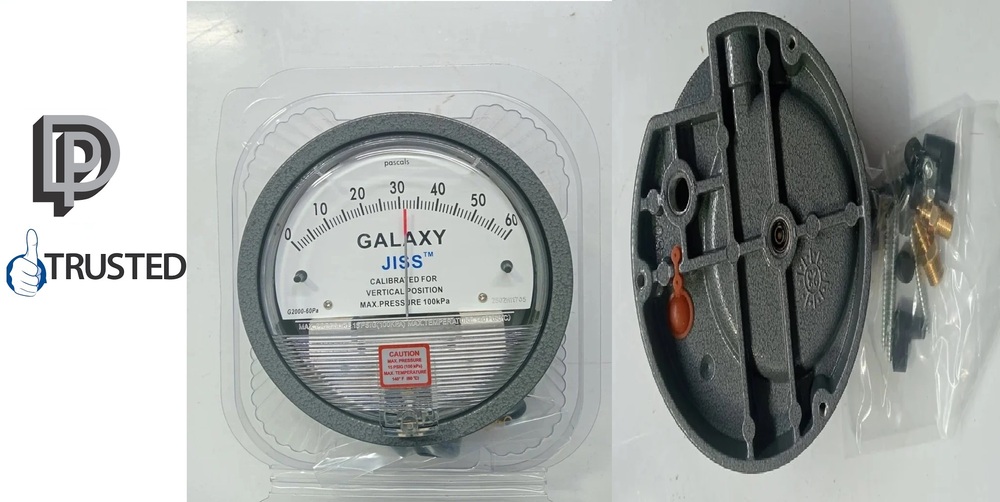

• Process Connections - 1/8" female NPT duplicate high and low pressure taps-one pair side and one pair back

• Housing - Die cast aluminum case and bezel,with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy -A2% of full span at 70 (21 (A3% on-0,and A4% on -00)

• Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed
• Exact And Stable Fixed Position Of Needle
• The Gauge Has Great Antiknock Characteristics
• There Are 81 Types Of Ranges.
• Minimum is 0-60 Pa And Maximum is 0-21-KPa

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

JISS GALAXY By  Model Number Popularity

• FILTER BY
• Range - Pascals

Model	Description
G2000-100PA	Differential Pressure Gage, Range 0-100 Pa,Minor Divisions 2.0,Calibrated For Vertical Scale Position.
G2000-125PA	Differential Pressure Gage, Range 0-125 Pa,Minor Divisions 5.0,Calibrated For Vertical Scale Position.
G2000-250PA	Differential Pressure Gage, Range 0-250 Pa,Minor Divisions 5.0.
G2000-300PA	Differential Pressure Gage, Range 0-300 Pa,Minor Divisions 10.0.
G2000-30PA	Differential Pressure Gage, Range 0-30 Pa,Minor Divisions 1.0,Calibrated For Vertical Scale Position.
G2000-500PA	Differential Pressure Gage, Range 0-500 Pa,Minor Divisions 10.0.
G2000-60PA	Differential Pressure Gage, Range 0-60 Pa,Minor Divisions 1.0,Calibrated For Vertical Scale Position.
G2000-750PA	Differential Pressure Gage, Range 0-750 Pa,Minor Divisions 25.0.

Precision and Versatility for Industrial Applications

Engineered to meet the demands of industries such as pharmaceuticals, food and beverages, pulp and paper, and textiles, this differential pressure gauge guarantees accurate monitoring. With a scale range of 20 inHg to 38 inHg, it is suitable for a variety of fluids and gases and complies with stringent process requirements.


High-Quality Material and Build

Constructed from stainless steel, the JISS GALAXY Gauge ensures longevity, corrosion resistance, and reliable readings. The antique, polished, galvanized, and matte finish further enhances its durability and aesthetic appeal, making it suitable for both operational and display purposes.


User-Friendly Installation and Operation

Featuring a back-mount design and 1/8" NPT female taps, this gauge supports hassle-free installation. With a clear, analog display and an aluminum pointer, users can quickly assess system pressure and ensure safe, efficient operations in diverse settings.

FAQ's of JISS GALAXY DIFFERENTIAL PRESSURE GAUGE at 4500 by Mumbai:

Q: How is the JISS GALAXY Differential Pressure Gauge installed and connected?

A: The gauge is equipped with 1/8-inch female NPT duplicate high and low-pressure taps (one pair side, one pair back) for flexible mounting. Its back mounting type and standardized connections make installation straightforward in various industrial setups.

Q: What industries can benefit from using this differential pressure gauge?

A: Industries such as pharmaceuticals, hospitals (including operation theatres), hotels, malls, power plants, cement and steel plants, fertilizer and textile industries, food and beverages processing, and pulp and paper manufacturing all use this gauge for accurate pressure monitoring.

Q: When should I use this gauge in my process system?

A: Anytime you need to monitor differential pressure of steam, oil, or gas-especially in critical applications demanding precision and reliability-this gauge is suitable. Regular monitoring helps maintain equipment efficiency and detects process anomalies early.

Q: Where does this gauge deliver the most value?

A: It provides the most value in environments where accurate and reliable differential pressure measurement is vital to safety, product quality, or process control-such as cleanrooms, power generation units, or production lines.

Q: What are the benefits of its stainless steel body and multiple finish options?

A: Stainless steel construction delivers high corrosion resistance and durability. The variety in finishing-antique, polished, galvanized, matte-offers both aesthetic and functional benefits, suiting different environmental or display requirements.

Q: How accurate is the JISS GALAXY Differential Pressure Gauge?

A: This gauge offers an accuracy of 2% of full span at 21C, with 3% accuracy on the -0 scale, and 4% on the -00 scale, ensuring reliable readings in a wide range of operational conditions.
