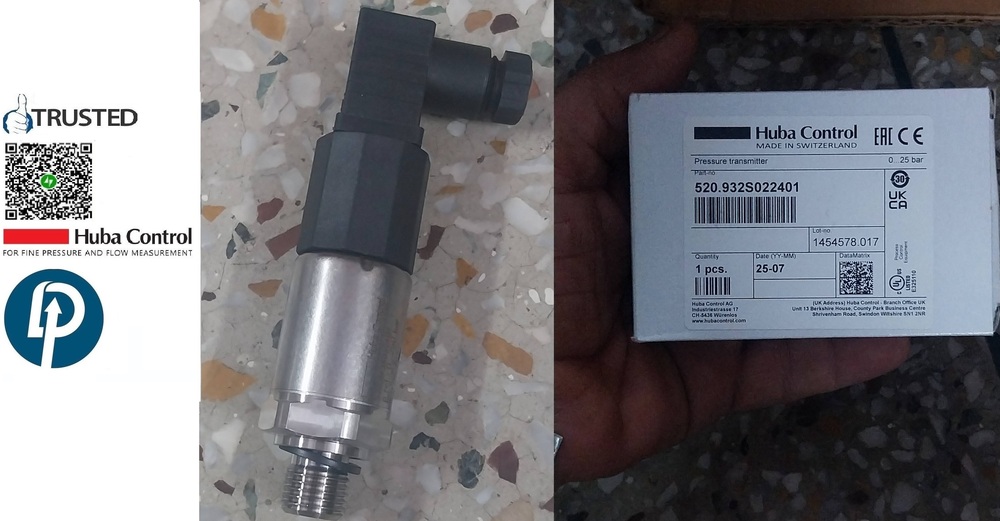

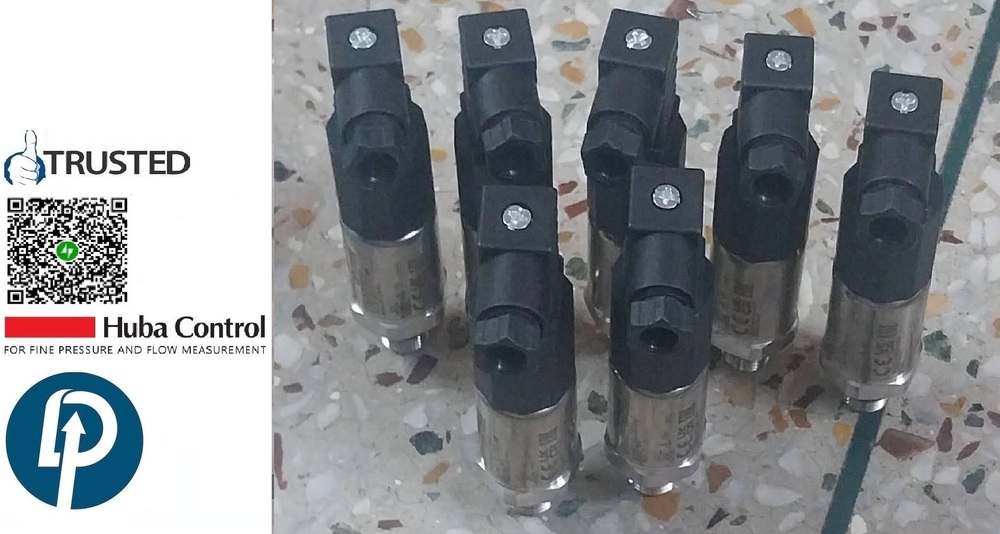

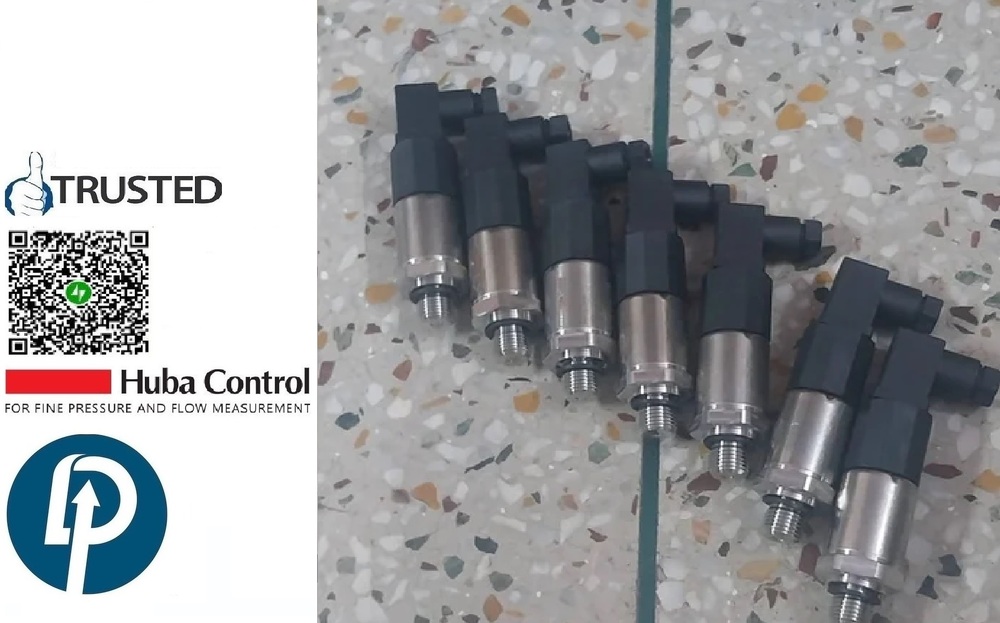

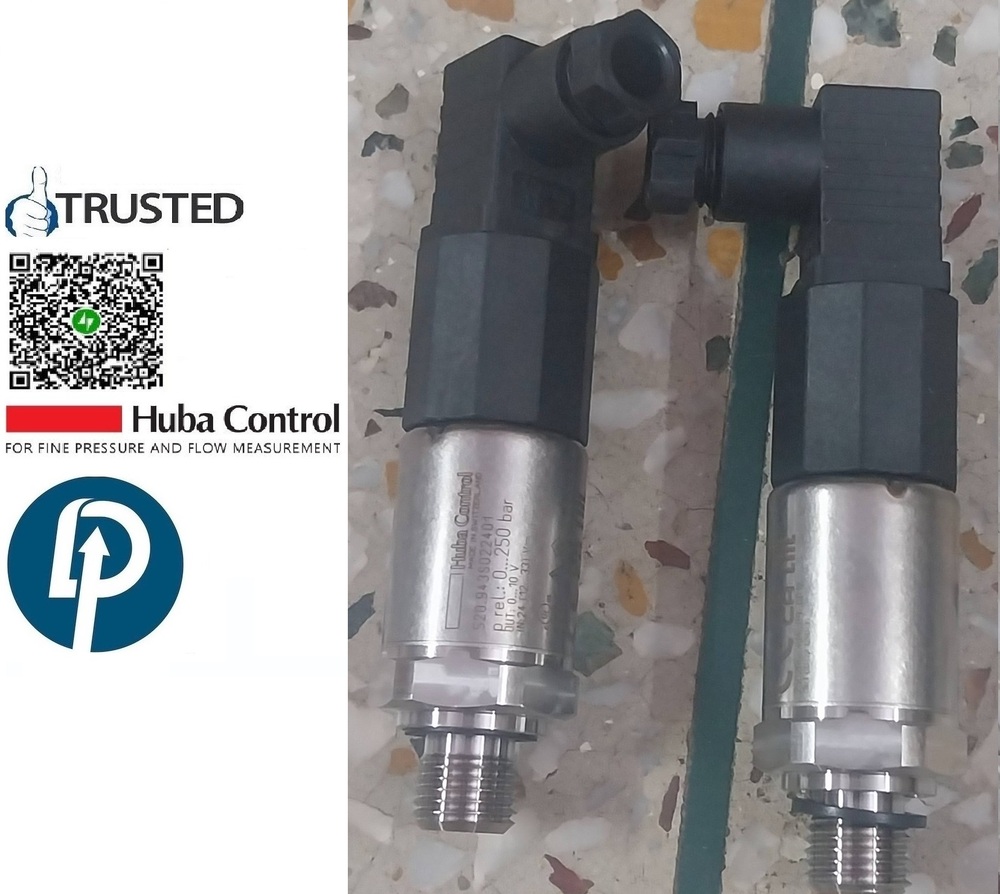

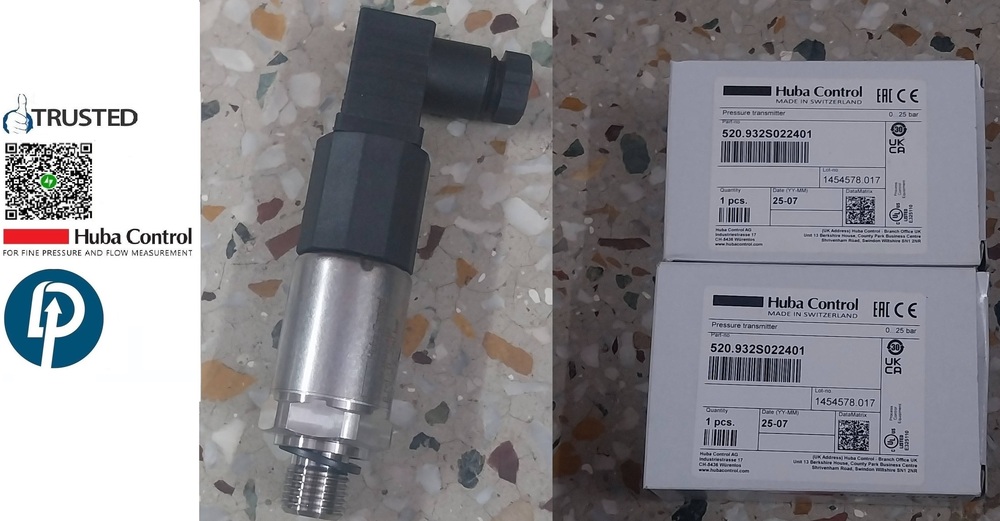

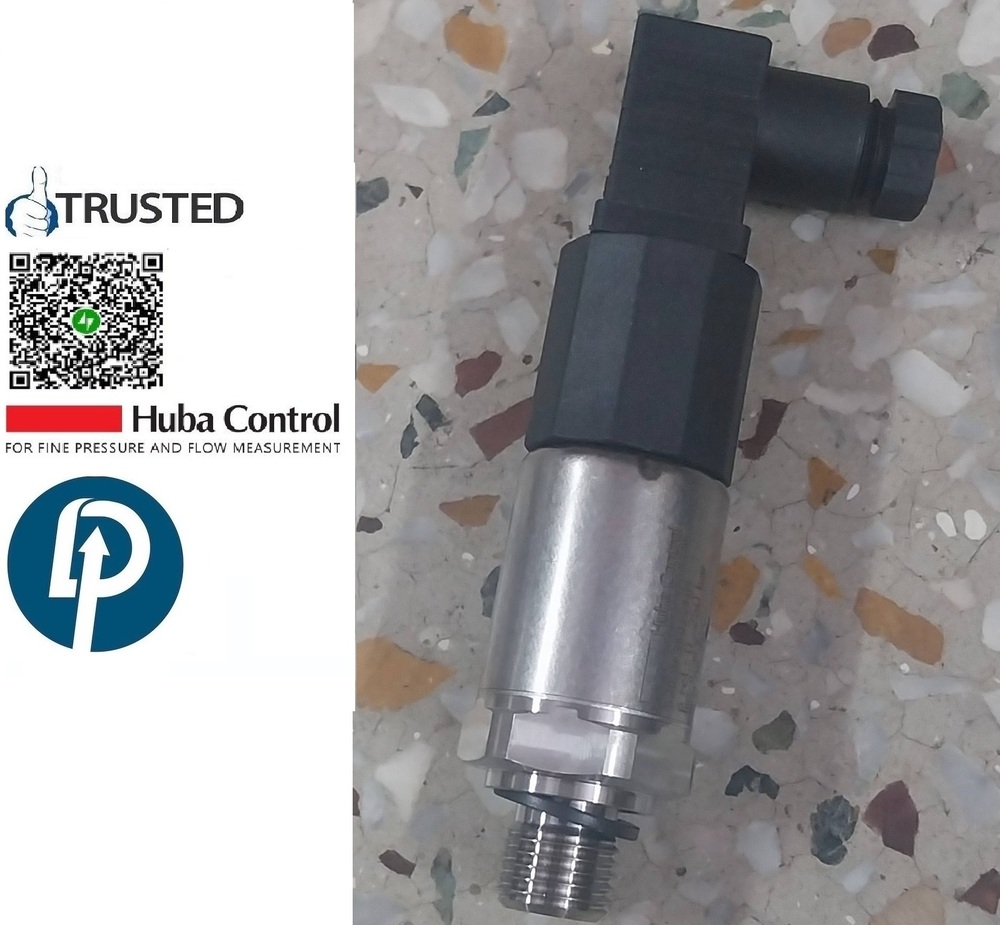

HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
images Send Inquiry
Request To Call Back

HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<

Price 16800 INR/ Piece

Get a Price/Quote
MOQ : 10 Pieces

HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC< Specification

  • Thread
  • 1/4" NPT 304 SS
  • Material
  • Stainless Steel
  • Usage
  • pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry
  • Processing Type
  • Standard
  • Product Type
  • HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
  • Weight
  • 1.8 oz (51 g) Grams (g)
  • Color
  • Silver
  • Mount Type
  • Panel
  • Scale Range
  • 0-25 BAR
  • Accuracy
  • 0.3 % fs %
  • Finishing
  • Antique, Polished, Galvanized, Matte
  • Measure Pressure Of
  • Steam, Gas


HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC< Trade Information

  • Minimum Order Quantity
  • 10 Pieces
  • FOB Port
  • EAST DELHI
  • Payment Terms
  • Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)
  • Supply Ability
  • 1 Piece Per Day
  • Delivery Time
  • 1 Days
  • Packaging Details
  • E-mail : dpsharma74@yahoo.co.in, dpsharma1974@gmail.com, dpsharma949@gmail.com Mr D.P.SHARMA 9871014210 WhatsApp number :9871014210,9268631221 Websites : www.dpengineers.in, www.dpengineer.in, www.dpengineers.co.in, www.dpengineer.co.in, www.dpengineersindia.com, www.dpengineerindia.com, www.dpengineersindia.in, www.dpengineers.info, www.dpengineer.info, www.dp-engineers.com, www.dpengineerindia.in, www.dpengineersindia.net, www.dpengineersdelhi.co.in, www.dpengineersdelhi.com, www.dp-engineers.co.in, www.dpengineersdelhi.net, https://www.exportersindia.com/dpengineers WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,
  • Main Export Market(s)
  • Asia, Middle East
  • Main Domestic Market
  • All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal


About HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<

HUBA CONTROL Pressure Transmitter Part No 520.954S032401 Range 0-400 Bar From Shahajahanpur Industrial Area Alwar Rajasthan India http://envirotechindia.info/2024/11/06/huba-control-pressure-transmitter -part-no-520-954s032401-range-0-400-bar/ WELCOME ...

HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<

  • Relative Pressure Transmitter
  • Type â€“ 520
  • Manufacturer â€“ HUBA CONTROL
  • Model â€“ 520.932S022401
  • RANGE – 0-25 BAR
  • OUTPUT –  0 To 10 VDC
  • Supply â€“ 24 (12….33) V
  • CONNECTION â€“ 1/4″ NPT 304 SS
  • COUNTRY OF ORIGIN â€“ INDIA

The  Compact  Type  520  Pressure  Transmitter  Is  Based  Upon The  Huba  Control  Developed  Thick  Film  Technology  Where  The  Pressure Measuring Cell Is Fully Welded.

This  Transmitter  Meets The  High  Burst  Protection  Demands  And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.
Pressure Range:

  • -1 … 9 bar / 0 … 2.5 – 1000 bar
  • Compact,Rugged Construction
  • Welded Without Sealing parts,No Elastomer Seals
  • Large Selection Of Connections Available.
  • Saving Time By Quick Cable Mounting By The Customer With Swift Connector

General Features:

  • Compact, Rugged Construction
  • Large Selection Of Connections Available
  • Welded Without Sealing Parts, No Elastomer Seals
  • Medium: Liquids, Gases And Refrigerants (Including Ammonia)
  • Saving Time By Quick Cable Mounting By The Customer With Swift Connector
SERIES Type 520
PRESSURE RANGE 0 … 25 BAR
POWER SUPPLY 7 – 33 VDC
OUTPUT DC  0 To 10 VDC
ELECTRICAL CONNECTION M12x1
DESCRIPTION Pressure Transmitter
PRESSURE CONNECTION G 1/4
INDEX PROTECTION IP IP67
ACCURACY ± 0.3 % fs
MEDIUM TEMPERATURE RANGE -15 … +125 °C
RESPONSE TIME < 2 ms, (1 ms typical)
MATERIAL Connection Stainless Steel 1.4404 / AISI 316L
DIMENSIONS (MM) 24 x 46.7 MM
CONFORMITY EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110

Additional Information:

HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
HUBA CONTROL >Pressure Transmitter Model: 520.932S022401 RANGE: 0-25 BAR Output 0 To 10 VDC<
