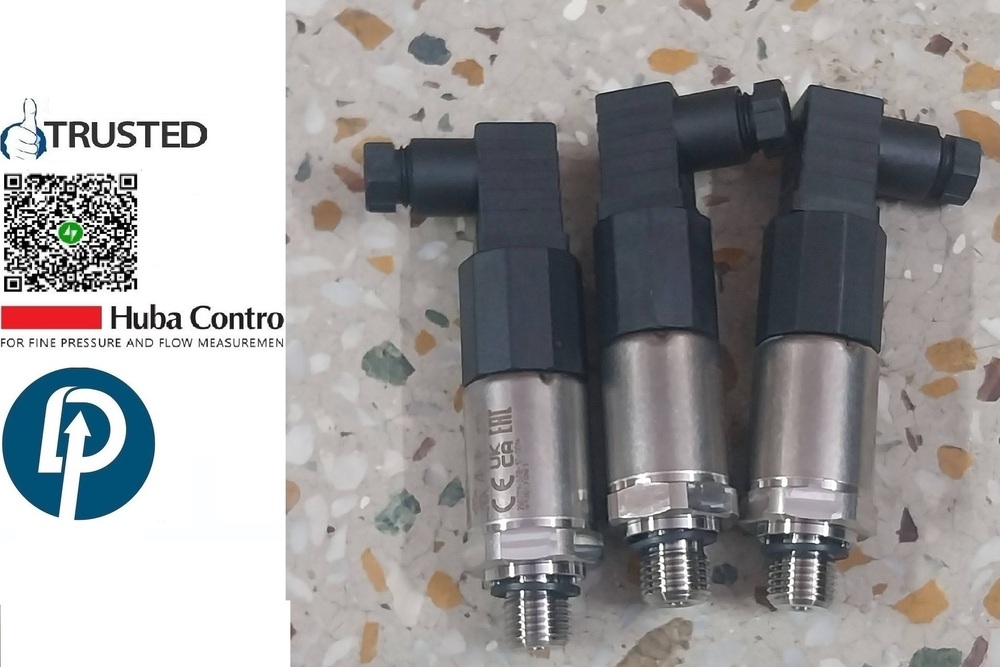

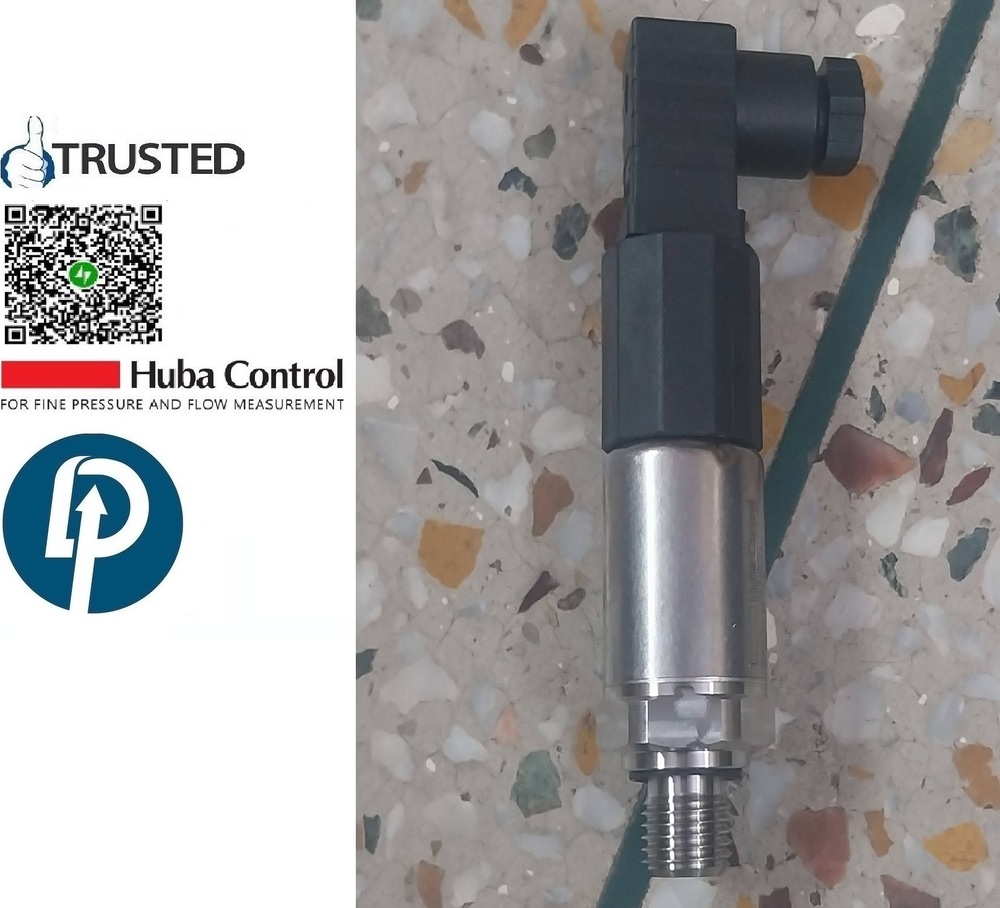

HUBA CONTROL>> Relative Pressure Transmitter Model > 520.954S021421W > RANGE 0-350 BAR Output 0 To 10 VDC

About HUBA CONTROL>> Relative Pressure Transmitter Model > 520.954S021421W > RANGE 0-350 BAR Output 0 To 10 VDC

•

  HUBA CONTROL>> Relative Pressure Transmitter Model > 520.954S021421W > RANGE 0-350 BAR Output 0 To 10 VDC

  • Relative Pressure Transmitter
  • Type â€“ 520
  • Manufacturer â€“ HUBA CONTROL
  • Model â€“ 520.954S021421W
  • RANGE – 0-350 BAR
  • OUTPUT –  0 To 10 VDC
  • Supply – 24 (12….33) V
  • CONNECTION – 1/4″ NPT 304 SS
  • COUNTRY OF ORIGIN – INDIA

  The  Compact  Type  520  Pressure  Transmitter  Is  Based  Upon The  Huba  Control  Developed  Thick  Film  Technology  Where  The  Pressure Measuring Cell Is Fully Welded.

  This  Transmitter  Meets The  High  Burst  Protection  Demands  And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.

  Pressure Range:


  • -1 … 9 bar / 0 … 2.5 – 1000 bar
  • Compact,Rugged Construction
  • Welded Without Sealing parts,No Elastomer Seals
  • Large Selection Of Connections Available.
  • Saving Time By Quick Cable Mounting By The Customer With Swift Connector

  General Features:


  • Compact, Rugged Construction
  • Large Selection Of Connections Available
  • Welded Without Sealing Parts, No Elastomer Seals
  • Medium: Liquids, Gases And Refrigerants (Including Ammonia)
  • Saving Time By Quick Cable Mounting By The Customer With Swift Connector

  SERIES	Type 520
  PRESSURE RANGE	0 … 350 BAR
  POWER SUPPLY	7 – 33 VDC
  OUTPUT DC	0 To 10 VDC
  ELECTRICAL CONNECTION	M12x1
  DESCRIPTION	Pressure Transmitter
  PRESSURE CONNECTION	G 1/4
  INDEX PROTECTION IP	IP67
  ACCURACY	± 0.3 % fs
  MEDIUM TEMPERATURE RANGE	-15 … +125 °C
  RESPONSE TIME	< 2 ms, (1 ms typical)
  MATERIAL	Connection Stainless Steel 1.4404 / AISI 316L
  DIMENSIONS (MM)	24 x 46.7 MM
  CONFORMITY	EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110

  Additional Information:

  • Item Code: Huba Relative Pressure Transmitter Model > 520.954S021421W > RANGE 0-350 BAR Output 0 To 10 VDC
