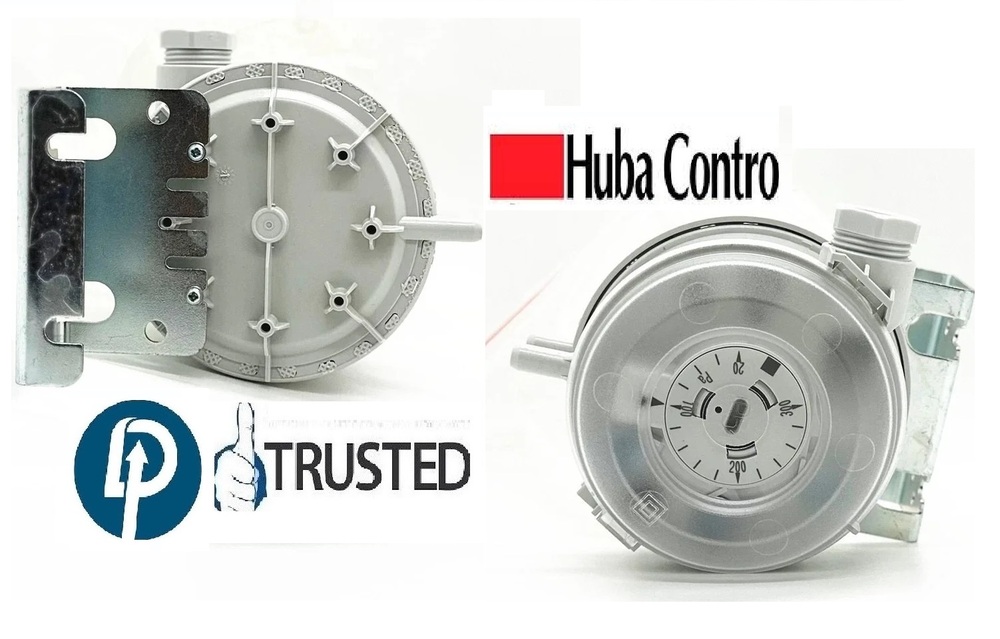

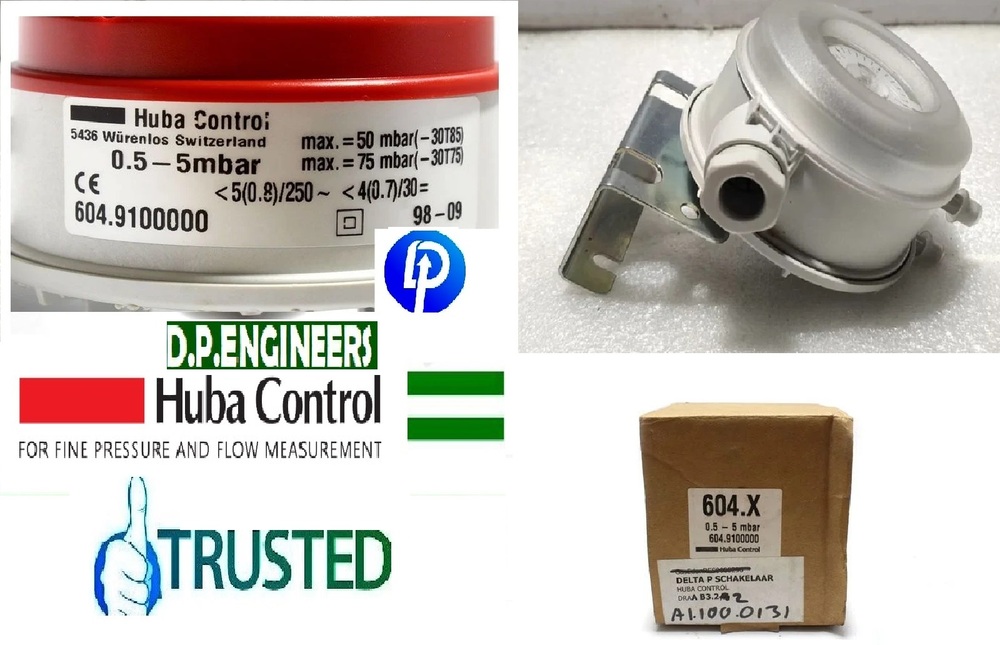

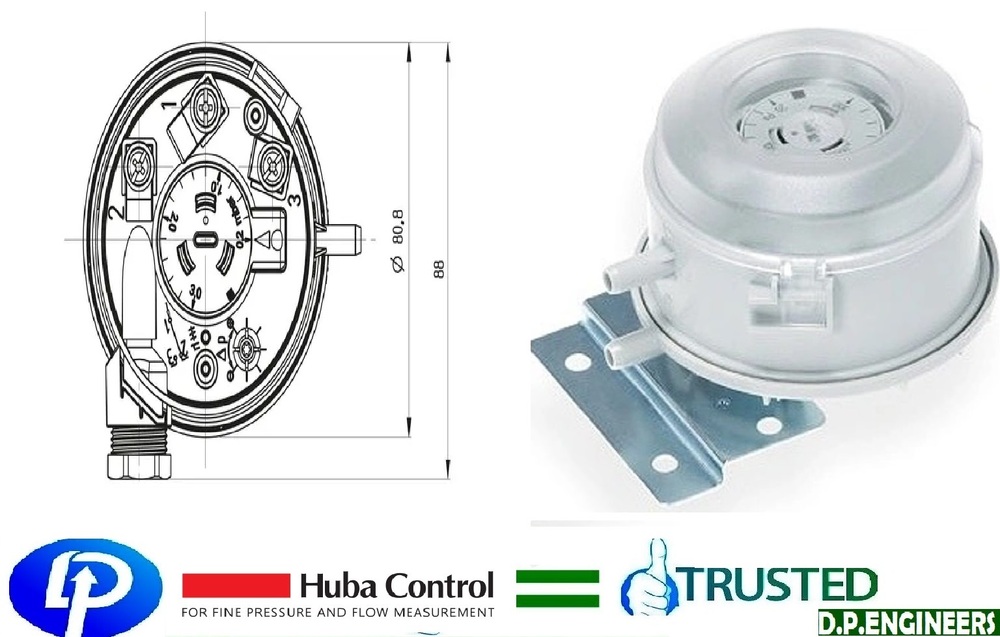

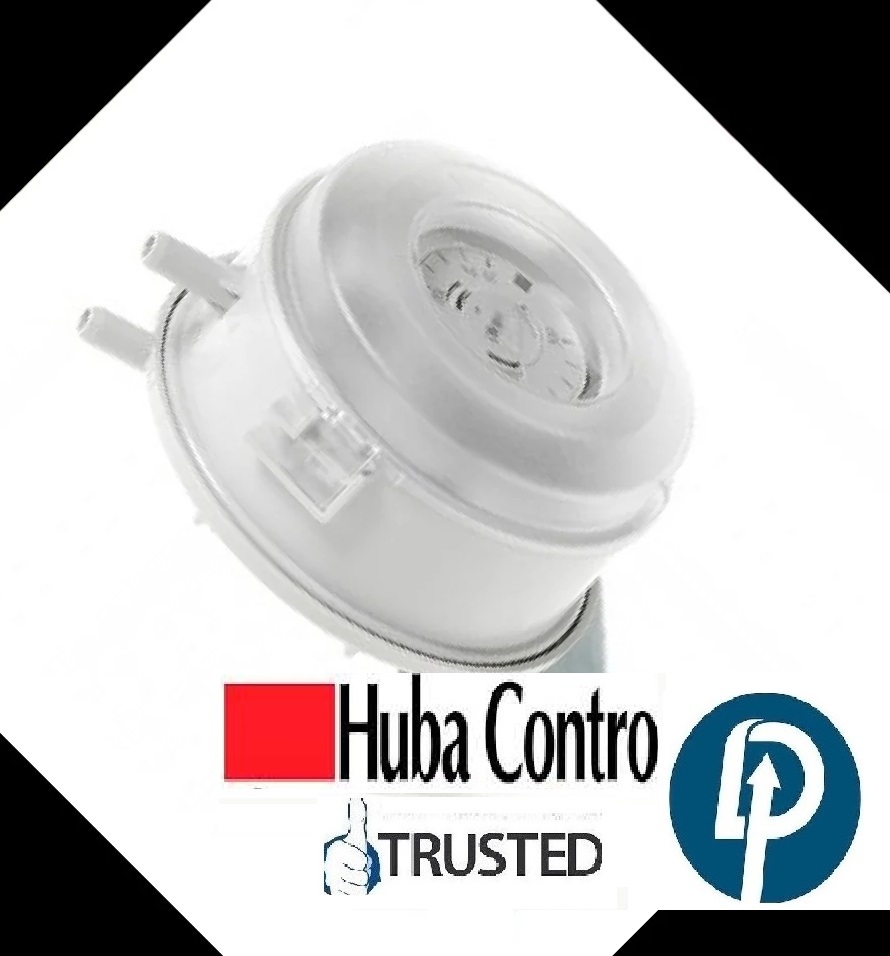

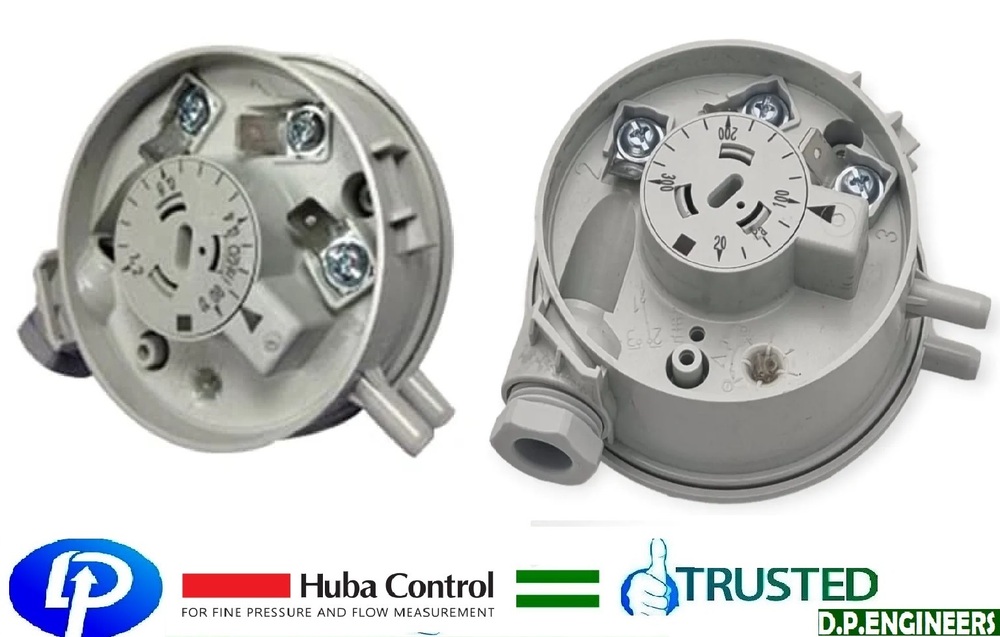

HUBA CONTROL 604.9010000 DIFFERENTIAL PRESSURE SWITCH 200-300 Pac

About HUBA CONTROL 604.9010000 DIFFERENTIAL PRESSURE SWITCH 200-300 Pac

HUBA CONTROL 604.9010000 DIFFERENTIAL PRESSURE SWITCH 200-300 PacModel : 604.9010000

• Range :  20....300 PAC
• Max : 5000 PA ( -30T85 )
• Max : 7500 PA ( -30T75 )
• Made In Switzerland

Product information

The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Ip Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving

• Easy To Install
• User-Friendly Snap Closure For The Cover
• Cable Entry Aid
• Cable Strain Relief Integrated Into PG11
• Combination Bracket For Vertical Or Horizontal Mounting
• High Adjustment Accuracy Through Individual Scale Engraving Per Switch
• Long-Term Stable Switching Points Through Trapezoidal Bead Membrane
• Multilayer Contact With Gold Plating

Product Feature

Technical Data

• Pressure Measuring Range:0...50 Mbar Relative & Difference
• Sensor Weight:143g With Type C combination bracket

Field Of Application

• Media:Air Neutral Gas
• Medium Temperature:-30...85AC
• Permissible Overload On One Side:75 Mbar-30...75AoC 50 Mbar-30...85AoC

Ambient Condition

• Ambient Temperature:-30... 85AC
• Storage Temperature:-40...85AC

Material

• Housing With Media Contact:PC 10% GF
• Measuring Element With Media Contact:Silicone LSR Tempered At 200AC,Outgassing-Free
• Cover With Media Contact:PC

Electrical Data

• Switching Load:5 A at 250 VAC
• Resistive Switching Load:4 A at 30 VDC
• Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC
• Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC
• Contact System:Changeover Switch
• Lifespan:>10000000 Schaltspiele Mechanical

Installation Guide

• Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value

Approval

• UL:MFHX2/8 Or XAAK2/8
• DVGW:According to DIN EN 1854
• Low Voltage Directive:2014/35/EU
• Gas Appliances Directive:2016/426/EU

Applications
• AHU
• CRAC
• MOBILE HYDRAULIC

Accessories

• Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic
• Angle Type B
• Combination Bracket Type C
• Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8...2.1 MM
• Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8...1.1 MM
• Angle Type A
• Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required
• Connection Set 90A Angled:For Ventilation Duct Including 2 M Hose Metal
• Calibration Certificate
• Mounting Ring
• Closed Fastening Ring
•

Versatile Pressure Monitoring

The HUBA CONTROL 604.9010000 is engineered to measure differential pressures of steam, oil, and gas between 200 and 300 Pa, catering to industries like pharmaceuticals, hospitals, hotels, and plants. Its precise monitoring helps maintain safe operating conditions and supports efficiency across various applications.


Built for Industrial Reliability

Weighing only 250 grams, this pressure switch features durable finishes including antique, polished, galvanized, and matte. Its robust design ensures long service life in demanding environments such as power plants, cement plants, and steel plants.


Easy Installation and Usage

Featuring a standardized back mount type, the HUBA CONTROL 604.9010000 can be easily installed, minimizing setup time. Its user-friendly design ensures smooth integration into both existing and new systems in the pulp and paper, textile, and food processing industries.
