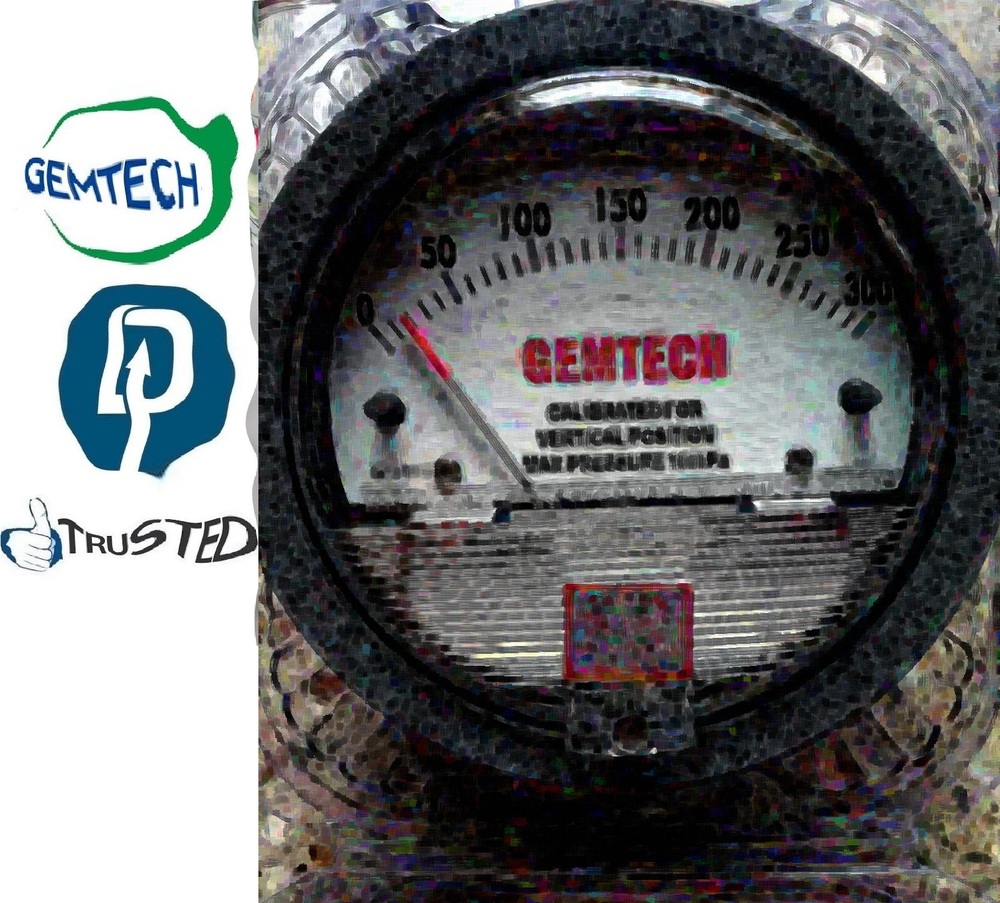

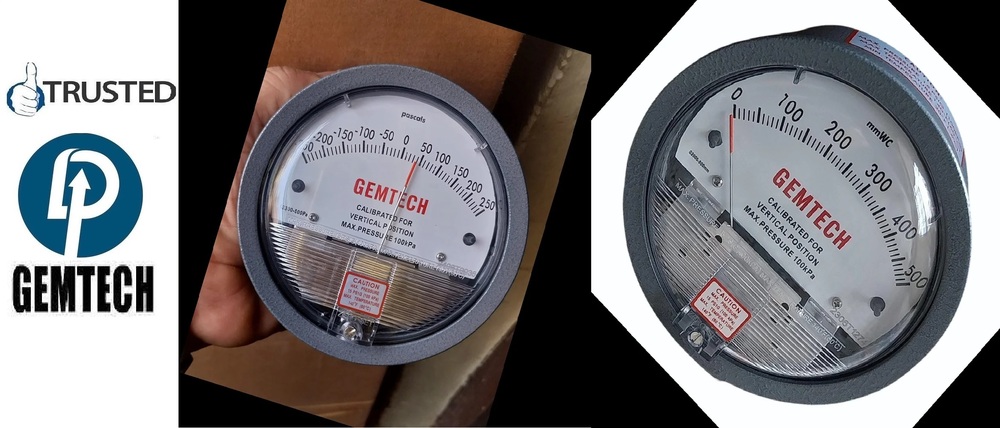

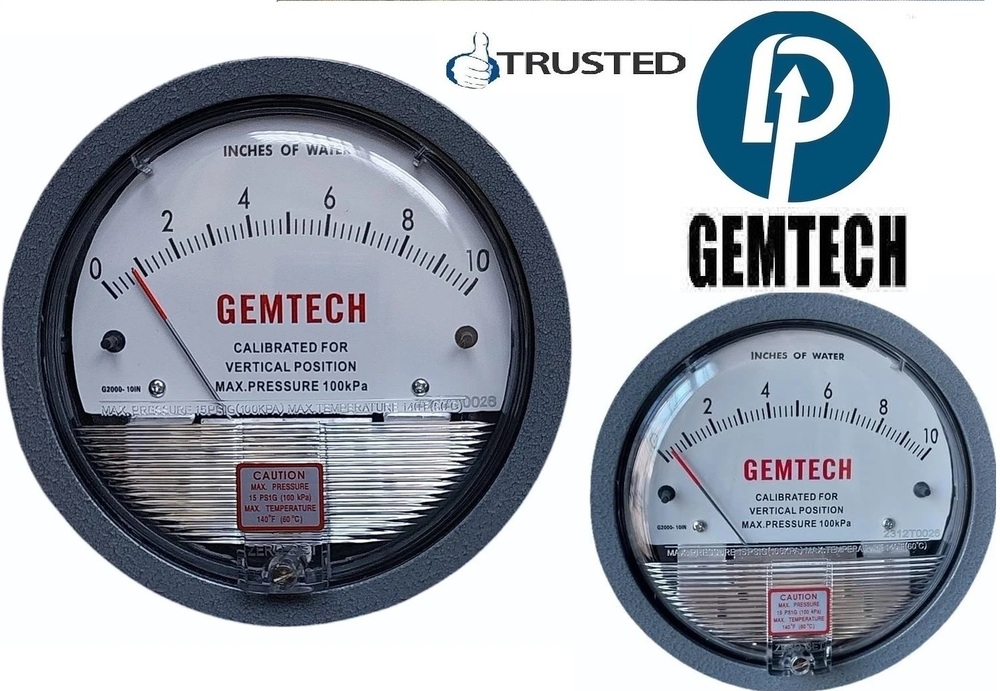

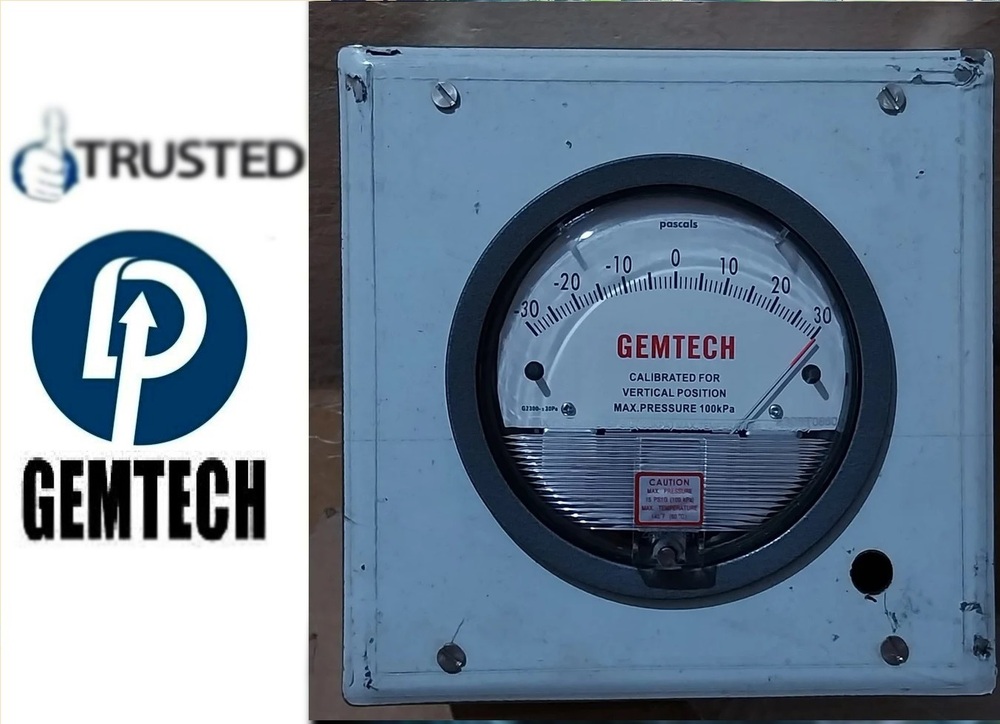

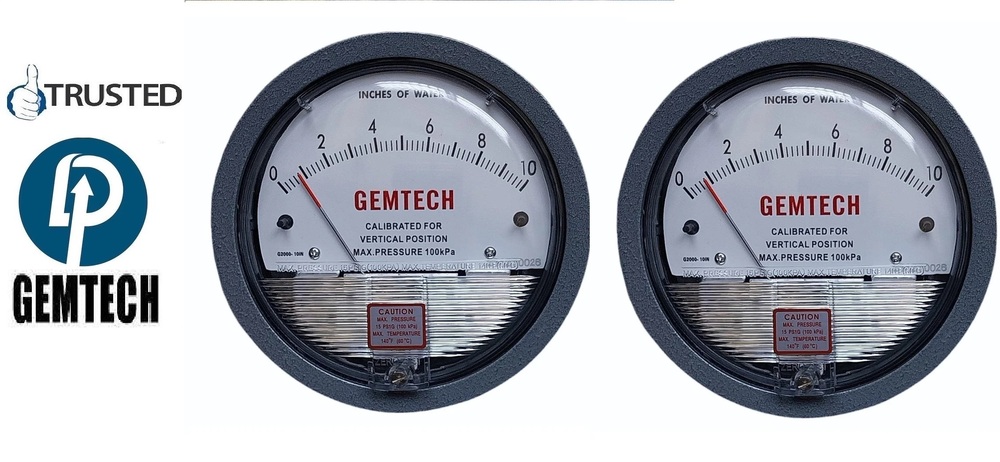

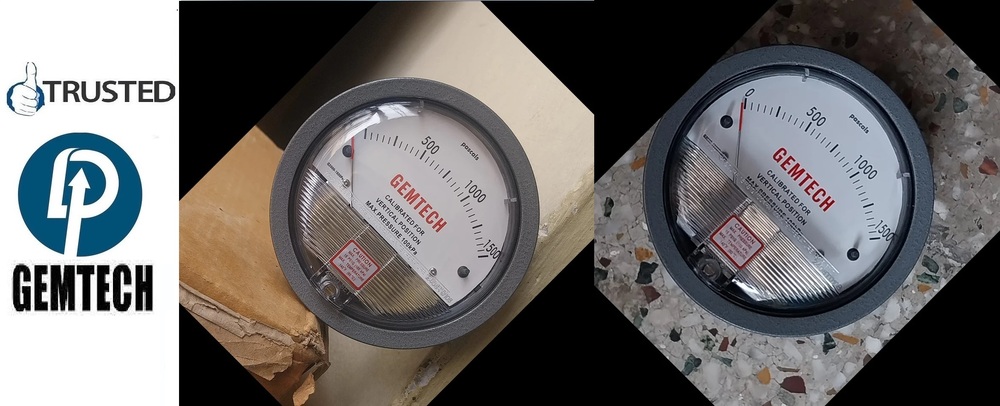

GEMTECH - DIFFERENTIAL PRESSURE GAUGE FORM SACHIN INDUSTRIAL AREA SURAT Gujarat

About GEMTECH - DIFFERENTIAL PRESSURE GAUGE FORM SACHIN INDUSTRIAL AREA SURAT Gujarat

• Ambient Temperature -  -21 140 6 60

• Rated Pressure -20 inHg~30 inHg (-68~103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa).

• Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy - A2% of full span at 70 21 3% on -0, and A4% on -00)

• Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.)

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge.
• The Gauge Can Measure Positive Pressure, Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics.
• There Are 81 Types Of Ranges.
• Minimum is 0-60 Pa And Maximum is 0-21-KPa.

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By  Model Number Popularity

• FILTER BY
• Range - MM Of Water

Model	Description
G2000-100MM	DPG,Range 0-100 MM W.C., Minor Divisions 2.0.
G2000-10MM	DPG,Range 0-10 MM W.C.,Minor Divisions .20,Calibrated For Vertical Scale Position.
G2000-150MM	DPG,Range 0-150 MM W.C.
G2000-15MM	DPG,Range 0-15 MM W.C.
G2000-200MM	DPG,Range 0-200 MM W.C.
G2000-250MM	DPG,Range 0-250 MM W.C.
G2000-25MM	DPG,Range 0-25 MM W.C. Minor Divisions .50.
G2000-300MM	DPG,Range 0-300 MM W.C.
G2000-50MM	DPG,Range 0-50 MM W.C., Minor Divisions 1.0.
G2000-6MM	DPG,Range 0-6 MM W.C., Minor Divisions .20, Calibrated For Vertical Scale Position.
G2000-80MM	DPG,Range 0-80 MM W.C., Minor Divisions 2.0.

Reliable Pressure Monitoring for Industrial Applications

The GEMTECH Differential Pressure Gauge is tailored for continuous use in industries like sugar, steel, paper, and cement manufacturing. Its rugged stainless steel construction, combined with a 4-inch dial and selectable finish, is built to withstand demanding operational environments, providing consistent and accurate pressure readings.


Versatile and Accurate Pressure Measurement

With a scale range that includes MM WC, CM, PAC, KPA, INCH, PSI, and MBAR, along with 2% accuracy, this gauge delivers reliable results in various unit systems. Its compatibility with both steam and gas makes it a flexible tool for a multitude of process applications.


Designed for Easy Installation and Use

Featuring a back-mount design and 1/8 thread, the gauge is simple to integrate into new setups or as a replacement in existing pipelines. The analog display and aluminum pointer offer clear and immediate pressure readings, enhancing user experience for maintenance teams.

FAQ's of GEMTECH - DIFFERENTIAL PRESSURE GAUGE FORM SACHIN INDUSTRIAL AREA SURAT Gujarat:

Q: How does the GEMTECH Differential Pressure Gauge operate in industrial settings?

A: The gauge measures differences in pressure (differential pressure) in industrial systems, ensuring accurate monitoring of steam or gas flow across machines or filters, helping maintain efficient process control in environments like sugar, steel, paper, and cement plants.

Q: What makes this pressure gauge suitable for harsh industrial environments?

A: This model is crafted from stainless steel and available in various finishes (antique, polished, galvanized, matte), which provides superior resistance to corrosion and wear, making it ideal for use in demanding, high-traffic industries.

Q: When should I use this differential pressure gauge?

A: Use this gauge whenever monitoring the difference in pressure is crucial for process optimization-such as assessing filter cleanliness, monitoring pump health, or ensuring consistent product quality in industries like cement, steel, or sugar manufacturing.

Q: Where can the GEMTECH Differential Pressure Gauge be installed?

A: Thanks to its back mounting and 1/8 thread compatibility, the gauge can be mounted on pipelines, tanks, or processing units wherever differential pressure measurement is essential, typically located at critical control points.

Q: What are the benefits of having a 2% accuracy analog display?

A: A 2% accuracy ensures dependable and precise readings, while the analog display and aluminum pointer allow quick assessments at a glance, supporting effective operational decisions without requiring digital conversion.

Q: How do you select the correct scale unit for your application?

A: Choose the scale unit (such as MM WC, KPA, or PSI) that matches your process requirements and regulatory standards. The gauge supports multiple units, making it versatile for diverse systems and workflows.

Q: What processes does this gauge support measuring?

A: It is designed to measure pressures in steam and gas applications, crucial for process and safety monitoring in industries ranging from heavy manufacturing to paper and sugar processing facilities.
