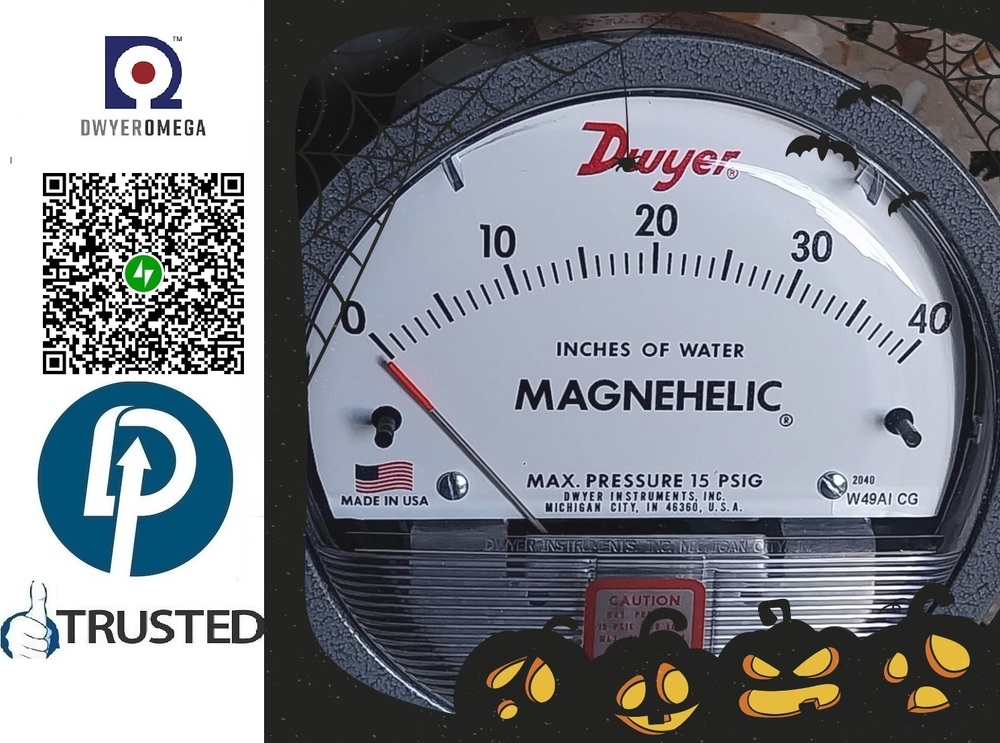

Dwyer USA Magnehelic Gauges 10-0-10 Inch WC

Get a Price/Quote

MOQ : 25 Pieces

Dwyer USA Magnehelic Gauges 10-0-10 Inch WC Specification

Outer Size
117 mm (4.62 in) diameter housing

Sensor Type
Diaphragm Differential

Display
Analog Gauge

Grade
Industrial Grade

Thread
1/8 NPT Female

Seal Material
Silicone Rubber Gasket

Material
Die-cast Aluminum Case

Dial Material
White Satin-finished Aluminum

Pointer Material
Black-finished Aluminum

Processing Type
Precision Machined

Diameter
117 mm (4.62 in)

Glass Size
Standard, 4 in viewing area

Mount Type
Surface or Flush Mount

Scale Range
10-0-10 Inch WC (Water Column)

Accuracy
2% of full scale

Accessories
Two 1/8 NPT plugs, two 1/8 NPT pipe thread to rubber tubing adapters, and three mounting adapters with screws

Operating Temperature
-7C to +60C (20F to 140F)

Weight
540 grams (19 oz)

Zero Adjustment
External Screw Adjustment

Maximum Pressure
15 PSI (1.03 bar)

Connection Location
Side and rear connections provided

Mounting Orientation
Vertical (standard)

Dwyer USA Magnehelic Gauges 10-0-10 Inch WC Trade Information

Minimum Order Quantity
25 Pieces

FOB Port
Delhi

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Paypal, Cash on Delivery (COD)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About Dwyer USA Magnehelic Gauges 10-0-10 Inch WC

Dwyer USA Magnehelic GaugesA 10-0-10A Inch WC

A ModelA	DescriptionA
A 2320	Differential pressure gage, range 10-0-10" w.c., minor divisions .50.A

The industry standard in indicating low air or gas pressures of positive, negative, or differential pressures.

Large, easy-to-read 4" (102 mm) dial.

No manometer fluid to evaporate, freeze, or cause toxic or leveling problems.

INCLUDES

Two 1/8" NPT plugs, two 1/8" rubber tubing adapters, and three mounting adapters with screws

MORE ABOUT THIS ITEM

The Magnahelic guage is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems, and pressures in fluid amplifier or fluidic systems. The gauge's motion is damped with high-viscosity silicone fluid. The zero adjustment screw is conveniently located in the plastic cover, and is accessible without removing the cover. O-ring seal provides pressure tightness. Rugged design resists shock, vibration, and overpressure.

The helix is precision-made from an alloy of high magnetic permeability. Mounted in jeweled bearings, it turns freely, following the maganetic field to move the pointer across the scale. The samarium cobalt magnet is mounted at one end of the range spring and rotates the helix without mechanical linkages.A

Specifications & DescriptionA

A Accuracy	AA4% full-scaleA
A Dial Size (in)	4A
A Dial Size (mm)	A 102
A Min Pressure (in WC)	-0.25A
A Max Pressure (in WC)	0.25A
Wetted MaterialsA	AluminumA
A Case	AluminumA
A Lens Material	AcrylicA
A Process Connection	1/8" NPTA
A Unit Of Measurement	" WCA
DisplayA	Analog DialA
A Media Compatibility	Gases and liquids compatible with wetted materialsA
A Resolution	0.01A
DescriptionA	Magnehelic Differential Pressure Gauge, Type ,A 10-0-10"A WCA

Engineered for Accurate Pressure Monitoring

The Magnehelic Gauge delivers reliable differential pressure readings between 10-0-10 Inch WC, making it ideal for HVAC, clean rooms, and filtration systems. Its analog display features a clear, 4-inch viewing area, allowing for quick and precise pressure checks at a glance.

Optimized for Industrial Applications

Built from die-cast aluminum with a white satin-finished dial and black pointer, this gauge is tailored for industrial operation. It's compatible with standard 1/8 NPT female threads, and the included mounting adapters simplify installation in diverse environments.

User-Friendly Zero Adjustment and Installation

Adjusting the zero point is straightforward, thanks to the external screw adjustment. Choose vertical mounting as standard, with options for both surface and flush installations. Side and rear connections further extend placement flexibility to suit your layout requirements.

FAQ's of Dwyer USA Magnehelic Gauges 10-0-10 Inch WC:

Q: How do I install the Dwyer Magnehelic Gauge for optimal performance?

A: For best results, mount the gauge vertically using either the surface or flush mounting options provided. Refer to the included mounting adapters, screws, and connection adapters for secure installation. Ensure connections to side or rear 1/8 NPT female ports, as needed by your application.

Q: What types of media can this Magnehelic Gauge measure?

A: This gauge is designed to accurately measure the differential pressure of air and non-corrosive gases only. Using it with other substances can damage the internal diaphragm sensor or affect measurement accuracy.

Q: When should I use the zero adjustment feature?

A: Utilize the external screw zero adjustment before each measurement session or after relocation to a new mounting position. This ensures the gauge compensates for any possible position or pressure offsets, maintaining its 2% full-scale accuracy.

Q: Where are the connection ports located on this gauge?

A: The Dwyer Magnehelic Gauge offers both side and rear 1/8 NPT female connection ports, providing flexibility for different piping or tubing layouts in your facility.

Q: What are the benefits of the included accessories?

A: Included are two 1/8 NPT plugs, two 1/8 NPT to tubing adapters, and three mounting adapters with screws, which simplify installation and connection to various system configurations, saving time and ensuring leak-free operation.

Q: How does the gauge maintain durability in industrial settings?

A: Constructed with a die-cast aluminum housing and sealed with a silicone rubber gasket, the Magnehelic Gauge resists wear, corrosion, and leaks. Its precision-machined finishing and industrial-grade materials ensure a long service life.
