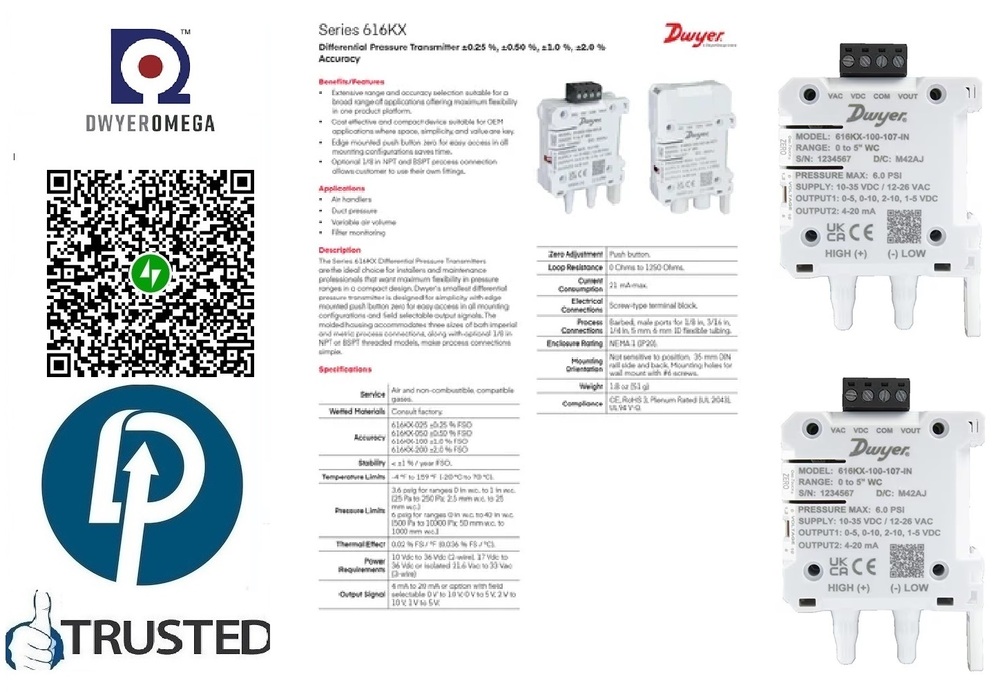

DWYER OMEGA >>Series >> 616KX Differential Pressure Transmitters << Range -0.4 to 0.4 WC

About DWYER OMEGA >>Series >> 616KX Differential Pressure Transmitters << Range -0.4 to 0.4 WC

• DWYER OMEGA >>Series >> 616KX Differential Pressure Transmitters << Range -0.4” to 0.4” WC

• Type â€“ 616KX
• Manufacturer â€“ DWYER OMEGA
• Model â€“ 616KX-025-202-PA
• RANGE – 0.4” to 0.4” WC
• PRESSURE MAX. – 3.6 PSI
• Supply – 10-35 VDC / 12-26 VAC
• OUTPUT 1 –  0-5, 0-10, 2-10, 1-5 VDC
• OUTPUT 2 –  4-20 mA
• COUNTRY OF ORIGIN – INDIA

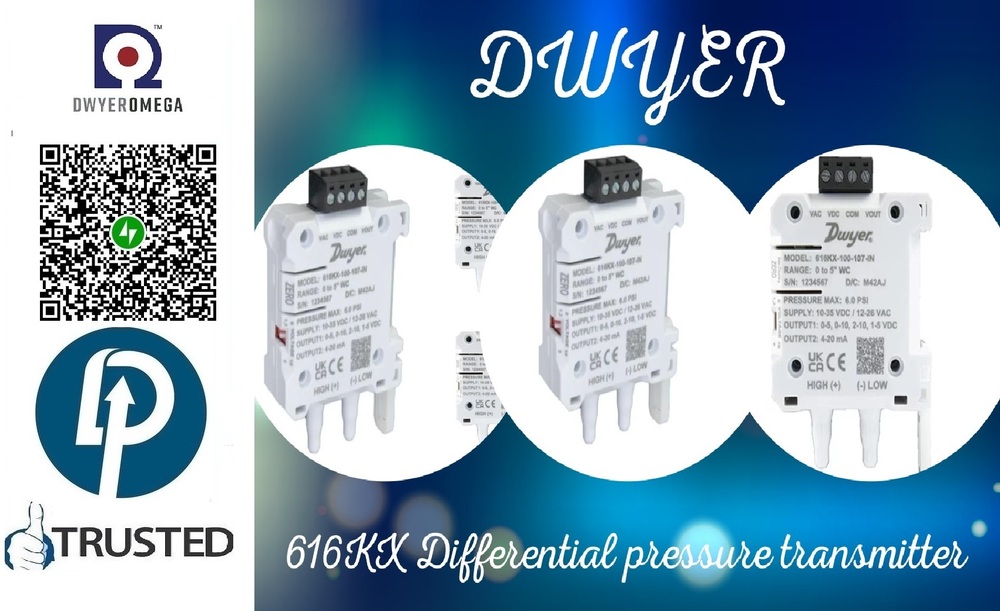

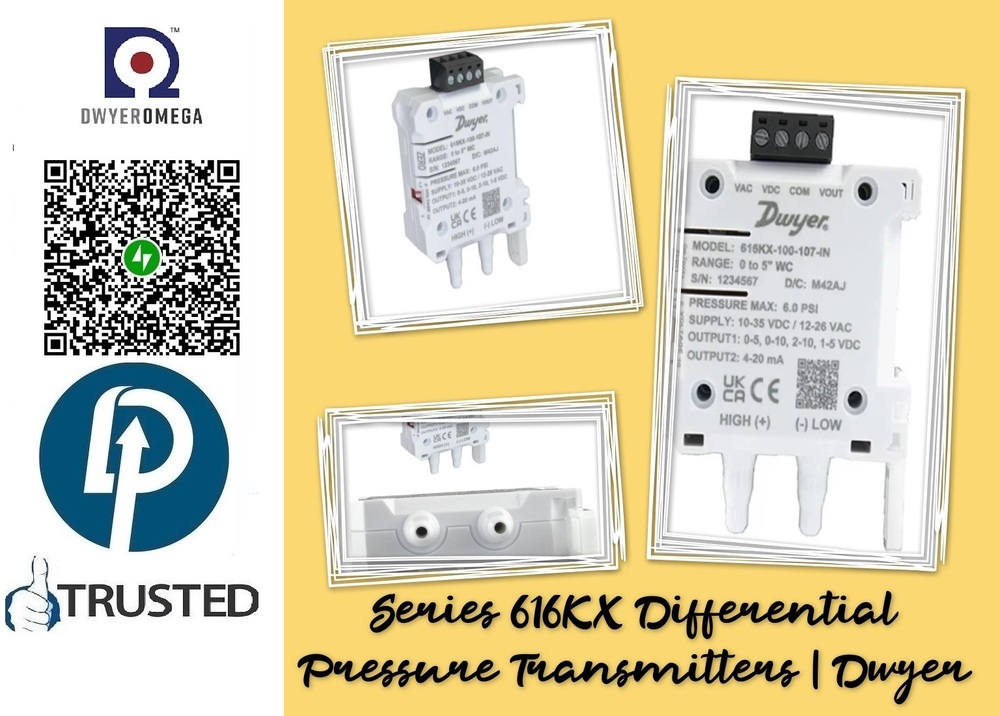

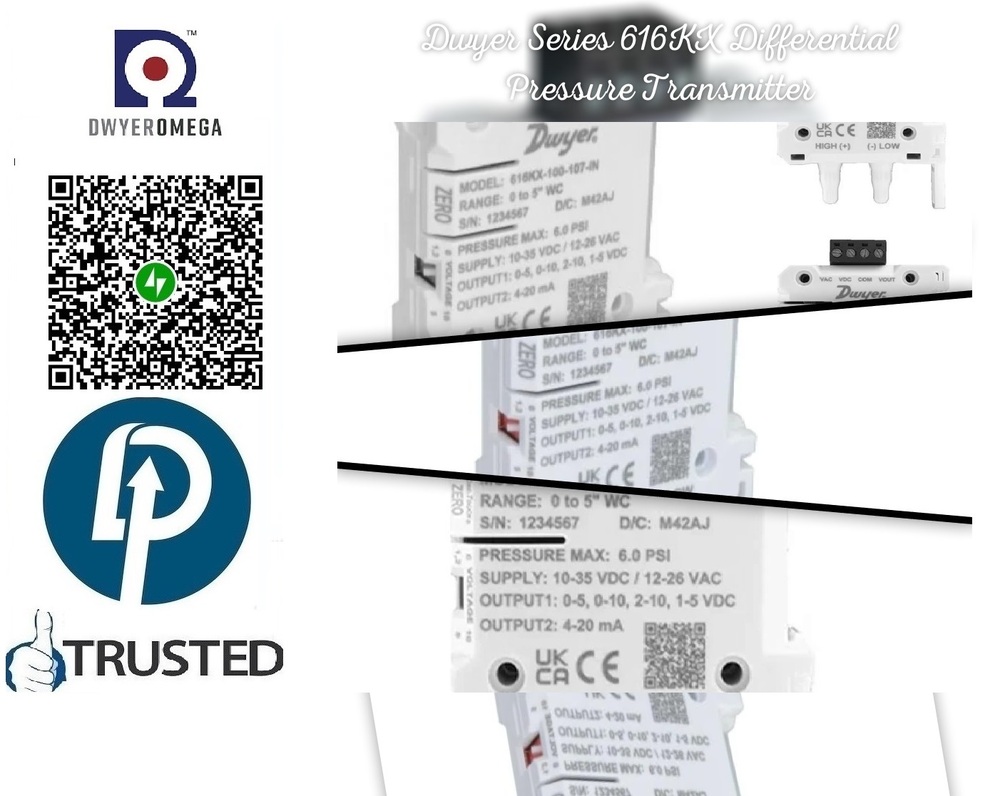

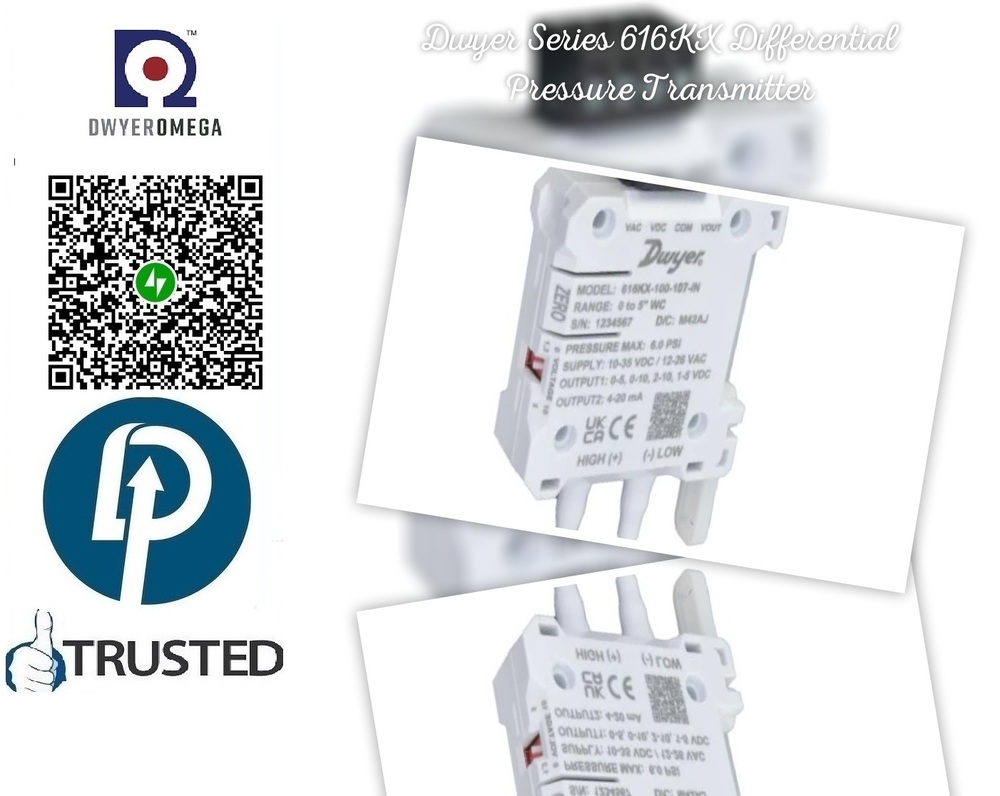

Series 616KX Differential Pressure Transmitters: High-Precision Monitoring for Critical Applications

The 616KX Series Differential Pressure Transmitters offer installers and maintenance professional’s Maximum Flexibility in Pressure Ranges within a compact design.As Dwyer’s smallest differential pressure transmitter,it ensures simplicity with an edge-mounted push-button zero for easy access in any mounting configuration and features field-selectable output signals.The molded housing supports three sizes of both imperial and metric process connections,with optional 1/8″ NPT or BSPT Threaded models, ensuring easy and flexible process connections.

The 616KX Series ensures exceptional stability and repeatability,minimizing drift and enhancing long-term reliability.The robust construction enables operation in demanding conditions,while the user-friendly interface allows for easy installation and calibration. Available in multiple ranges and outputs,These transmitters seamlessly integrate into existing systems, providing real-time monitoring and control.
Product Applications:

• Duct Pressure
• Air Handlers
• Variable Air Volume
• Filter Monitoring.

Product Range:

• 00: 0 in w.c to 0.1 in w.c (25 Pa,2.5 mm w.c.
• 01: 0 in w.c to 0.25 in w.c (60 Pa,5 mm w.c.
• 02: 0 in w.c to 0.4 in w.c (100 Pa,10 mm w.c.
• 03: 0 in w.c to 0.5 in w.c (125 Pa,12 mm w.c.
• 04: 0 in w.c to 1 in w.c (250 Pa,25 mm w.c.
• 05: 0 in w.c to 2 in w.c (500 Pa,50 mm w.c.
• 06: 0 in w.c to 3 in w.c (750 Pa,100 mm w.c.
• 07: 0 in w.c to 5 in w.c (1250 Pa,125 mm w.c.
• 08: 0 in w.c to 10 in w.c (2500 Pa,250 mm w.c.
• 09: 0 in w.c to 15 in w.c (3750 Pa,400 mm w.c.
• 10: 0 in w.c to 20 in w.c (5000 Pa,450 mm w.c.
• 11: 0 in w.c to 25 in w.c (6250 Pa,500 mm w.c.
• 12: 0 in w.c to 40 in w.c (10000 Pa,1000 mm w.c.

Specifications :

• Service : Air And Non-Combustible,Compatible Gases
• Wetted : Materials Consult factory
• Accuracy :616KX-025 Â±0.25 % FSO
• 616KX-050 Â±0.50 % FSO
• 616KX-100 Â±1.0 % FSO
• 616KX-200 Â±2.0 % FSO
• Stability :< ±1 % / year FSO
• Temperature Limits :-4 °F to 159 °F (-20 °C to 70 °C
• Pressure Limits :3.6 psig for ranges 0 in w.c. to 1 in w.c (25 Pa to 250 Pa
• 2.5 mm w.c. to 25 mm w.c) 6 psig for ranges 0 in w.c to 40 in w.c.(500 Pa to 10000 Pa;50 mm w.c. to 1000 mm w.c
• Thermal Effect :0.02 % FS / °F (0.036 % FS / °C
• Power Requirements :10 Vdc to 36 Vdc (2-wire),17 Vdc to 36 Vdc or isolated 21.6 Vac to 33 Vac (3-wire)
• Output Signal :4 mA to 20 mA or option with field selectable 0 V to 10 V,0 V to 5 V,2 V to 10 V,1 V to 5 V
• Zero Adjustment :Push Button
• Loop Resistance :0 Ohms to 1250 Ohms
• Current Consumption :21 mA max
• Electrical Connections :Screw-Type Terminal Block
• Process Connections :Barbed,Male Ports for 1/8 in,3/16 in, 1/4 in,5 mm,6 mm ID Flexible Tubing
• Enclosure Rating :NEMA 1 (IP20)
• Mounting Orientation :Not Sensitive to Position.35 mm DIN Rail side and back.Mounting holes for Wall mount with #6 Screws
• Weight :1.8 oz (51g)
• Compliance :CE,RoHS 3,Plenum Rated (UL 2043),UL94 V-0

Additional Information:

• Item Code: Series > 616KX Differential Pressure Transmitters > Range -0.4” to 0.4” WC
