Series < 616KX <

Series < 616KX <

• Usage
• Duct Pressure Air Handlers Variable Air Volume Filter Monitoring.

• Material
• Other

• Size
• 0.4 to 0.4 WC

• Processing Type
• Standard

• Product Type
• Series 616KX Differential Pressure Transmitters MODEL 616KX-025-202-IN

• Weight
• 1.8 oz (51 g) Grams (g)

• Mount Type
• Back

• Color
• White

• Scale Range
• 0.4 to 0.4 WC

• Accuracy
• 0.2 %

• Finishing
• Antique, Polished, Matte

• Measure Pressure Of
• Steam, Oil, Gas



Series < 616KX <

• Minimum Order Quantity
• 5 Pieces

• FOB Port
• Delhi

• Supply Ability
• 1 Piece Per Day

• Delivery Time
• 1 Days

• Packaging Details
• E-mail : dpsharma74@yahoo.co.in, dpsharma1974@gmail.com, dpsharma949@gmail.com Mr D.P.SHARMA 9871014210 WhatsApp number :9871014210,9268631221 Websites : www.dpengineers.in, www.dpengineer.in, www.dpengineers.co.in, www.dpengineer.co.in, www.dpengineersindia.com, www.dpengineerindia.com, www.dpengineersindia.in, www.dpengineers.info, www.dpengineer.info, www.dp-engineers.com, www.dpengineerindia.in, www.dpengineersindia.net, www.dpengineersdelhi.co.in, www.dpengineersdelhi.com, www.dp-engineers.co.in, www.dpengineersdelhi.net, https://www.exportersindia.com/dpengineers WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

• Main Export Market(s)
• Asia, Middle East

• Main Domestic Market
• All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal



About Series < 616KX <

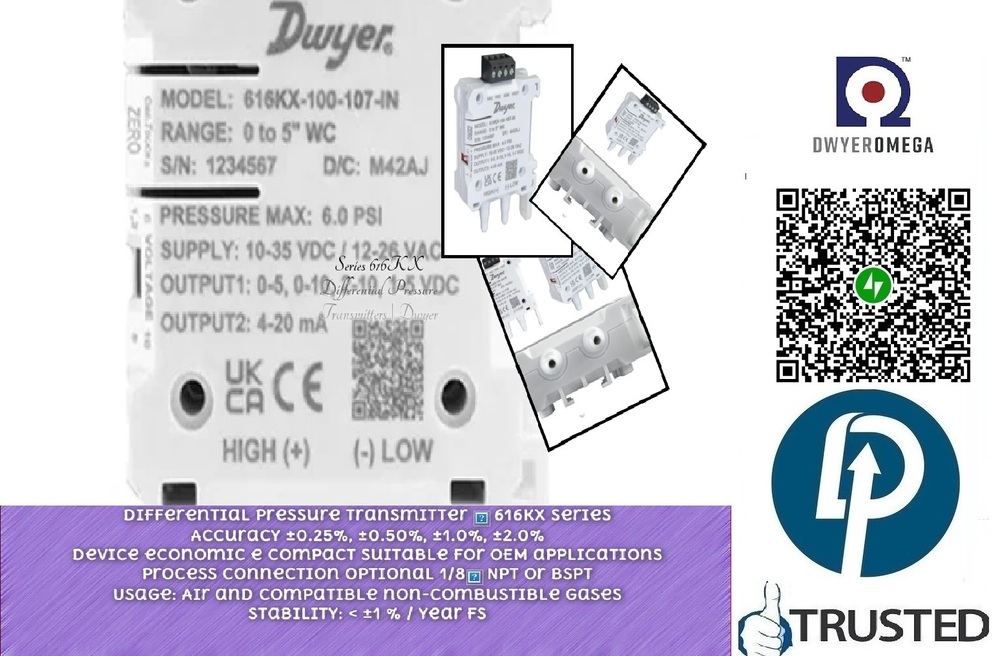

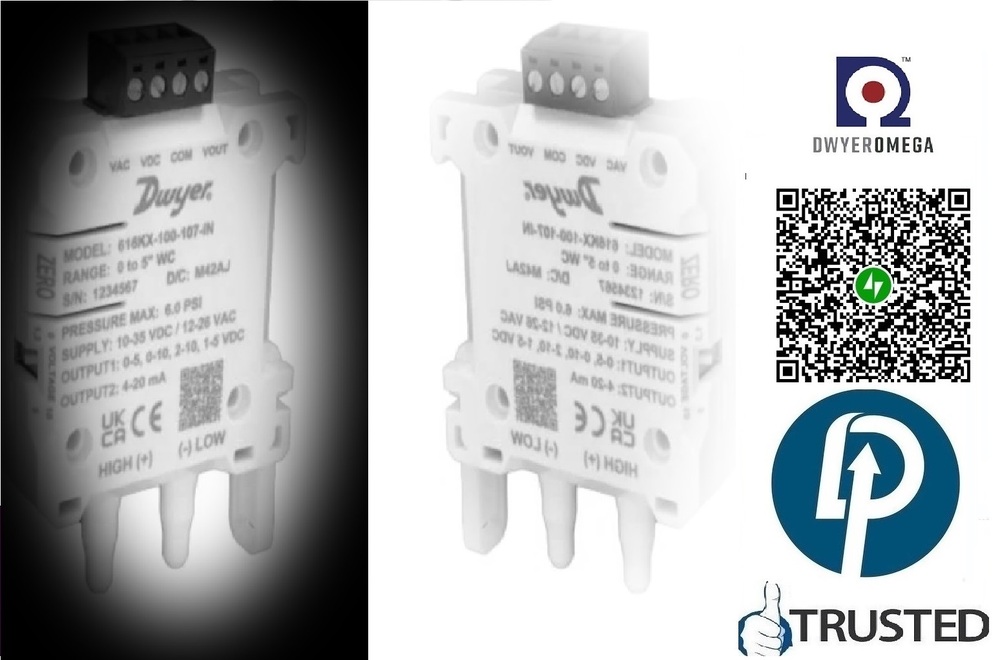

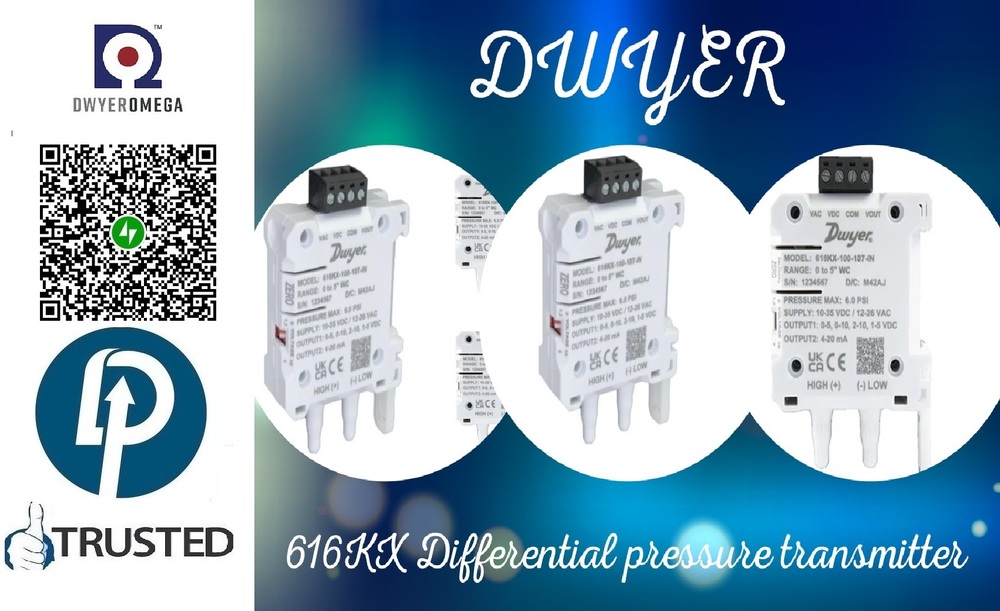

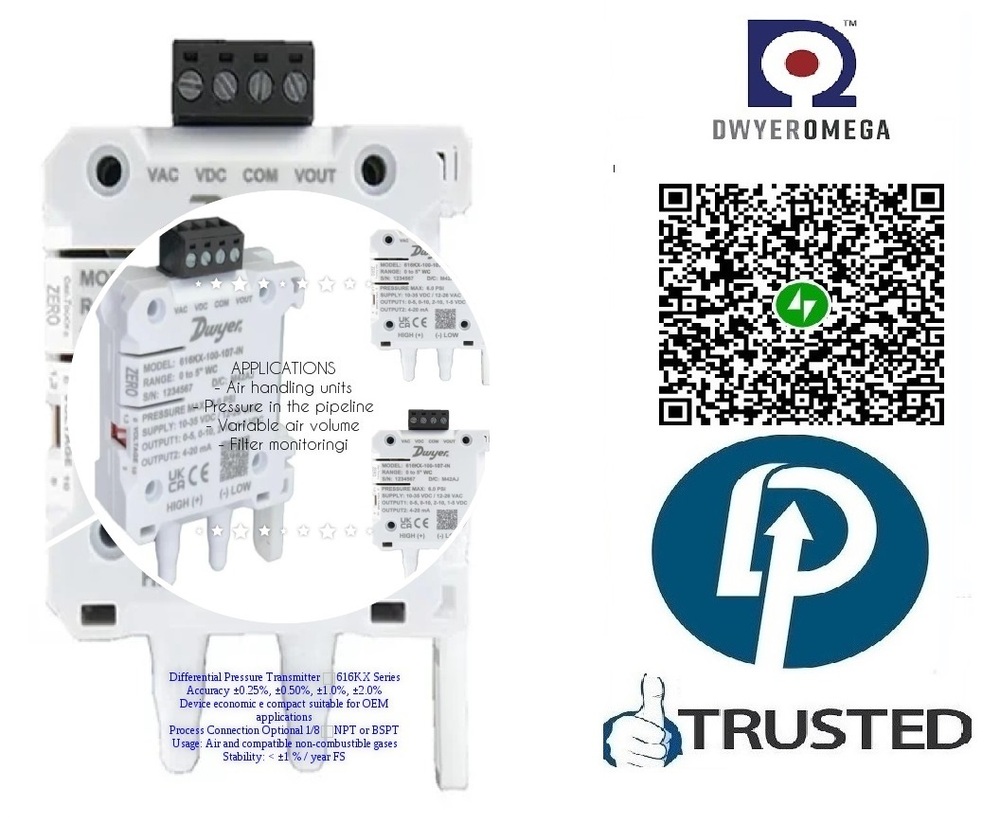

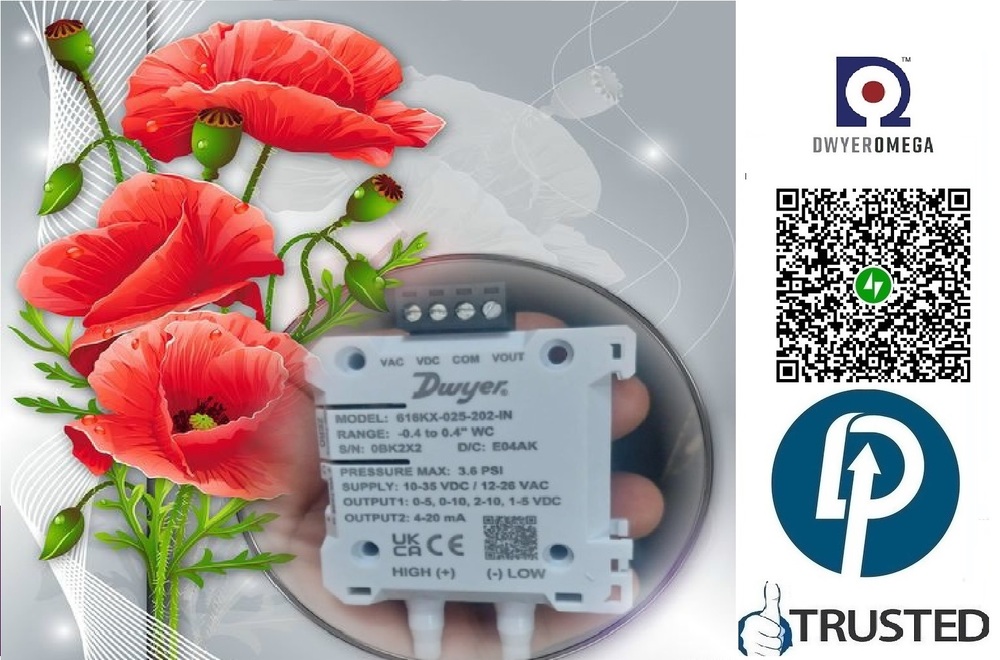

Series < 616KX <<Differential Pressure Transmitters MODEL :616KX-025-202-IN

Series 616KX Differential Pressure Transmitters:High-Precision Monitoring for Critical Applications

• DIFFERENTIAL PRESSURE TRANSMITTER
• Type â€“ 616KX
• Manufacturer â€“ DWYER OMEGA
• Model : 616KX-025-202-PA
• RANGE – 0.4” to 0.4” WC
• PRESSURE MAX. – 3.6 PSI
• OUTPUT 1 –  0-5, 0-10, 2-10, 1-5 VDC
• OUTPUT 2 –  4-20 mA
• Supply – 10-35 VDC / 12-26 VAC
• CONNECTION – Barbed sizes to fit 1/8 in , 3/16 in, ¼ in, 5 mm, and 6 mm ID rubber or vinyl tubing. Optional 1/8 in female NPT or 1/8 in female BSPT threads.
• Weight – 5.0 oz (142 g)
• COUNTRY OF ORIGIN – INDIA

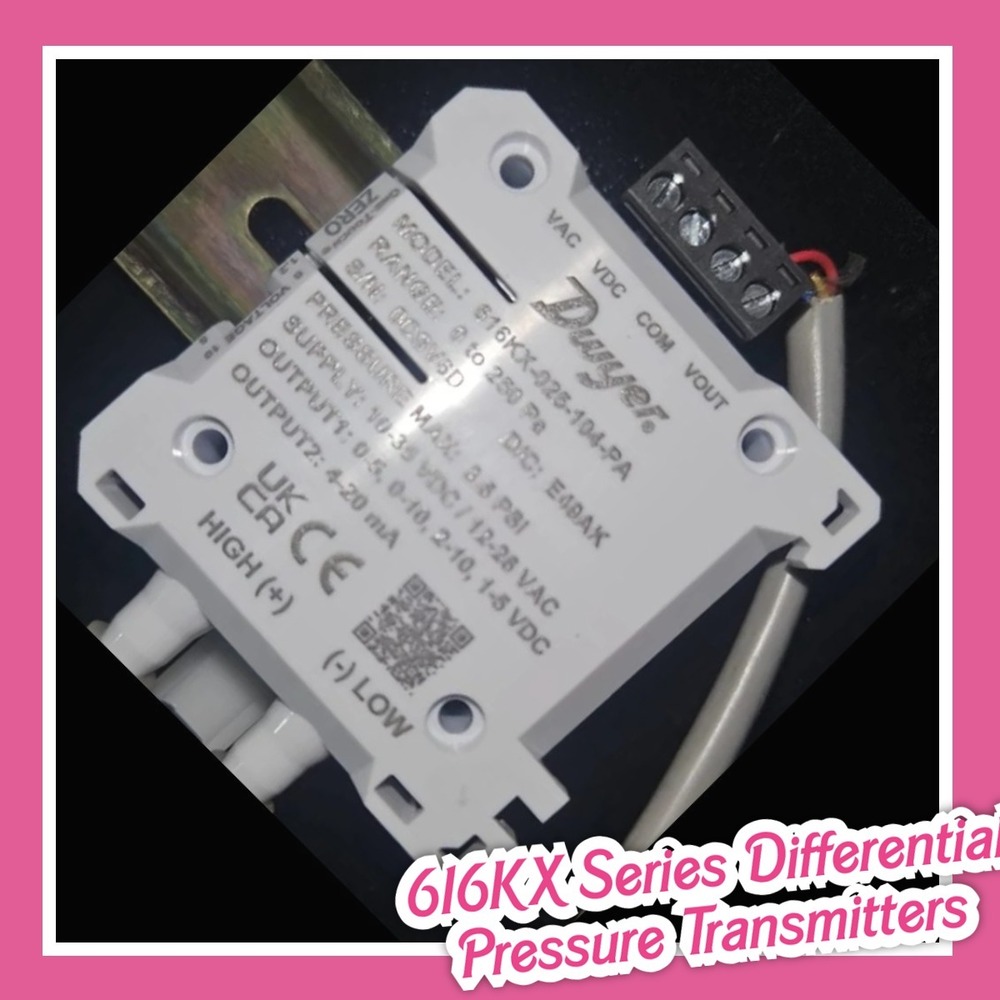

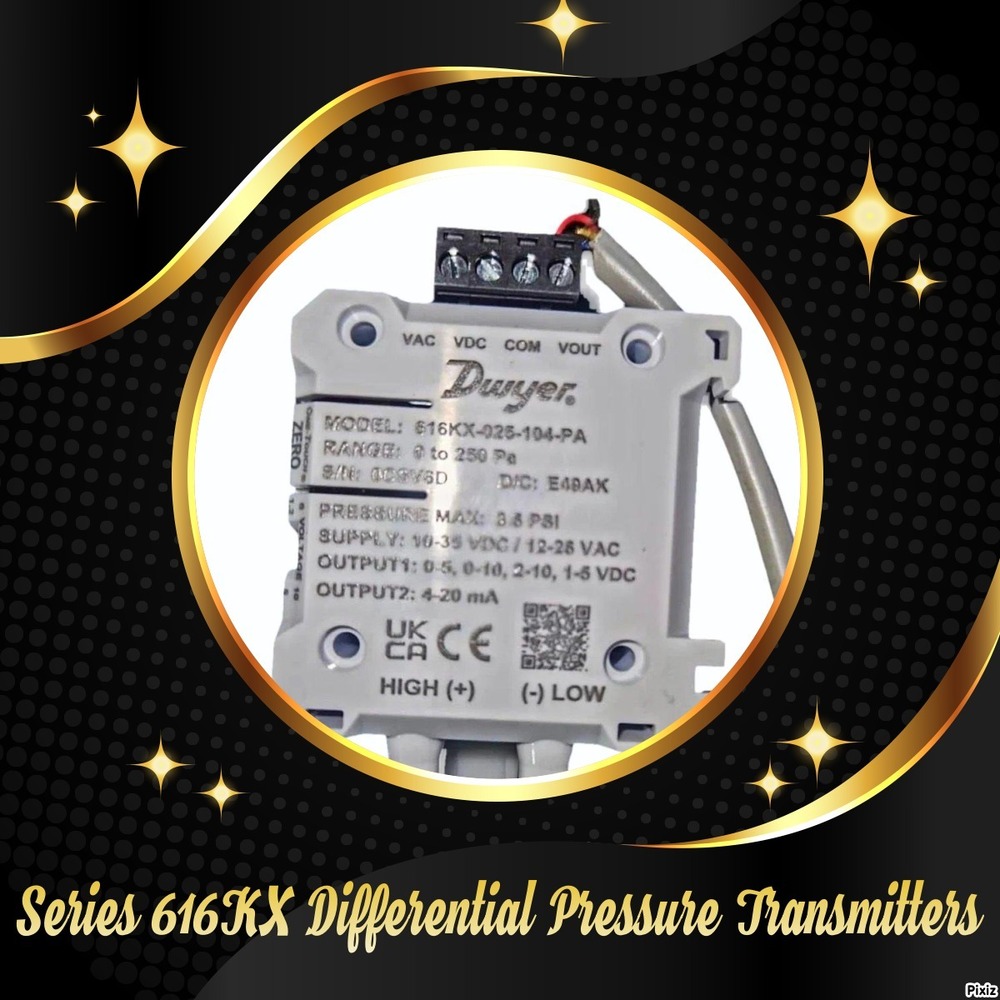

The 616KX Series Differential Pressure Transmitters offer installers and maintenance professional’s Maximum Flexibility in Pressure Ranges within a compact design.As Dwyer’s smallest differential pressure transmitter,it ensures simplicity with an edge-mounted push-button zero for easy access in any mounting configuration and features field-selectable output signals.The molded housing supports three sizes of both imperial and metric process connections, with optional 1/8″ NPT or BSPT Threaded models, ensuring easy and flexible process connections.The 616KX Series ensures exceptional stability and repeatability,minimizing drift and enhancing long-term reliability.The robust construction enables operation in demanding conditions,while the user-friendly interface allows for easy installation and calibration. Available in multiple ranges and outputs,these transmitters seamlessly integrate into existing systems,providing real-time monitoring and control
Product Applications:

• Duct Pressure
• Air Handlers
• Variable Air Volume
• Filter Monitoring.

Product Range:

• 0 in w.c to 0.1 in wc (25 Pa,2.5 mm wc
• 0 in w.c to 0.25 in wc (60 Pa,5 mm wc
• 0 in w.c to 0.4 in wc (100 Pa,10 mm wc
• 0 in w.c to 0.5 in wc (125 Pa,12 mm wc
• 0 in w.c to 1 in wc (250 Pa,25 mm wc
• 0 in w.c to 2 in wc (500 Pa,50 mm wc
• 0 in w.c to 3 in wc (750 Pa,100 mm wc
• 0 in w.c to 5 in wc (1250 Pa,125 mm wc
• 0 in w.c to 10 in wc (2500 Pa,250 mm wc
• 0 in w.c to 15 in wc (3750 Pa,400 mm wc
• 0 in w.c to 20 in wc (5000 Pa,450 mm wc
• 0 in w.c to 25 in wc (6250 Pa,500 mm wc
• 0 in w.c to 40 in wc (10000 Pa,1000 mm wc

Specifications :

• Service : Air And Non-Combustible,Compatible Gases
• Wetted : Materials Consult factory
• Accuracy : 616KX-025 Â±0.25 % FSO
• 616KX-050 Â±0.50 % FSO
• 616KX-100 Â±1.0 % FSO
• 616KX-200 Â±2.0 % FSO
• Stability : < ±1 % / year FSO.
• Temperature Limits : -4 °F to 159 °F (-20 °C to 70 °C).
• Pressure Limits : 3.6 psig for ranges 0 in w.c. to 1 in w.c. (25 Pa to 250 Pa;
• 2.5 mm w.c. to 25 mm w.c.) 6 psig for ranges 0 in w.c. to 40 in w.c. (500 Pa to 10000 Pa; 50 mm w.c. to 1000 mm w.c.)
• Thermal Effect : 0.02 % FS / °F (0.036 % FS / °C).
• Power Requirements : 10 Vdc to 36 Vdc (2-wire),17 Vdc to 36 Vdc or isolated 21.6 Vac to 33 Vac (3-wire)
• Output Signal : 4 mA to 20 mA or option with field selectable 0 V to 10 V,0 V to 5 V,2 V to 10 V,1 V to 5 V.
• Zero Adjustment : Push Button
• Loop Resistance : 0 Ohms to 1250 Ohms.
• Current Consumption : 21 mA max.
• Electrical Connections : Screw-Type Terminal Block.
• Process Connections : Barbed,Male Ports for 1/8 in, 3/16 in, 1/4 in, 5 mm, 6 mm ID Flexible Tubing.
• Enclosure Rating : NEMA 1 (IP20)
• Mounting Orientation : Not Sensitive to Position.35 mm DIN Rail side and back. Mounting holes for Wall mount with #6 Screws.
• Weight : 1.8 oz (51 g)
• Compliance : CE, RoHS 3,Plenum Rated (UL 2043),UL94 V-0
