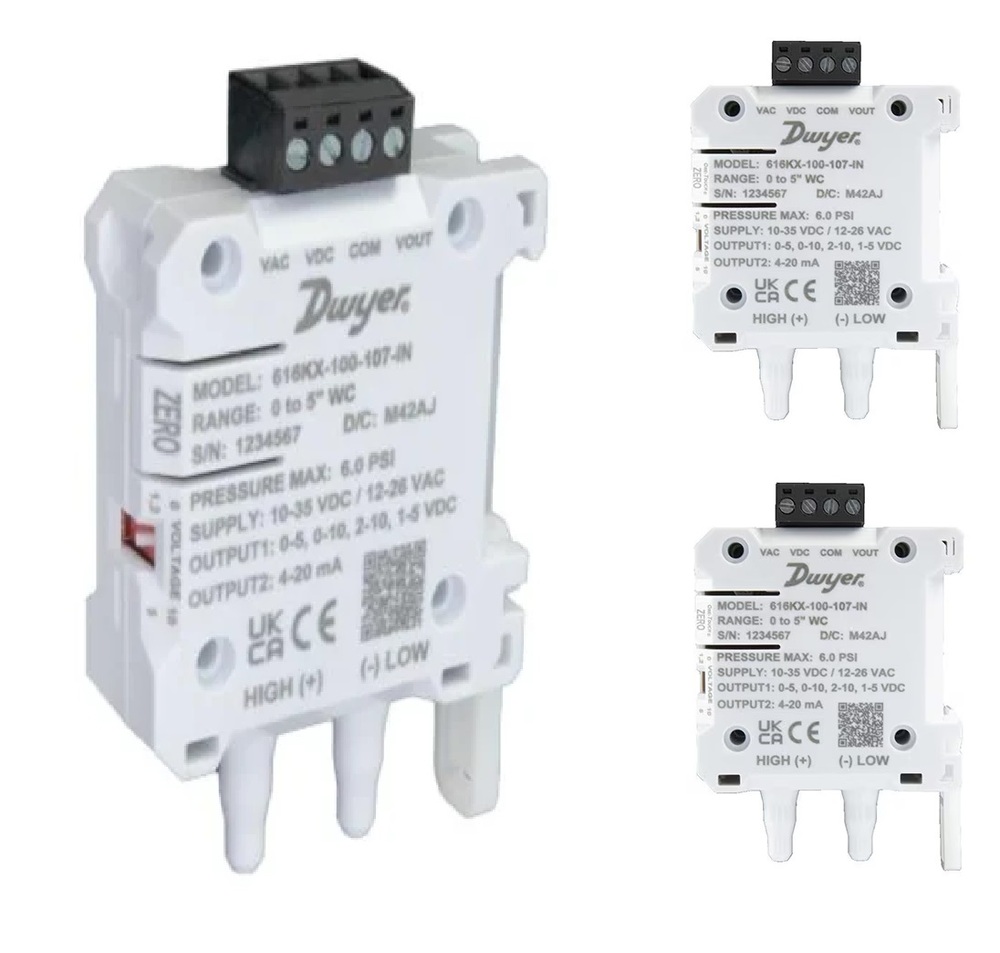

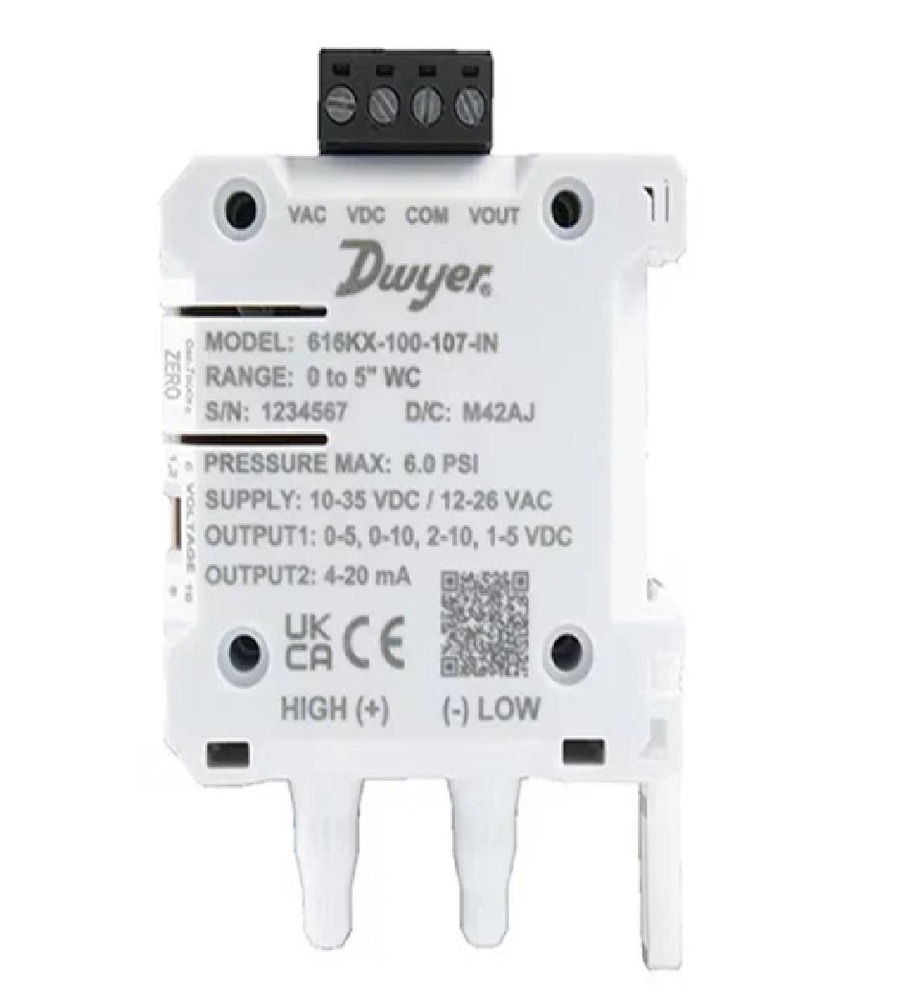

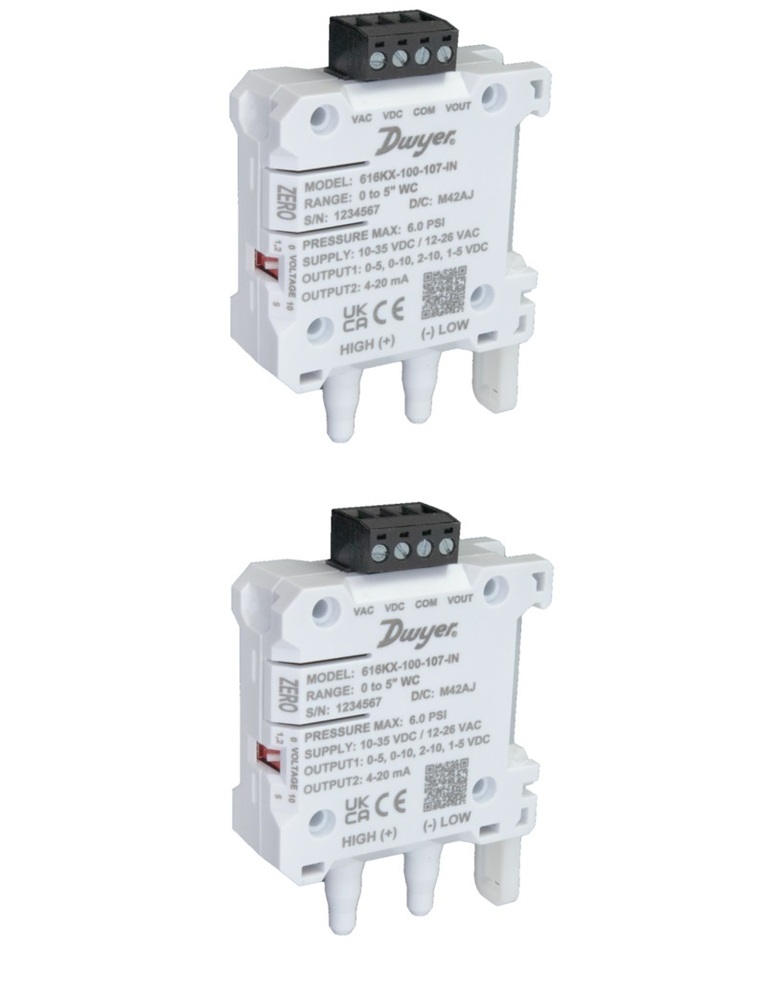

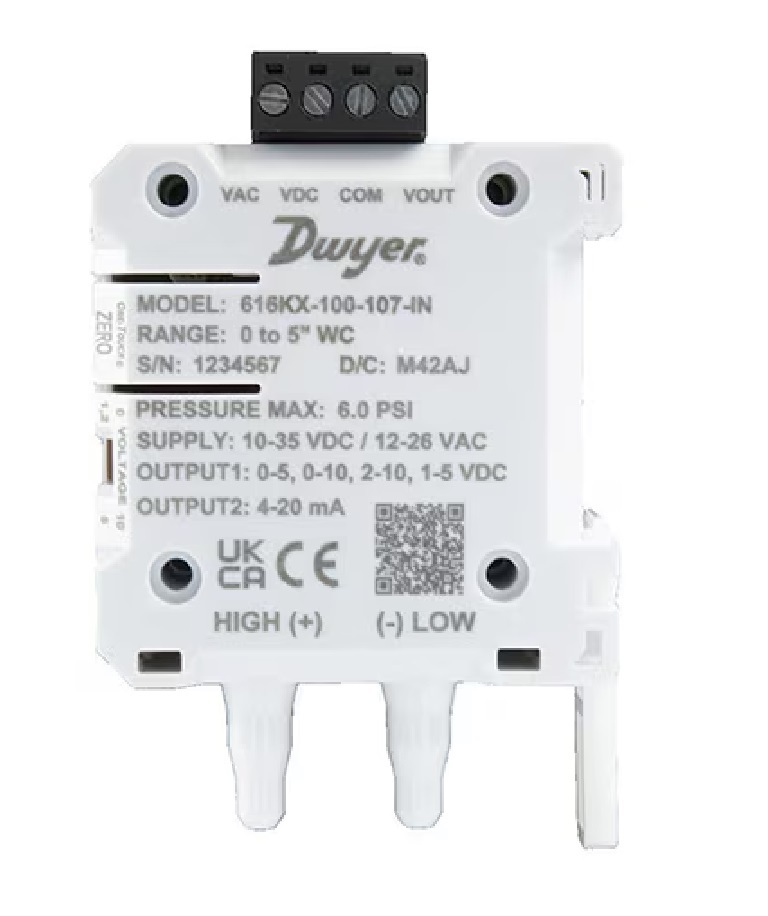

Dwyer Instruments >>616KX-200-105-IN >>Differential pressure transmitter, 2% FSO, 0 to 2" w.c

About Dwyer Instruments >>616KX-200-105-IN >>Differential pressure transmitter, 2% FSO, 0 to 2" w.c

Dwyer Instruments >>616KX-200-105-IN >>Differential pressure transmitter, 2% FSO, 0 to 2" w.c

• Type : 616KX
• Manufacturer : DWYER OMEGA
• Model : 616KX-200-105-IN
• RANGE : 0 to 2 Inch WC
• Accuracy : 616KX-200 Â±2.0 % FSO
• PRESSURE MAX. : 6 PSI
• Supply : 10-35 VDC / 12-26 VAC
• OUTPUT 1: 0-5, 0-10, 2-10, 1-5 VDC
• OUTPUT 2 :  4-20 mA
• COUNTRY OF ORIGIN : INDIA

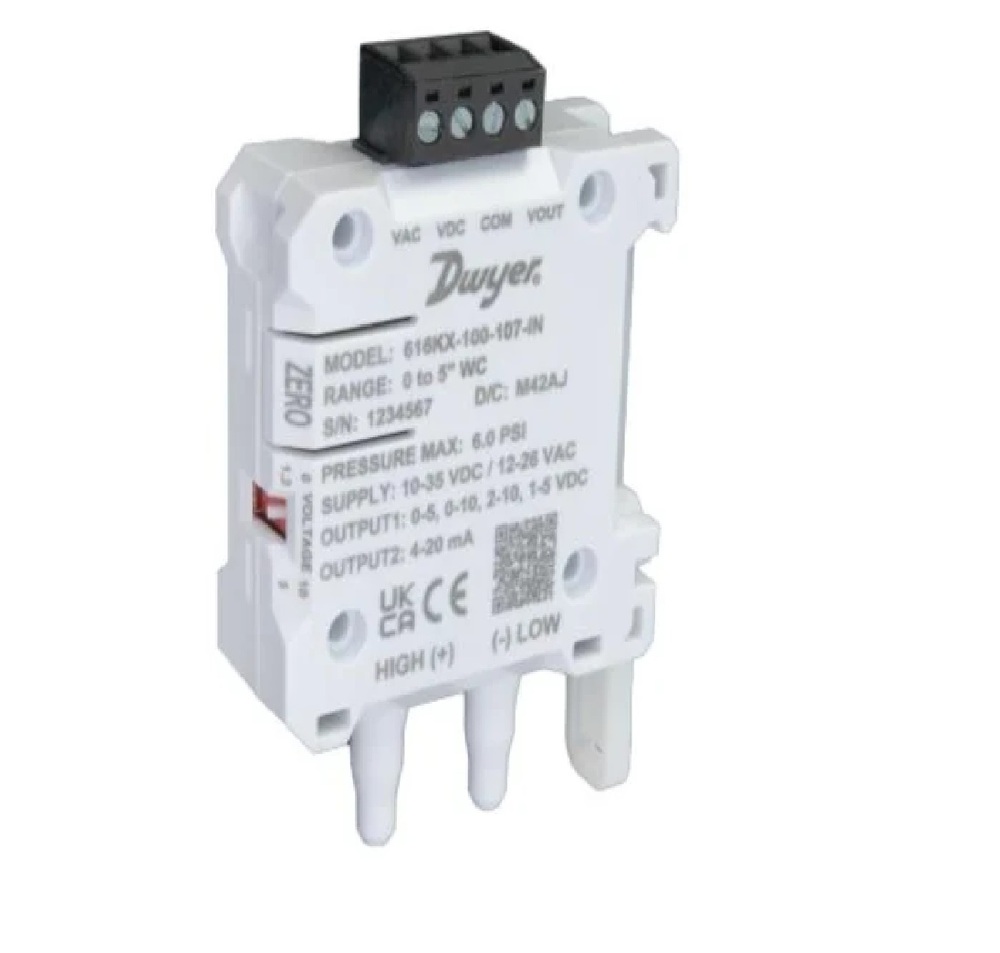

Series 616KX Differential Pressure Transmitters: High-Precision Monitoring for Critical Applications

The 616KX Series Differential Pressure Transmitters Offer Installers and Maintenance Professional’s Maximum Flexibility in Pressure Ranges within a compact design. As Dwyer’s smallest differential pressure transmitter,it ensures Simplicity With an Edge-Mounted Push-Button Zero For Easy access in any mounting configuration and features field-selectable output signals.The molded housing supports three sizes of both imperial and metric process connections, with optional 1/8″ NPT or BSPT Threaded models, ensuring easy and flexible process connections.

The 616KX Series ensures exceptional stability and repeatability,minimizing drift and enhancing long-term reliability.The robust construction enables operation in demanding conditions, while the user-friendly interface allows for easy installation and calibration. Available in multiple ranges and outputs, these transmitters seamlessly integrate into existing systems,providing real-time monitoring and control
Product Applications:

• Duct Pressure
• Air Handlers
• Variable Air Volume
• Filter Monitoring.

Specifications :

• Service : Air And Non-Combustible,Compatible Gases
• Wetted : Materials Consult factory
• Accuracy : 616KX-025 Â±0.25 % FSO
• 616KX-050 Â±0.50 % FSO
• 616KX-100 Â±1.0 % FSO
• 616KX-200 Â±2.0 % FSO
• Stability : < ±1 % / year FSO.
• Temperature Limits : -4 °F to 159 °F (-20 °C to 70 °C).
• Pressure Limits : 3.6 psig for ranges 0 in w.c. to 1 in w.c. (25 Pa to 250 Pa;
• 2.5 mm w.c. to 25 mm w.c.) 6 psig for ranges 0 in w.c. to 40 in w.c. (500 Pa to 10000 Pa; 50 mm w.c. to 1000 mm w.c.)
• Thermal Effect : 0.02 % FS / °F (0.036 % FS / °C).
• Power Requirements : 10 Vdc to 36 Vdc (2-wire),17 Vdc to 36 Vdc or isolated 21.6 Vac to 33 Vac (3-wire)
• Output Signal : 4 mA to 20 mA or option with field selectable 0 V to 10 V,0 V to 5 V,2 V to 10 V,1 V to 5 V.
• Zero Adjustment : Push Button
• Loop Resistance : 0 Ohms to 1250 Ohms.
• Current Consumption : 21 mA max.
• Electrical Connections : Screw-Type Terminal Block.
• Process Connections : Barbed,Male Ports for 1/8 in, 3/16 in, 1/4 in, 5 mm, 6 mm ID Flexible Tubing.
• Enclosure Rating : NEMA 1 (IP20)
• Mounting Orientation : Not Sensitive to Position.35 mm DIN Rail side and back. Mounting holes for Wall mount with #6 Screws.
• Weight : 1.8 oz (51 g)
• Compliance : CE, RoHS 3,Plenum Rated (UL 2043),UL94 V-0

Additional Information:

• Item Code: Dwyer Instruments > 616KX-200-105-IN > Differential Pressure Transmitter
