About Winters Canada Digital Pressure Gauge DPG210 Dealers Near Mumbai

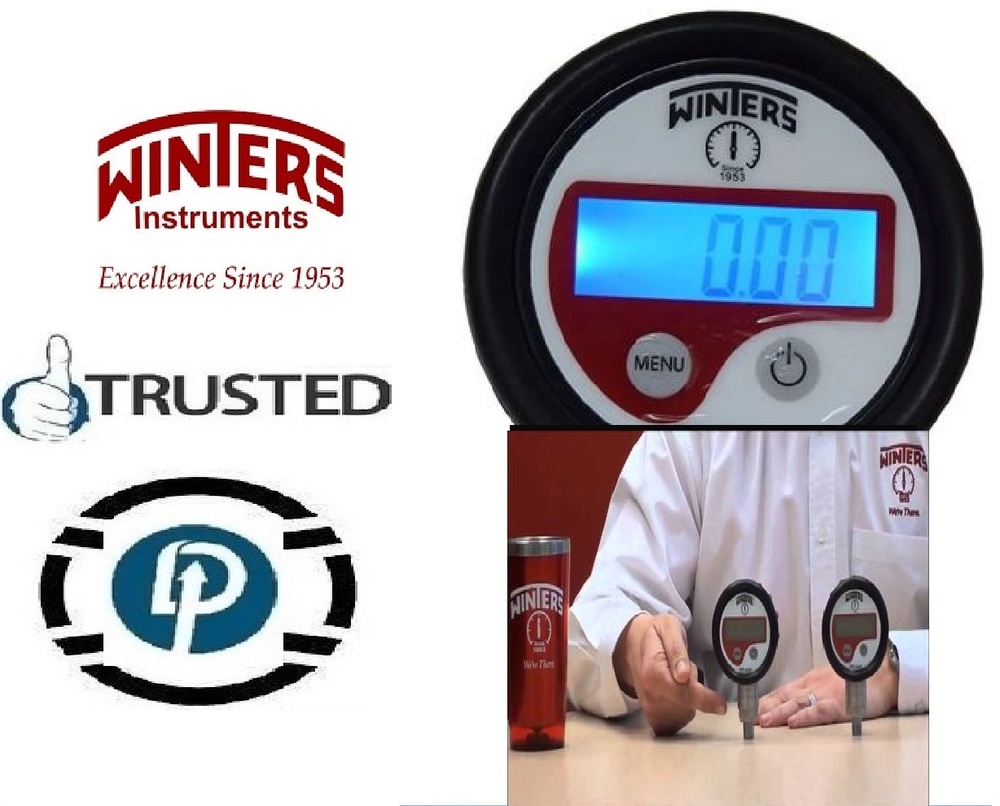

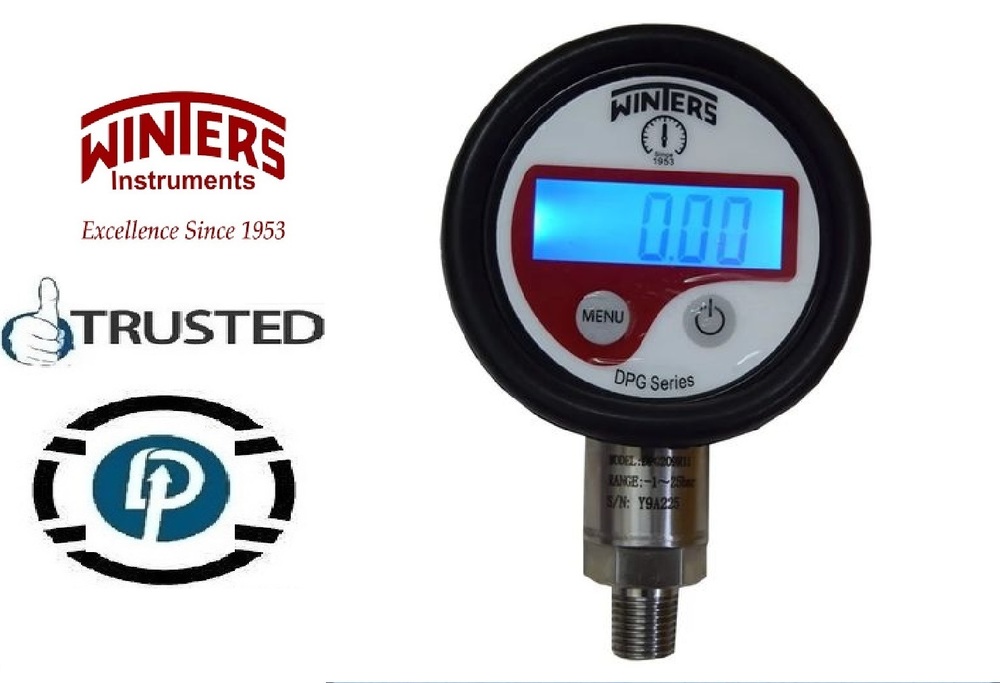

Winters Canada Digital Pressure Gauge DPG210 Dealers Near Mumbai

• MODEL - DPG210
• RANGE - 30'' HG VAC
• Description & Features

• Simple 2 Button Operation
• Reset To Zero Feature
• Backlight Turns On When On/Off Button Is Pressed
• Option For Display To Remain Continuously On
• Continuous Peak Pressure Indication Option
• 316L Welded Diaphragm Seal
• Rubber Boot Is Standard
• ASME B40.100 Compliant
• RoHS Compliant
• +/-1% Accuracy (+-/ 0.5% Optional For Gauges Up to 5000 PSI)
• 1 Year Warranty
  Applications


• Ideal For Commercial And Industrial Applications In Both Test Measurement And General Purpose Installations

Specifications
Case Size	2.5" (63MM)
Case Material	ABS (IP64)
Rubber Boot	Silicone Rubber (IP65)
LCD Display	2"X3/4" (48MMX16MM)
Connection	1/4" NPT 304SS
Sensor	316L Welded,Piezo
Operation Life	1 Million Cycles
Power Supply	2 x AAA Battery (1.5V)
Battery Life	2 Yrs (Auto Shut-Off Mode)
Power Mode	Auto or Manual Shut-Off
Display Digits	4 digits to 5000 psi,5 digits for 10000 psi
Resolution	psi,mmHaO,mmHg,mbar,kPa a 100 psi
	psi, bar, kg/cmA2,mPa,atm ranges a 160 psi
Operation Mode	Continuously Reading or Peak Pressure Reading
Response Time	a3 Hz Display Refresh Rate
Proof/Burst Pressure	200%/300% FS
Operating/Storage Temperature	14AF to 122AF (-10AC to 50AC)
	-4AF to 167AF (-20AC to 75AC)
Accuracy	A0.5%
Dial Size	2.5" (63mm
Connection	1/4" Bottom
Socket	SS

Resolution Table for Winters Gauges

Resolution Table for Winters Gauges
MODEL	RANGE	KPA	MBAR	MMHG	MMH20	PSI	BAR	Kg/cm2	ATM	MPA
DPG205R11	-1000 To 3000 mbar	0.1	2	1	0.01	0.01	a	a	a	a
DPG207R11	-1 To 10 Bar	a	a	a	a	0.1	0.01	0.01	0.01	0.001
DPG209R11	-1 To 25 Bar	a	a	a	a	0.1	0.02	0.01	0.01	0.001
DPG231R11	0 To 60 Bar	a	a	a	a	0.7	0.05	0.05	0.05	0.001
DPG220R11	0 To 100 Bar	a	a	a	a	1	0.1	0.1	0.1	0.01
DPG222R11	0 To 250 Bar	a	a	a	a	1	0.2	0.1	0.1	0.01
DPG223R11	0 To 400 Bar	a	a	a	a	1	0.2	0.1	0.1	0.01
DPG224R11	0 To 700 Bar	a	a	a	a	1	0.5	0.1

Versatile Applications Across Multiple Industries

The Winters Canada Digital Pressure Gauge DPG210 is engineered to meet the demands of a broad array of sectors, including pharmaceutical plants, hotels, hospitals, power generation, cement, steel, fertilizer, textile, food and beverage, and pulp and paper industries. Its robust stainless steel construction and diverse finishing options ensure it stands up to harsh conditions and rigorous use.


Precision Engineering for Reliable Performance

This digital pressure gauge is calibrated for accuracy within 0.5%, providing reliable readings in psi, bar, kg/cm2, mPa, and atm. The 2.5-inch digital display is easy to read, making on-site monitoring convenient even from a distance. Its standard 1/4 thread and panel mount design allow for uncomplicated installation.


Designed for Durability and Efficiency

The gauge's stainless steel material and choice of finishes-antique, polished, galvanized, or matte-protects it from corrosion and damage. With a weight of just 150 grams and a compact form factor, the DPG210 is easy to integrate into new or existing systems, ensuring lasting performance and minimal maintenance.
