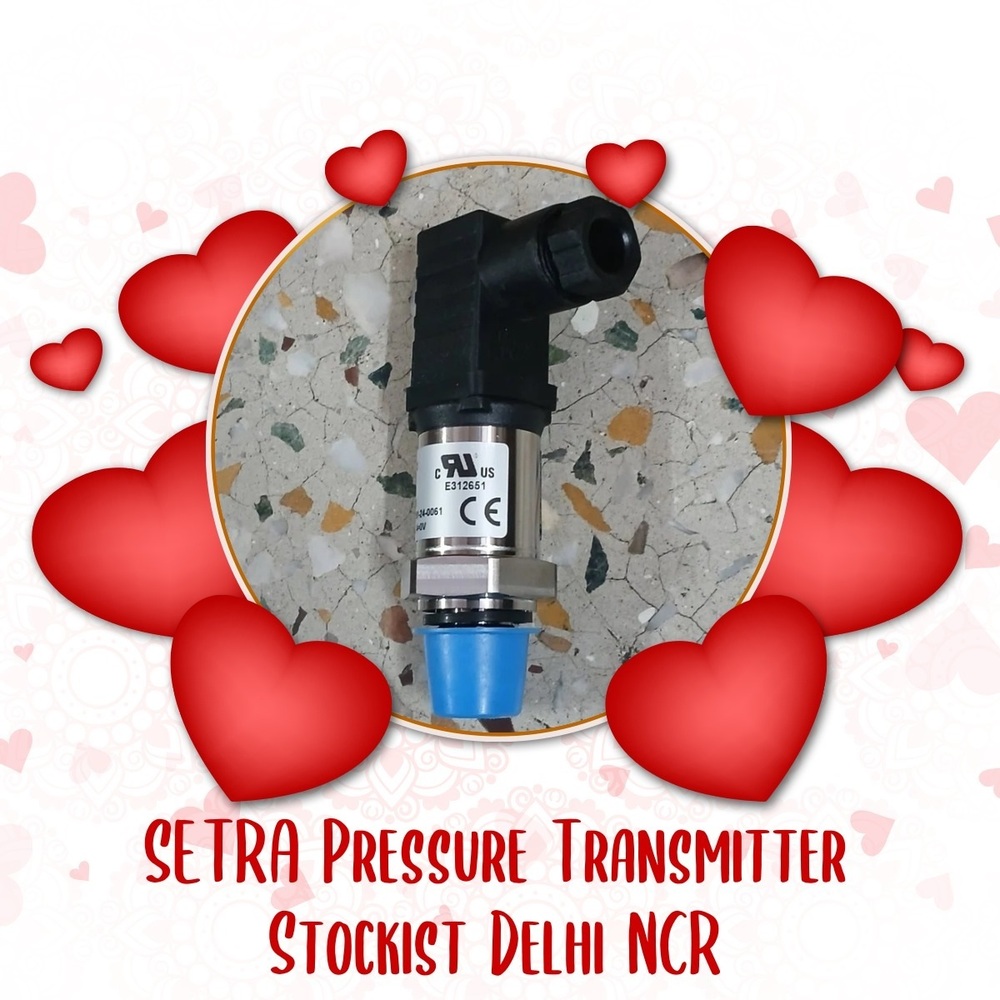

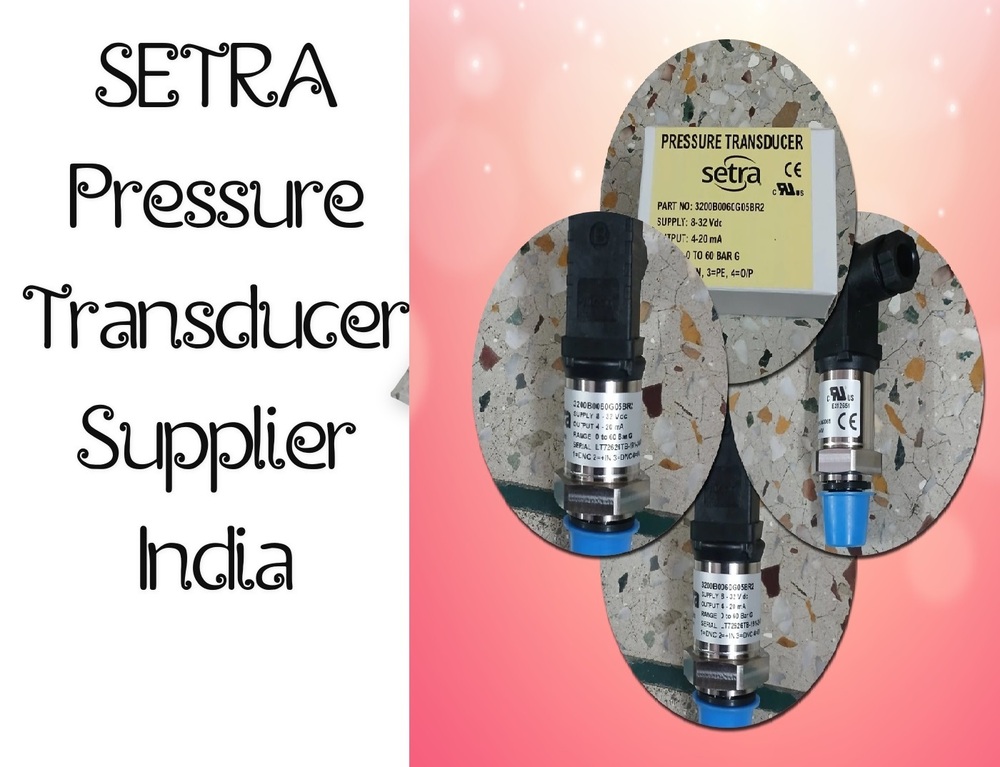

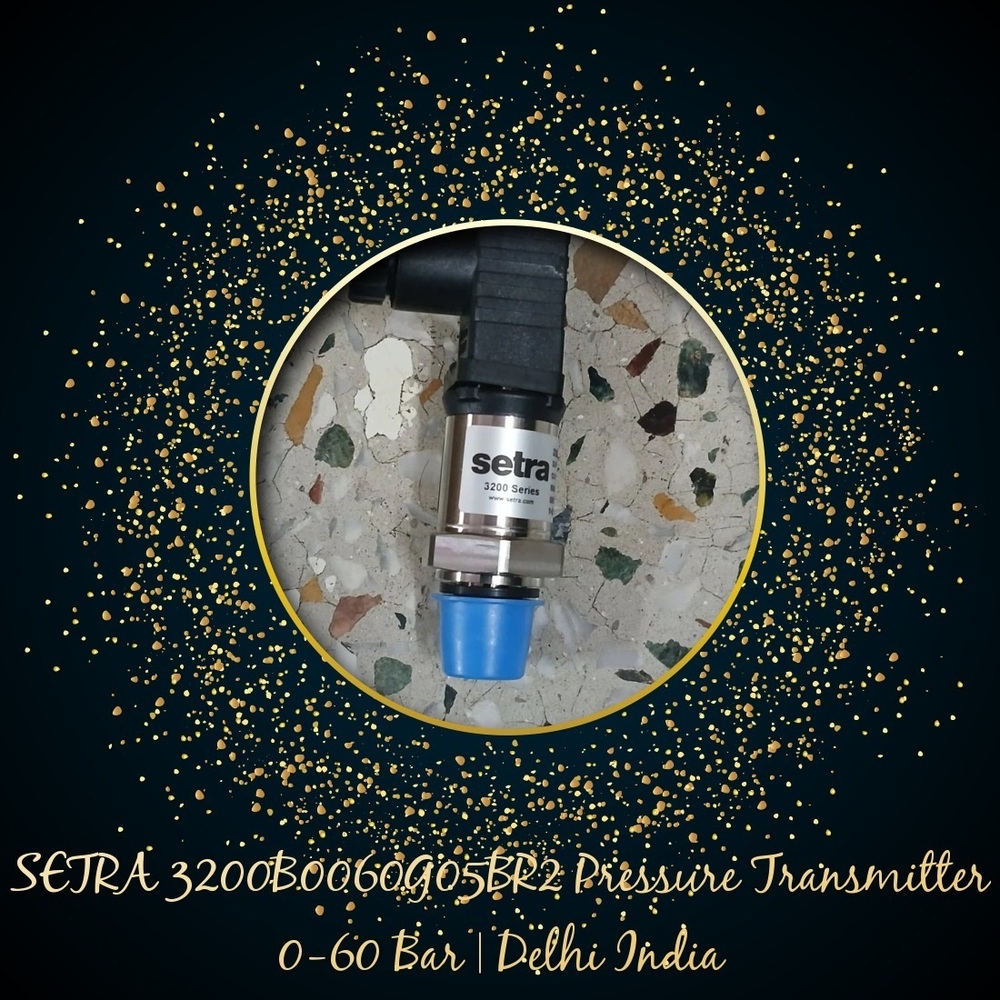

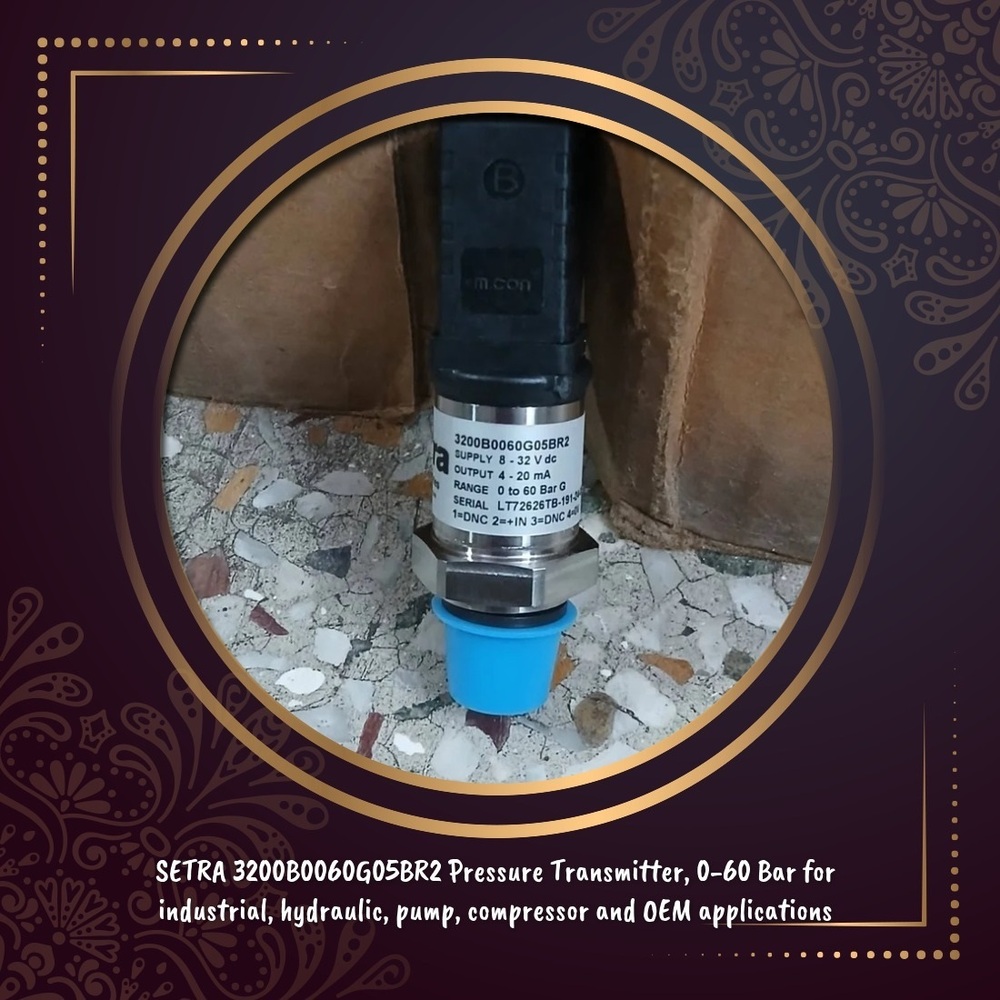

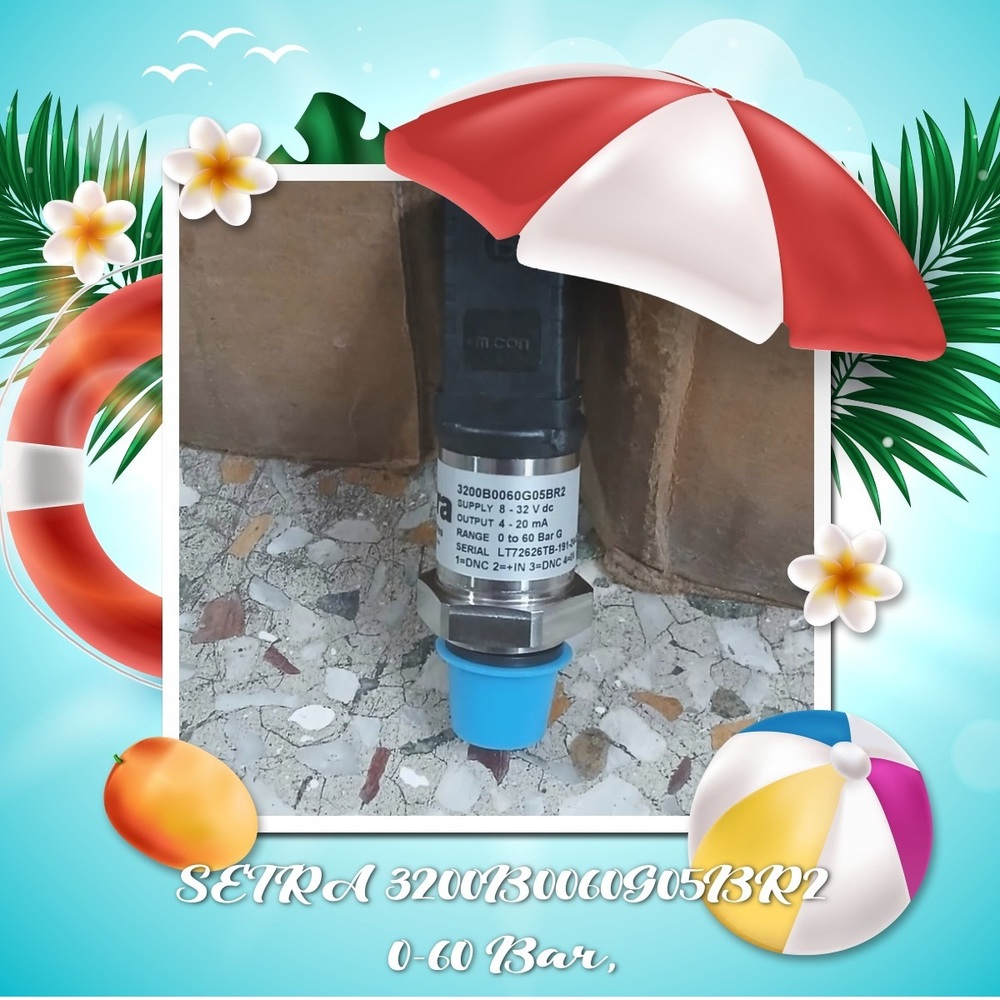

SETRA 3200B0060G05BR2 Pressure Transmitter 0-60 Bar | Delhi NCR India

About SETRA 3200B0060G05BR2 Pressure Transmitter 0-60 Bar | Delhi NCR India

Product Information
SETRA Model 3200B0060G05BR2 is a Heavy-Duty Industrial OEM Pressure Transmitter Designed For Accurate and Reliable Measurement of Pressure up to 060 Bar.The Model 3200 Uses Sputtered thin-film sensing technology,Rugged stainless-steel construction and compact Design for Demanding Industrial Applications.SETRA Model 3200 is Available With Different Electrical Outputs and Connection Configurations.

Technical Data

• Brand: SETRA
• Model: 3200
• Part No.: 3200B0060G05BR2
• Pressure Range: 060 Bar
• Type: Gauge Pressure Transmitter
• Supply: 8-32 VDC
• OUTPUT: 4...20 mA
• CONNECTION: 1/4" NPT 304 SS.
• COUNTRY OF ORIGIN: INDIA
• Sensing Technology: Sputtered Thin Film
• Accuracy: Configuration dependent; Model 3200 Specifications Are Available up to 0.25% FS / 0.5% FS Depending On Product Configuration
• Response Time: Approximately 1 ms
• Construction: Heavy-Duty Industrial
• Protection: IP67 depending on configuration

Product Features

• Heavy-duty industrial Design
• Rugged all-welded Stainless-Steel Construction
• Excellent long-term stability
• Compact size for OEM installation
• Fast response
• High resistance to vibration and harsh industrial environments
• Reverse wiring protection
• Multiple electrical output and pressure connection options

Field Of Application
Suitable for Hydraulic Systems,Industrial Machinery,Compressors,Pumps, Process Equipment,Power-Generation Equipment,Irrigation Systems,OEM Machinery,Pressure Monitoring And Industrial Automation Applications.

Ambient Condition
Operating and Compensated Temperature range can extend approximately from -40C to +125C, depending on configuration.The Transmitter should be protected from pressure,Temperature And Environmental Conditions Outside its Specified Limits.

Material

• Sensing Diaphragm: 17-4 PH Stainless Steel
• Fittings/wetted components: 304 stainless steel,Depending on Configuration
• Housing: Rugged stainless-steel construction

Electrical Data
Model 3200 Configurations Are Available With 420 mA, 010 VDC, 05 VDC, 15 VDC, 16 VDC and ratiometric outputs.Supply Voltage and Electrical Connector Depend on the exact part-number Configuration.

Installation Guide
Install The Transmitter on the correct pressure port using suitable fittings and sealing. Keep the pressure connection Clean and avoid excessive vibration or mechanical stress. Connect electrical wiring according to the Applicable SETRA wiring Diagram.Do not exceed the rated pressure, temperature or electrical limits. Verify the complete configuration before commissioning.

Approval
Model 3200 is Designed For Industrial Applications and is Available with RoHS compliance and CE-related EMC Requirements,Depending on configuration. Exact approvals should be Verified for the Ordered Part Number.

Accessories
Suitable Accessories May Include Pressure Fittings,Adapters,Electrical Connectors,Cables,Mounting Accessories and Pressure Restrictors.Select Accessories According to the Exact Transmitter Configuration.
