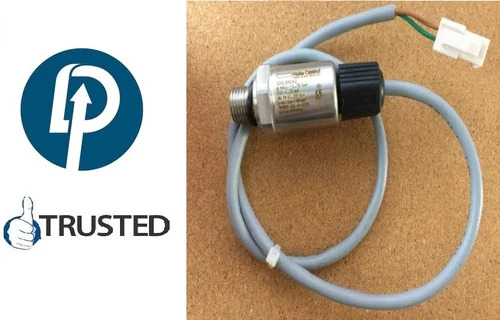

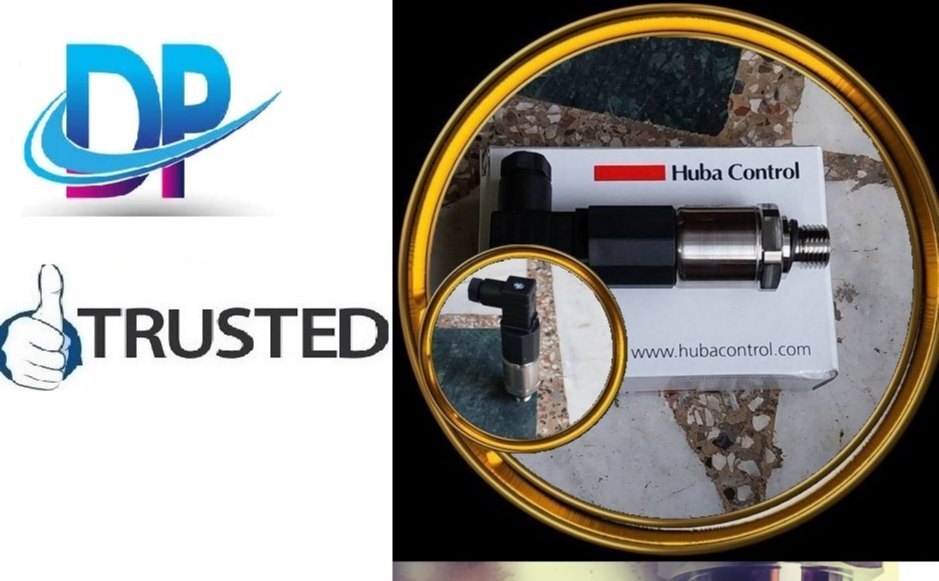

Huba - Pressure Transmitter Model: 520.914S032401W RANGE: -1-10 BAR OUTPUT 4-20mA

About Huba - Pressure Transmitter Model: 520.914S032401W RANGE: -1-10 BAR OUTPUT 4-20mA

 Huba - Pressure Transmitter Model: 520.914S032401W RANGE: -1-10 BAR OUTPUT 4-20mA

• Relative Pressure Transmitter
• Type a 520
• Manufacturer a HUBA CONTROL
• Model a 520.914S032401W
• RANGE a 0-10 BAR

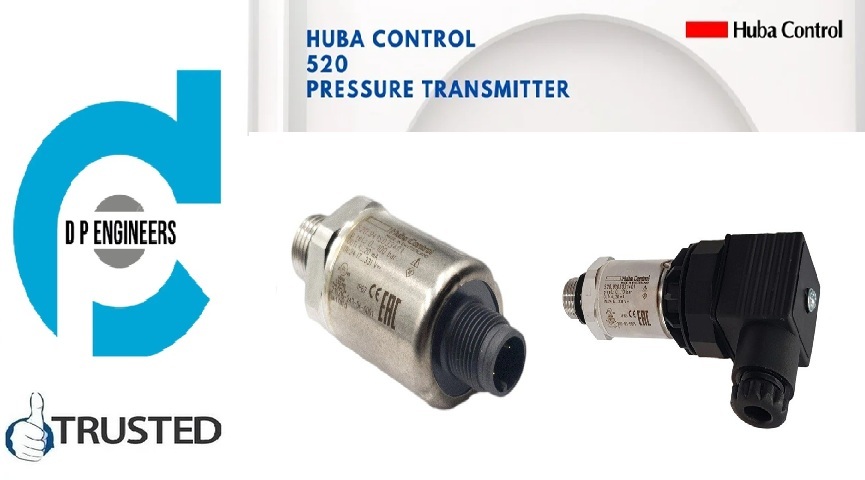

The  Compact  Type  520  Pressure  Transmitter  Is  Based  Upon The  Huba  Control  Developed  Thick  Film  Technology  Where  The  Pressure Measuring Cell Is Fully Welded.

This  Transmitter  Meets The  High  Burst  Protection  Demands  And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.

Pressure Range

• -1 a 9 bar / 0 a 2.5 a 1000 bar
• Compact,Rugged Construction
• Welded Without Sealing parts,No Elastomer Seals
• Large Selection Of Connections Available.
• Saving Time By Quick Cable Mounting By The Customer With Swift Connector

General Features:

• Compact, Rugged Construction
• Large Selection Of Connections Available
• Welded Without Sealing Parts, No Elastomer Seals
• Medium: Liquids, Gases And Refrigerants (Including Ammonia)
• Saving Time By Quick Cable Mounting By The Customer With Swift Connector

SERIES	Type 520
PRESSURE RANGE	-1 a 10 BAR
POWER SUPPLY	7 a 33 VDC
OUTPUT DC	4 a 20 mA
ELECTRICAL CONNECTION	M12x1
DESCRIPTION	Pressure Transmitter
PRESSURE CONNECTION	G 1/4
INDEX PROTECTION IP	IP67
ACCURACY	A 0.3 % fs
MEDIUM TEMPERATURE RANGE	-15 a +125 AC
RESPONSE TIME	< 2 ms, (1 ms typical)
MATERIAL	Connection Stainless Steel 1.4404 / AISI 316L
DIMENSIONS (MM)	24 x 46.7 MM
CONFORMITY	EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110

WhatsApp No.9871014210,

WhatsApp No.9811065204,

WhatsApp No.8376899729,

WhatsApp No.8368888047,

WhatsApp No.9268631221,

Versatile Pressure Measurement

The Huba 520.914S032401W Pressure Transmitter is tailored for a wide range of industrial pressure sensing applications. Capable of accurately measuring pressures from -1 to 10 BAR, it is suitable for liquids, gases, and refrigerants, including ammonia. Its robust build and precise output facilitate its integration in complex processing environments, delivering reliable, repeatable results for essential operational monitoring.


Reliable Build and Finishing Options

Constructed from high-grade stainless steel, this transmitter ensures durability and longevity even under demanding conditions. Customers have the option to choose from various finishings such as antique, polished, galvanized, or matte, allowing for customization based on specific installation environments or aesthetic preferences while maintaining robust performance.
