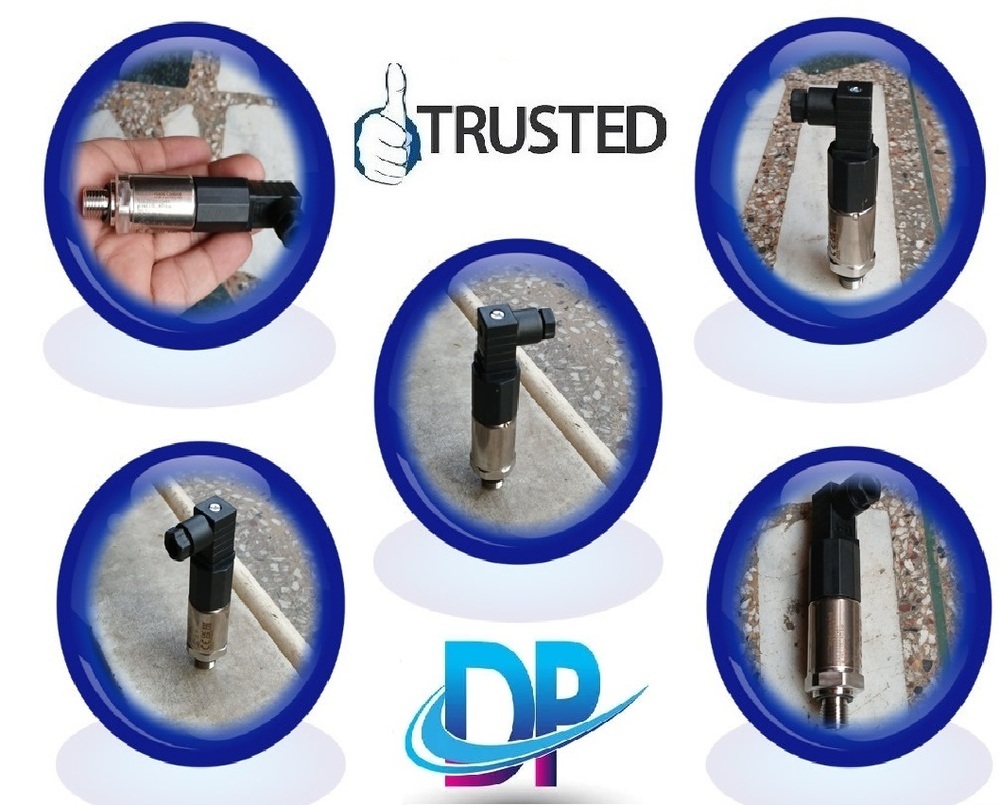

Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA

Send Inquiry

Request To Call Back

Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA

Price 12500 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA Specification

Thread
1/4 inch NPT

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Material
Stainless Steel

Size
0-500 BAR

Processing Type
Standard

Product Type
Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA

Color
white

Mount Type
Panel

Scale Range
0-500 BAR

Accuracy
0.1 %

Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
New Delhi

Payment Terms
Cash Against Delivery (CAD), Paypal, Cash in Advance (CID), Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA

Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA

Relative Pressure Transmitter
Type a 520
Manufacturer a HUBA CONTROL
Model a 520.914S032401W
RANGE a 0-500 BAR

The Compact Type 520 Pressure Transmitter Is Based Upon The Huba Control Developed Thick Film Technology Where The Pressure Measuring Cell Is Fully Welded.

This Transmitter Meets The High Burst Protection Demands And Is Suitable For The Use In All Types Of Refrigerants Including Ammonia.

Pressure Range

-1 a 9 bar / 0 a 2.5 a 1000 bar
Compact,Rugged Construction
Welded Without Sealing parts,No Elastomer Seals
Large Selection Of Connections Available.
Saving Time By Quick Cable Mounting By The Customer With Swift Connector

General Features:

Compact, Rugged Construction
Large Selection Of Connections Available
Welded Without Sealing Parts, No Elastomer Seals
Medium: Liquids, Gases And Refrigerants (Including Ammonia)
Saving Time By Quick Cable Mounting By The Customer With Swift Connector

SERIES	Type 520
PRESSURE RANGE	0 a 500 BAR
POWER SUPPLY	7 a 33 VDC
OUTPUT DC	4 a 20 mA
ELECTRICAL CONNECTION	M12x1
DESCRIPTION	Pressure Transmitter
PRESSURE CONNECTION	G 1/4
INDEX PROTECTION IP	IP67
ACCURACY	A 0.3 % fs
MEDIUM TEMPERATURE RANGE	-15 a +125 AC
RESPONSE TIME	< 2 ms, (1 ms typical)
MATERIAL	Connection Stainless Steel 1.4404 / AISI 316L
DIMENSIONS (MM)	24 x 46.7 MM
CONFORMITY	EN 61326-2-3 / IEC 68-2-27 / IEC 68-2-29 / IEC 68-2-6 / UL E325110

Huba Pressure Transmitter Model 520.914S032401W RANGE 0-1 BAR OUTPUT 4-20mA

Robust and Versatile Construction

Crafted from high-quality stainless steel, the Huba Pressure Transmitter is engineered to withstand harsh conditions while maintaining consistent accuracy. With multiple finishing options such as polished, matte, galvanized, and antique, users can select the ideal transmitter for their environment and aesthetic requirements.

Precision Measurement Across Applications

With a measuring range of 0-500 BAR and an output signal of 4-20mA, this transmitter accurately monitors the pressure of steam, oil, and gas. Its exceptional 0.1% accuracy makes it a reliable choice for processes demanding exceptional performance in sectors such as cooling, water treatment, and industrial automation.

Easy Integration and Dependable Usage

The panel mount design and 1/4 inch NPT threading facilitate seamless installation in various systems. It is crafted to serve critical roles in refrigeration equipment, water pumps, ultrafiltration, and CPU cooling, ensuring stable operation and long-term durability.

FAQ's of Huba Pressure Transmitter Model: 520.914S032401W RANGE 0-500 BAR OUTPUT 4-20mA:

Q: How do I install the Huba Pressure Transmitter Model 520.914S032401W?

A: Installation is straightforward thanks to the 1/4 inch NPT threaded connection and the panel mount type. Simply screw the transmitter into the designated port and connect the 4-20mA output to your control system following standard wiring practices. Ensure the system is depressurized before installation for safety.

Q: What types of media can this pressure transmitter measure?

A: This Huba model is suitable for measuring the pressure of steam, oil, and gas, making it a versatile solution for a wide range of industrial applications, including refrigeration and fluid management systems.

Q: When is this transmitter typically used in industrial processes?

A: It is most commonly utilized in applications that require high precision, such as refrigeration systems, water pumps, CPU cooling, and ultrafiltration plants, where accurate pressure monitoring is critical for efficient operation and safety.

Q: Where can I purchase the Huba 520.914S032401W pressure transmitter?

A: This model is available through reputable exporters, manufacturers, suppliers, and traders across India, ensuring easy procurement for both domestic and international customers.

Q: What benefits does the 0.1% accuracy provide for my system?

A: The high accuracy of 0.1% ensures precise pressure readings, which is essential for process reliability, safety, and efficiency. This level of precision helps minimize errors and maintain optimal system performance.

Q: How is the transmitter protected against harsh environments?

A: Its robust stainless steel construction, combined with options for polished, galvanized, matte, or antique finishes, delivers durability and resistance to corrosion, making it well-suited to challenging industrial conditions.

Q: What is the process for connecting the output of this transmitter?

A: The transmitter offers a standard 4-20mA analog output, making it compatible with most industrial controllers, PLCs, and monitoring devices. Wiring diagrams are typically provided by the manufacturer to assist with proper electrical connections.
