Huba Control Differential Pressure Transmitter 692

Price 35800 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Huba Control Differential Pressure Transmitter 692 Specification

Thread
1/4 inch NPT

Usage
REFRIGERATION SYSTEMS,CPU,WATER PUMPS,ULTRAFILTRATION SYSTEM

Material
Stainless Steel

Size
0 ... 25 Bar

Processing Type
Standard

Product Type
Huba Control Differential Pressure Transmitter 692

Weight
450 Grams (g)

Color
Red

Mount Type
Panel

Scale Range
0 ... 25 Bar

Accuracy
+-0.5 %

Huba Control Differential Pressure Transmitter 692 Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cash on Delivery (COD)

Supply Ability
4 Pieces Per Week

Delivery Time
4 Week

Main Export Market(s)
Asia, Middle East

Main Domestic Market
All India

About Huba Control Differential Pressure Transmitter 692

Huba Control Differential Pressure Transmitter 692

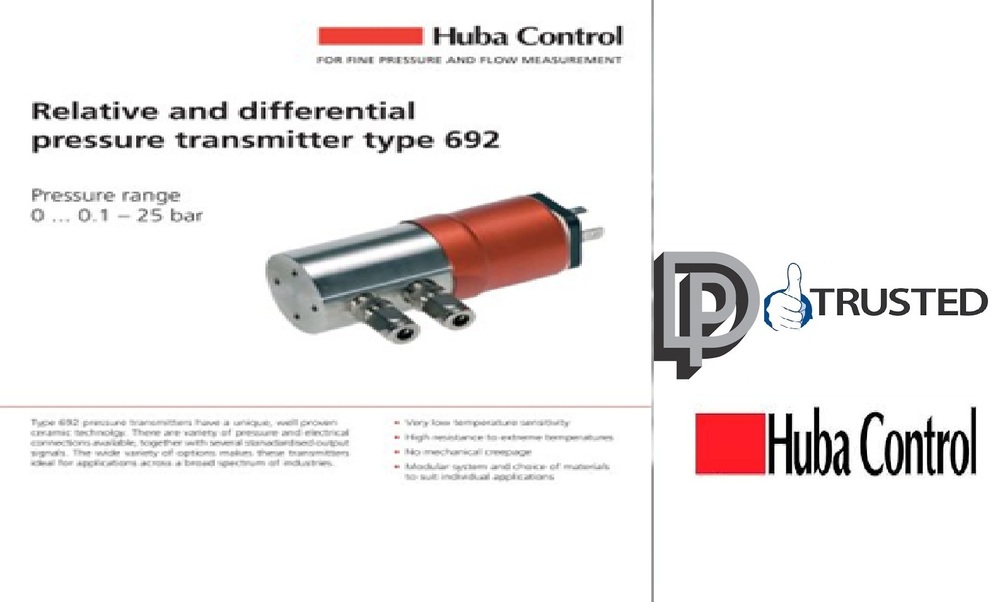

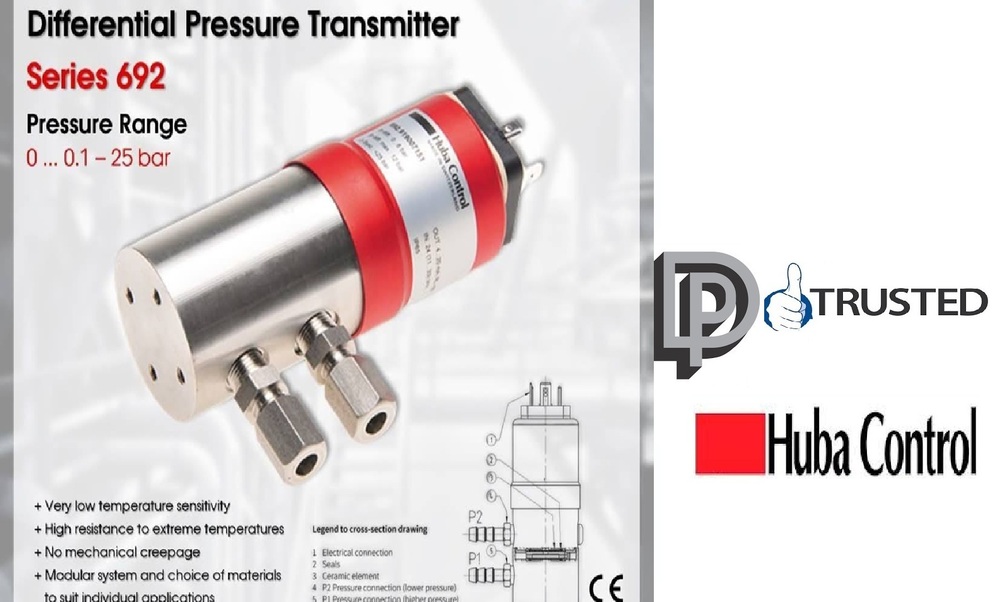

Product InformationDifferential pressure transmitter 692
The Pressure Transmitters of Type 692 Feature The Unique And Proven Ceramic Technology. Depending On The Application, arious Pressure Connections And Electrical Connections With Standardized Output Signals Are Available. Due To The Wide Variety Of Options, he Transmitters 692 Are Suitable For All Types Of Industrial Applications.

Very Low Temperature Sensitivity

High Temperature Resistance

No Mechanical Creep

Individual Applications Through Modular System And Different Material Choices

Technical DataProduct Feature

Pressure Measuring Range : 0 ... 25 Bar (Relative And Difference)

Response Time : <5 ms

Load Change : <50 Hz

Sensor Weight : 430 g

Field Of Application

Media : Process Medium; Gas

Medium Temperature : -15 ... 85 AC

Permissible Overload On One Side : See Variant Plan

System Pressure : 12; 25; 50 Bar

Bursting Pressure : 1.5 x System Pressure

Ambient Condition

Ambient Temperature : -15 ... 85 AC

Storage Temperature : -40 ... 85 AC

Material

Housing : Stainless Steel 1.4305 (AISI 303); PVDF

Pressure Connection With Media Contact : Stainless Steel 1.4305 (AISI 303); PVDF; CuZn Vni

Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

Sealing Material With Media Contact : FPM; EDPM; NBR; MVQ; CR

Electrical Data

Current Consumption : <20 mA

Inverse-Polarity Protection : Short-Circuit And Reverse Polarity Protected. Each Connection Against Each Other With Max. Supply Voltage.

Installation Guide

Installation Orientation : any

Assembly : Mounting Bracket

Approval
EMC Compatibility : CE-Compliant In Accordance With EN 61326-2-3
Applications

REFRIGERATION SYSTEMS

CPU

WATER PUMPS

ULTRAFILTRATION SYSTEM

Accessories

Mounting Bracket

Socket Outlet DIN EN 175301-803-A : With Seal; IP 65, When Mounted And Screwed.

Socket Outlet DIN EN 60130-9 : IP 65, When Mounted And Screwed.

Calibration Certificate

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

Versatile Pressure Measurement

Designed for a broad range of applications, the Huba Control Differential Pressure Transmitter 692 accurately measures differential pressure in steam, oil, and gas systems. Its scale range of 0 to 25 bar, along with a high accuracy of 0.5%, ensures reliable data critical for process efficiency.

Durable and Professional Build Quality

Crafted from top-grade stainless steel, this pressure transmitter provides long-lasting performance and resistance to corrosion. A variety of polished, galvanized, matte, and antique finishes ensures compatibility with various industrial environments while maintaining a professional appearance.

Efficient Integration and Ease of Use

Featuring a 1/4 inch NPT threaded connection and panel mounting design, installation into existing systems is straightforward. Its standard processing type and compact 450-gram build make it highly adaptable and easy to fit into diverse settings, saving both time and space.

FAQ's of Huba Control Differential Pressure Transmitter 692:

Q: How is the Huba Control Differential Pressure Transmitter 692 typically used in industrial systems?
A: The transmitter is used for precise differential pressure measurement in systems such as refrigeration, CPUs, water pumps, and ultrafiltration systems, ensuring optimal process control and efficiency.

Q: What are the installation requirements for the Huba Control Differential Pressure Transmitter 692?
A: It features a 1/4 inch NPT thread and a panel mount design, making it easy to install in most industrial setups without requiring complex modifications.

Q: When should I choose the Differential Pressure Transmitter 692 over other transmitters?
A: Select this model when you require a measurement range up to 25 bar, high accuracy of 0.5%, robust stainless steel construction, and compatibility with steam, oil, and gas applications.

Q: Where can the 692 transmitter be applied for best results?
A: Best results are achieved in applications such as monitoring and controlling pressure in refrigeration systems, industrial CPUs, water pump setups, and ultrafiltration processes.

Q: What benefits does the stainless steel construction provide?
A: Stainless steel offers excellent corrosion resistance, mechanical strength, and longevity, making the transmitter suitable for harsh environments and ensuring years of reliable operation.

Q: How does process integration work with this pressure transmitter?
A: Its standard processing type and versatile connection allow seamless integration into existing monitoring and automation systems, reducing setup time and facilitating maintenance.
