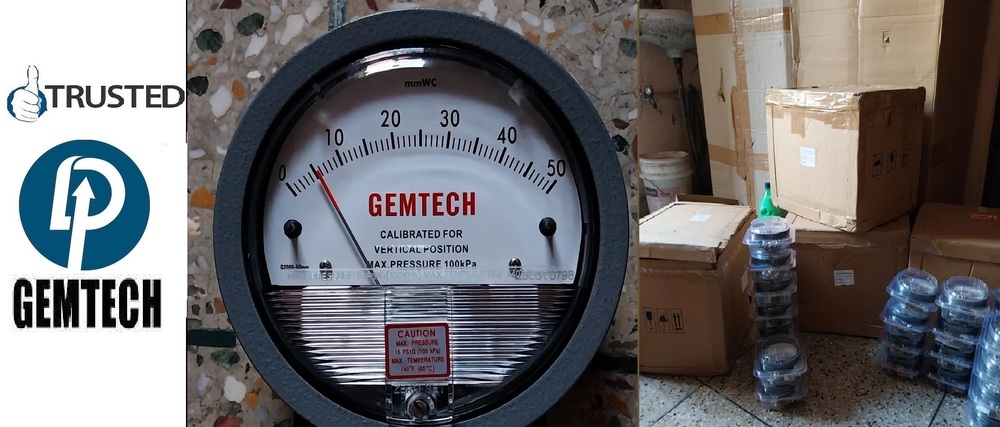

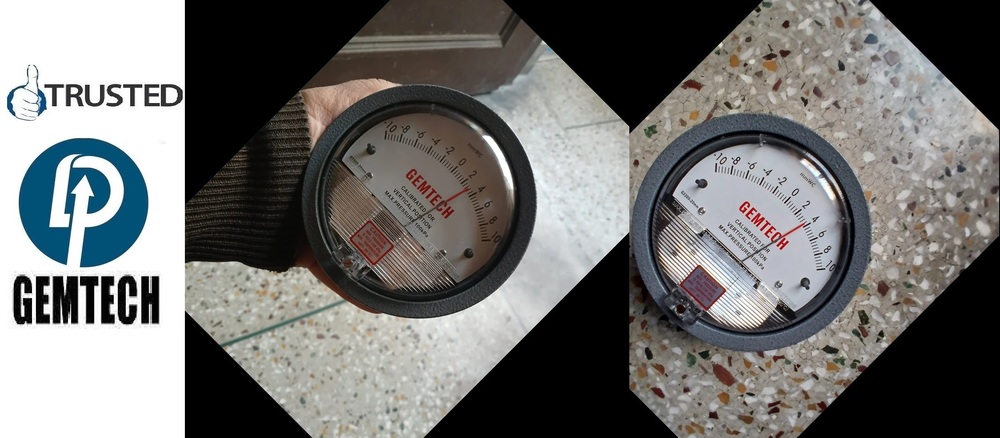

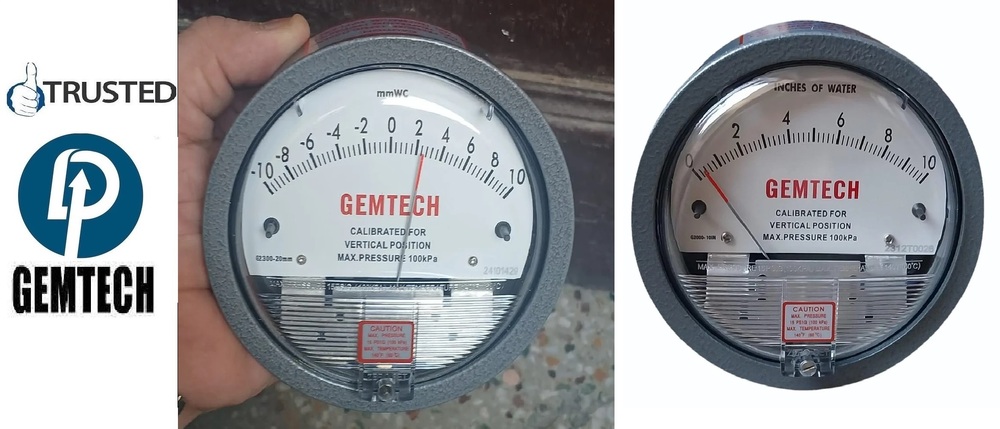

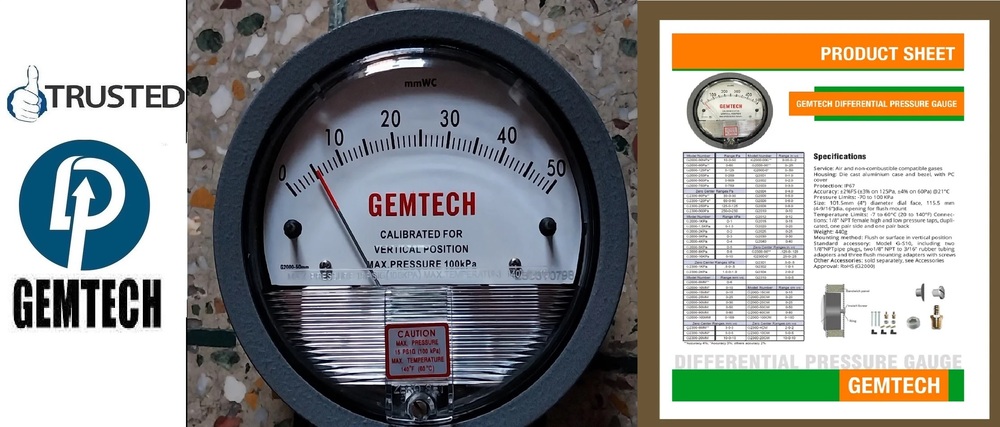

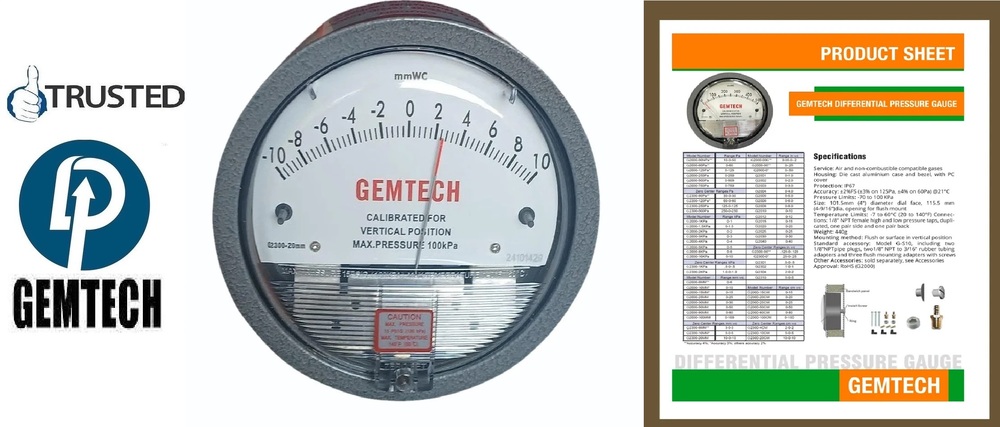

GEMTECH Series G2000-0.5KPA Differential Pressure Gauges

About GEMTECH Series G2000-0.5KPA Differential Pressure Gauges

• Ambient Temperature -   -21 140 -6 60

• Rated Pressure -20 inHg30 inHg (-68103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

• Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy - 2% of full span at 70 (21 (3% on -0,and 4% on -00)

• Range -20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered)

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics
• There Are 81 Types Of Ranges.Minimum is 0-60 Pa And Maximum is 0-21-KPa

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By  Model Number Popularity

• FILTER BY
• Range - Kilopascals

Sort by  Model Number Popularity

Model	Description
G2000-1.5KPA	DPG,Range 0-1.5 kPa,Minor Divisions .05.
G2000-10KPA	DPG,Range 0-10 kPa,Minor Divisions .20.
G2000-15KPA	DPG,Range 0-15 kPa,Minor Divisions .50.
G2000-1KPA	DPG,Range 0-1 kPa,Minor Divisions .02.
G2000-20KPA	DPG,Range 0-20 kPa,Minor Divisions .50.
G2000-25KPA	DPG,Range 0-25 kPa,Minor Divisions .50.
G2000-2KPA	DPG,Range 0-2 kPa,Minor Divisions .05.
G2000-30KPA	DPG,Range 0-30 kPa,Minor Divisions 1.0.
G2000-3KPA	DPG, Range 0-3 kPa,Minor Divisions.10.
G2000-4KPA	DPG,Range 0-4 kPa,Minor Divisions.10.
G2000-5KPA	DPG,Range 0-5 kPa,Minor Divisions.10.
G2000-8KPA	DPG,Range 0-8 kPa,Minor Divisions.20.

Versatile Pressure Measurement

The GEMTECH Series G2000-0.5KPA Differential Pressure Gauge is engineered to cater to a range of industries, including pharmaceuticals, power plants, malls, and hotels. Its multi-scale reading capability and high accuracy make it suitable for monitoring pressure differences in steam, oil, and gas systems, ensuring operational safety and efficiency in diverse environments.


Robust Construction and Materials

Built with a sturdy metal alloy body and aluminum pointer, the G2000-0.5KPA is designed for longevity and resistance to challenging operating conditions. The gauge's dial is made of clear, durable plastic and comes in an array of finishes, including antique, polished, galvanized, and matte, ensuring both reliability and aesthetic flexibility.

FAQ's of GEMTECH Series G2000-0.5KPA Differential Pressure Gauges:

Q: How do I install the GEMTECH Series G2000-0.5KPA Differential Pressure Gauge?

A: Installation is straightforward thanks to its back-mounted design. Secure the gauge onto the appropriate panel or system using compatible fittings. Ensure the connection points are leak-free, and calibrate according to your system requirements for optimal accuracy.

Q: What materials are used in the construction of this differential pressure gauge?

A: The body of the gauge is constructed from a tough metal alloy, fitted with an aluminum pointer for precise movement. The dial itself is crafted from plastic, ensuring clear visibility and resistance to wear.

Q: When should I choose a differential pressure gauge over other types?

A: A differential pressure gauge is ideal when measuring the difference in pressure between two points, such as in filters or across pumps. Choose this type for applications demanding reliability and accuracy in monitoring pressure drops in critical systems.

Q: Where can the G2000-0.5KPA gauge be used effectively?

A: This gauge is commonly used in pharmaceutical production, hotels, hospitals, power plants, cement and steel factories, fertilizer manufacturing, textile, food and beverage industries, and more, making it highly versatile across industrial environments.

Q: What is the process for reading the pressure measurement?

A: Simply observe where the aluminum pointer aligns on the analog dial. The gauge can display pressure in MM WC, CM, PAC, KPA, INCH, or PSI, making it easy to interpret readings according to your system's needs.

Q: What are the main benefits of using this differential pressure gauge?

A: The GEMTECH G2000-0.5KPA provides accurate, reliable readings (2% accuracy at full span), is robustly built to withstand harsh industrial conditions, and accommodates multiple pressure units, promoting efficiency and long service life.
