GEMTECH PRESSURE - QUALITY SINCE 1995 - PRESSURE MEASUREMENTS

About GEMTECH PRESSURE - QUALITY SINCE 1995 - PRESSURE MEASUREMENTS

GEMTECH PRESSURE - QUALITY SINCE 1995 - PRESSURE MEASUREMENTS

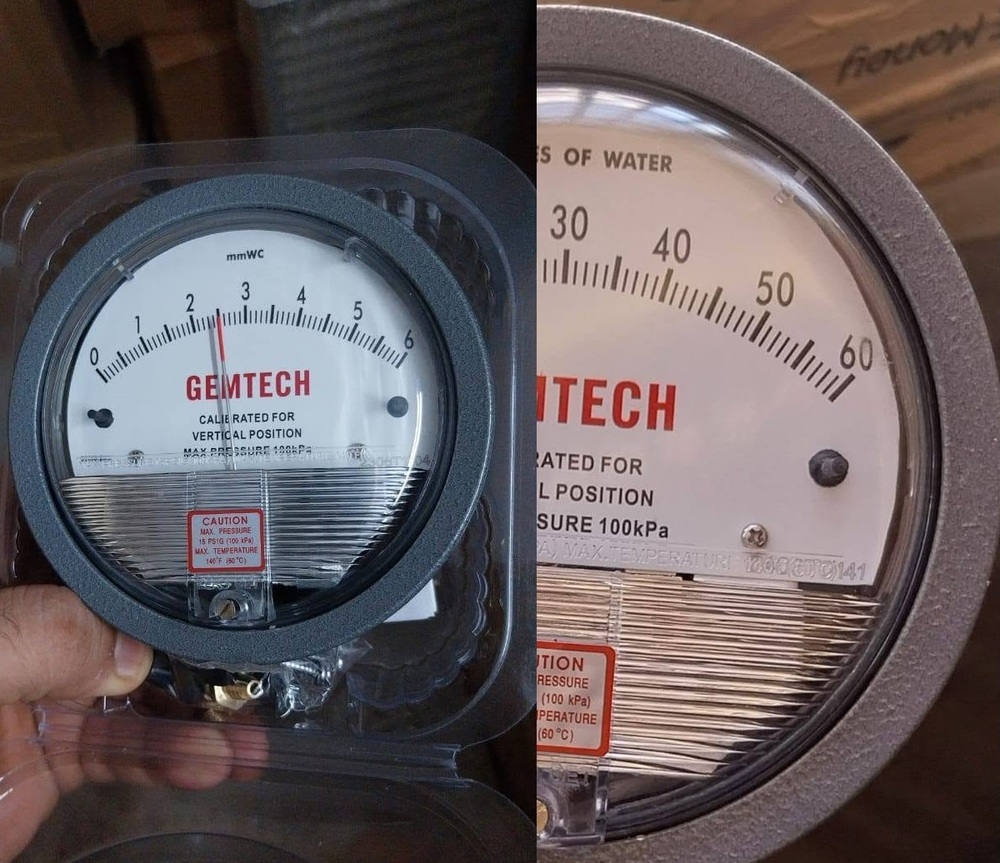

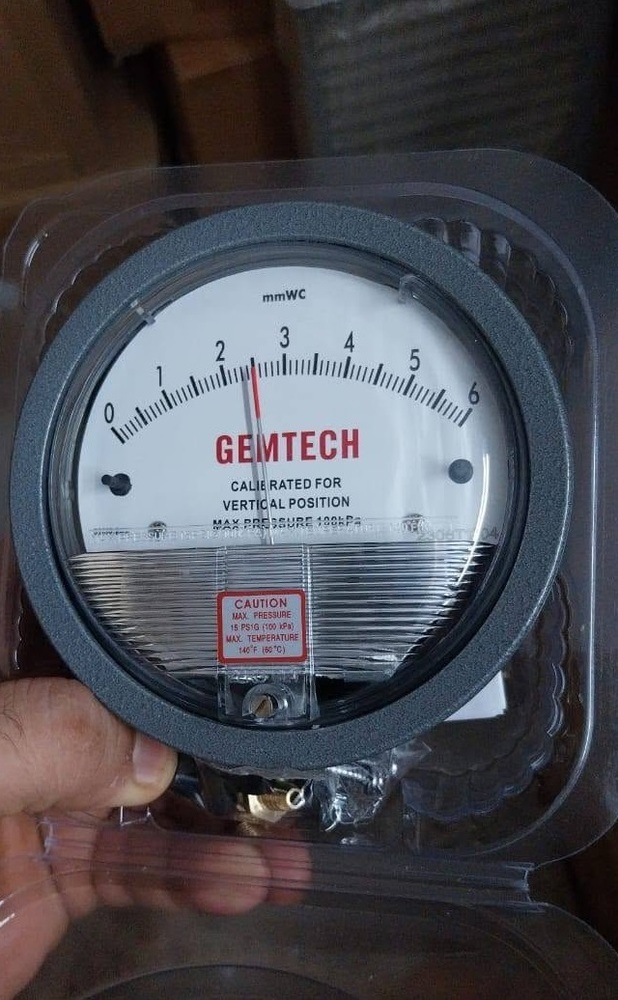

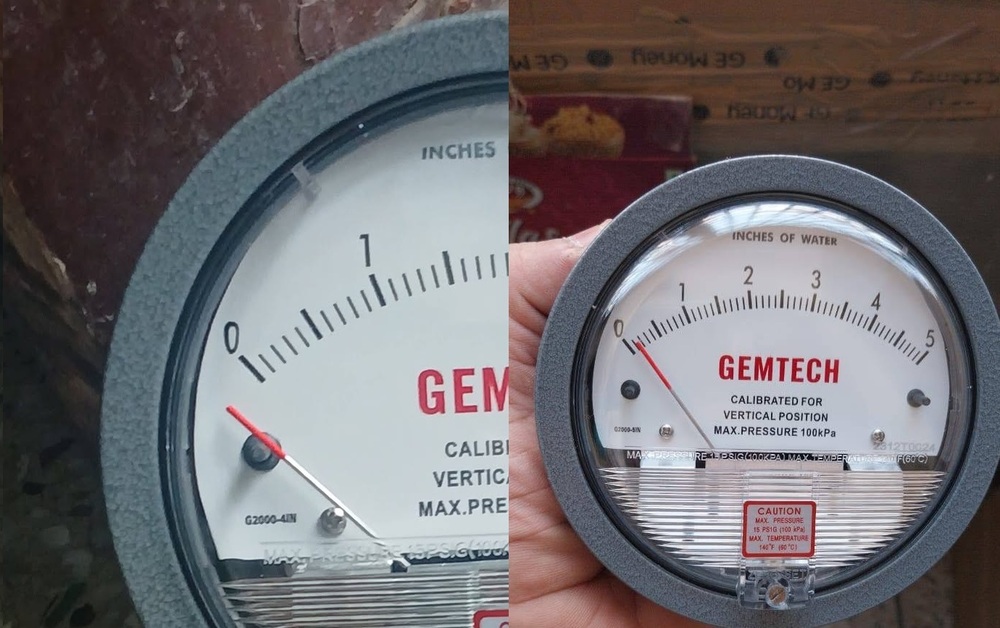

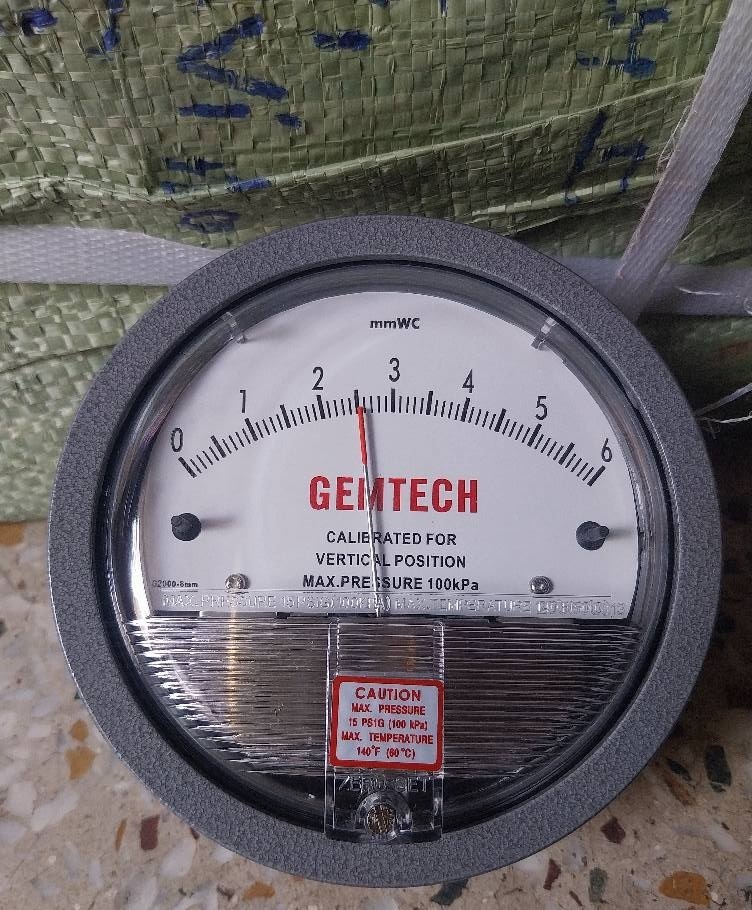

We Offer High-Quality GEMTECH Differential Pressure Gauges For Accurate And Reliable Pressure Measurement In Industrial Applications. These Gauges Are Suitable For HVAC Systems,Cleanrooms,Air Handling Units,HEPA Filters,Pre-Filters,Ventilation Systems,Pharmaceutical Industries,Laboratories,And Industrial Process Equipment.

Our GEMTECH Differential Pressure Gauges Help Monitor Pressure Differences Across Air Filters,Ducts,And Ventilation Systems,Supporting Efficient Operation And Timely Filter Maintenance.

SPECIFICATION

• Ambient Temperature -   -21 ~140 -6 ~60

• Rated Pressure -20 inHg~30 inHg (-68~103KPa)

• Overpressure - Protective Rubber Stopper Will Be Blown Out If Rated Pressure Is Up To About 50.8 inHg (172KPa)

• Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy - ±2% of full span at 70 (21 (±3% on -0, and ±4% on -00)

• Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.)

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge.
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics.
• There Are 81 Types Of Ranges.
• Minimum is 0-60 Pa And Maximum is 0-21-KPa

Applications: HVAC Systems,Cleanrooms,AHUs,HEPA Filters,Air Filters, Dust Collectors,Pharmaceutical Industries,Laboratories,and Industrial Air Pressure Monitoring.

Quality Products Since 1995 | Reliable Performance | Accurate Pressure Measurement | Industrial Applications
MODELS & ORDERING
GEMTECH By  Model Number Popularity
FILTER BY

• Range - MM Of Water
