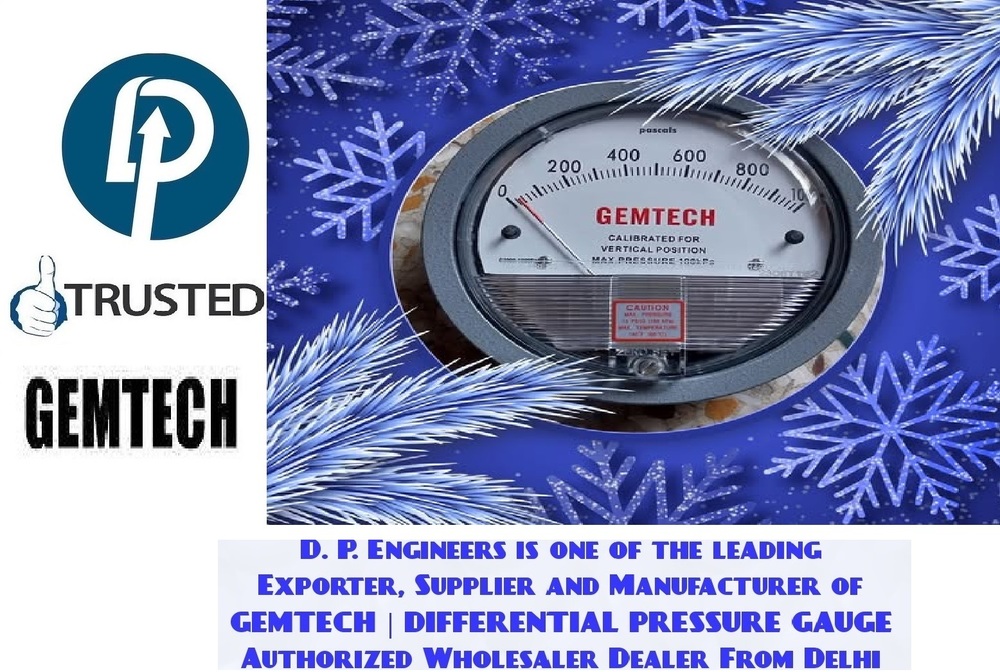

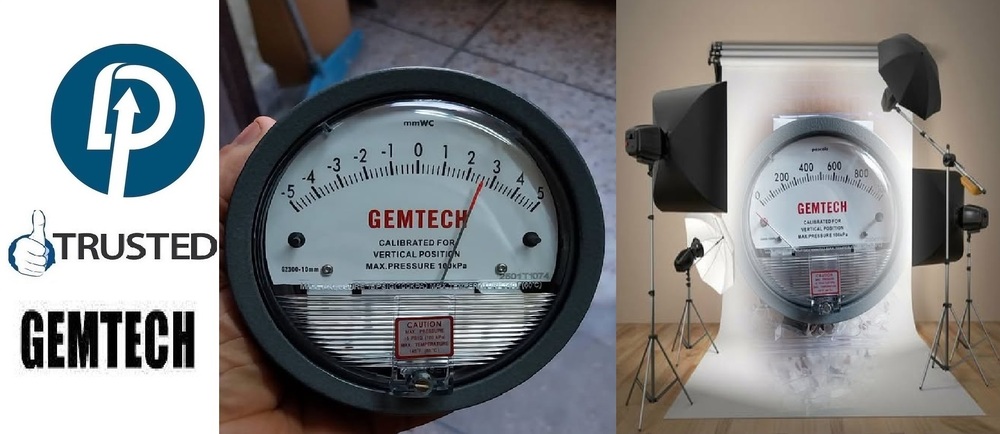

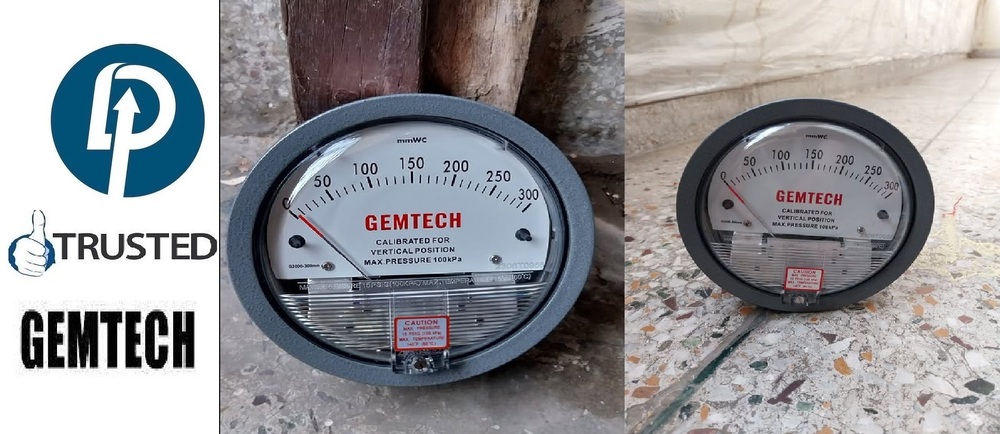

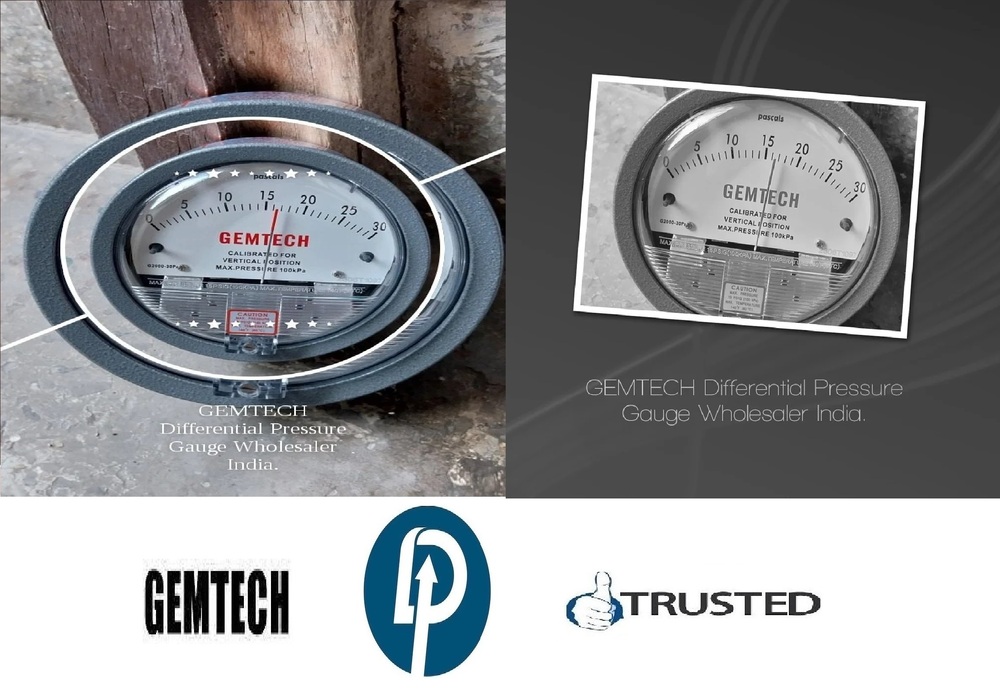

GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch

Send Inquiry

Request To Call Back

GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch

Price 8500 INR/ Piece

Get a Price/Quote

MOQ : 12 Pieces

GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch Specification

Display
Analog

Usage
pharmaceutical,Hotel,Malls,Hospital,OT,POWER PLANT,CEMENT PLANT,STEEL PLANT,FERTILIZER,TEXTILE,Pharmaceutical Manufacture,Food And Beverages Industry,Pulp And Paper Industry,Textile Industry

Material
Stainless Steel

Dial Material
Plastic

Size
4 inch / 100 mm

Pointer Material
Aluminum

Processing Type
Standard

Diameter
4 inch / 100 Millimeter (mm)

Product Type
GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch

Weight
550 Grams (g)

Mount Type
Back

Color
Black

Scale Range
MM WC/ CM / PAC / KPA / INCH / PSI

Accuracy
2% of full span at 70 (21 (3% on -0,and 4% on -00 %

GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch Trade Information

Minimum Order Quantity
12 Pieces

FOB Port
Delhi

Payment Terms
Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD), Cash Advance (CA)

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

Main Export Market(s)
Middle East, Asia

Main Domestic Market
All India

About GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch

Gemtech G2000-20 Inch Differential Pressure Gauge 0-20 Inch W.C

GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch
Series G2000,GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine,resistance of filter, wind speed, furnace pressure,differential pressure of pore plate,the pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System.Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely. The Key Components Adopt Import Materials.SPECIFICATION

Ambient Temperature - -21 140 -6 60

Rated Pressure -20 inHg30 inHg (-68103KPa)

Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa).

Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

Accuracy - 2% of full span at 70(21(3% on -0, and 4% on -00)

Range -20 inHg38 inHg (-68KPa130KPa)(Special Specification also can be ordered.)

FEATURES

OEM/ODM
There Is No Need To Fill Liquid To Gauge.
The Gauge Can Measure Positive Pressure, Negative Pressure And Differential Pressure.
It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
Exact And Stable Fixed Position Of Needle.
The Gauge Has Great Antiknock Characteristics.
There Are 81 Types Of Ranges. Minimum is 0-60 Pa And Maximum is 0-21-KPa.

GEMTECH G2020 Differential pressure Gauges 0-20 inch at 4508 | Differential Pressure Indicator in New Delhi | ID: 2850447031773

MODELS & ORDERINGRange - Inches of Water

G2000-0-Range 0-0.50" w.c.,minor divisions .01,calibrated for vertical scale position.
G2000-00-Range 0-0.25" w.c., minor divisions .005,calibrated for vertical scale position.
G2000-00N-Range .05-0-.2" w.c., minor divisions .005, calibrated for vertical scale position.
G2001-Range 0-1.0" w.c., minor divisions .02.
G2002-Range 0-2.0" w.c., minor divisions .05.
G2003-Range 0-3.0" w.c., minor divisions .10.
G2004-Range 0-4.0" w.c., minor divisions .10.
G2005-Range 0-5.0" w.c., minor divisions .10.
G2006-Range 0-6.0" w.c., minor divisions .20.
G2008-Range 0-8.0" w.c., minor divisions .20.
G2010-Range 0-10" w.c., minor divisions .20.
G2015-Range 0-15" w.c., minor divisions .50.
G2020-Range 0-20" w.c., minor divisions .50.
G2025-Range 0-25" w.c., minor divisions .50.
G2030-Range 0-30" w.c., minor divisions 1.0.
G2040-Range 0-40" w.c., minor divisions 1.0.
G2050-Range 0-50" w.c., minor divisions 1.0.
G2060-Range 0-60" w.c., minor divisions 2.0.
G2080-Range 0-80" w.c., minor divisions 2.0.
G2100-Range 0-100" w.c., minor divisions 2.0.
G2150-Range 0-150" w.c., minor divisions 5.0.

Precision Engineering for Industrial Needs

The GEMTECH G2020 Differential Pressure Gauge is meticulously engineered for demanding environments including chemical plants, food industries, and power stations. Its stainless steel construction ensures resilience against harsh conditions, and the 4-inch dial allows technicians to easily monitor system pressures. The gauge is suitable for both back mounting and panel installations, making it highly versatile for various industries across India and abroad.

Versatile Measurement Range and Compatibility

This differential pressure gauge measures a broad range from 0 to 20 inches, supporting multiple unit displays-MM WC, CM, KPA, PSI, and more. Its versatile design means you can use it to monitor steam, oil, or gas, ensuring systems remain safe and efficient. The combination of accuracy and adaptability makes the GEMTECH G2020 ideal for sectors such as textiles, cement, steel, and pharmaceuticals.

FAQ's of GEMTECH G2020 Differential Pressure Gauges Range 0-20 Inch:

Q: How is the GEMTECH G2020 Differential Pressure Gauge installed?

A: The GEMTECH G2020 gauge is designed for back mounting, which enables secure attachment to control panels or flat surfaces commonly found in industrial settings. Detailed installation instructions are typically supplied by the manufacturer to ensure correct setup.

Q: What types of media can this differential pressure gauge measure?

A: This gauge is compatible with steam, oil, and gas, making it suitable for a variety of processing and utility systems in industries like power generation, food manufacturing, and hospital operations.

Q: When should this gauge be used in process industries?

A: Use this gauge whenever you need to monitor pressure differences across filters, pumps, or other equipment. It's especially important for maintaining efficiency and safety in systems where fluid or gas flow must be accurately regulated.

Q: Where is the GEMTECH G2020 commonly used?

A: You'll find this gauge in locations such as pharmaceutical plants, hospitals, hotels, textile factories, cement and steel plants, and food and beverage processing units. Its robust build and adaptability make it valuable in both clean and rugged environments.

Q: What benefits does this differential pressure gauge offer?

A: The GEMTECH G2020 provides accurate, real-time pressure readings to help prevent equipment failure and ensure operational safety. Its stainless steel construction ensures durability, and the clear analog display and multiple scale ranges make it user-friendly in various industrial contexts.

Q: How accurate is the GEMTECH G2020 gauge?

A: At 70F (21C), the gauge provides an accuracy of 2% of the full span. It remains reliable under standard operating conditions, ensuring you have the precise information needed to maintain safe operations.
