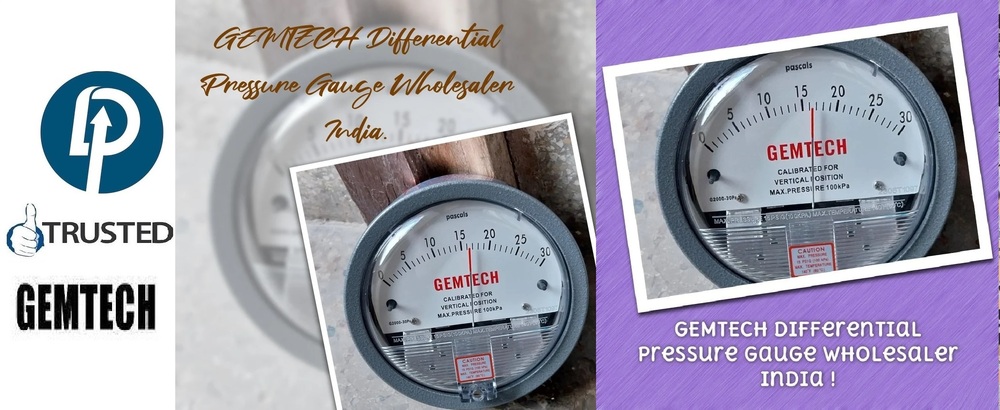

GEMTECH Differential PRESSURE GAUGE FROM Atika Industrial Area Rajkot Gujarat

About GEMTECH Differential PRESSURE GAUGE FROM Atika Industrial Area Rajkot Gujarat

GEMTECH Differential PRESSURE GAUGE FROM Atika Industrial Area Rajkot Gujarat

Series G2000, GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of filter, wind speed, furnace pressure, differential pressure of pore plate, the pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System. Meantime, They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely. The Key Components Adopt Import Materials.
SPECIFICATION

• Ambient Temperature -   -21 ~140 -6 ~60

• Rated Pressure -20 inHg~30 inHg (-68~103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa).

• Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy - A2% of full span at 70(21(A3% on -0, and A4% on -00)

• Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.)

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge.
• The Gauge Can Measure Positive Pressure, Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics.
• There Are 81 Types Of Ranges. Minimum is 0-60 Pa And Maximum is 0-21-KPa.

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct, Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By  Model Number Popularity

Model	Description
G2300-0	Differential Pressure Gage, Range 0.25-0-0.25" w.c., Minor Divisions .01, Calibrated For Vertical Scale Position.
G2301	Differential Pressure Gage, Range 0.5-0-0.5" w.c., Minor Divisions .02.
G2302	Differential Pressure Gage, Range 1-0-1" w.c., Minor Divisions .05.
G2304	Differential Pressure Gage, Range 2-0-2" w.c., Minor Divisions .10.
G2310	Differential Pressure Gage, Range 5-0-5" w.c., Minor Divisions .20.
G2320	Differential Pressure Gage, Range 10-0-10" w.c., Minor Divisions .50.
G2330	Differential Pressure Gage, Range 15-0-15" w.c., Minor Divisions 1.0.

Versatile Pressure Measurement

This GEMTECH Differential Pressure Gauge is engineered to accurately assess pressure differences in diverse settings-from industrial power plants and cement manufacturing to sensitive environments like hospitals and OT rooms. Its broad compatibility with steam, oil, and gas makes it a go-to choice for many sectors needing precise pressure monitoring.


Durability and Robust Design

With its solid metal alloy construction and selection of finishes (antique, polished, galvanized, matte), this gauge withstands harsh environments. The aluminum pointer and sturdy plastic dial contribute to long-term reliability, while the 4-inch display ensures visibility and clarity, even under demanding conditions.


Ease of Operation and Accurate Readings

The analog display provides straightforward pressure readings, and the back mount type facilitates effortless installation. With an accuracy of 2% at standard conditions, this gauge consistently delivers dependable data necessary for safe and efficient process management in pharmaceuticals, food and beverage, textile, and more.
