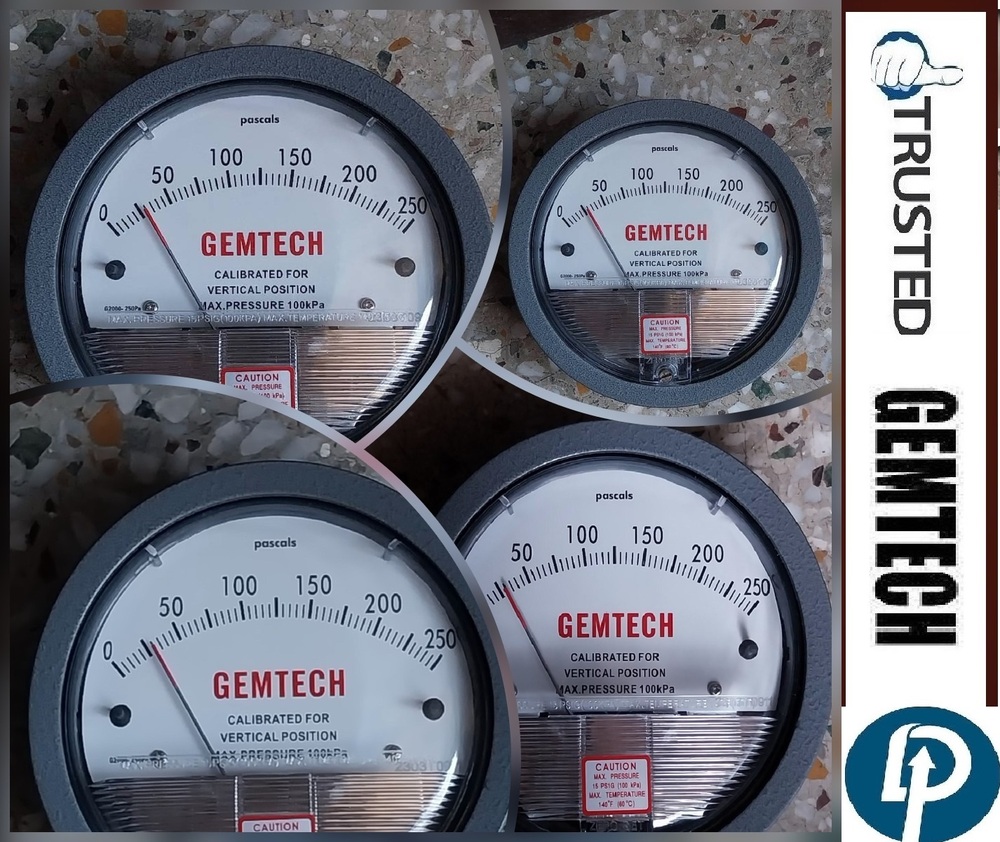

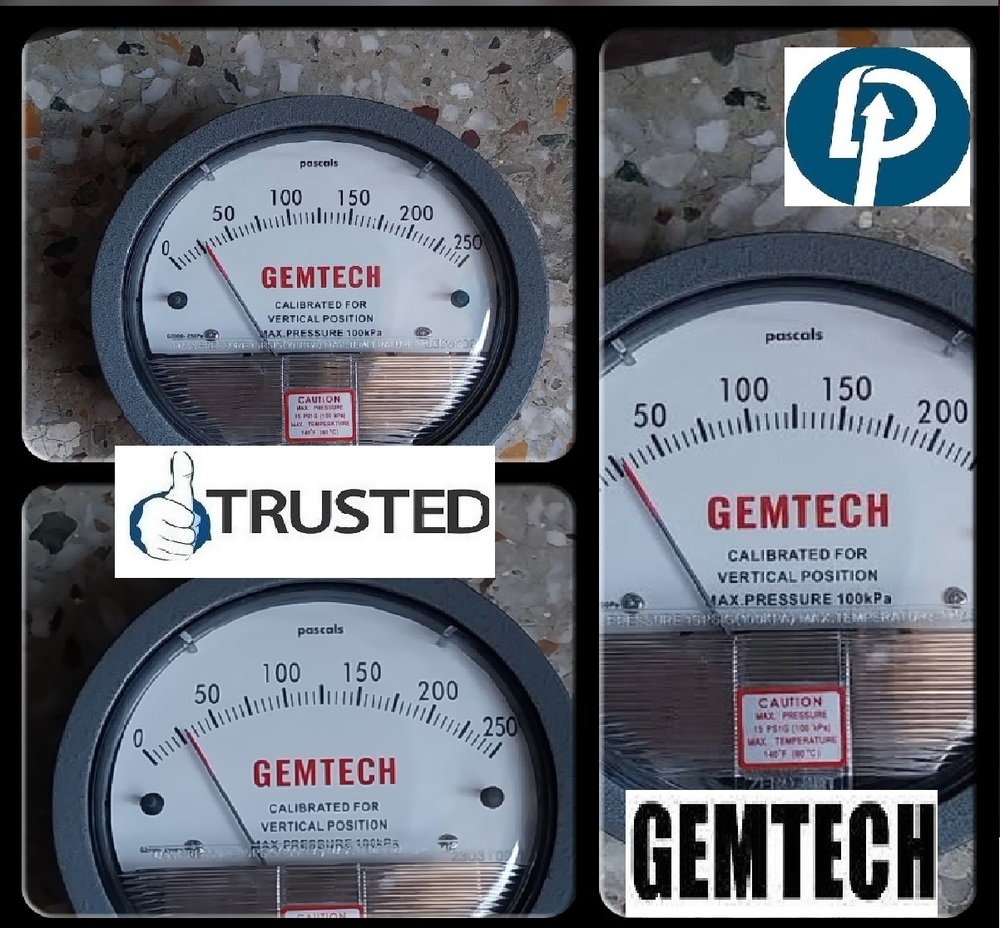

GEMTECH DIFFERENTIAL PRESSURE GAUGE By RICE DESTONER MACHINES

About GEMTECH DIFFERENTIAL PRESSURE GAUGE By RICE DESTONER MACHINES

GEMTECH DIFFERENTIAL PRESSURE GAUGE By RICE DESTONER MACHINES
Series G2000 GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of Filter, Wind Speed, Furnace Pressure, Differential Pressure Of Pore Plate,The Pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System. Meantime,They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materials.
SPECIFICATION

• Ambient Temperature -   -21 ~140 -6 ~60

• Rated Pressure -20 inHg~30 inHg (-68~103KPa)

• Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa)

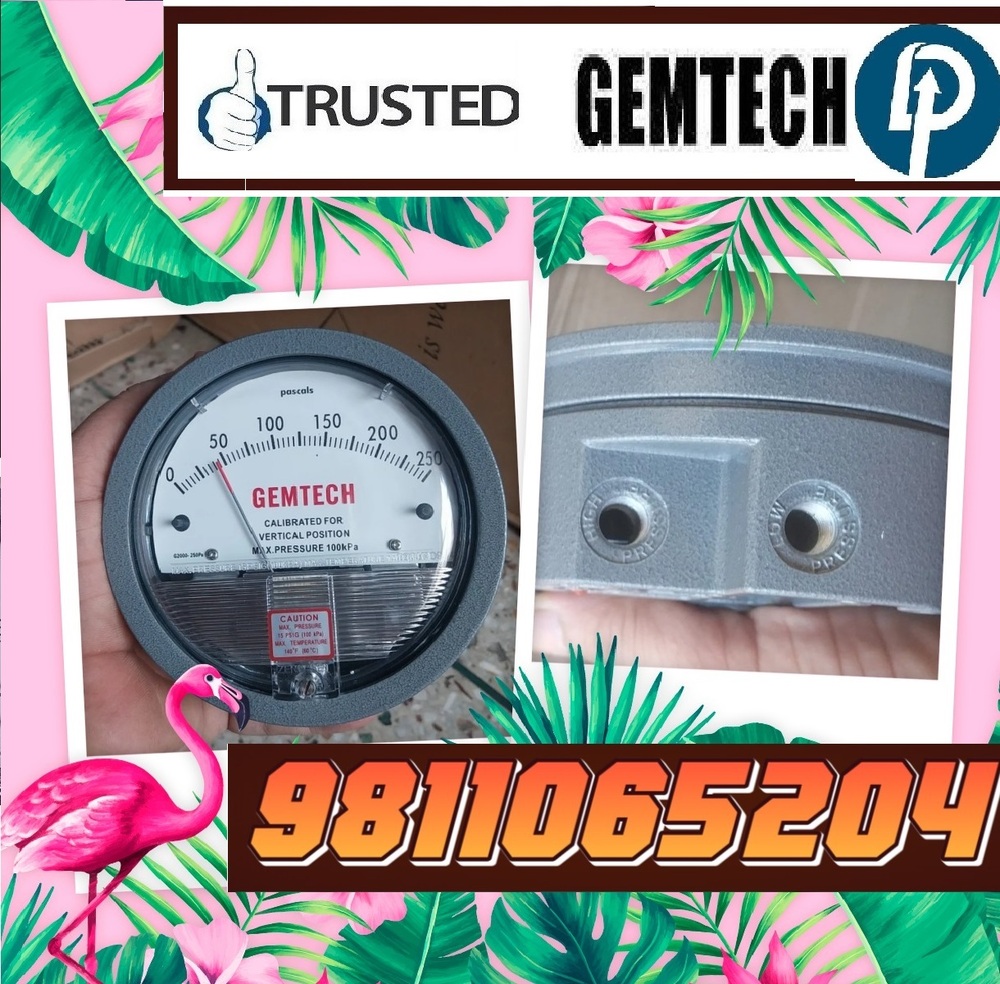

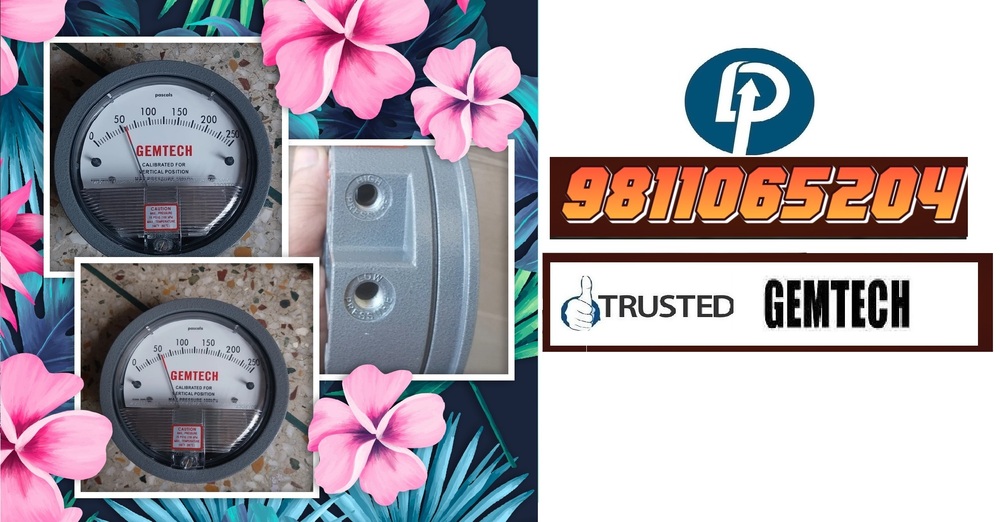

• Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back

• Housing - Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test

• Accuracy - A2% of full span at 70 (21 (A3% on -0, and A4% on -00)

• Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.)

FEATURES

• OEM/ODM
• There Is No Need To Fill Liquid To Gauge.
• The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
• It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
• To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
• Exact And Stable Fixed Position Of Needle.
• The Gauge Has Great Antiknock Characteristics.
• There Are 81 Types Of Ranges.Minimum is 0-60 Pa And Maximum is 0-21-KPa

PRODUCT APPLICATIONS

• Filter Monitoring
• Air Velocity With Pitot Tube
• Blower Vacuum Monitoring
• Fan Pressure Indication
• Duct,Room or Building Pressures
• Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By  Model Number Popularity

• FILTER BY
• Range - MM Of Water

Model	Description
G2000-100MM	DPG,Range 0-100 MM W.C., Minor Divisions 2.0.
G2000-10MM	DPG,Range 0-10 MM W.C.,Minor Divisions .20,Calibrated For Vertical Scale Position.
G2000-150MM	DPG,Range 0-150 MM W.C.
G2000-15MM	DPG,Range 0-15 MM W.C.
G2000-200MM	DPG,Range 0-200 MM W.C.
G2000-250MM	DPG,Range 0-250 MM W.C.
G2000-25MM	DPG,Range 0-25 MM W.C. Minor Divisions .50.
G2000-300MM	DPG,Range 0-300 MM W.C.
G2000-50MM	DPG,Range 0-50 MM W.C., Minor Divisions 1.0.
G2000-6MM	DPG,Range 0-6 MM W.C., Minor Divisions .20, Calibrated For Vertical Scale Position.
G2000-80MM	DPG,Range 0-80 MM W.C., Minor Divisions 2.0.

Precision and Reliability Across Industries

This 4-inch GEMTECH Differential Pressure Gauge is engineered for high accuracy in demanding environments. Its construction from high-quality metal alloy and specialized finishes ensures a long operational lifespan, making it a preferred choice for pharmaceutical, chemical, power, and food processing sectors. The device efficiently monitors steam and gas systems, safeguarding critical processes in various industry settings.


Versatile Design and Streamlined Operation

Outfitted with dual thread connections and multiple mounting options, this gauge can be seamlessly integrated into new or existing systems. The analog dial, protected by a tough plastic cover and guided by an aluminum pointer, allows for clear and rapid readings. Users benefit from scale versatility, with readings possible in MM WC, CM, PAC, KPA, Inch, PSI, and Mbar.
